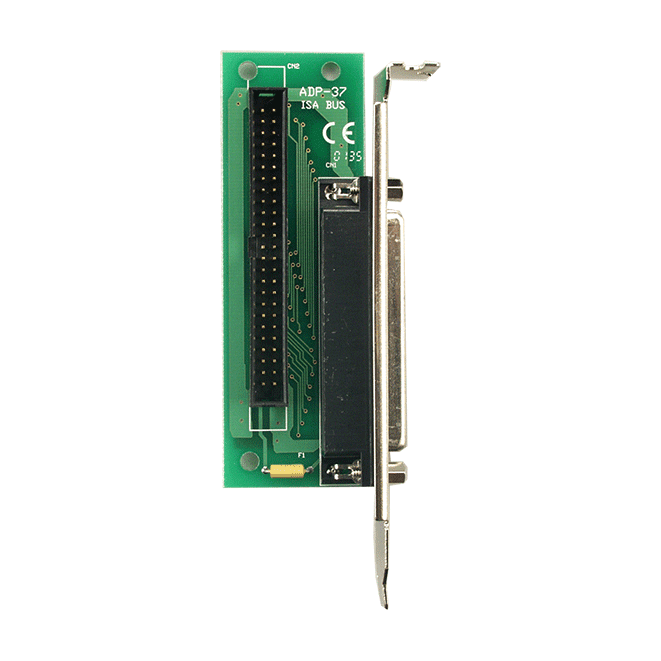

ADP-37 50-pin Opto-22 to DB-37 Adapter, ISA Card Daughter Board
Converts a 50-pin Opto-22 connector to a female DB-37 connector for ISA DAQ cards. Supplied with a 20 cm, 50-pin CA-5002 flat cable.
- Routes a 50-pin Opto-22 header to a female DB-37 connector
- Includes CA-5002 50-pin flat cable, 20 cm
- Compact board measuring 114 mm x 102 mm
- Operating temperature 0~ +60 °C
- Storage temperature -30 ~ +80 °C
- Humidity 10% ~ 90%, no condensing
201,80 kr. pr. stk.
| 1–9 stk. | 201,80 kr. | |
|---|---|---|
| 10–30 stk. | 194,33 kr. | −4 % |
| 31+ stk. | 194,33 kr. | −4 % |
Produktinformation "ADP-37 50-pin Opto-22 to DB-37 Adapter, ISA Card Daughter Board"
The ADP-37 CR is a connector extender that brings a 50-pin Opto-22 header out to a female DB-37 connector, giving engineers a practical way to wire Opto-22 signals to an ISA data acquisition card.
The kit includes a 20 cm, 50-pin CA-5002 flat cable, so the board can be connected straight away. Its compact 114 mm x 102 mm footprint suits tight enclosures and benchtop setups.
Compliant with RoHS and WEEE, the ADP-37 CR is rated for an operating temperature of 0~ +60 °C and storage of -30 ~ +80 °C, with 10% ~ 90% humidity, non-condensing.
Applications
- Wiring Opto-22 signals to a DB-37 connector on an ISA card
| Product type: | Daughter board |
|---|---|
| Interface: | 50-pin Opto-22 to DB-37 |
| Operating temperature: | 0~ +60 °C |
Specifikationer
| Mechanical | |
|---|---|
| Dimensions (mm) | 114 mm x 102 mm |
| Environment | |
| Operating Temperature | 0~ +60 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10% ~ 90%, no condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
