Win-GRAF PACs (Soft PLC)

The RPAC-2658M is a Linux-based programmable automation controller running embedded Win-GRAF SoftLogic, so control programs can be written in the IEC 61131-3 languages on a 1 GHz quad-core Cortex-A9 platform. Its real-time core architecture suits control work that needs predictable timing.Connectivity centres on three 10/100/1000M Ethernet ports, four serial ports (RS-232/485/422, with three of them 2500 VDC isolated) and two USB 2.0 host ports. Modbus TCP and Modbus RTU, DCON and OPC UA are supported, along with user-defined protocols.For systems where downtime is unacceptable, the unit supports a dual PAC redundant configuration in which a backup controller takes over if the main controller fails. Typical deployments include smart factories, energy management and building automation.ApplicationsRedundancyI/O applicationsModbus TCP I/OModbus RTU I/ODCON I/OSmart factoriesEnergy managementBuilding automation

The WP-5238-CE7 CR is a Win-GRAF based programmable automation controller that combines soft PLC logic with a Windows CE 7.0 environment. Its Cortex-A8 processor runs at 1.0 GHz, and the unit is suited to engineers who need IEC 61131-3 control logic alongside PC-style displays and data management on one DIN-rail device.Running Windows CE provides hard real-time capability for deterministic control. Logic is developed in embedded Win-GRAF SoftLogic, while HMI and data management applications can be written in Visual Studio 2008 using VB .NET or C# and can exchange data with the Win-GRAF logic.Connectivity includes one 10/100/1000M Ethernet port, four serial ports (two RS-232 and two RS-485, one of the RS-485 ports 2500 VDC isolated), and one USB 2.0 port. An XV-board I/O expansion bus is available for high-protection I/O, and the microSD slot can store application programs, image files and data.ApplicationsLogic control applications developed in Win-GRAF IEC 61131-3 softwareHMI and data management applications developed in Visual Studio 2008Systems requiring deterministic control with PC-like window displaysData logging and file access on a PAC with microSD storage

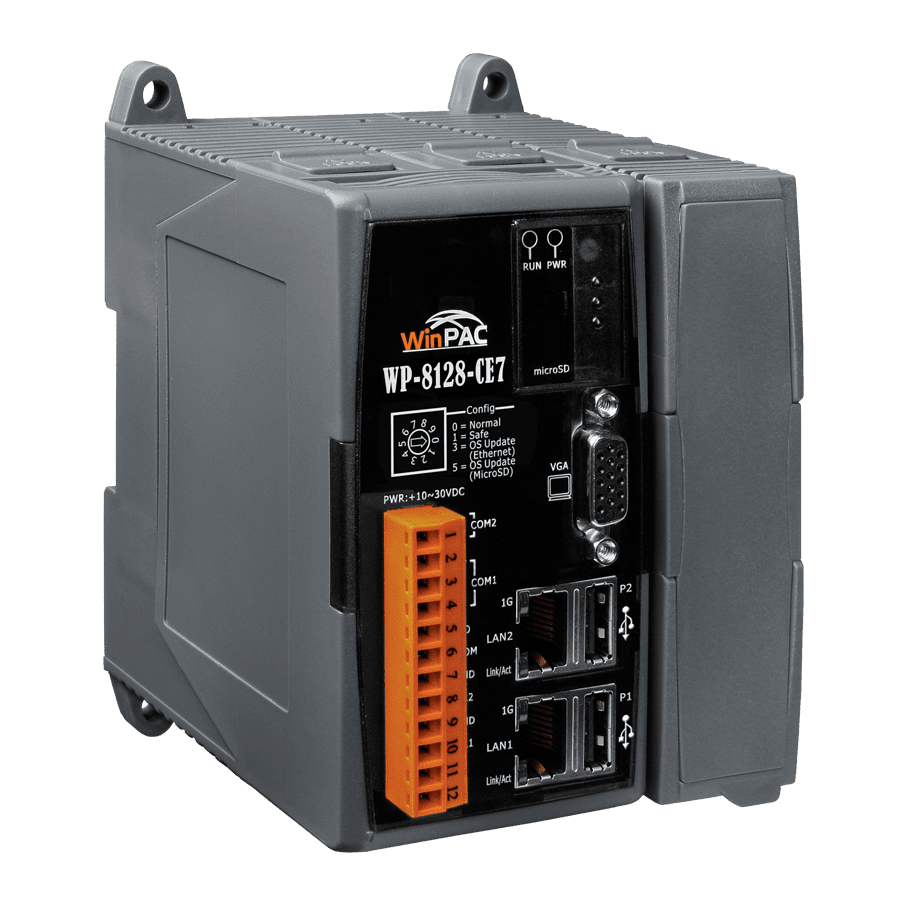

The WP-8128-CE7 CR is the single-slot member of the WinPAC-8000-CE7 family, combining a 1.0 GHz Cortex-A8 controller with Windows CE 7.0 and an embedded Win-GRAF SoftLogic runtime. It suits engineers who want IEC 61131-3 control logic running on a PC-style platform, with one expansion slot for I-8K (parallel) or I-87K (serial) I/O modules.Windows CE 7.0 supports hard real-time operation and deterministic control, and the unit offers a PC-like display and operating environment. Its VGA output, dual Ethernet ports, RS-232 and isolated RS-485 ports, and two USB 2.0 ports allow local visualisation and multiple communication links. Modbus RTU/TCP, OPC UA and DCON are supported.The housing is plastic and the unit mounts on a DIN rail or wall. It draws 7.3 W, accepts +10 ~ 30 VDC with redundant power inputs, and is rated for -25 ~ +75 °C operation. Dimensions are 95 x 132 x 111 mm (W x L x H).ApplicationsLogic control and automation tasks using IEC 61131-3 programmingLocal HMI display via VGA output with eLogger HMIData logging and file accessModbus-based communication with field devices and supervisory systems

WP-8428-CE7 is a Win-GRAF programmable automation controller built on Windows CE 7.0, with a 1.0 GHz Cortex-A8 processor and a rugged plastic casing. It runs Embedded Win-GRAF SoftLogic programmed to IEC 61131-3, so control logic can be developed in a standard PLC environment and deployed on a PC-like operating system.The controller provides four expansion slots for I-8K (parallel-type) and I-87K (serial-type) I/O modules. Its hard real-time capability supports deterministic control, and the built-in dual watchdog timer adds a further level of supervision. Communication options include OPC UA, Modbus RTU/TCP master and slave, and Modbus ASCII master, together with DCON and user-defined protocols.Engineers can build HMI and data management applications on the VGA output, using the eLogger HMI function, the embedded SQL server and the FTP and web servers. The CR ordering suffix identifies this 4-slot variant; the 1-slot WP-8128-CE7 and 8-slot WP-8828-CE7 are the other members of the series.ApplicationsLogic control applications developed to IEC 61131-3HMI and data management applicationsData logging and file accessModular I/O expansion for automation tasks

The WP-8828-CE7 CR is the eight-slot model in the Win-GRAF WinPAC-8000-CE7 range from ICP DAS. It pairs a 1.0 GHz Cortex-A8 controller with Windows CE 7.0 and an embedded Win-GRAF SoftLogic runtime. Its eight expansion slots accept I-8K (parallel-type) and I-87K (serial-type) I/O modules, so the controller can be configured for larger I/O counts than the one- or four-slot variants.Windows CE 7.0 provides hard real-time capability and deterministic control, with a PC-like display and operating environment. Control logic is developed in Win-GRAF following IEC 61131-3, while HMI and data management applications can be written in VB .NET or C# and exchange data with the Win-GRAF logic.Communication options include an OPC UA server, Modbus TCP/IP and Modbus RTU master and slave, and DCON protocols. Two RJ-45 10/100/1000 Base-TX ports, one RS-232 port and one RS-485 port (3000 VDC isolated) are fitted, alongside two USB 2.0 ports, a VGA output and redundant power inputs.ApplicationsLogic control applications developed in Win-GRAF (IEC 61131-3)HMI and data management applications developed in VB .NET or C#Automation tasks requiring expandable I/O with I-8K and I-87K modules

The WP-9228-CE7 CR is a Win-GRAF based programmable automation controller that combines soft PLC logic with a Windows CE 7.0 runtime. Its 1.0 GHz Cortex-A8 processor, 512 MB DDR3 SDRAM and 256 MB Flash suit engineers who want deterministic control alongside a PC-style display and development environment.Logic is built with the embedded Win-GRAF SoftLogic environment following IEC 61131-3. HMI and data management software can be written in MS Visual Studio 2008 (VB .NET or C#) and exchange data with the Win-GRAF application. The VGA output and eLogger HMI function support local operator screens.This 2-slot version takes two high-performance I-9K (parallel) or I-97K (serial) I/O modules, with the metal casing offering a compact footprint of 239 x 133 x 164 mm (W x L x H). Choose the 4-slot WP-9428-CE7 CR or 8-slot WP-9828-CE7 CR where more expansion is needed.ApplicationsLogic control applications using IEC 61131-3 programmingHMI and data management applicationsExpandable remote and local I/O control with I-9K and I-97K modules

The WP-9428-CE7 CR is a 4-slot programmable automation controller built around a 1.0 GHz Cortex-A8 processor and Windows CE 7.0. Control logic is developed in the embedded Win-GRAF SoftLogic environment following IEC 61131-3, while VB .NET or C# HMI and data management applications can exchange data with that logic.Four slots accept High Profile I-9K (parallel-type) and I-97K (serial-type) I/O modules. Connectivity includes two RJ-45 10/100/1000 Base-TX Ethernet ports, one RS-232 and one RS-485 port, two RS-232/485 ports with 3000 VDC isolation, and two USB 2.0 ports. Modbus RTU/TCP master and slave and an OPC UA server are supported, and a VGA output drives 800 x 600 or 1024 x 768 displays.Power is supplied at +10 ~ 30 VDC with redundant power inputs and 1 kV isolation, with typical consumption of 16.8 W (0.7 A @ 24 VDC). The metal enclosure is specified for -25 ~ +75°C operation and mounts on DIN-rail or wall. This code is the 4-slot model; the 2-slot WP-9228-CE7 CR and 8-slot WP-9828-CE7 CR share the same platform.ApplicationsLogic control applications developed in IEC 61131-3 Win-GRAFHMI and data management applications on a Windows CE platformData logging and file access with I/O expansionSerial and Ethernet device communication over Modbus and OPC UA

The WP-9828-CE7 is an 8-slot programmable automation controller that combines embedded Win-GRAF SoftLogic (IEC 61131-3) with a Windows CE 7.0 operating environment. It suits engineers who want logic control, HMI and data handling on one controller, with a VGA output for a local display and a wide choice of serial, Ethernet and USB ports.The unit is built around a 1.0 GHz Cortex-A8 processor with 512 MB DDR3 SDRAM and 256 MB of flash, and it provides eight expansion slots for high profile I-9K and I-97K I/O modules. Logic can be developed in Win-GRAF, while HMI and data management applications can be written in VB .NET or C# using MS Visual Studio 2008 and exchange data with the Win-GRAF programs.Communication covers Modbus RTU and TCP in master and slave roles, Modbus ASCII master, OPC UA server and DCON. Redundant power inputs of +10 ~ 30 VDC with 1 kV isolation support resilient installations. The metal housing mounts on DIN-rail or by wall mounting, and the unit operates from -25 ~ +75°C.ApplicationsLogic control applications developed in Win-GRAF IEC 61131-3 softwareHMI and data management applications written in VB .NET or C#Local operator display through the VGA outputData logging and file access with the embedded SQL server and FTP server

Standalone Win-GRAF controller for logic-led automation. The XP-8038-CE6 is the 0-slot member of the Win-GRAF XPAC-8000-CE6 range. It combines a 1.0 GHz dual-core x86 CPU with Windows CE 6.0 and the embedded Win-GRAF SoftLogic environment, which is programmed to IEC 61131-3. Because it has no I/O expansion slots, it suits applications where control logic, communication and HMI functions are needed without local parallel or serial I/O modules.The controller supports hard real-time operation and deterministic control, and it provides a VGA output for a local display. Communication options include Modbus RTU and Modbus TCP in both master and slave roles, OPC UA server functionality, and DCON and user-defined protocols over its serial ports. Redundant power inputs and support for a dual-PAC redundant system are available for higher-availability installations.Four USB 2.0 ports, two 10/100/1000 Base-TX Ethernet ports and several RS-232 and RS-485 ports allow the unit to connect to peripherals and networks. It is rated for an operating temperature of -25 ~ +75°C and can be mounted on a DIN rail or on a wall.ApplicationsLogic control applications developed in Win-GRAFHMI and data management applications that exchange data with Win-GRAF programsSystems requiring redundant power or a dual-PAC redundant configuration

The XP-8138-CE6 CR is a soft PLC controller that combines IEC 61131-3 logic control with a PC-style operating environment. Its dual-core x86 CPU runs Windows CE 6.0 and supports hard real-time operation, so engineers can build deterministic control applications on a compact DIN-rail or wall-mounted platform.This 1-slot variant adds a single I/O expansion slot to the base unit, allowing one parallel or serial I/O module to be fitted alongside the on-board VGA, USB, Ethernet and serial ports. Embedded Win-GRAF SoftLogic handles the control logic, while the Modbus RTU/TCP master and slave functions and the OPC UA server support integration with other devices and systems.Redundant power inputs and support for a dual-PAC redundant system help to improve availability in demanding installations. The unit also provides an eLogger HMI function and a VGA display output for local visualisation.Win-GRAF PAC with 1.0 GHz dual-core x86 CPUWindows CE 6.0 with hard real-time capabilityEmbedded Win-GRAF SoftLogic programmed to IEC 61131-3Modbus RTU/TCP master and slave, Modbus ASCII master, OPC UA serverOne I/O expansion slot for high-profile I-8K or I-87K modulesRedundant power inputs and dual-PAC redundant system supportApplicationsLogic control applications developed in Win-GRAFHMI and data management applications using Visual Studio .NETRedundant control systems

The XP-8338-CE6 CR is a Win-GRAF programmable automation controller that runs Windows CE 6.0 on a 1.0 GHz dual-core x86 CPU. Its embedded Win-GRAF SoftLogic environment is programmed to IEC 61131-3, so control logic can be developed in a familiar standard while the controller provides hard real-time capability and a PC-like display and operating environment.This 3-slot variant accepts up to three expansion modules, either high-profile I-8K parallel I/O or I-87K serial I/O modules. The VGA output, 4 x USB 2.0 ports, two 10/100/1000 Base-TX Ethernet ports and a mix of RS-232 and RS-485 serial ports allow it to connect local displays, field devices and supervisory systems. Choose the XP-8338-CE6 when you need more I/O capacity than the 0- or 1-slot models but do not need the 7-slot XP-8738-CE6.Communication options include Modbus RTU/TCP (master and slave), Modbus ASCII master and an OPC UA server. The controller supports redundant power inputs and a Dual-PAC redundant system configuration, and includes eLogger HMI functionality for local operator screens.ApplicationsLogic control applications using IEC 61131-3 programmingLocal HMI and data management applicationsRedundant PAC system configurationsIntegration of I-8K and I-87K I/O modules

The XP-8738-CE6 is a soft PLC controller from the Win-GRAF XPAC-8000-CE6 series. It combines a 1.0 GHz dual-core x86 CPU with Windows CE 6.0, so logic control runs alongside a PC-style display and operating environment. The seven I/O expansion slots accept high-profile I-8K parallel modules or I-87K serial modules, which makes this 7-slot model suited to larger, mixed I/O configurations.Control logic is written in the embedded Win-GRAF SoftLogic environment, which follows the IEC 61131-3 standard. Windows CE 6.0 gives hard real-time capability for deterministic control. HMI and data management applications can be built with Visual Studio 2008 (VB .NET or C#) and exchange data with the Win-GRAF logic. A VGA output drives a local display at resolutions up to 1024 × 768.The controller provides two 10/100/1000 Base-TX Ethernet ports, several RS-232 and RS-485 serial ports, four USB 2.0 ports and dual redundant power inputs. Redundancy features include support for a dual-PAC redundant system. The unit is rated for -25 ~ +75°C operation and is listed as RoHS compliant. It mounts on DIN-rail or by wall mounting.ApplicationsLogic control applications developed in Win-GRAFHMI and data management applicationsRedundant control systems using a dual-PAC configurationIndustrial control with expandable I/O

The XP-9188-IoT CR is the 1-slot member of the Win-GRAF XP-9000-IoT series, a PAC that runs Windows 10 IoT Enterprise (64-bit) with an embedded Win-GRAF SoftLogic runtime programmed to IEC 61131-3. Control logic, operator screens and data handling share one metal housing, which suits projects where a separate PLC, HMI PC and gateway would otherwise be needed.Connectivity includes two RJ-45 10/100/1000 Base-TX Ethernet ports, four USB 2.0 ports, VGA and HDMI display outputs, and four COM ports (one RS-232, one RS-485 and two RS-232/RS-485), each rated 3000 VDC isolated. The single expansion slot accepts I-9K or I-97K series I/O modules. Supported protocols include OPC UA Server, Modbus TCP/IP Master/Slave, Modbus RTU Master/Slave, Modbus ASCII Master, DCON and user-defined protocols.Redundant power inputs and support for a Dual-PAC redundant system are available for applications that need added resilience. The unit operates from -25 to +60 °C and can be mounted on a DIN rail or on a wall.ApplicationsIntegrated HMI, data acquisition and control in a single unitSoft PLC control using IEC 61131-3 programming with Win-GRAFMachine and automation projects requiring local I/O expansion and serial device connectionDual-PAC redundant control systems

The XP-9388-IoT CR is a Win-GRAF PAC from the XP-9000-IoT series that brings a soft PLC, an operator interface and I/O expansion into a single metal housing. Its three slots accept I-9K and I-97K series I/O modules, so local I/O can be built up alongside the controller without a separate HMI panel.The controller runs Windows 10 IoT Enterprise (64-bit) on an Intel E3845 1.91 GHz quad-core CPU with 4 GB DDR3 SDRAM and a 64 GB SSD. Control logic is written in embedded Win-GRAF SoftLogic following IEC 61131-3, and eLogger HMI support, VGA and HDMI outputs, and a buzzer and rotary switch cover local operator tasks.Communication options include two 10/100/1000 Base-TX Ethernet ports, isolated RS-232 and RS-485 COM ports, and an OPC UA server alongside Modbus TCP/IP, Modbus RTU and Modbus ASCII. Redundant power inputs and support for a dual-PAC redundant system are available for installations that need higher availability. The unit mounts on DIN-rail or wall.ApplicationsCombined control, HMI and data acquisition in a single PACLocal and remote I/O control with I-9K, I-97K and remote expansion modulesDual-PAC redundant control systems

The XP-9788-IoT CR is the 7-slot member of the Win-GRAF XP-9000-IoT series, built around an embedded Win-GRAF SoftLogic runtime that follows IEC 61131-3. Its 64-bit quad-core Intel Atom E3845 processor at 1.91 GHz and Windows 10 IoT Enterprise (64-bit) let one unit handle control logic, HMI and data acquisition together, with local I/O expanded through seven slots.Operator visualisation is provided directly from the PAC through VGA and HDMI outputs, with eLogger HMI support. Two RJ-45 10/100/1000 Base-TX Ethernet ports, four USB 2.0 ports and four serial COM ports (RS-232 and RS-485, 3000 VDC isolated) cover communication with field devices and higher-level systems.Choose this model when you need the largest I/O capacity in the series. Compared with the 1-slot and 3-slot variants, it has a wider 422 x 164 x 133 mm (W x L x H) housing and a typical consumption of 20.4 W. It mounts on DIN-rail or wall, and its dual redundant power inputs support a Dual-PAC Redundant System.ApplicationsCombined HMI, data acquisition and control within a single PACMachine control with local I/O expansion using I-9K and I-97K modulesSystems requiring Windows-based applications alongside Win-GRAF logicRedundant PAC architectures using the Dual-PAC Redundant System feature
