Kommunikation

4GB microSD card.

The APW77BAM-EU CR is a wall-mount thin access point aimed at medium-sized businesses that need to extend an existing wireless network. It runs on 2.4 GHz and 5 GHz with IEEE 802.11a/b/g/n/ac support and can be powered from IEEE 802.3af PoE or a 12 VDC/1A supply.Operating modes include AP Only, WDS Only, WDS Hybrid, Universal Repeater and Client. Universal Repeater mode is a practical way to extend coverage by linking to other access points, which helps when building a larger wireless infrastructure.For segmented access, the unit can emulate up to 8 APs with different ESSIDs, with traffic separated by VLAN IDs. This suits separating guest and corporate wireless traffic. The access point supports up to 128 clients and the WEP, WPA, WPA2, WPA-PSK, WPA2-PSK and 802.1x security methods.ApplicationsExtending existing wireless networks in medium-sized businessesSegmenting guest and corporate wireless accessBuilding larger wireless infrastructures by linking access points

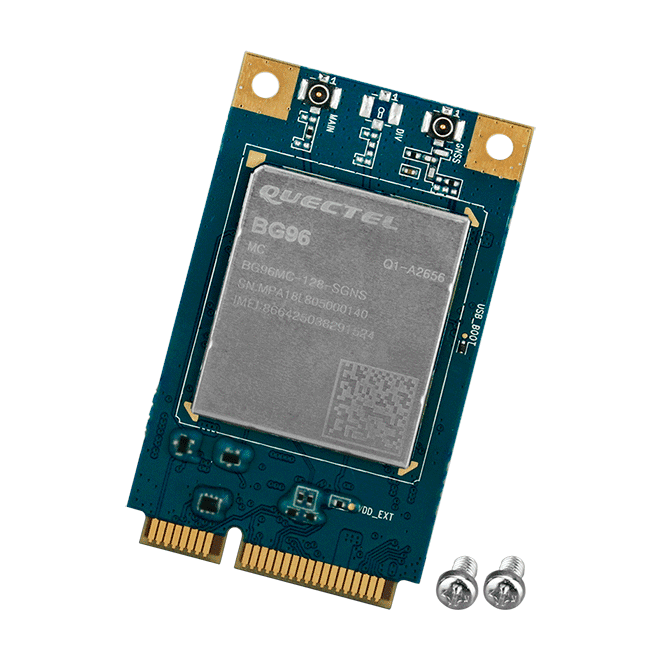

The BG96 CR is an LPWA communication module combining LTE Cat M1, LTE Cat NB1 and EGPRS in one device. It is built on the standard Mini PCI Express card format, so manufacturers can add cellular connectivity to their own designs without a custom board layout.On LTE the module supports up to 375 Kbps downlink and 375 Kbps uplink. Its global frequency band coverage spans 2G GPRS bands at 850/900/1800/1900 MHz and a broad set of FDD LTE bands, with B39 TDD available for Cat M1. Ultra-low power consumption is a key design point for battery-powered or power-constrained devices.For teams replacing an existing design, the module offers a migration route from GSM/GPRS, UMTS/HSPA and LTE modules. It operates from -35°C to +75°C and carries RED, FCC, RoHS and WEEE certification markings. Region of production is China.ApplicationsOEM integration of cellular connectivity into devicesLow-power wide-area (LPWA) IoT devices

The BNET-2310M CR is a remote I/O module that brings 4 analogue inputs, 2 analogue outputs, 4 digital inputs and 4 digital outputs onto a BACnet/IP network. A BMS or BACnet/IP client can read field sensor signals directly over Ethernet and command connected analogue or digital output devices, without a separate gateway.The module operates as a BACnet/IP Server and also supports Foreign Device functionality. It can register with a specified BBMD to receive BACnet/IP messages forwarded across different IP subnets, which suits multi-floor buildings, multi-building facilities, industrial sites and larger BEMS installations.Configuration is handled through a built-in web server, so the module can be set up from a standard web browser. Configuration files can be imported and exported for backup and repeat deployments. The CR ordering code is the RoHS-marked variant.ApplicationsHVAC control and monitoring in building automationLighting and energy managementBMS and BEMS integration via BACnet/IPMulti-floor buildings and multi-building facilitiesIndustrial sites with BACnet/IP field I/O

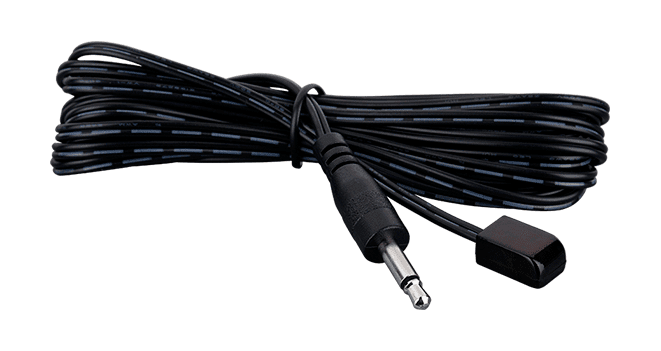

Single-headed IR emitter cable (with adhesive pad, Ø 3 mm IRED, 2.5 m).

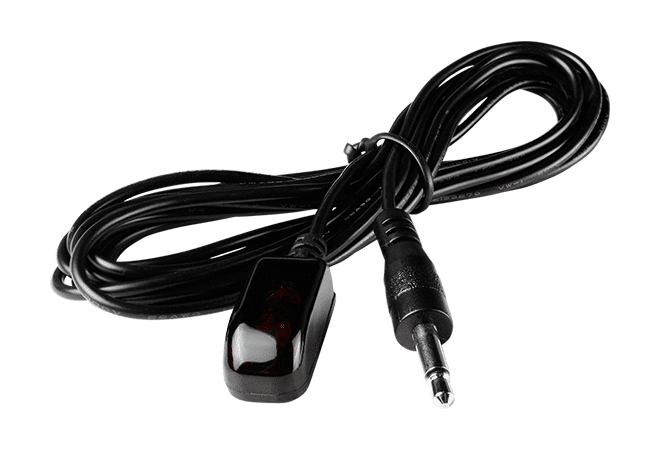

Single-headed IR emitter cable (with adhesive pad, Ø 5 mm IRED, 2.5 m).

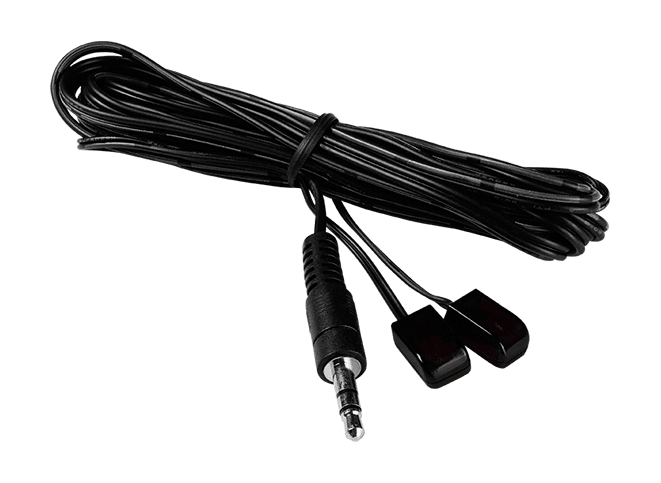

Dual-headed IR emitter cable (with adhesive pad, Ø 3 mm IRED, 2.5 m).

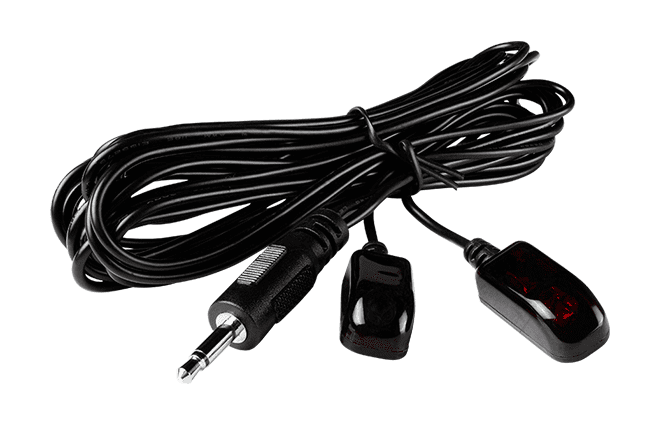

Dual-headed IR emitter cable (with adhesive pad, Ø 5 mm IRED, 2.5 m).

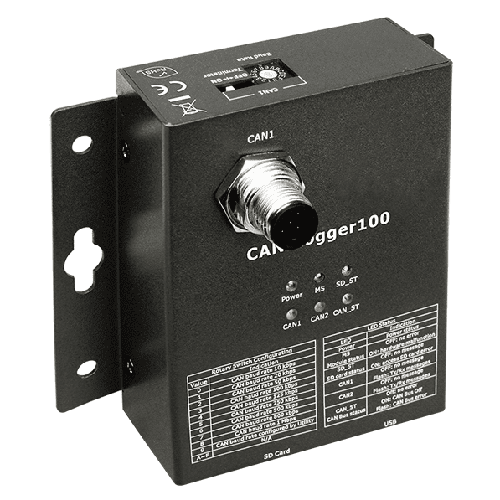

The CAN-Logger100 CR records traffic from a CAN 2.0A/2.0B network on a single isolated CAN port, so engineers can capture bus activity without a PC attached for the whole session. Each message is time-stamped at 10 us resolution and written to an SD or SDHC card in binary format, ready for offline analysis.Logging runs continuously and the device is configured through a supplied utility tool over its USB 2.0 High Speed port. The utility can also transmit and receive CAN messages, which helps when checking node behaviour during commissioning or fault finding. The CAN side offers a DIP-switch selectable 120 Ω terminal resistor, a programmable baud rate from 10 kbps to 1 Mbps and acceptance filter configuration.The housing is metal and wall mountable, with an operating range of -25 ~ +75 °C. It can be powered from USB or from a +10 VDC to +30 VDC supply, which suits both bench use and fixed installations on a CAN network.ApplicationsCAN bus data collection and processingCAN network analysis and diagnosticsRecording CAN message traffic for later review

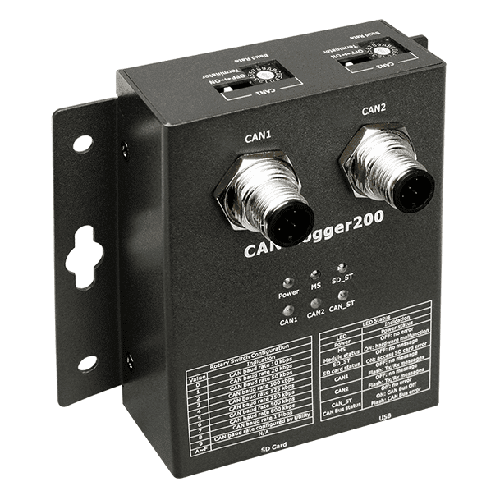

CAN-Logger200 CR is a two-port CAN bus data logger for capturing traffic on CAN networks without a PC attached for the whole session. Each CAN message is time-stamped at 10 us resolution and written to an SD or SDHC card, so recorded data can be reviewed later for analysis and fault diagnosis.Logging runs continuously and stores binary files on a card, 4 GB by default and up to 32 GB supported. When the card is full, the logger overwrites older data. A bundled configuration utility sets the CAN acceptance filters and baud rate from 10 kbps to 1 Mbps, and can also transmit and receive CAN messages over the USB 2.0 Type B port.The CAN side is isolated, with 2500 Vrms photocoupler isolation and 3000 VDC DC-to-DC isolation on the CAN port. Each M12 5-pin CAN connector has a DIP-switch selectable 120 Ω terminal resistor. The unit runs from +10 VDC to +30 VDC or from USB power, and its metal housing is designed for wall mounting.ApplicationsCAN bus network data collection and analysisCAN bus diagnostics and troubleshootingRecording CAN traffic for later reviewMonitoring and control of CAN-based industrial systems

The DGW-521 CR is a DIN-rail gateway that lets a host PC, PAC or TouchPAD control DALI lighting devices over serial or USB. It accepts Modbus RTU and DCON from RS-232, RS-485 or USB and translates them to DALI, so existing serial-based control software can address a DALI lighting network without a separate DALI controller.A built-in DALI power supply (16 VDC ±5%, maximum 250 mA) can be switched on or off, which suits installations where the DALI bus is already powered elsewhere. The ID code can be set over the RS-485 interface, which simplifies commissioning. DALI isolation is rated at 1500 VDC.The gateway is intended for DALI lighting systems covering small areas. DALI signal cables must not exceed 300 m. The unit carries CE, UKCA, FCC, RoHS and WEEE marks. The USB driver is listed for Windows XP and Windows 7 only.ApplicationsLighting control for small DALI installationsHost PC, PAC or TouchPAD access to DALI devicesSerial-to-DALI integration in building automation

The DNP-211 CR bridges DNP3 field devices and Ethernet-based Modbus TCP masters. On the DNP3 side it acts as the master, reading from and writing to outstations over TCP, UDP or serial. On the Modbus side it is a server that accepts requests from Modbus TCP clients and either answers them directly or forwards the related DNP3 data.Mapping between DNP3 points and Modbus addresses is set up in the DNP-211 utility, so existing DNP3 networks can be exposed to a Modbus TCP host without rewiring the field devices. Outstation connection status is also available at a Modbus address, which helps supervisory logic detect a lost link.Capacity covers up to 32 DNP3 outstations and 16 Modbus TCP client connections, with 8192 digital I/O bits and 2048 channels each for counter and analogue points. It is a suitable choice where an engineer needs a compact DIN-rail gateway with a metal housing and a wide 12 to 48 VDC supply range.ApplicationsIntegrating DNP3 outstations, RTUs and IEDs with Modbus TCP master systemsSCADA communication in utilities such as electric and water companiesConnecting existing DNP3 networks to Ethernet-based Modbus TCP masters

DNP-211-S bridges Modbus TCP field devices and DNP3 master stations. It polls several Modbus TCP servers and exposes their data as one DNP3 outstation, so a master station can read and control the underlying devices without needing a native Modbus driver.The gateway accepts DNP3 over RS-485, TCP/IP or UDP and supports Binary, Binary Output, Analog and Analog Output data. Analog values can be handled as word, int32, float or double. Mapping between Modbus TCP addresses and DNP3 points is set up in the DNP-211-S utility software, and the DNP3 side reports the Modbus TCP connection status.Suited to utility and SCADA installations, the unit uses a metal housing, a 12 to 48 VDC supply and DIN-rail or optional wall mounting. It is rated for operation from -25 to +75 °C.ApplicationsSCADA master station integration with Modbus TCP devicesElectric and water utility communicationsConnecting RTUs and IEDs to a DNP3 master station

The DS-2212i CR brings a standard RS-232 serial device onto Ethernet, so it can be reached over a LAN or the Internet without changing the device's software. Its virtual COM mode lets Windows applications open a standard PC COM port that is mapped to the remote module, while TCP Server and TCP Client modes cover direct network connections between serial equipment and host systems.The 2-port Ethernet switch with LAN bypass allows the unit to be daisy-chained along a cable run, which simplifies device placement and reduces switch infrastructure. The module can be powered from a PoE source meeting IEEE 802.3af Class 1 or from a +12 ~ 48 VDC terminal block, and the isolated RS-232 port is rated at 3000 VDC for signal isolation.Configuration is handled through the built-in web server, which supports static IP or DHCP addressing, and the module can be installed on a DIN rail. The unit carries CE, UKCA, FCC, RoHS and WEEE marks and is rated for an operating temperature of -25 ~ +75 °C.ApplicationsConnecting RS-232 devices to Ethernet networksRemote access to serial devices over Ethernet or the InternetSerial-bridge or serial-tunnel links between two serial devices over TCP/IPVirtual COM access to serial devices from Windows PCs

DS-2215i CR is a serial-to-Ethernet device server that brings an RS-422/485 serial device onto an Ethernet network without changing the device or its software. It can be run as a virtual COM port on Windows, as a TCP server or as a TCP client, and it can also link two serial devices across TCP/IP in a pair-connection setup.The built-in 2-port Ethernet switch with LAN bypass allows daisy-chain wiring, which helps when locating devices and reducing cabling. The unit supports static IP or DHCP addressing, UDP-based discovery and a built-in web server for configuration. Power can come from PoE (IEEE 802.3af, Class 1) or from a +12 ~ 48 VDC terminal block.The serial port is isolated, with 3000 VDC signal isolation, and the module is housed in a plastic DIN-rail enclosure rated for -25 ~ +75 °C operation. The VxComm Utility supports 32-bit and 64-bit Windows 7 SP1, 10, 2012 and 2016.ApplicationsAdding Ethernet connectivity to RS-422/485 serial devicesPair-connection serial-bridge or serial-tunnel links over TCP/IPVirtual COM access to serial devices from Windows PCsRemote access to serial devices on daisy-chained Ethernet networks

DS-2222i CR brings two RS-232 serial devices onto an Ethernet network without cable length restrictions. It suits engineers who need to reach legacy serial equipment over TCP/IP without rewriting host software, whether through a Virtual COM port on a Windows PC or a direct TCP connection.Each serial port is isolated, with 3000 VDC signal isolation and 1000 VDC power isolation. The two Ethernet ports form a switch with LAN bypass, so units can be daisy-chained along a run to simplify wiring and reduce infrastructure. Power can come from IEEE 802.3af Class 1 PoE or from a +12 ~ 48 VDC terminal block.Configuration is through the built-in HTTP web server, with static IP or DHCP addressing. A pair-connection mode can link two serial devices across an IP network as a serial bridge or tunnel, and UDP Search helps locate units on the network.ApplicationsConnecting RS-232 devices to Ethernet networksVirtual COM access to serial devices from Windows PCsSerial-bridge or serial-tunnel links between two serial devices over TCP/IPDaisy-chained Ethernet installations in control cabinets on DIN-rail

The DS-2225i CR brings RS-422/485 serial devices onto Ethernet, so equipment without a network port can be reached from computers, servers or PLCs across a local network or the Internet. Two isolated RS-422/485 ports with 3000 VDC signal isolation handle the serial side, and the unit is marked RoHS in the ordering description.Operating modes include Virtual COM, TCP Server and TCP Client, plus pair-connection for serial-bridge or serial-tunnel links that carry data over TCP/IP between two serial devices. The VxComm Utility maps the device to virtual COM ports on 32-bit and 64-bit Windows 7 SP1, 10, 2012 and 2016. Addressing can be static or DHCP, and the built-in web server and UDP search aid configuration and discovery.The two Ethernet ports form a switch with LAN bypass, allowing daisy-chain wiring that reduces cabling in the field. Power comes either from IEEE 802.3af Class 1 PoE or from a +12 ~ 48 VDC terminal block. The plastic DIN-rail housing is rated for an operating range of -25 ~ +75 °C.ApplicationsAdding Ethernet connectivity to RS-422/485 serial devicesRemote access and monitoring of serial devices over Ethernet or the InternetSerial-bridge and serial-tunnel links between two serial devices over TCP/IPDaisy-chained Ethernet device layouts

DS-2232i CR brings RS-232 serial devices onto Ethernet, so they can be reached across a network instead of being limited by direct serial cable length. It offers Virtual COM, TCP Server and TCP Client operating modes, and can also be set up as a serial bridge or serial tunnel to route data over TCP/IP between two serial devices.The VxComm Utility maps the unit's serial ports to standard COM ports on 32-bit and 64-bit Windows 7 SP1, 10, 2012 and 2016, allowing existing software to access the device without modification. Configuration is possible through the built-in web server, which supports static IP or DHCP addressing, and devices can be located on the network with the UDP Search discovery function.The two Ethernet ports form a switch with LAN bypass, so units can be daisy-chained along a line. Power can come from a PoE source (IEEE 802.3af, Class 1) over standard Category 5 cable, or from a +12 ~ 48 VDC terminal block. The module includes a dual watchdog and, as an i-version unit, provides 3000 VDC signal isolation and ESD protection. It is designed for DIN-rail mounting.ApplicationsConnecting serial devices, computers and servers that lack Ethernet capability to a networkRemote monitoring of serial devices over Ethernet or the InternetSerial bridging or tunnelling between two serial devices over TCP/IP

DS-2235i CR is a serial-to-Ethernet device server that brings RS-422/485 devices onto an IP network. Its three isolated serial ports let several field devices connect through one unit, with data carried over TCP/IP in Virtual COM, TCP server or TCP client mode.The VxComm Utility can map the serial ports to standard Windows COM ports, so existing software can reach serial devices over the network without modification. Pair-connection (serial-bridge or serial-tunnel) operation links two serial devices across Ethernet. A 2-port switch with LAN bypass supports daisy-chain wiring, and power can come from PoE (IEEE 802.3af, Class 1) or a DC terminal block.A dual watchdog, made up of a CPU watchdog and a host watchdog, is included to help the module keep operating in demanding environments. The CR ordering code corresponds to the RoHS-marked version of the DS-2235i.ApplicationsNetworking legacy RS-422/485 serial devices over TCP/IPSerial-bridge and serial-tunnel links between two serial devicesRemote access to and monitoring of serial devices over Ethernet or the InternetDaisy-chained Ethernet device layoutsConnecting serial devices that lack native Ethernet capability

The DS-712 CR lets an RS-232 device join an Ethernet network without changing its serial software. Its built-in COM port can be presented as a standard virtual COM port on Windows PCs using the VxComm utility, or the unit can operate as a TCP server or TCP client for direct socket communication.Because the device server is protocol independent, it suits a wide range of network-enabled applications. The DS-712 CR uses a male DB-9 connector with a 5-wire RS-232 port, and it runs from a non-regulated 12 VDC to +48 VDC supply with reverse polarity protection. The plastic housing mounts on a DIN rail or a wall.Key operating limits include a maximum baud rate of 115200 bps, an operating temperature range of -25 ~ +75 °C and a 5 ~ 90% RH non-condensing humidity rating. The unit is CE, UKCA, FCC, RoHS and WEEE listed.ApplicationsFactory automationBuilding automationHome automation

DS-715 CR brings a serial RS-422 or RS-485 device onto an Ethernet network without changing the device itself. Its single serial port is provided on a removable terminal block and can be wired as a 4-wire RS-422 port or a 2-wire RS-485 port, with 2000 Vrms isolation between the serial side and the rest of the unit.With the VxComm driver and utility, the serial port can be mapped to a standard COM port on Windows PCs, so existing COM-based software can continue to work over the network. The unit can also operate standalone as a TCP Server or TCP Client, which suits applications where the serial device is accessed directly over TCP/IP. The 10/100 Base-TX RJ-45 port auto-negotiates and supports auto MDI/MDI-X.The built-in MiniOS7 firmware and watchdog timer support dependable operation in harsh environments. The unit accepts 12 VDC to +48 VDC non-regulated input with reverse polarity protection, draws 2.0 W, and can be fitted to a DIN rail or a wall. Its operating range is -25 to +75 °C.ApplicationsFactory AutomationBuilding AutomationHome Automation

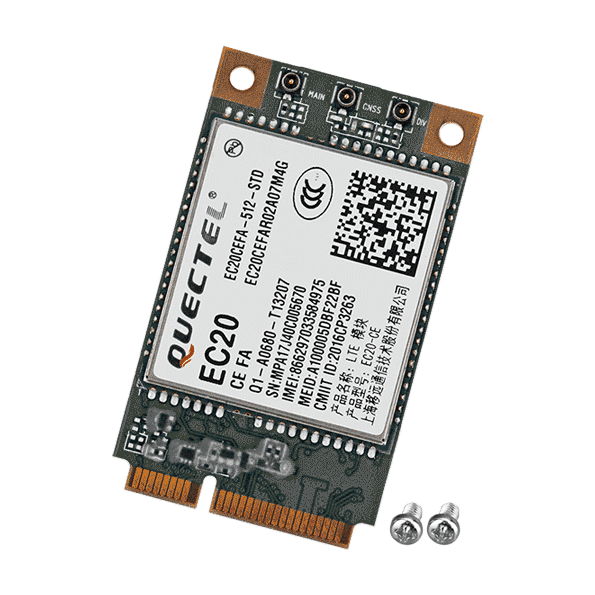

EC20-CE CR is a 4G LTE Category 4 module aimed at machine-to-machine and IoT deployments. It uses the 3GPP Release 11 LTE feature set and comes in the standard Mini PCIe card format, so it can be fitted into a host device as a cellular communication module without a custom board layout.On LTE it provides up to 150 Mbps downlink and 50 Mbps uplink. Because it is backward-compatible with EDGE and GSM/GPRS networks, the module can still connect in remote areas that have no 4G or 3G coverage. Supported LTE bands are FDD B1/B3/B8 and TDD B38/B39/B40/B41, with WCDMA 900/2100 MHz and GSM 900/1800 MHz for legacy networks.The operating range is -35 to +75 °C, with storage from -40 to +85 °C. The module holds CCC, RoHS and WEEE certification and is listed as produced in China.ApplicationsM2M communicationIoT devices and gatewaysRemote sites with limited or no 4G or 3G coverage

EC21-AU CR is a low-power LTE category 1 module designed for M2M and IoT products that need economical, efficient cellular connectivity. It supports up to 10 Mbps downlink and 5 Mbps uplink on 4G LTE, which suits applications where data rate is less important than a stable, reliable network connection.The module uses the standard PCI Express Mini Card (Mini PCIe) form factor, so it can be fitted into a device design without a custom interface. Its 4G coverage spans FDD LTE bands B1, B2, B3, B4, B5, B7, B8 and B28 plus TDD LTE band B40. For legacy networks it also provides 3G WCDMA on 850/900/1900/2100 MHz with DC-HSPA+ up to 42 Mbps downlink, and 2G GPRS/EGPRS on 850/900/1800/1900 MHz.The compact module measures 30.0 x 51.0 x 4.9 mm (W x L x H) and operates from -35 °C to +75 °C, with storage rated from -40 °C to +85 °C. It is certified to FCC, RoHS and WEEE requirements and is produced in China.ApplicationsM2M and IoT devicesApplications where network rate is not critical but a stable, reliable LTE connection is requiredBroadband IoT products needing cellular connectivity

EC25-E CR is an LTE Cat 4 communication module for engineers adding cellular connectivity to M2M and IoT equipment. Its standard Mini PCIe card format lets manufacturers integrate wireless connectivity into their devices without a custom carrier design.The module supports LTE FDD bands B1, B3, B5, B7, B8 and B20 and TDD bands B38, B40 and B41, with up to 150 Mbps downlink and 50 Mbps uplink. Backward compatibility with GSM/GPRS and EDGE networks keeps the link available where 4G or 3G coverage is absent.The EC25-E CR carries RED, RoHS and WEEE certification and is rated for an operating temperature of -35 °C to +75 °C, with storage from -40 °C to +85 °C. Board dimensions are 30.0 x 51.0 x 4.9 mm (W x L x H).ApplicationsM2M communicationIoT applicationsBroadband IoT devicesRemote devices in areas without 4G or 3G coverage
