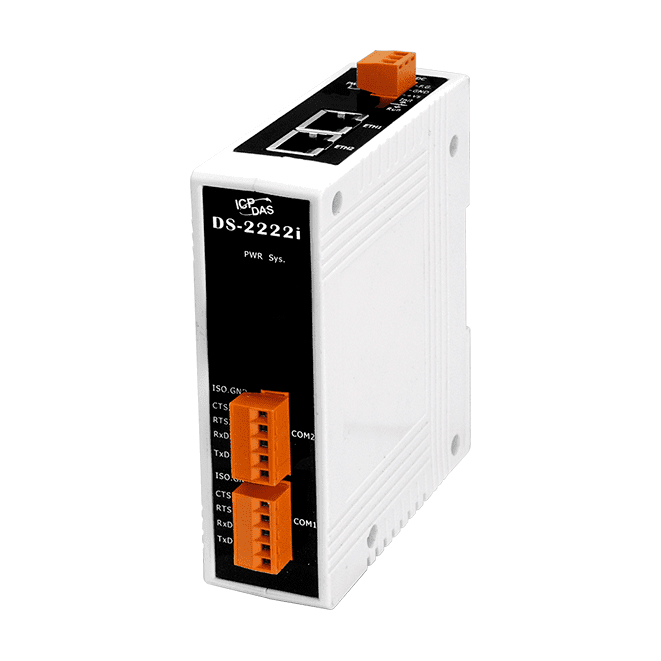

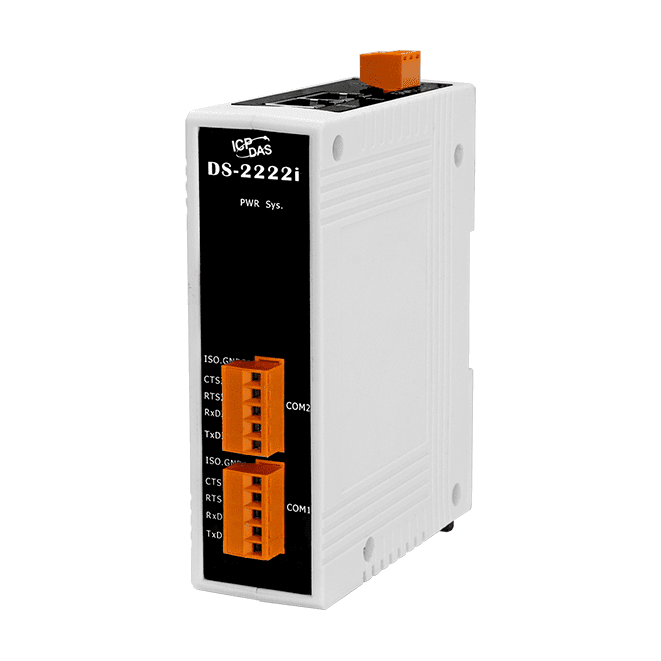

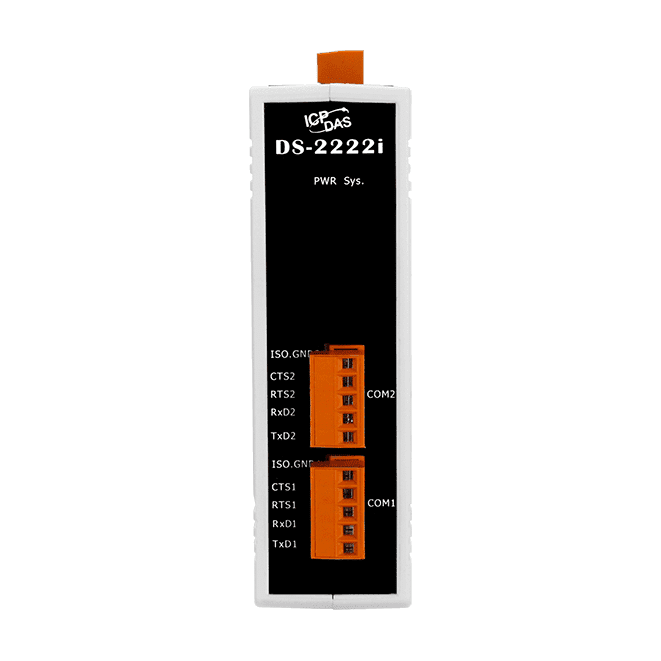

DS-2222i Serial-to-Ethernet Device Server, 2x Isolated RS-232, PoE
Serial-to-Ethernet device server with two isolated RS-232 ports, a 2-port Ethernet switch and PoE. Supports Virtual COM, TCP Server and TCP Client modes for daisy-chained installations.
- Two RS-232 serial ports bridged to Ethernet, with 115200 bps maximum baud rate
- Application modes: Virtual COM, TCP Server and TCP Client
- Pair-connection (serial-bridge, serial-tunnel) operation over TCP/IP
- 2-port Ethernet switch with LAN bypass for daisy-chain wiring
- IEEE 802.3af Class 1 PoE or +12 ~ 48 VDC terminal block power
- 3000 VDC signal and 1000 VDC power isolation on serial ports
1.322,93 kr. pr. stk.
| 1–9 stk. | 1.322,93 kr. | |
|---|---|---|
| 10–30 stk. | 1.285,56 kr. | −3 % |
| 31+ stk. | 1.255,67 kr. | −5 % |
Produktinformation "DS-2222i Serial-to-Ethernet Device Server, 2x Isolated RS-232, PoE"
DS-2222i CR brings two RS-232 serial devices onto an Ethernet network without cable length restrictions. It suits engineers who need to reach legacy serial equipment over TCP/IP without rewriting host software, whether through a Virtual COM port on a Windows PC or a direct TCP connection.
Each serial port is isolated, with 3000 VDC signal isolation and 1000 VDC power isolation. The two Ethernet ports form a switch with LAN bypass, so units can be daisy-chained along a run to simplify wiring and reduce infrastructure. Power can come from IEEE 802.3af Class 1 PoE or from a +12 ~ 48 VDC terminal block.
Configuration is through the built-in HTTP web server, with static IP or DHCP addressing. A pair-connection mode can link two serial devices across an IP network as a serial bridge or tunnel, and UDP Search helps locate units on the network.
Applications
- Connecting RS-232 devices to Ethernet networks
- Virtual COM access to serial devices from Windows PCs
- Serial-bridge or serial-tunnel links between two serial devices over TCP/IP
- Daisy-chained Ethernet installations in control cabinets on DIN-rail
| Product type: | Serial-to-Ethernet device server |
|---|---|
| Interface: | RS-232 |
| Protocol: | TCP/IP |
| Ports: | 2 serial, 2 Ethernet |
| PoE: | IEEE 802.3af, Class 1 |
| Isolation: | 3000 VDC signal |
| Power input: | PoE, +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 32-bit ARM |
| Ethernet | |
| Ports | 10/100 Base-TX, 8-pin RJ-45 x 2, (Auto-negotiating, Auto-MDI/MDIX, LED indicator) PoE (IEEE 802.3af, Class 1) |
| COM Ports | |
| Ports | 2 x 5-wire RS-232 (1000 VDC for Power Isolation, 3000 VDC for Signal Isolation) |
| Baud Rate | 115200 bps Max. |
| Parity | None, Odd, Even, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 2 |
| Power | |
| Consumption | 0.07 A @ 24 VDC |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 ~ 48 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 97 mm x 126 mm x 33 mm (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
