PAC'er og styringer

The AIB-2941M CR is a fanless edge AI controller built around a quad-core Cortex-A72 processor. It suits engineers who want local AI inference and edge computing in an industrial enclosure, with the option to add an accelerator module later. This variant is supplied without an accelerator, so it is the right choice when you already have a module or plan to source one separately.The unit provides a B-key M.2 socket with USB and an M-key M.2 socket with PCIe for accelerator modules or SSD storage. Communication options include two Gigabit Ethernet ports, two isolated RS-485 ports and four USB ports, plus an HDMI output for 4K display. Two isolated digital inputs and two isolated digital outputs cover basic discrete I/O, and an I/O expansion slot accepts optional XV, XB or eXV boards.The housing is metal and the unit mounts on a DIN rail or a wall. It operates from -20 to +70 °C and accepts a +12 to +48 VDC supply. Ubuntu OS, along with C and Python libraries, is provided for application development.ApplicationsEdge AI inference in industrial automationMachine vision and video analysis at the edgeIndustrial IoT gateways with serial device connectivityLocal data acquisition and control with discrete I/O

The AIB-2941M/S1 CR is an edge AI controller for engineers who need on-site inference alongside conventional I/O. It ships with a Hailo 8 Lite AI accelerator rated at 13 TOPS, so AI workloads run locally on a compact, fanless unit rather than in a remote data centre. Supported frameworks include TensorFlow, TensorFlow Lite, Keras, PyTorch and ONNX, and the Hailo RT Rev. 4.19 runtime is pre-installed.The controller is built around a quad-core Cortex-A72 64-bit SoC running at 1.5GHz, with 4GB LPDDR4 SDRAM and 32GB of on-board eMMC storage. Two 10/100/1000 Ethernet ports, two RS-485 ports with 2500 VDC isolation and four USB ports (two USB 2.0, two USB 3.0) provide connectivity to field devices and networks.Digital I/O comprises two isolated wet-contact inputs and two isolated open-collector outputs. An HDMI port supports 4Kp60 output, and an optional expansion slot accepts XV, XB or eXV boards. The metal casing is rated for -20 ~ +70 °C and can be fitted to a DIN rail or wall.ApplicationsIndustrial edge AI inferenceLocal data processing at the machine or edge nodeSerial device connection over RS-485Digital I/O monitoring and control with isolated inputs and outputs

ALX-9191 CR is a single-slot Linux PAC that runs Ubuntu 20.04 with Linux kernel 5.4 on an Intel Atom E3950 processor, with 8 GB DDR4 SDRAM and a 64 GB SSD. It offers hard real-time capability and a built-in real-time clock, so it suits control tasks that need deterministic timing alongside local display and operator input.The unit provides VGA and HDMI outputs, two 10/100/1000M Ethernet ports, four serial ports (RS-232/RS-485) with 3000 VDC isolation, and USB 2.0 and 3.0 ports. Local I/O is added through one e-Bus and one serial/parallel bus, supporting the I-9K, I-97K and e-9K series. Programs can be stored on a CFast card or USB mass storage device, and the LinPAC SDK allows I/O applications to be developed in GNU C.Hard real-time capability with a built-in real-time clockDual watchdog timer and redundant power input with a relay alarm outputApplicationsIntegrated HMI, data acquisition and control in a single PACLocal and remote I/O expansion for machine and process control

The ALX-9391 is a Linux-based programmable automation controller that brings computing, I/O and operator interface into a single metal unit. It suits machine and panel builders who want HMI, data acquisition and control handled by one device, running Ubuntu 20.04 on a 64-bit Intel Atom E3950 processor with 8 GB DDR4 memory and a 64 GB SSD.Three expansion slots accept local I/O from the I-9K, I-97K and e-9K series. Remote I/O can be added through Ethernet I/O modules and RS-485 I/O modules. Application programs can be written in GNU C using the standard LinPAC SDK, and can be stored on a CFast card or USB mass storage device.Connectivity includes two RJ-45 Gigabit Ethernet ports, four serial ports (RS-232/RS-485, 3000 VDC isolated), VGA and HDMI display outputs and four USB ports. The unit has a redundant power input with a relay output for alarm, a built-in real-time clock and dual watchdog timers.ApplicationsIntegrated HMI, data acquisition and control in a single PACLocal and remote I/O expansion for machine and panel controlLinux-based industrial control applications programmed in GNU C

ALX-9791 CR is a Linux-based programmable automation controller that brings computing, I/O and operator display into one metal housing. It suits projects where a local HMI, data acquisition and control need to run on the same device rather than across separate boxes.The unit runs Ubuntu 20.04 with Linux kernel 5.4 on an Intel Atom E3950 processor with 8 GB DDR4 SDRAM and a 64 GB SSD. Seven slots accept e-9K, I-9K and I-97K series I/O modules, and the LinPAC SDK supports developing I/O applications in GNU C. Programs can also be stored on a CFast card or USB mass storage device.Connectivity includes two RJ-45 10/100/1000 Mbps Ethernet ports, VGA and HDMI outputs, four serial ports with RS-232/RS-485 options, and USB 2.0 and 3.0 ports. The ordering description carries the RoHS designation.ApplicationsIntegrated HMI, data acquisition and control in a single PACLocal and remote I/O control with e-9K, I-9K and I-97K modules and Ethernet or RS-485 I/O expansions

The AXP-9051-IoT is a metal standard programmable automation controller running Windows 10 IoT Enterprise LTSC (64-bit). It brings computing, I/O and operator interface together in one housing, which suits projects that need HMI, data acquisition and control in a single PAC.An Intel Core i5-8365UE processor is paired with 16 GB DDR4 SDRAM and a 128 GB SATA III SSD, with a CFast card slot for additional storage. The platform can run Universal Windows apps and traditional Windows applications side by side. Connectivity includes dual 10/100/1000 Base-TX Ethernet ports, VGA and HDMI display outputs, USB 2.0 and USB 3.0 ports, and isolated RS-232 and RS-485 serial ports. Remote I/O can be added using the manufacturer's Ethernet and RS-485 I/O modules.Reliability features include a dual watchdog timer, a redundant power input with an alarm relay, and a CPU heat sink with a Smart Fan. The unit operates from -25 ~ +60 °C and supports DIN-rail or wall mounting. This ordering code is listed as RoHS compliant and carries CE, UKCA and WEEE marking.ApplicationsFactory AutomationAutomated Test EquipmentSmart TransportationIIoTInduSoftLabVIEWWireless

AXP-9191-IoT is a Windows-based programmable automation controller for engineers who want HMI, data acquisition and control in a single compact unit. An Intel Atom E3950 processor, 8 GB DDR4 memory and a 128 GB SSD run Windows 10 IoT Enterprise LTSC (64-bit), so existing Windows software and Universal Windows apps can run side by side.One local expansion slot accepts I-9K, I-97K and e-9K series I/O modules. Remote I/O can be added through Ethernet I/O modules and RS-485 I/O modules. The front panel provides VGA and HDMI display outputs, a buzzer, a 10-position rotary switch and programmable LEDs for local operator feedback.Connectivity includes two 10/100/1000M Ethernet ports, two USB 2.0 and two USB 3.0 ports, and isolated COM ports for RS-232 and RS-485. Redundant power inputs with an alarm relay help protect continuous operation, and the unit is rated for DIN-rail or wall mounting with a fanless, CPU heat sink cooling design.ApplicationsIntegrating HMI, data acquisition and control in one PACLocal and remote I/O expansion for machine and process controlDeployment in harsh industrial environments

The AXP-9251-IoT is a Windows 10 IoT based PAC for engineers who want HMI, data acquisition and control in a single enclosure. An Intel Core i5-8365UE processor, 16 GB DDR4 memory and a 128 GB SSD provide the computing base, while two local I/O expansion slots accept I-9K, I-97K and e-9K series modules.The unit runs Windows 10 IoT Enterprise LTSC (64-bit), so Universal Windows apps and traditional Windows applications can run side by side. Display output is provided by VGA and HDMI, and the front panel includes a buzzer, a 10-position rotary switch and a power switch.Remote expansion is possible through Ethernet I/O modules and RS-485 I/O modules. Connectivity includes dual 10/100/1000M Ethernet ports, four COM ports with 3000 VDC isolation, and 2 x USB 2.0 and 2 x USB 3.0 ports. The redundant power input accepts +19 ~ 30 VDC.ApplicationsGigE Vision cameraUSB Vision cameraHigh speed data acquisitionVibrationMulti-serial portsInduSoftLabVIEWCAN busMotionWireless

The AXP-9391-IoT CR is a Windows-based programmable automation controller that brings computing, I/O and HMI together in a single metal housing. It suits projects where local visualisation, data acquisition and control need to sit on one device rather than being spread across separate units.Three I/O expansion slots accept local modules from the I-9K, I-97K and e-9K series. Remote expansion is also possible through Ethernet I/O modules and RS-485 I/O modules, giving engineers a flexible route to distributed I/O. The unit runs Windows 10 IoT Enterprise LTSC (64-bit), so Universal Windows apps and traditional Windows applications can run side by side, and it is specified for use in harsh environments.Connectivity includes dual 10/100/1000M Ethernet ports, VGA and HDMI display outputs, USB 2.0 and USB 3.0 ports, and a mix of RS-232 and RS-485 serial interfaces with 3000 VDC isolation. The CR variant is described as RoHS compliant.ApplicationsHMI and operator interfaceData acquisitionControl and I/O integrationHarsh environment deployment

AXP-9651-IoT is a Windows-based PAC that brings controller, I/O and operator interface into a single metal unit. It suits projects where HMI, data acquisition and control need to share one device in the same enclosure.The unit is built around an Intel Core i5-8365UE processor with 16 GB DDR4 SDRAM and a 128 GB SATA III SSD. It runs Windows 10 IoT Enterprise LTSC (64-bit) and can host Universal Windows apps and traditional Windows applications side by side. Six slots accept I-9K, I-97K and e-9K series I/O modules locally, while remote expansion is possible with Ethernet and RS-485 I/O modules.Connectivity includes two 10/100/1000M Ethernet ports, VGA and HDMI display outputs, two USB 2.0 and two USB 3.0 ports, and a set of isolated serial ports covering RS-232, RS-485 and combined RS-232/RS-485. The CR ordering code corresponds to the RoHS-listed configuration of this model.ApplicationsGigE Vision camera systemsUSB Vision camera systemsHigh-speed data acquisitionVibration monitoringMulti-serial port communicationInduSoft HMI projectsLabVIEW applicationsCAN busMotion controlWireless connectivity

AXP-9791-IoT is a Windows-based PAC that brings computing, control I/O and an operator interface into one 7-slot metal unit. It runs Windows 10 IoT Enterprise LTSC (64-bit) on an Intel Atom E3950 processor, so HMI, data acquisition and control can be integrated in a single device.Local I/O uses I-9K, I-97K and e-9K series modules in the expansion slots, while remote expansion is possible with Ethernet and RS-485 I/O modules. Connectivity includes two 10/100/1000 Mbps Ethernet ports, VGA and HDMI display outputs, USB, RS-232 and RS-485. Universal Windows Apps and traditional Windows applications can run side by side.The unit is fanless with a CPU heat sink, has redundant power inputs with an alarm relay, and is rated for an operating temperature of -25 ~ +60 °C. The ordering code AXP-9791-IoT CR is listed as RoHS.ApplicationsHMI and operator interface integrationData acquisitionControl and automation with local and remote I/O

8-channel Vibrating Wire Extended Board.

2-port PoE Ethernet Expansion Module.

4-port PoE Ethernet Expansion Module.

The e-USB404 CR adds four independent USB 3.1 Gen 1 host controllers to an AXP-9000-IoT Programmable Automation Controller through a single e-Bus x4 slot. It suits engineers who need several USB devices running at the same time, particularly USB vision cameras that generate large volumes of image data.Each port has its own controller and an LED status indicator, and all four Type-A connectors are accessible on the panel for straightforward wiring. Each port supplies 5 V at up to 900 mA, with overload and short-circuit protection. Power to each port can be switched on and off in software through the SDK, which allows a hung USB device to be reset for failure recovery.Transfer modes: SuperSpeed (5 Gbps), High Speed (480 Mbps), Full Speed (12 Mbps) and Low Speed (1.5 Mbps)Supported on Microsoft Windows 7/8.1/10 and LinuxOperating temperature -25 ~ +60 °CTypical uses are frame grabbing in machine vision inspection, automated optical inspection, quality assurance and medical imaging.ApplicationsMachine vision inspectionAutomated optical inspectionQuality assuranceMedical imaging

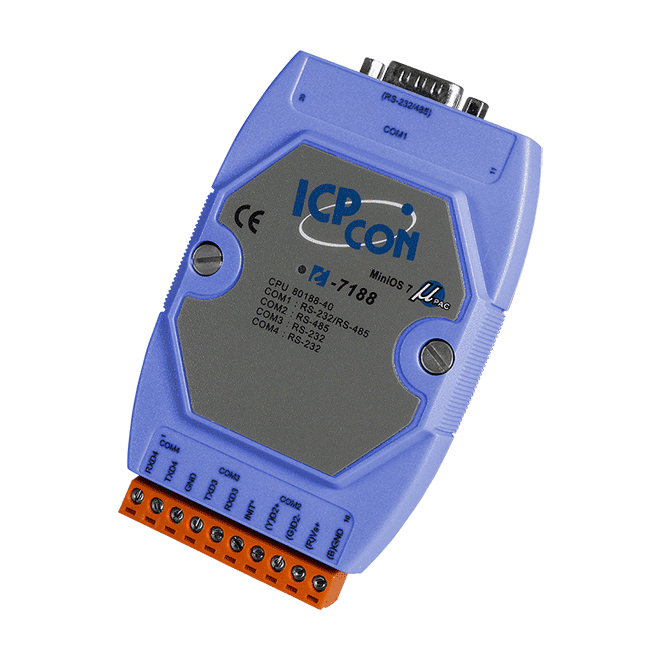

Serial PAC with 80188-40 CPU, MiniOS7 and 256KB SRAM (Blue Cover).

Serial PAC with 80188-40 CPU, ROM-DOS, 521KB Flash, 256KB SRAM (Blue Cover).

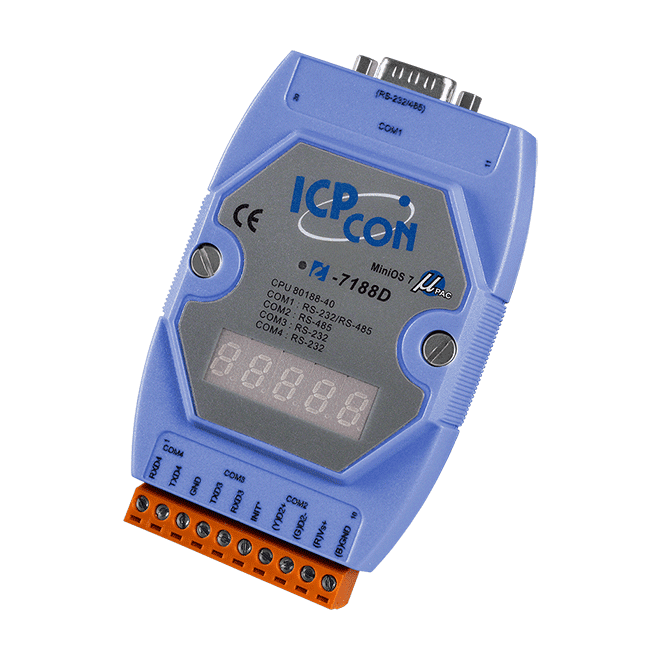

Serial PAC with 80188-40 CPU, MiniOS7, 256KB SRAM and 7-Segment LED Display (Blue Cover).

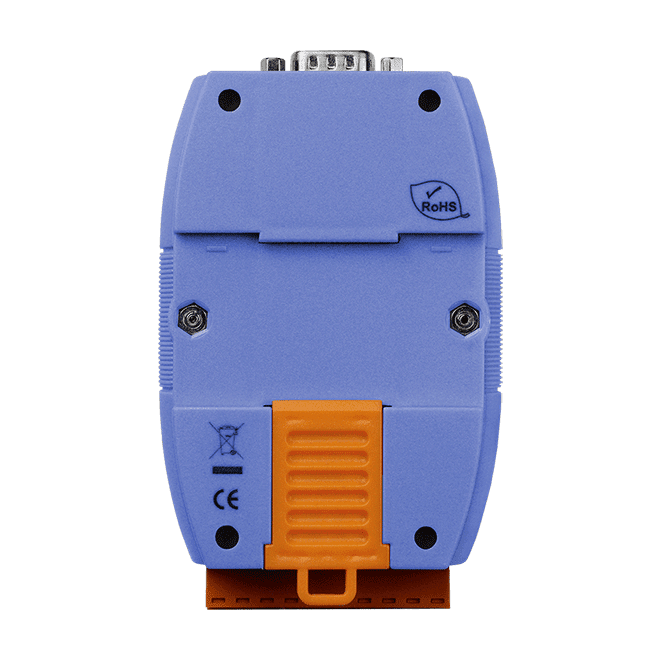

Serial PAC with 80188-40 CPU, ROM-DOS, 512KB Flash, 256KB SRAM and 7-Segment LED Display (Blue Cover).

The I-7188EA CR is a compact programmable automation controller that combines an Ethernet port, a serial RS-232/RS-485 pair and built-in digital I/O in one DIN-rail unit. It runs the built-in MiniOS7 operating system and is programmed in C, which suits engineers who want local control logic without a separate PLC.Built-in digital I/O comprises 6 digital inputs, which accept dry or wet contacts, and 7 open-collector outputs rated at 100 mA and up to +30 VDC. The Ethernet port is 10BASE-T, and the 512 KB Flash, 2 KB EEPROM and 512 KB SRAM provide storage for application code and data.Vendor Modbus libraries and the XServer tool kit are supplied to bridge serial devices onto Ethernet. The source names Indusoft, DasyLab and iFix among SCADA packages the unit can communicate with over the standard Modbus protocol. This Blue Cover ordering variant is RoHS compliant.ApplicationsIntegrating serial devices into Ethernet/Internet networksModbus communication with SCADA softwareLocal digital I/O control and monitoring in industrial automation

I-7188EAD CR is a compact programmable automation controller for bridging serial devices onto Ethernet. It combines an 80188-40 CPU running the built-in MiniOS7 with 6 digital inputs, 7 open-collector outputs, a 10BASE-T Ethernet port and both RS-232 and RS-485 serial interfaces in a DIN-rail housing.Engineers can develop custom logic in C using the supplied software development tool kits. Serial devices can be integrated into Ethernet and internet networks, and the controller can communicate with SCADA packages over the standard Modbus protocol, using the XServer and Modbus libraries provided.The blue cover version (CR suffix) is the RoHS-compliant variant of the I-7188EAD, with a 5-digit 7-segment LED display for local status indication and a built-in watchdog timer to support unattended operation.ApplicationsIntegrating serial RS-232/RS-485 devices into Ethernet and internet networksModbus-based communication with SCADA softwareLocal digital input monitoring and open-collector output switchingCustom control logic programmed in C on a compact controller

The I-7188EG CR is a palm-sized programmable automation controller that combines an 80188 processor running at 40 MHz with embedded ISaGRAF Ver.3 SoftLogic, so control logic can be written to IEC 61131-3 and run directly on the unit. It suits compact control tasks where a small footprint and Ethernet connectivity are both needed.Communication is handled by one 10Base-T RJ-45 Ethernet port, one RS-232 port and one RS-485 port, with serial rates up to 115200 bps. The controller supports Modbus RTU/ASCII master operation as well as Modbus RTU and Modbus TCP/IP slave operation, and includes DCON, Fbus and Ebus options along with a user-defined protocol. Where more serial ports or I/O are required, an X-Board expansion board can be fitted.This ordering code is the standard variant without the 5-digit 7-segment LED display offered on the I-7188EGD. The unit mounts on a DIN rail, draws 2.0 W from a +10 to 30 VDC supply and is rated for operation from -25 to +75 °C.ApplicationsEmbedded control logic written in IEC 61131-3 with ISaGRAFModbus communication between Ethernet hosts and serial RTU devices

The I-7188EGD is a palm-sized programmable automation controller that runs embedded ISaGRAF Ver.3 SoftLogic, programmable to IEC 61131-3. It is built around an 80188 CPU running at 40 MHz under the MiniOS7 operating system, and it gives engineers Ethernet connectivity alongside serial communication in a compact DIN-rail housing.Compared with the standard I-7188EG, this variant adds a 5-digit 7-segment LED display, which shows status information directly on the unit. Otherwise the two share the same core features, including the single 10Base-T Ethernet port, one RS-232 port and one RS-485 port.Expansion is possible with an X-Board I/O expansion board, which can add COM ports, I/O or memory.ISaGRAF cannot run on 64-bit Windows 7 or 8 PCs; Win-GRAF is the suggested alternative for those systems.

I-7188EX CR is a compact programmable automation controller built around an 80188-40 CPU and the MiniOS7 operating system. It combines a 10BASE-T Ethernet port with RS-232 and RS-485 serial interfaces, so it can bridge serial field devices onto an Ethernet network and act as a Modbus-based link to SCADA software.Application development uses the C language toolkit supplied with MiniOS7, including Modbus libraries. The unit provides 512 KB of flash, 512 KB of SRAM and 2 KB of EEPROM, a real-time clock, a watchdog timer and a 64-bit hardware serial number for device identification.Hardware can be extended through a single I/O expansion bus, which accepts one X-board. The source documentation references more than 50 compatible boards offering analogue, digital and serial functions. The blue-cover CR ordering code is the standard variant offered here.ApplicationsIntegrating serial devices into Ethernet and Internet networksModbus communication with SCADA systemsStand-alone programmable control with local I/O expansion
