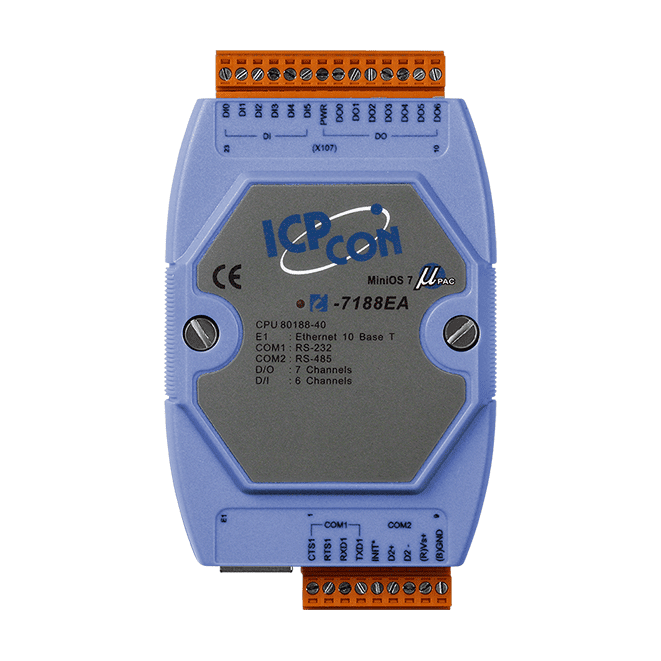

I-7188EA Ethernet PAC with MiniOS7, 6 DI and 7 DO, Blue Cover
Palm-size Ethernet programmable automation controller with an 80188-40 CPU, MiniOS7, RS-232/RS-485 ports, 6 digital inputs and 7 open-collector outputs.
- Built-in MiniOS7 operating system, programmed in C
- 80188-40 CPU at 40 MHz with 512 KB Flash, 2 KB EEPROM and 512 KB SRAM
- 10BASE-T NE2000-compatible Ethernet on one RJ-45 port
- 1 x RS-232 and 1 x RS-485 serial ports, up to 115200 bps
- 6 digital inputs for dry or wet contact signals
- 7 open-collector digital outputs, 100 mA, +30 VDC max.
2.062,85 kr. pr. stk.
| 1–9 stk. | 2.062,85 kr. | |
|---|---|---|
| 10–30 stk. | 2.003,06 kr. | −3 % |
| 31+ stk. | 1.958,21 kr. | −5 % |
Produktinformation "I-7188EA Ethernet PAC with MiniOS7, 6 DI and 7 DO, Blue Cover"
The I-7188EA CR is a compact programmable automation controller that combines an Ethernet port, a serial RS-232/RS-485 pair and built-in digital I/O in one DIN-rail unit. It runs the built-in MiniOS7 operating system and is programmed in C, which suits engineers who want local control logic without a separate PLC.
Built-in digital I/O comprises 6 digital inputs, which accept dry or wet contacts, and 7 open-collector outputs rated at 100 mA and up to +30 VDC. The Ethernet port is 10BASE-T, and the 512 KB Flash, 2 KB EEPROM and 512 KB SRAM provide storage for application code and data.
Vendor Modbus libraries and the XServer tool kit are supplied to bridge serial devices onto Ethernet. The source names Indusoft, DasyLab and iFix among SCADA packages the unit can communicate with over the standard Modbus protocol. This Blue Cover ordering variant is RoHS compliant.
Applications
- Integrating serial devices into Ethernet/Internet networks
- Modbus communication with SCADA software
- Local digital I/O control and monitoring in industrial automation
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Protocol: | Modbus |
| Digital inputs: | 6 |
| Digital outputs: | 7 |
| Ports: | 1 x RJ-45, 1 x RS-232, 1 x RS-485 |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80188, 40 MHz or compatible |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 2 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB |
| Real Time Clock | Provide seconds, minutes, hours, day of week, month, year |
| Watchdog Timer | Yes |
| LED Indicators | |
| Status | 1 x System |
| Digital Input | |
| Channels | 6 |
| Type | Dry Contact Wet Contact |
| Sink/Source (NPN/PNP) | Wet: Sink Dry: Source |
| ON Voltage Level | Wet: +3.5 VDC ~ +30 VDC Dry: Close to GND |
| OFF Voltage Level | Wet: +1 VDC Max. Dry: Open |
| Digital Output | |
| Channels | 7 |
| Type | Open Collector |
| Load Voltage | +30 VDC max. |
| Load Current | 100 mA |
| Ethernet | |
| Ports | 1 x RJ-45, 10 Base-T |
| COM Ports | |
| Ports | 1 x RS-232, 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 2.0 W |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 33 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 %, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
