4G/5G

4GB microSD card.

The BG96 CR is an LPWA communication module combining LTE Cat M1, LTE Cat NB1 and EGPRS in one device. It is built on the standard Mini PCI Express card format, so manufacturers can add cellular connectivity to their own designs without a custom board layout.On LTE the module supports up to 375 Kbps downlink and 375 Kbps uplink. Its global frequency band coverage spans 2G GPRS bands at 850/900/1800/1900 MHz and a broad set of FDD LTE bands, with B39 TDD available for Cat M1. Ultra-low power consumption is a key design point for battery-powered or power-constrained devices.For teams replacing an existing design, the module offers a migration route from GSM/GPRS, UMTS/HSPA and LTE modules. It operates from -35°C to +75°C and carries RED, FCC, RoHS and WEEE certification markings. Region of production is China.ApplicationsOEM integration of cellular connectivity into devicesLow-power wide-area (LPWA) IoT devices

EC20-CE CR is a 4G LTE Category 4 module aimed at machine-to-machine and IoT deployments. It uses the 3GPP Release 11 LTE feature set and comes in the standard Mini PCIe card format, so it can be fitted into a host device as a cellular communication module without a custom board layout.On LTE it provides up to 150 Mbps downlink and 50 Mbps uplink. Because it is backward-compatible with EDGE and GSM/GPRS networks, the module can still connect in remote areas that have no 4G or 3G coverage. Supported LTE bands are FDD B1/B3/B8 and TDD B38/B39/B40/B41, with WCDMA 900/2100 MHz and GSM 900/1800 MHz for legacy networks.The operating range is -35 to +75 °C, with storage from -40 to +85 °C. The module holds CCC, RoHS and WEEE certification and is listed as produced in China.ApplicationsM2M communicationIoT devices and gatewaysRemote sites with limited or no 4G or 3G coverage

EC21-AU CR is a low-power LTE category 1 module designed for M2M and IoT products that need economical, efficient cellular connectivity. It supports up to 10 Mbps downlink and 5 Mbps uplink on 4G LTE, which suits applications where data rate is less important than a stable, reliable network connection.The module uses the standard PCI Express Mini Card (Mini PCIe) form factor, so it can be fitted into a device design without a custom interface. Its 4G coverage spans FDD LTE bands B1, B2, B3, B4, B5, B7, B8 and B28 plus TDD LTE band B40. For legacy networks it also provides 3G WCDMA on 850/900/1900/2100 MHz with DC-HSPA+ up to 42 Mbps downlink, and 2G GPRS/EGPRS on 850/900/1800/1900 MHz.The compact module measures 30.0 x 51.0 x 4.9 mm (W x L x H) and operates from -35 °C to +75 °C, with storage rated from -40 °C to +85 °C. It is certified to FCC, RoHS and WEEE requirements and is produced in China.ApplicationsM2M and IoT devicesApplications where network rate is not critical but a stable, reliable LTE connection is requiredBroadband IoT products needing cellular connectivity

EC25-E CR is an LTE Cat 4 communication module for engineers adding cellular connectivity to M2M and IoT equipment. Its standard Mini PCIe card format lets manufacturers integrate wireless connectivity into their devices without a custom carrier design.The module supports LTE FDD bands B1, B3, B5, B7, B8 and B20 and TDD bands B38, B40 and B41, with up to 150 Mbps downlink and 50 Mbps uplink. Backward compatibility with GSM/GPRS and EDGE networks keeps the link available where 4G or 3G coverage is absent.The EC25-E CR carries RED, RoHS and WEEE certification and is rated for an operating temperature of -35 °C to +75 °C, with storage from -40 °C to +85 °C. Board dimensions are 30.0 x 51.0 x 4.9 mm (W x L x H).ApplicationsM2M communicationIoT applicationsBroadband IoT devicesRemote devices in areas without 4G or 3G coverage

The FN990A28 CR is a 5G/LTE data card module in the standard M.2 form factor, aimed at engineers building M2M and IoT equipment that needs cellular connectivity on a compact board-level module.It implements 3GPP Release 16 and supports both 5G NSA and 5G SA operation, together with EN-DC. Because it remains backward compatible with existing GSM/GPRS networks, it can be specified where legacy coverage is still part of the deployment.Peak rates are 3.4 Gbps DL / 0.46 Gbps UL in 5G NSA and 2.5 Gbps DL / 0.90 Gbps UL in 5G SA. The module operates from -40 °C to +85 °C and is rated for RED, FCC, CCC, RoHS and WEEE.ApplicationsM2M applicationsIoT applications

The G-4510 CR is a power-saving programmable automation controller designed for unattended remote sites where mains power is unavailable. Its built-in solar charger manages a 12 V lead-acid battery, so the unit can run from solar power in the field.The G-4510 CR combines 8 analogue inputs (0 ~ 20 mA, 12-bit) with 3 digital inputs, 3 open-collector digital outputs and 1 Form C relay output. An Ethernet port and RS-232 and RS-485 COM ports allow it to connect to local equipment and to a host system. Optional 4G and NB modules support wireless data transmission, and an optional GPS module adds 32-channel tracking.Typical deployments include hydrologic and wind monitoring, mudslide monitoring, and vehicle or maritime tracking. The unit is DIN-rail or wall mountable in a metal casing rated for -20 ~ +70 °C operation.ApplicationsHydrologic and wind monitoringMudslide monitoring systemsVehicle monitoring and trackingMaritime GPS tracking systems

The G-4510D CR is a Mini-PAC for remote, battery-powered machine-to-machine sites where mains power is unavailable or impractical. Its built-in solar charger manages a 12 V lead-acid battery, and low-voltage disconnect and reconnect thresholds protect the battery from deep discharge. The ordering code adds the LCD display to the base G-4510 specification.The unit combines 8 current analogue inputs, 3 dry-contact digital inputs, 3 open-collector digital outputs and a Form C relay output with an RJ-45 Ethernet port and both RS-232 and RS-485 serial ports. Optional 4G (EC21-AU or EC25-E) or NB (BG96) modules provide wireless data transmission, and an optional GPS module with 32-channel All-In-View tracking supports vehicle or maritime position tracking.The embedded MiniOS7 operating system includes anti-virus protection, and TCP and UDP client connections are supported over 4G LTE. The device is built into a metal casing, is rated for -20 ~ +70 °C operation and mounts on DIN-rail or wall.ApplicationsHydrologic and wind monitoringMudslide monitoringVehicle monitoring and trackingMaritime GPS tracking

GRP-2841M CR is a Linux-based gateway that bridges Ethernet and serial networks and can send the data over a cellular link. Its Cortex-A53 quad-core CPU, 1.6 GHz, with 1 GB LPDDR4 RAM handles large data volumes, which suits multi-device data collection in demanding plant environments.The unit works as an intelligent Remote Terminal Unit (RTU) and as a multiport serial gateway, with NAT and port forwarding built in. Its optional 4G/5G wireless module enables wireless data transmission, and the optional GPS function supports use as a tracking system for vehicle or maritime management. Remote I/O, Modbus data and camera video can all be carried in M2M applications.The CR code is the RoHS-marked variant of the GRP-2841M series, listed as a 4G/5G/Ethernet Gateway. Confirm the wireless module and GPS configuration against your requirements before ordering, as both are described as options for the series.Applications4G / 5G / Ethernet gateway applicationsRemote video monitoringSerial port gateway applicationsNode-RED applicationsVehicle management and maritime GPS trackingM2M data transmission of remote I/O, Modbus data or camera video

The GRP-540M-4GE CR connects Ethernet, serial and CAN devices to cellular networks, giving engineers a way to reach remote equipment over 4G LTE with 3G WCDMA and 2G GSM fallback. It works as a 4G router with port mapping, and as a serial-to-4G gateway for field devices that have no network connection of their own.The unit adds GPS with 32-channel All-In-View tracking, so it can also be deployed as a GPS tracking node. Remote I/O and Modbus data, or camera video, can be carried over the cellular link, making the device suited to distributed M2M monitoring.Built with a metal casing and rated for harsh industrial environments, the gateway mounts on DIN-rail or by screw. Micro SD expansion and a watchdog timer support unattended operation.Applications4G router for remote sitesRemote video monitoringSerial port to 4G gatewayGPS tracking systemsM2M transfer of remote I/O and Modbus data over 4G/3G/2G

GTM-200M CR is a modem converter that bridges RS-232 or USB 2.0 hosts, such as PLCs and PCs, to a cellular link. It is supplied without a built-in modem, so you select a communication module to match the field requirements and the frequency bands in use.An integrated library handles the command set of the communication modules, so application developers can concentrate on their own software rather than vendor-specific commands. The unit supports standard AT commands, and SMS transmission and 3G/4G connection can be set up through the library.A metal, DIN-rail mountable housing and an isolated digital input for resetting the system suit installations in harsh environments. The unit operates from -25 ℃ to 70 ℃ and is supplied with drivers for Windows 10 x64 and Windows 11.ApplicationsWireless high-speed data transmission from serial or USB equipmentSMS-based alarm and command transmission3G/4G connection for remote industrial equipmentRemote system reset via digital input

GTM-205M CR is an M.2 to USB converter for engineers who need a cellular data link on a DIN rail. This variant ships without a built-in modem, so you install the communication module that matches the frequency bands used at your site. The unit connects to the host over a USB 3.1 Super Speed Plus interface.The converter responds to standard AT commands, and an integrated library is provided to simplify application development. It can be paired with a range of PLCs and PCs, with the library supporting SMS sending and 4G/5G connectivity, so development effort can focus on the application rather than on the command set of each module.A digital input channel, isolated to 3750 Vrms, can reset the system. The metal housing is rated for operating temperatures from -25 ℃ to 70 ℃ and is supplied with Windows 10 x64 and Windows 11 drivers.ApplicationsWireless high-speed data transferSMS messaging from PLCs and PCs4G/5G connectivity for remote industrial sites

GTM-205M-5GC CR is a DIN-rail mounted industrial 5G modem that lets PAC and PC applications send and receive data over cellular networks. It supports 5G SA/NSA bands as well as 4G and 3G global bands, so a single unit can be used where the local network type varies.Connectivity is provided through a USB 3.1 Super Speed Plus interface, with a single RS-232 port for a software-initiated system reset. The modem supports standard AT commands and can open TCP server, TCP client and UDP client connections over 5G or 4G. A digital input, isolated to 3750 Vrms, can be used to reset the system.This variant is the RoHS compliant version for China. The metal casing and an operating range of -25 ~ +70 °C suit cabinet installations where a compact cellular link is required.5G SA/NSA and 4G/3G global band supportUSB 3.1 Super Speed Plus interface, drivers for Windows 10 x64 and Windows 11TCP server, TCP client and UDP client connections over 5G/4GStandard AT command set for control and SMSIsolated digital input for system reset, 3750 VrmsMetal DIN-rail housing, 28 x 78.5 x 100 mmApplicationsRemote data transfer from PAC and PC applications over cellular networksSMS-based messaging from automation systemsCellular connectivity for distributed or remote industrial sites

The I-8213W-4GC CR is an industrial 4G LTE modem with integrated GPS, intended for moving data from remote instruments, meters, computers or control systems over cellular networks. It supports FDD LTE B1/B3/B8 and TDD LTE B38/B39/B40/B41, alongside WCDMA, GPRS and SMS.An integrated TCP/IP stack allows controllers with serial ports to reach the network without custom driver development. The module offers TCP Server, TCP Client and UDP Client connection modes over 4G, 3G or GPRS, and accepts standard AT commands.The -4GC variant is the TDD-capable version, labelled for China in the product description. Its sister model, the I-8213W-4GE, covers FDD LTE B1/B3/B5/B7/B8/B20 instead. The module installs on DIN-rail and is rated for -25 to 75 °C operation, and it pairs with WinPAC-8000, LinPAC-8000 or XP-8000 controllers.ApplicationsRemote data transfer from instruments, meters, computers or control systemsSMS, GPRS and 4G connections for PAC-based systemsLive or packet data transfer over cellular networks

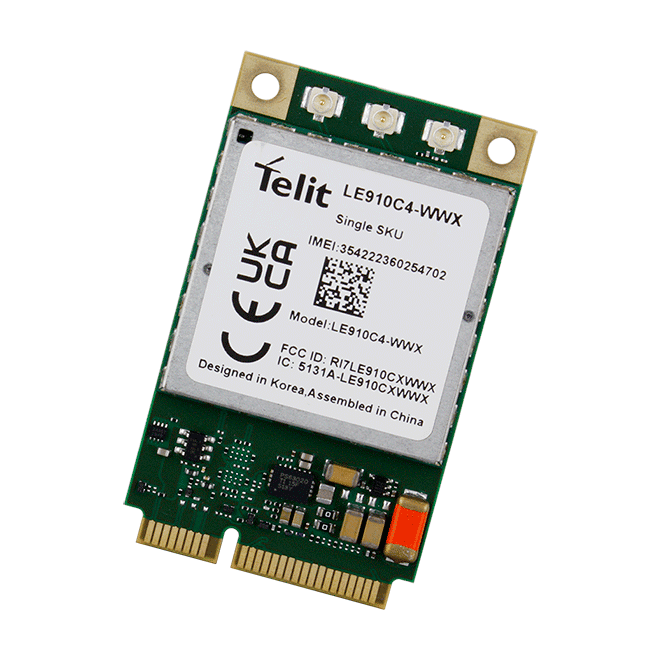

The LE910C4-WWX CR is an LTE Cat-4 module in the standard Mini PCIe data-card form factor, optimised for low-category LTE networks. It offers LTE downlink of up to 150 Mbps and uplink of up to 50 Mbps, with 3G DC-HSPA+ and 2G GPRS fallback across the listed frequency bands.Engineers can connect peripherals and actuators through USB 2.0 HS, UART and user-definable GPIOs. Integrated TCP/IP and UDP/IP stacks support internet-connected designs without a separate networking layer in the host application.The module measures 51 x 30 x 3.2 mm (W x L x H) and is rated for operation from -35 °C to +75 °C, with storage from -40 °C to +85 °C. It carries RED, UKCA, FCC, RoHS and WEEE certification marks.ApplicationsCellular connectivity for embedded peripherals and actuatorsInternet-connected equipment requiring LTE data links

The LE910C4-WWXD CR is an LTE Cat-4 cellular module in the standard Mini PCI Express card format. It suits machine-to-machine and Internet of Things designs where a compact, ready-to-integrate LTE link is needed. Its LTE band support is complemented by GSM/GPRS and WCDMA/DC-HSPA+ fallback, with downlink rates of up to 150 Mbps on LTE.Integration is straightforward. The module connects to peripherals and actuators through USB 2.0 High Speed, UART and user-definable GPIOs, and includes integrated TCP/IP and UDP/IP stacks so that data can be sent over the network without a separate protocol stack. The module is rated for an operating temperature range of -35°C to +75°C.The ordering code LE910C4-WWXD CR is supplied as an LTE Cat-4 module carrying RoHS compliance. Certifications listed for the module are RED, UKCA, FCC, RoHS and WEEE.ApplicationsM2M applicationsIoT applications

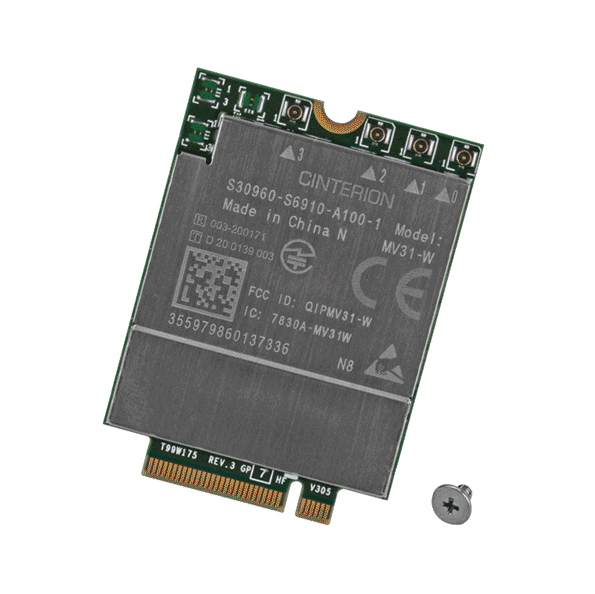

The MV31-W CR is a 5G modem card for IoT designs that need high-speed mobile broadband. It supports Stand Alone (SA) and NSA operation and can fall back to 4G LTE and 3G networks where 5G coverage is limited.Its single SKU covers global 5G bands, including sub 6 GHz operation, so one card can serve multiple regions. The compact standard M.2 30x42 form factor with PCIe 3.0 makes it straightforward to fit into existing industrial router, gateway and computer designs.Suited to industrial routers and gateways, digital signage, industrial computers and tablets.Operating temperature range of -30°C ~ +70°C, with storage up to +85°C.Certified to RED, FCC, RoHS and WEEE.ApplicationsIndustrial routers and gatewaysDigital signageIndustrial computers and tablets
