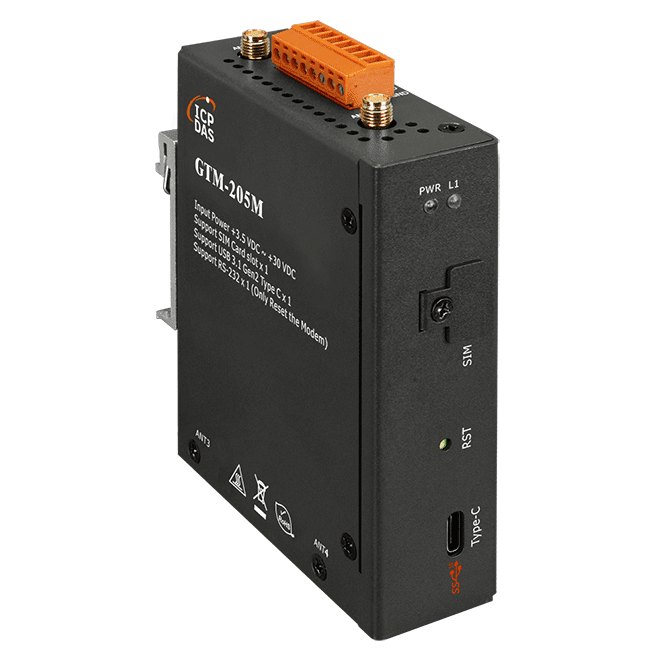

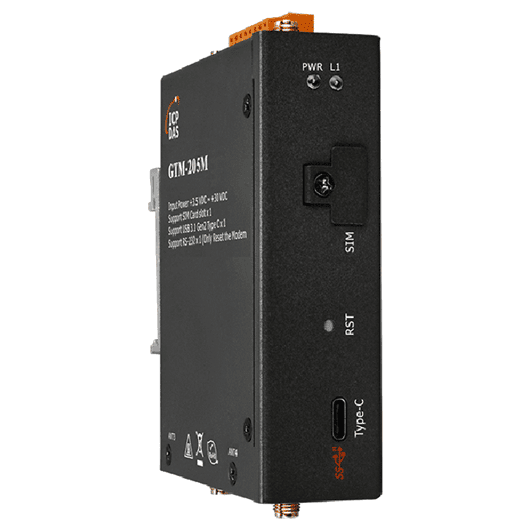

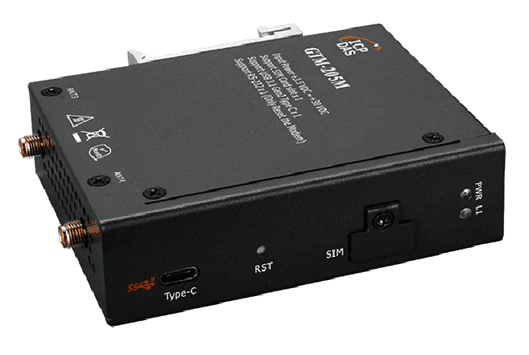

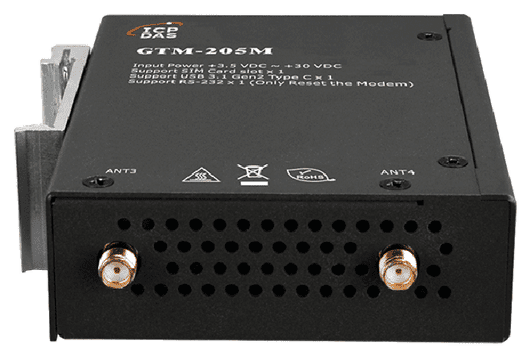

GTM-205M M.2 to USB Modem Converter (No Built-in Modem), USB 3.1
DIN-rail M.2 to USB 3.1 converter for industrial wireless data links, supplied without a built-in modem so you can fit the communication module that suits your site.
- Accepts optional M.2 communication modules, fitted separately, to suit local frequency bands
- Standard AT command support plus an integrated library for SMS and 4G/5G connectivity
- USB 3.1 Super Speed Plus host interface
- Isolated digital input (3750 Vrms) for system reset, with ON level 3.5 VDC to +30 VDC
- RS-232 port (RxD, TxD, GND) at 115200 bps, used only for software reset of the system
- Metal casing, 28 x 78.5 x 100 mm (W x L x H), DIN-rail mountable
1.270,61 kr. pr. stk.
| 1–9 stk. | 1.270,61 kr. | |
|---|---|---|
| 10–30 stk. | 1.233,24 kr. | −3 % |
| 31+ stk. | 1.210,82 kr. | −5 % |
Produktinformation "GTM-205M M.2 to USB Modem Converter (No Built-in Modem), USB 3.1"
GTM-205M CR is an M.2 to USB converter for engineers who need a cellular data link on a DIN rail. This variant ships without a built-in modem, so you install the communication module that matches the frequency bands used at your site. The unit connects to the host over a USB 3.1 Super Speed Plus interface.
The converter responds to standard AT commands, and an integrated library is provided to simplify application development. It can be paired with a range of PLCs and PCs, with the library supporting SMS sending and 4G/5G connectivity, so development effort can focus on the application rather than on the command set of each module.
A digital input channel, isolated to 3750 Vrms, can reset the system. The metal housing is rated for operating temperatures from -25 ℃ to 70 ℃ and is supplied with Windows 10 x64 and Windows 11 drivers.
Applications
- Wireless high-speed data transfer
- SMS messaging from PLCs and PCs
- 4G/5G connectivity for remote industrial sites
| Product type: | Modem converter |
|---|---|
| Interface: | USB 3.1 |
| Protocol: | AT commands |
| Digital inputs: | 1 |
| Ports: | 1 x RS-232 |
| Isolation: | 3750 Vrms |
| Operating temperature: | -25 ~ +70 °C |
| Mounting: | DIN-rail |
| Housing: | Metal |
Specifikationer
| LED Indicators | |
|---|---|
| Status | 1 x Power 1 x 5G/4G |
| Reset Input | |
| Type | Isolated, 3750 Vrms |
| ON Voltage Level | 3.5 VDC ~ +30 VDC |
| OFF Voltage Level | +1 VDC max. |
| Input Impedance | 3 kΩ, 0.25W |
| COM Ports | |

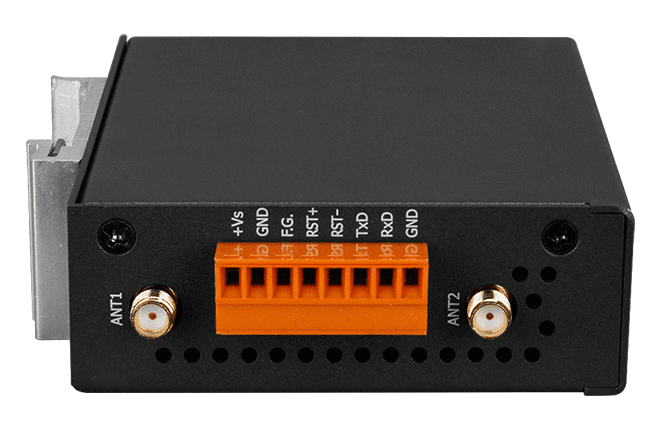

| Ports | 1 x RS-232 (RxD, TxD, GND. Only for software reset system.) |
| Baud Rate | 115200 bps |
| USB | |
| Specification | 1 x USB 3.1 (Super speed plus) |
| Driver | Windows 10_x64、Windows 11 |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 28 x 78.5 x 100 (W x L x H) |

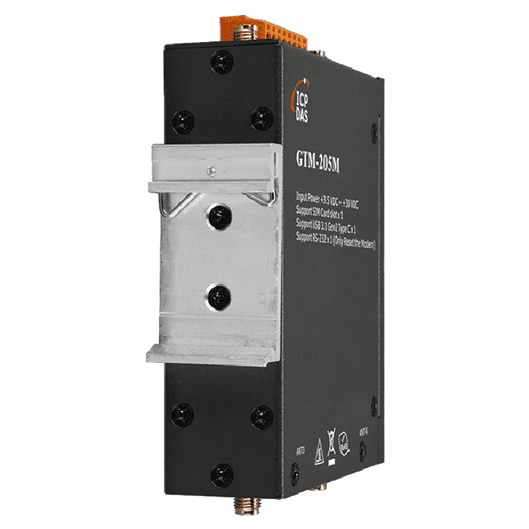

| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25℃ to 70℃ |
| Storage Temperature | -40℃ to 80℃ |
| Humidity | 5~90% RH, non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
