WISE I/O Module

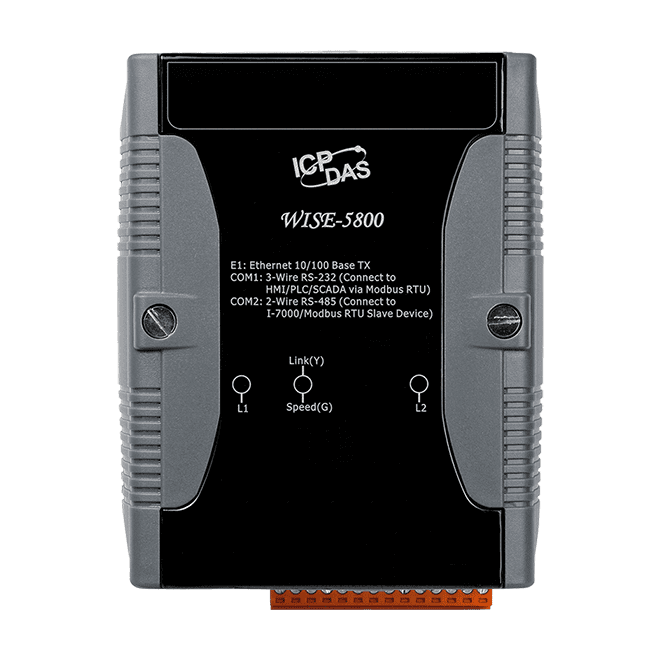

WISE-5800 CR is a web-configured controller for remote logic control and monitoring. Control logic is set up through its built-in web pages in a browser, so no separate software tool is needed and no conventional programming is involved. IF-THEN-ELSE rules, timers, schedules and recipes are all configured this way.The unit extends its I/O through an XW-Board expansion bus for digital and analogue channels, and it can also drive remote I/O from the I-7000 series (up to 16 modules) or Modbus RTU slave devices (up to 10). This lets engineers mix I/O types and vendors to suit the application.For supervisory systems, the controller speaks Modbus TCP and Modbus RTU for straightforward SCADA integration. An onboard microSD data logger records I/O values on an event trigger or at regular intervals, and the files can be sent by FTP or non-SSL Email.Typical areas include building, factory and machine automation.Suited to remote maintenance and remote diagnosis or testing equipment.ApplicationsBuilding automationFactory automationMachine automationRemote maintenanceRemote diagnosis and testing equipment

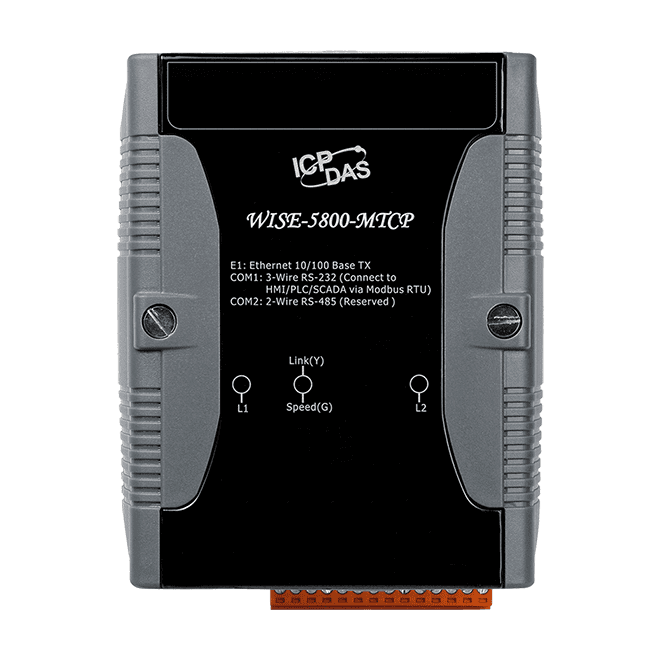

WISE-5800-MTCP is a remote logic control and monitoring unit from the WISE series that is configured entirely through a web browser, so no extra software tool or programming is needed. Control logic is built as IF-THEN-ELSE rules, with up to 36 rules supported, which keeps commissioning quick for system integrators.The module extends its I/O through the XW-Board expansion bus, covering digital and analogue input and output functions, and can also poll up to 7 Modbus TCP slave devices. It supports Modbus TCP and Modbus RTU for integration with SCADA software, alongside timers, schedules, recipes and internal registers.An onboard data logger records I/O values to a microSD card on an event trigger or at regular intervals, and the data files can be sent by non-SSL email or FTP. The unit is powered from 12 ~ 48 VDC with reverse polarity protection and redundant power inputs, and mounts on a DIN rail.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote diagnosis and Testing Equipment

WISE-7102 CR is a standalone I/O controller from ICP DAS's WISE series, designed for remote logic control and monitoring. Control rules are set up through its built-in web interface, so no programming or additional software tool is needed. This makes it a practical choice where a fast, low-effort local control loop is required.The module combines 3 differential analog input channels, 6 digital input channels and 3 power relay outputs (Form A, SPST N.O.) in a single unit. It can be powered over Ethernet to IEEE 802.3af (Class 1), or from a 12 ~ 48 VDC terminal block where PoE is not available, which helps reduce cabling and the need for dedicated outlets at the installation point.For supervisory integration, the module supports Modbus TCP for SCADA system connectivity, along with CGI command sending and non-SSL e-mail notifications. It is well suited to building and factory automation, machine automation and remote maintenance or diagnosis tasks.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote diagnosis and Testing Equipment

The WISE-7105 CR is a web-configurable I/O module that combines 8 differential thermistor inputs and 4 isolated open-collector digital outputs in a single unit. Configuration runs in a standard browser, so no additional software tool is needed, and IF-THEN-ELSE control logic is set up through the web pages rather than by writing code.Each analogue channel can be given its own input range, and the module supports I/O monitoring and control, timer operations, and non-SSL email and CGI command sending. Modbus TCP is provided for integration with SCADA systems.Power can be taken from an IEEE 802.3af (Class 1) PoE network over a single Ethernet cable, or from a 12 ~ 48 VDC terminal block where PoE is not available, which helps reduce cabling and simplify installation in space-constrained cabinets.ApplicationsBuilding automationFactory automationMachine automationRemote maintenanceRemote diagnosis and testing equipment

WISE-7115 CR is a standalone intelligent I/O module that takes seven RTD sensor inputs and makes them available over Ethernet. Control logic is built through the module's built-in web pages using IF-THEN-ELSE rules, so no programming environment or extra software tool is needed. This suits engineers who want local automation and monitoring without the overhead of writing code.Each RTD channel can be set to its own sensor range. Pt100, Pt1000, Ni120, Cu100 and Cu1000 types are supported, with 3-wire lead resistance elimination and open wire detection for accurate measurement. Modbus TCP allows the module to feed data into SCADA systems.The unit can be powered from a PoE network under IEEE 802.3af, Class 1, or from a 12 ~ 48 VDC terminal block when PoE is not present. It is rated for an operating range of -25 ~ +75 °C and mounts on a DIN rail or wall.ApplicationsBuilding automationFactory automationMachine automationRemote maintenanceRemote diagnosis and testing equipment

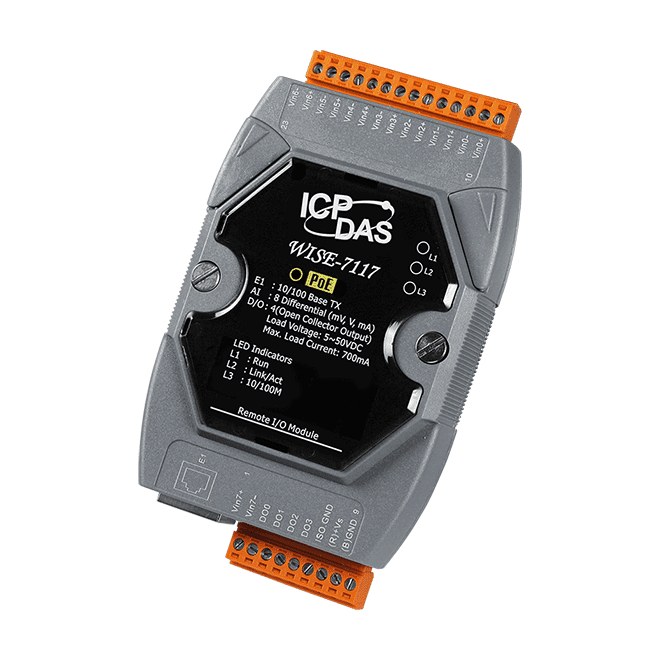

The WISE-7117 CR is a standalone I/O controller that is configured entirely through its built-in web interface. Engineers can build IF-THEN-ELSE control logic in a browser without writing code or installing a separate software tool, which shortens commissioning for remote control and monitoring tasks.The module provides 8 differential, 16-bit analog inputs and 4 isolated open-collector digital outputs. Each analog channel can be given its own range, and jumpers select voltage or current input. Power can come from an IEEE 802.3af Class 1 PoE connection over a single Ethernet cable, or from a 12 ~ 48 VDC terminal block when PoE is not available.Modbus TCP support allows the module to be integrated with SCADA software. Timer, internal register, recipe and advanced P2P functions, together with non-SSL email and CGI command sending, extend its use in building, factory and machine automation and remote diagnosis systems.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote diagnosis and Testing Equipment

Intelligent I/O Module with 10-ch Thermocouple Input and 6-ch DO and PoE. Includes DB-1820 Daughter Board.

Intelligent I/O Module with 10-ch Thermocouple Input and 6-ch DO and PoE. Includes DN-1822 Daughter Board and 1.8 m Cable.

WISE-7126 CR is a browser-configured I/O module for remote control and monitoring. Its built-in web pages let you build IF-THEN-ELSE control logic without installing a software tool or writing code, which suits engineers who want to get a remote control point running quickly.The module combines six differential analogue inputs, two analogue outputs, two digital inputs (dry and wet contact) and two isolated open-collector digital outputs. It takes power either from a IEEE 802.3af Class 1 PoE network over the Ethernet cable or from a 12 ~ 48 VDC terminal block, so it can run where no PoE is available.For SCADA integration, the module supports Modbus TCP, and it can send non-SSL email and CGI commands. Its specified operating range of -25 ~ +75 °C and DIN-rail or wall mounting make it practical for industrial cabinets and remote installations.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote diagnosis and Testing Equipment

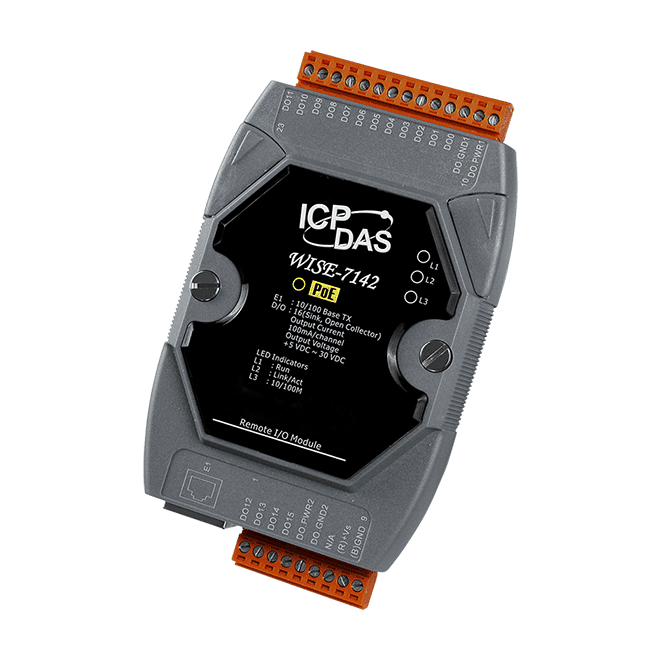

The WISE-7142 CR is a PoE-powered intelligent I/O module with 16 sink-type digital output channels. Control logic is built through the module's web interface in a browser, so no separate programming tool is needed. Engineers can set up IF-THEN-ELSE rules, timers and I/O channel monitoring directly on the unit.The module draws power from an IEEE 802.3af (Class 1) PoE network over a standard Category 5 cable, which reduces cabling and the need for a dedicated outlet at the installation point. Where PoE is not available, it can be powered from an auxiliary source such as an AC adapter or battery, within the 12 ~ 48 VDC input range.Supports Modbus TCP for integration with SCADA software.Digital outputs are isolated open collector, rated 5 ~ 30 VDC load voltage and 100 mA per channel at 25 °C.Suitable for DIN-rail or wall mounting, operating from -25 ~ +75 °C.ApplicationsBuilding automationFactory automationMachine automationRemote maintenanceRemote diagnosis and testing equipment

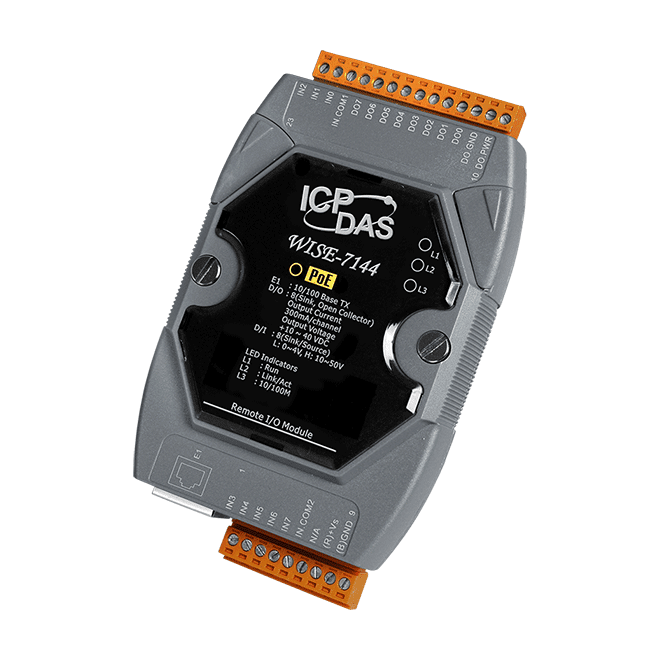

The WISE-7144 CR is a web-configurable I/O module for remote control and monitoring. Control logic is set up through its built-in web pages in a browser, so no separate software tool or programming is needed. IF-THEN-ELSE rules, timers and I/O channel monitoring cover many standard remote control tasks.It takes power from an IEEE 802.3af Class 1 PoE network over Ethernet, or from a 12 ~ 48 VDC terminal block where PoE is not available. Each of the eight digital inputs is an isolated wet contact channel that also works as a counter, and each of the eight isolated open collector outputs can drive 300 mA at 25 °C, including direct drive of power relay modules.Modbus TCP support allows the module to be integrated into SCADA systems. The module suits building, factory and machine automation projects, as well as remote maintenance and diagnosis equipment.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote diagnosis and Testing Equipment

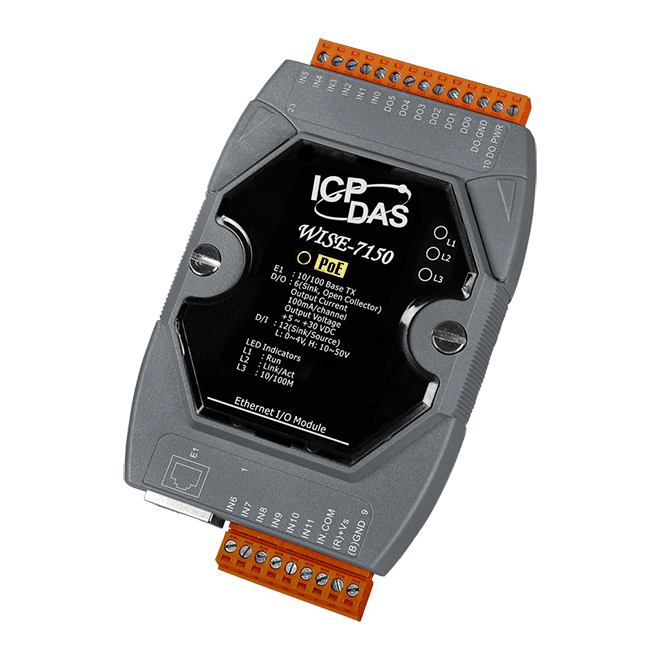

The WISE-7150 CR lets engineers build remote IF-THEN-ELSE control logic directly in a web browser, with no programming and no additional software tool. It combines 12 digital inputs and 6 digital outputs on one module, so local control and monitoring can run without a separate controller.Power can come from IEEE 802.3af PoE over a standard Category 5 cable, or from a 12 ~ 48 VDC terminal block where PoE is not available. Each output channel drives up to 100 mA at 5 ~ 30 VDC, and the digital inputs support counter operation.Modbus TCP support provides straightforward integration with SCADA systems. The CR ordering code carries the RoHS designation, and the module is listed with CE, UKCA, FCC, RoHS and WEEE certifications.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote diagnosis and Testing Equipment

The WISE-7151 CR is a networked I/O controller that lets engineers build remote logic and monitoring without writing code. Configuration runs in a standard web browser, and IF-THEN-ELSE rules are set up through the built-in web pages, so no separate software tool is needed.The module provides 16 isolated wet contact digital inputs, each with counter capability, and communicates over Modbus TCP for integration with SCADA systems. It can take its power from an IEEE 802.3af Class 1 PoE network or from a 12 ~ 48 VDC terminal block, which suits installations where a separate supply or additional cabling is impractical.Beyond the logic engine, the module offers timer, internal register, recipe and advanced peer-to-peer functions, plus I/O channel monitoring and control. It also supports non-SSL email and CGI command sending. It mounts on DIN-rail or wall, and is rated for an operating range of -25 ~ +75 °C.ApplicationsBuilding automationFactory automationMachine automationRemote maintenanceRemote diagnosis and testing equipment

The WISE-7152 CR is a web-configured control unit for remote logic control and monitoring. Its built-in web pages let you create IF-THEN-ELSE control rules from any standard browser, so no separate software tool or programming is needed. It combines 8 isolated wet contact digital inputs, with counter support, and 8 isolated open collector outputs in a single DIN-rail or wall-mounted module.Power can come from an IEEE 802.3af Class 1 PoE connection over a standard Ethernet cable, or from a 12 ~ 48 VDC terminal block when no PoE infrastructure is present. Each output channel handles up to 650 mA at 25 °C with a load voltage of +10 ~ +40 VDC, and the outputs include short-circuit protection.Modbus TCP support allows the module to be integrated into SCADA systems, while timer, internal register, recipe and advanced peer-to-peer functions, plus non-SSL email and CGI command sending, add flexibility for building, factory and machine automation, as well as remote maintenance and diagnosis.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote diagnosis and Testing Equipment

WISE-7153 CR is an intelligent I/O module from the WISE series, designed for remote logic control and monitoring. It runs its configuration through a web browser, so no additional software tool is needed, and control logic is built with IF-THEN-ELSE rules rather than code.The module provides 16 dry contact digital inputs, each with counter support, and exposes its data over Modbus TCP for SCADA integration. It can be powered either from an IEEE 802.3af Class 1 PoE network over a single Ethernet cable or from a 12 ~ 48 VDC terminal block supply, which suits installations where dedicated mains outlets are not available.Suited to building, factory and machine automation, remote maintenance, and remote diagnosis and testing equipmentApplicationsBuilding automationFactory automationMachine automationRemote maintenanceRemote diagnosis and testing equipment

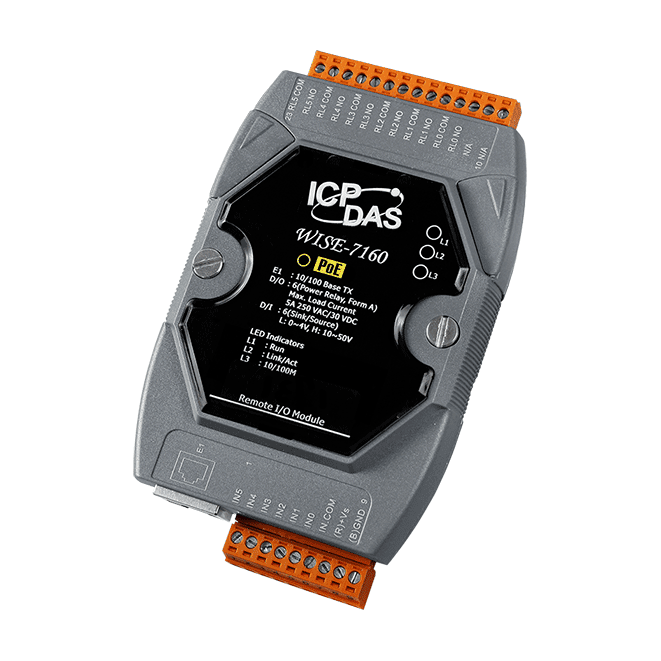

The WISE-7160 CR is a standalone I/O controller for remote logic control and monitoring. Its built-in web interface lets you configure IF-THEN-ELSE control rules from a browser, so no separate software tool or programming is needed. It combines six wet-contact digital inputs, each with counter capability, and six Form A power relay outputs in one module.Power can come from an IEEE 802.3af Class 1 PoE network over a standard Category 5 Ethernet cable, or from a 12 ~ 48 VDC terminal block supply where PoE is not available. Timer, internal register, recipe and advanced peer-to-peer functions extend the control logic, and Modbus TCP allows integration with SCADA systems.The module suits building and factory automation, machine automation and remote maintenance or diagnosis work where a compact, networked I/O point is needed. Its 2500 VDC intra-module isolation and -25 ~ +75 °C operating range support demanding installations.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote diagnosis and Testing Equipment

WISE-7167 is a browser-configured I/O module for remote logic control and monitoring. Its built-in web pages let engineers build IF-THEN-ELSE control rules without writing code or installing extra software, which shortens commissioning on small and medium automation projects.The module provides eight power relay outputs (Form A, SPST N.O.), each rated 5 A @ 250 VAC/24 VDC for resistive loads. It can be powered from an IEEE 802.3af Class 1 PoE network over a standard Category 5 cable, or from a 12 ~ 48 VDC terminal block where PoE is not available, which helps reduce cabling and the need for local outlets.For supervision, the WISE-7167 supports Modbus TCP for integration with SCADA software, along with I/O channel monitoring and control, timer operations, CGI command sending and non-SSL email notifications.Target use: building, factory and machine automation, remote maintenance and diagnosisApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote diagnosis and Testing Equipment

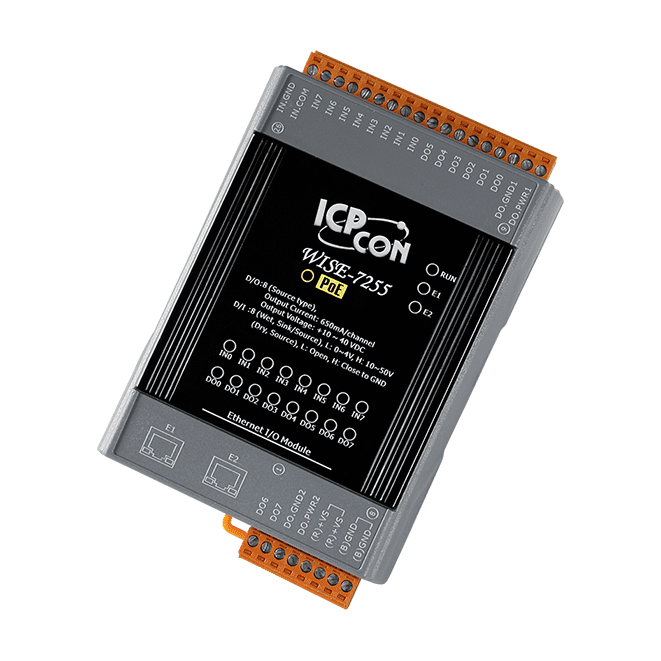

The WISE-7255 CR is a standalone intelligent I/O module from the WISE series that handles remote control and monitoring without a separate PLC or custom firmware. Its built-in web pages let you create IF-THEN-ELSE control logic in the browser, so there is no need to write code or install a dedicated software tool.On the I/O side, the module provides 8 digital inputs that accept dry or wet contacts (sink/source) and 8 isolated open-collector outputs (source type), each rated for 650 mA per channel at 25 °C. Timer operations, I/O channel monitoring and control, and non-SSL email or CGI command sending are included. Power can come from IEEE 802.3af Class 1 PoE or from a 12 ~ 48 VDC terminal block input.A two-port Ethernet switch allows daisy-chain wiring, and Modbus TCP support makes integration with SCADA systems straightforward. The WISE-7255 CR is listed as RoHS compliant and suits building, factory and machine automation as well as remote maintenance and diagnostic equipment.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote diagnosis and Testing Equipment

The WISE-7504M CR is a PoE-powered I/O module that combines 4 analogue inputs, 4 analogue outputs and 4 digital inputs with browser-based IF-THEN-ELSE logic. Configuration is done through its built-in web interface, so no separate programming tool or coding is needed for control logic, which suits teams that want to commission remote monitoring and control quickly.Each analogue input can be set to a voltage or current range by jumper and tolerates up to 240 Vrms overvoltage. The module adds timer, schedule, counter and internal register functions, along with non-SSL e-mail and CGI command sending. Modbus TCP serves SCADA integration, while the MQTT client and active I/O publishing connect it to IT and IoT systems.A built-in two-port Ethernet switch allows daisy-chained wiring, reducing cable runs and switch count. The unit accepts IEEE 802.3af Class 1 power over Ethernet or a 12 ~ 48 VDC terminal block supply.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote diagnosis and Testing Equipment

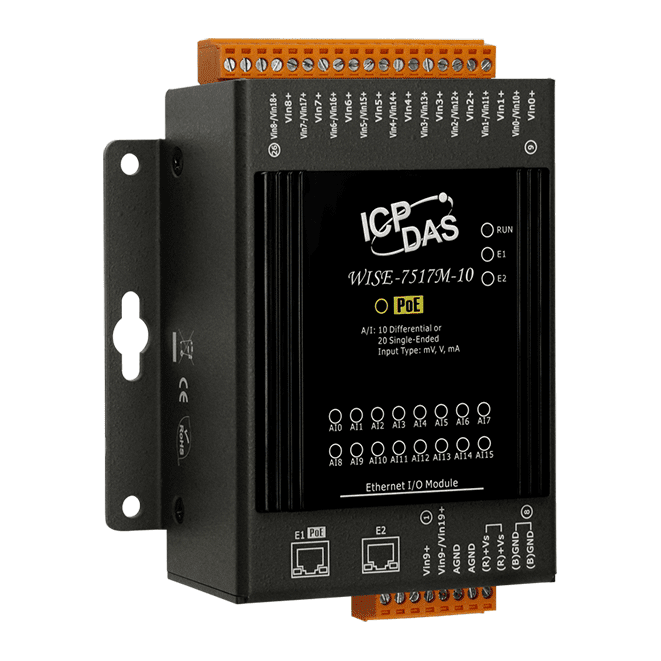

The WISE-7517M-10 CR is a web-configurable controller module that combines a multichannel analog input front end with Modbus TCP and MQTT connectivity. Control logic is built in the browser using IF-THEN-ELSE rules, so no separate programming tool is needed to set up monitoring or control tasks.The analog inputs can be configured as 10 differential or 20 single-ended channels, with voltage or current ranges selected per channel by jumper and software. Each channel offers 240 Vrms overvoltage protection in differential mode and 4 kV ESD qualification, which suits harsh field wiring. Power can be taken from a PoE network or from a 12 ~ 48 VDC terminal block.A built-in two-port switch allows units to be daisy-chained along a cable run, reducing the number of switches and cables needed. The module is intended for wall mounting and operates from -25 ~ +75 °C, making it suitable for building, factory and machine automation as well as remote maintenance and diagnosis.ApplicationsBuilding automationFactory automationMachine automationRemote maintenanceRemote diagnosis and testing equipment

Intelligent MQTT I/O Module with 2-port Ethernet Switch, 10-ch AI, 3-ch DO and PoE. Includes DB-1820 Daughter Board.

Intelligent MQTT I/O Module with 2-port Ethernet Switch, 10-ch AI, 3-ch DO and PoE. Includes DB-1822 Daughter Board and 1.8 m Cable.

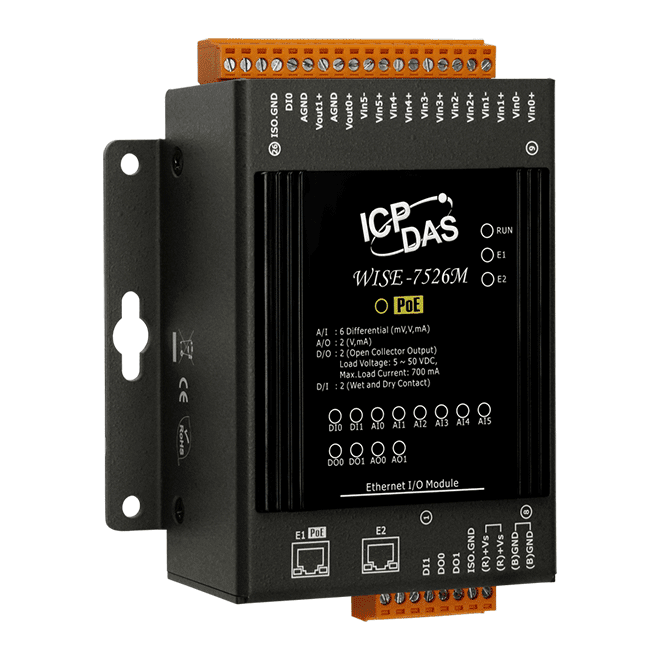

WISE-7526M CR is a browser-configured I/O module for engineers who need analogue measurement, digital sensing and switching at the field level without writing control code. Control logic is built from IF-THEN-ELSE rules entered through the module's web pages, so it can be commissioned quickly from any standard browser.The module combines six differential analogue inputs, two analogue outputs, two digital inputs and two digital outputs on one unit. Each analogue input can be set to its own range, and the inputs are protected against overvoltage up to 240 Vrms. Timers, schedules, internal registers and I/O monitoring are available for local automation tasks.For connectivity, the module supports Modbus TCP for SCADA integration and MQTT for IT and IoT platforms. Power can be taken from an IEEE 802.3af-compliant PoE network or from a 12 ~ 48 VDC terminal block. A built-in two-port Ethernet switch allows units to be daisy-chained along a network run, reducing cabling and the need for separate switches.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote diagnosis and Testing Equipment

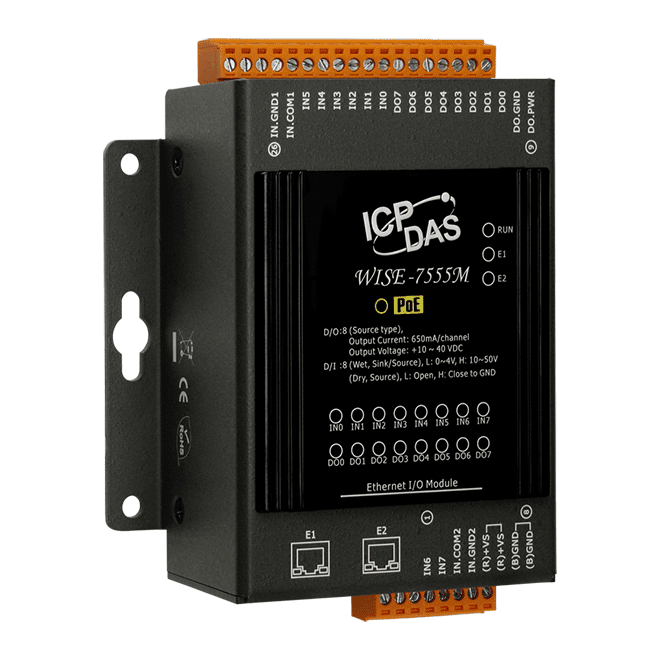

The WISE-7555M is a networked control unit for remote logic control and monitoring. Its web interface lets you build IF-THEN-ELSE control logic directly on the module, so no separate software tool or programming is needed, which keeps commissioning quick.The module provides 8 dry/wet contact digital inputs and 8 source-type digital outputs. Inputs and outputs are optically isolated at 2500 VDC for transient overvoltage protection, though channels are not isolated from each other, which makes it suitable for installations where hazardous voltages may be present.For connectivity, the unit offers Modbus TCP for SCADA integration and MQTT for IT and IoT platforms. Power can come from an IEEE 802.3af PoE network or a 12 ~ 48 VDC terminal block, and the built-in two-port switch allows devices to be wired in a daisy-chain topology.ApplicationsBuilding AutomationFactory AutomationMachine AutomationRemote MaintenanceRemote diagnosis and Testing Equipment
