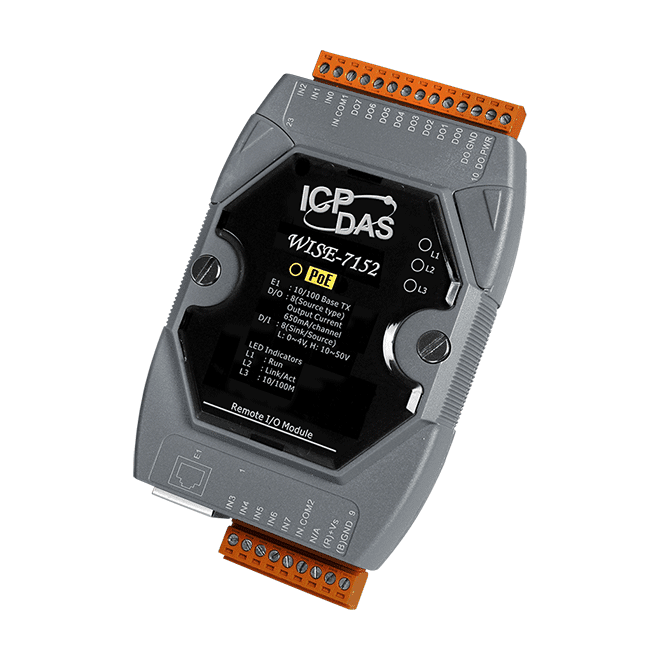

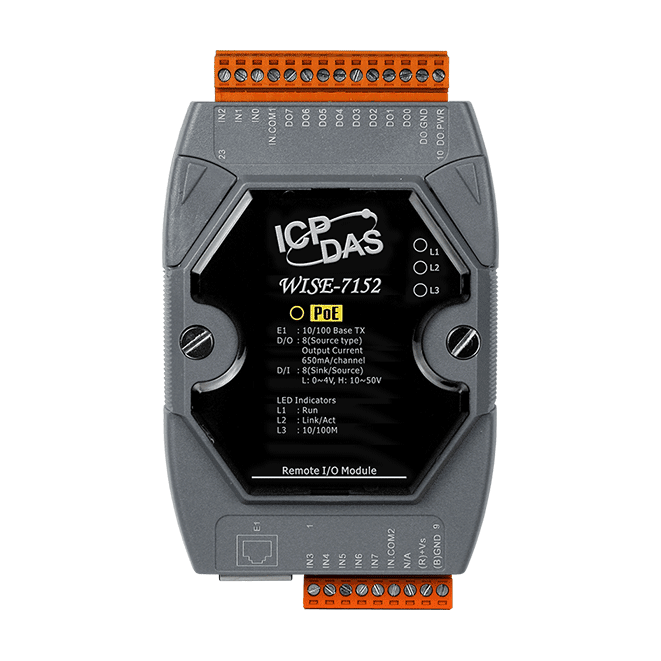

WISE-7152 Intelligent I/O Module with PoE, 8-ch DI and 8-ch DO
WISE-7152 CR is a browser-configured intelligent I/O module with 8 isolated digital inputs, 8 isolated open collector outputs and IEEE 802.3af PoE, with Modbus TCP for SCADA integration.
- Browser-based configuration with no additional software tool required
- IF-THEN-ELSE logic rules (36 supported) set up through web pages, without programming
- 8 isolated wet contact digital inputs with counter input support (16-bit)
- 8 isolated open collector digital outputs, 650 mA per channel at 25 °C, with short-circuit protection
- Modbus TCP protocol for SCADA system integration
- IEEE 802.3af Class 1 PoE, or 12 ~ 48 VDC terminal block power
1.823,70 kr. pr. stk.
| 1–9 stk. | 1.823,70 kr. | |
|---|---|---|
| 10–30 stk. | 1.763,91 kr. | −3 % |
| 31+ stk. | 1.726,54 kr. | −5 % |
Produktinformation "WISE-7152 Intelligent I/O Module with PoE, 8-ch DI and 8-ch DO"
The WISE-7152 CR is a web-configured control unit for remote logic control and monitoring. Its built-in web pages let you create IF-THEN-ELSE control rules from any standard browser, so no separate software tool or programming is needed. It combines 8 isolated wet contact digital inputs, with counter support, and 8 isolated open collector outputs in a single DIN-rail or wall-mounted module.
Power can come from an IEEE 802.3af Class 1 PoE connection over a standard Ethernet cable, or from a 12 ~ 48 VDC terminal block when no PoE infrastructure is present. Each output channel handles up to 650 mA at 25 °C with a load voltage of +10 ~ +40 VDC, and the outputs include short-circuit protection.
Modbus TCP support allows the module to be integrated into SCADA systems, while timer, internal register, recipe and advanced peer-to-peer functions, plus non-SSL email and CGI command sending, add flexibility for building, factory and machine automation, as well as remote maintenance and diagnosis.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote diagnosis and Testing Equipment
| Product type: | Intelligent I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP |
| Digital inputs: | 8 |
| Digital outputs: | 8 |
| Ports: | 1 |
| PoE: | Yes |
| Isolation: | 2500 VDC |
| Power input: | 12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Specifikationer
| Software | |
|---|---|
| Protocol | • Modbus TCP • CGI Command (Sending) |
| Function | • Web Interface for Configuration • IF-THEN-ELSE Logic operation (36 rule supported) • I/O channel monitoring and control • Timer operation (12 set supported) • Internal Register operation (48 set supported) • Recipe operation (12 set supported) • Advanced P2P (8 set supported) • non-SSL Email sending function |
| CPU Module | |
| CPU | 16-bit CPU (80 MHz) |
| Isolation | |
| Intra-module Isolation | 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each terminal and ±8 kV Air for random point |
| Surge (IEC 61000-4-5) | ±0.5 kV for Power Line |
| LED Indicators | |
| Status | 1 x PoE Power 1 x System Running 1 x Ethernet Link/Act 1 x Ethernet 10/100M Speed |
| Digital Input/Counter | |
| Channels | 8 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +10 VDC ~ +50 VDC |
| OFF Voltage Level | +4 VDC Max. |
| Max. Counts | 16-bit (65535) |
| Frequency | 50 Hz |
| Min. Pulse Width | 10 ms |
| Input Impedance | 10 kΩ |
| Overvoltage Protection | +70 VDC |
| Digital Output | |
| Channels | 8 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Source |
| Load Voltage | +10 VDC ~ +40 VDC |
| Load Current | 650 mA/Channel at 25 °C |
| Overvoltage Protection | 47 VDC |
| Short-circuit Protection | Yes |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100 Base-TX and automatic MDI/MDI-X |
| PoE | Yes |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Range | 12 ~ 48 VDC |
| Consumption | 2.5 W |
| Powered from PoE | Yes, IEEE 802.3af, Class 1 |
| Powered from Terminal Block | Yes, 12 ~ 48 VDC |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting/Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
