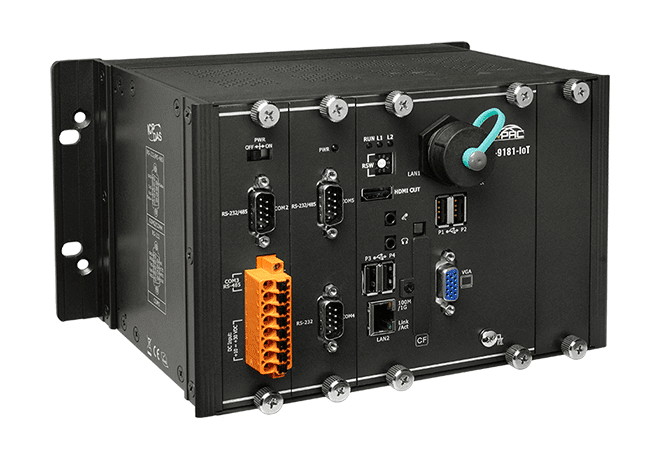

The XP-9181-IoT CR is a Windows-based programmable automation controller for engineers who need HMI, data acquisition and control in a single compact unit. It runs Windows 10 IoT Enterprise LTSC (64-bit) on an Intel Atom E3845 1.91 GHz quad-core processor with 4 GB DDR3 SDRAM and a 64 GB SSD, so standard Windows software and development tools can be used on the controller.Connectivity covers VGA and HDMI display outputs, two 10/100/1000M Ethernet ports, four USB 2.0 ports and a set of isolated serial ports: one RS-232, one RS-485 and two switchable RS-232/RS-485, each rated at 3000 VDC isolation. A single local slot accepts I-9K or I-97K series I/O modules, and remote I/O expansion is possible through Ethernet or RS-485 I/O modules.The unit is designed for DIN-rail or wall mounting and has a +10 ~ 30 VDC power input with redundant power inputs for added resilience. Its dual watchdog timer and operating range of -25 ~ +60 °C suit demanding control cabinet installations. The CR ordering code is the RoHS-compliant standard version.ApplicationsHMI and operator interfaceData acquisitionMachine and process controlIntegrated PAC for control cabinets

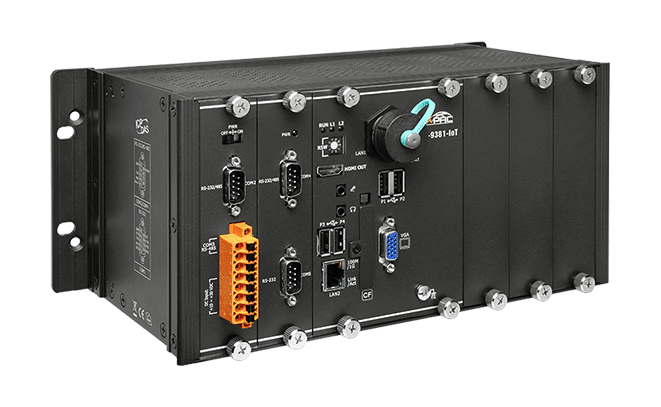

The XP-9381-IoT is a Windows-based programmable automation controller that brings computing, I/O and operator interface into a single unit. It suits projects where HMI, data acquisition and control need to sit in one individual PAC rather than across separate devices.The unit runs Windows 10 IoT Enterprise LTSC (64-bit) on an Intel Atom E3845 quad-core CPU at 1.91 GHz, with 4 GB DDR3 SDRAM and a 64 GB SSD. Local I/O is provided by three expansion slots for I-9K and I-97K series modules, and remote I/O can be added through Ethernet or RS-485 I/O modules.Connectivity includes two 10/100/1000M Ethernet ports, VGA and HDMI display output, four USB 2.0 ports, and a mix of isolated RS-232 and RS-485 serial ports. The XP-9381-IoT CR is supplied with CE, UKCA, RoHS and WEEE certification listed, and its +10 ~ 30 VDC input can be wired redundantly.ApplicationsIntegrated HMI, data acquisition and control in a single PACLocal and remote I/O expansion for machine and process controlWindows-based supervisory and data handling tasks
The XP-9781-IoT is a Windows-based programmable automation controller that brings computing, I/O and operator interface into a single unit. It suits projects that need HMI, data acquisition and control in one PAC rather than as separate devices.Local I/O is supported through seven expansion slots for I-9K and I-97K series modules. Remote I/O can be added through Ethernet I/O modules or RS-485 I/O modules, giving flexibility in how the control system is distributed.Built around an Intel Atom E3845 quad-core CPU with 4 GB DDR3 SDRAM and a 64 GB SSD, the unit offers VGA and HDMI outputs, dual 10/100/1000 Base-TX Ethernet, multiple isolated serial ports and redundant power inputs. This ordering code is listed as RoHS in the product description.ApplicationsIntegrated HMI, data acquisition and control in a single PACDistributed local and remote I/O control systems
