Strømforsyninger

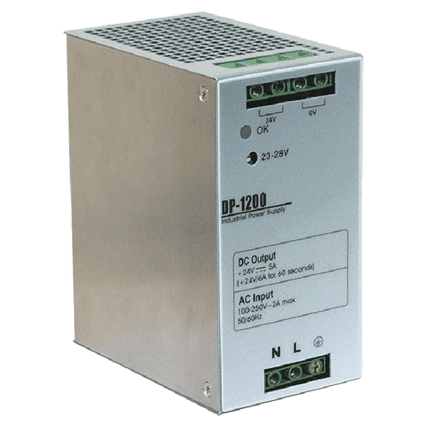

The DP-1200 CR is a DIN-rail power supply that converts an 85~264 VAC input into a regulated 24 VDC output rated at 5 A (120 W). A built-in power factor correction stage and a typical efficiency of 90% at 230 VAC help keep losses and input harmonics under control in cabinet installations.The output voltage can be adjusted between 23 V and 28 V, and the unit offers a 60% power boost ability for loads that briefly exceed the rated figure. Output ripple and noise are specified at less than 50 mVp-p, with a voltage tolerance of ±2% and load regulation of ±0.5%.Protection and environmental details include automatic recovery after a short circuit, latch-off on over voltage and a hold-up time of longer than 20 ms at 115 VAC. The metal casing measures 65 × 125 × 103 mm, operates from -10°C to +70°C with derating of typically 3 W/K above 60°C, and is rated RoHS and WEEE.

DP-640 is a 40 W switching power supply with universal AC input, converting 90~264 VAC to a regulated 24 VDC output rated at 1.7 A. It suits engineers who need a compact, DIN-rail mounted 24 VDC source for control equipment without manually selecting an input range.Protection is built in: overload and short-circuit conditions are handled by auto-recovery, and over-voltage is handled by a crowbar circuit. The output holds up for more than 20 ms at rated load and 115 VAC, which helps ride through brief mains interruptions. Cooling is by free air convection, so no fan is required.The metal casing measures 44 x 150 x 125 mm. The unit is rated for an operating temperature of 0 ~ 50 °C and a storage temperature of -20 °C ~ +85 °C, and is marked RoHS and WEEE.Applications24 VDC power supply for DIN-rail mounted industrial control cabinets

DP-660 is a 65 W switch-mode power supply with a universal input of 85 ~ 270 VAC and a 47 Hz ~ 63 Hz frequency range. It provides a +24 VDC/2.5 A main output together with a +5 VDC/0.5 A output.The unit is aimed at powering devices such as motors and solenoids. Its built-in +5 V output is intended for supplying a logic control circuit alongside the power-device load, so one supply can serve both roles in a control cabinet.The DP-660 has a metal casing for DIN-rail mounting and cools by free air convection. Its outputs are protected against short circuits, which latch off, and it offers a typical hold-up time of 16 ms at rated load and 115 VAC. Operating range is 0 ~ 50 °C, with storage from -40 °C to +85 °C.ApplicationsPowering motors and solenoidsSupplying logic control circuits alongside power-device loadsIndustrial control cabinets

48 V/2.5 A, 120 W Single Output Industrial DIN Rail Power Supply.

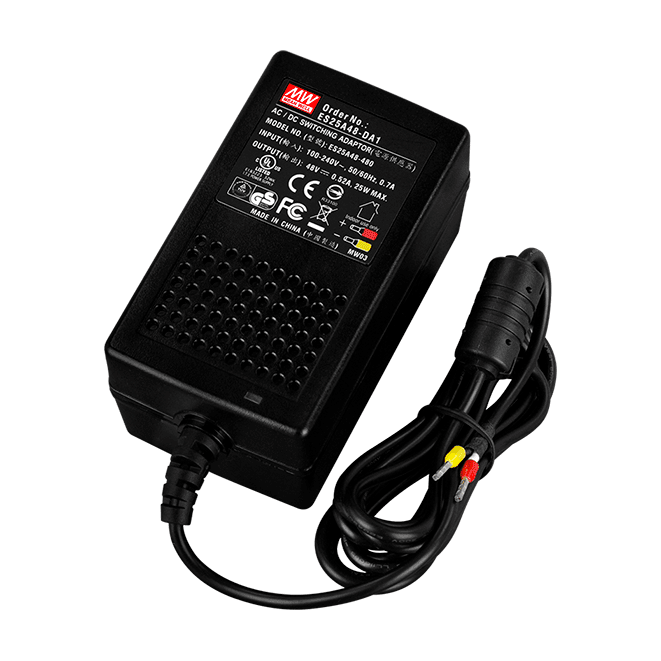

The ES25A48-DA1 CR is a desktop-style AC-DC power supply that accepts a universal 90~264 VAC input and delivers a 48 VDC output rated at 0.52 A, or 25 W. It suits engineers who need a compact, mains-fed 48 VDC source for bench work or equipment installed on a desk.Protection covers short circuit, overload and over voltage, with the over voltage function implemented as a Zener diode clamp. The fully enclosed plastic case houses the unit, and the listed approvals include CE, UKCA, FCC, RoHS and WEEE.Key electrical figures include a 47-63 Hz input frequency range, a typical efficiency of 82%, a maximum ripple and noise of 180 mVp-p, and a typical hold up time of 16 ms at full load. The operating range is 0 °C to +50 °C.ApplicationsDesktop equipment requiring a 48 VDC supplyBench and test setups powered from mainsPowering 48 VDC devices from a 90~264 VAC source

The ES25A48-DA1-DIN CR is a 25 W DIN-rail power supply that accepts a full-range 90~264 VAC input and delivers a regulated 48 VDC output rated at 0.52 A. It suits engineers who need a compact, single-output supply for control cabinet installations.Protection features include short-circuit, overload and over-voltage protection, with the over-voltage function implemented as a Zener diode clamp. The fully enclosed plastic case houses the unit in a 74 × 109 × 52 mm footprint for DIN-rail mounting.The unit carries CE, UKCA, FCC, RoHS and WEEE marks, and its safety and EMC approvals are listed in the source as UL60950-1, CSA C22.2, TÜV EN60950-1, BSMI CNS14336, EN55022 class B, FCC Part 15 and CISPR22 class B. It operates from 0 °C to +50 °C.ApplicationsDC supply for loads in industrial control cabinets48 VDC power for DIN-rail mounted equipment

The GPSU06E-6 CR converts a universal 100-240 VAC, 50/60 Hz mains supply into a regulated 24 VDC output rated at 0.25 A (6 W). Its two-pin EURO plug and compact plastic enclosure measuring 62.5 x 32 x 66 mm make it a straightforward choice where a small, low-power DC source is needed from a wide range of mains voltages.Output regulation and protection are built in. The unit provides short-circuit, overload and over-voltage protection, with overload trips above 110% of rated output power and recovery in hiccup mode once the fault is removed. Hold-up time is 5 ms minimum, and the no-load power consumption is below 0.3 W, in line with ErP step2 and EISA 2007 requirements.Approvals cover CE, UKCA, FCC, RoHS and WEEE. The supply is rated for operation from 0 to +40 °C and storage from -20 to +85 °C, at 20 to 90% RH non-condensing.

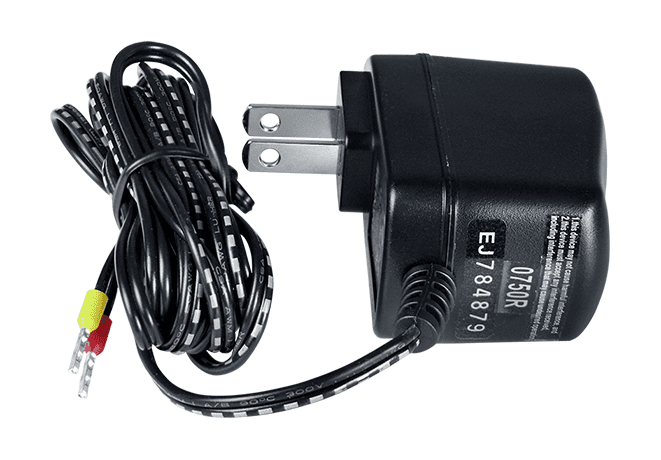

GPSU06U-6 CR is a compact 6 W AC-DC power supply that accepts universal input voltage and delivers a regulated 24 VDC output rated at 0.25 A. The ordering code specifies the two-pin USA plug version.The unit is built for efficient operation, with no-load power consumption below 1 W and a specified efficiency of 65% minimum at full output. Protection features include short circuit protection and over voltage clamping by a Zener diode, and the output holds up for 5 msec minimum (typical).The plastic casing measures 62.5 x 32 x 66 mm. It is rated for operation from 0 °C to +40 °C and storage from -20 °C to +85 °C, at 20 to 90% RH non-condensing. The unit is listed for CE, UKCA, FCC, RoHS and WEEE.

The GST25A24-DA1 converts a universal 85~264 VAC mains supply into a regulated 24 VDC output rated at 1.04 A, or 25 W. Its wide input range and 47-63Hz frequency range suit installations where the mains voltage and frequency cannot be guaranteed.Protection covers short circuit, overload and over voltage, with the over voltage path clamped by a Zener diode. The fully enclosed plastic case and desktop-style form factor, measuring 54 * 93 * 36 mm, make it a practical choice for bench, cabinet or equipment-level 24 VDC supply duties.The unit is listed to CE, UKCA, FCC, RoHS and WEEE, with safety approvals to UL62368-1, TUV EN62368-1 and several other national standards, and is rated for an operating temperature of -30 °C to +70 °C.

The GST25A24-DA1-DIN CR converts a universal 85~264 VAC input into a 24 VDC output rated at 25 W and 1.04 A. It is designed for DIN-rail mounting, so it can be fitted directly into a control cabinet alongside other automation equipment.Short circuit, overload and over voltage protection are built in, with the over voltage function implemented as a Zener diode clamp. The fully enclosed plastic case and an operating range of -30 °C to +70 °C allow the unit to be used across a wide ambient temperature range.The unit carries CE, UKCA, FCC, RoHS and WEEE markings. The specification table lists the safety, EMC and input and output details for the ordering code GST25A24-DA1-DIN CR.ApplicationsSupplying 24 VDC to DIN-rail mounted automation and control equipment in cabinets

HDR-15-24 CR is a compact DIN-rail power supply rated at 15.2 W, providing 24 VDC at 0.63 A from a universal AC input. Its 17.5 mm width suits space-constrained control cabinets where panel real estate is limited.The input accepts 85-264 VAC at 47-63 Hz, with a 277 VAC option and a 120-370 VDC input range also listed in the source data. The output voltage can be adjusted between 21.6 and 29 V. Voltage tolerance, linearity and load regulation are each specified at ±1.0%, and ripple and noise are rated at 150 mVp-p maximum.Protection features include overvoltage protection at 30-36 V and overload protection at 110-145% of rated output power. The unit operates from -30 to +70 °C and stores from -40 to +85 °C, with 20-90% RH non-condensing humidity. It has a plastic casing measuring 17.5 x 54.5 x 90 mm and carries CE, RoHS and WEEE marks.

The MDR-20-24 CR is a 24 W DIN-rail power supply that accepts a universal 85~264 VAC input (120~370 VDC also specified) and delivers a regulated 24 VDC output rated at 1 A. It suits engineers who need a compact, single-output 24 VDC source for panel-mounted control equipment.Output protection covers short circuit, overload and over voltage. Overload is handled by constant current limiting that recovers automatically once the fault is removed, while over voltage shuts down the output until the unit is re-powered. Status is available through a built-in DC OK active signal and a DC OK relay contact, which helps with monitoring the supply state.The unit is cooled by free air convection and mounts on TS-35/7.5 or 15 DIN rails. It is NEC class 2 / LPS compliant, has a no-load power consumption below 0.75 W, and is supplied after a 100% full load burn-in test. The rated operating temperature range is -20 ~ +70 °C, subject to the output load derating curve.Applications24 VDC power supply for DIN-rail mounted industrial control equipment

The MDR-60-24 CR is a 60 W DIN-rail power supply that accepts a universal 85~264 VAC input and provides a regulated 24 VDC output rated at 2.5 A. It suits engineers who need a compact, single-output supply for control cabinets and automation panels, with a 120~370 VDC input range also specified.Protection is built in against short circuit, overload and over-voltage. Overload is handled by constant current limiting that recovers automatically once the fault is removed, while over-voltage shuts down the output until the unit is re-powered. A DC OK relay contact and a power-on LED aid status monitoring.The unit mounts on TS-35/7.5 or 15 DIN rails and is cooled by free air convection, with an operating range of -20 ~ +70 °C. It is NEC class 2/LPS compliant for the 24 V and 48 V models, and draws less than 0.75 W at no load.

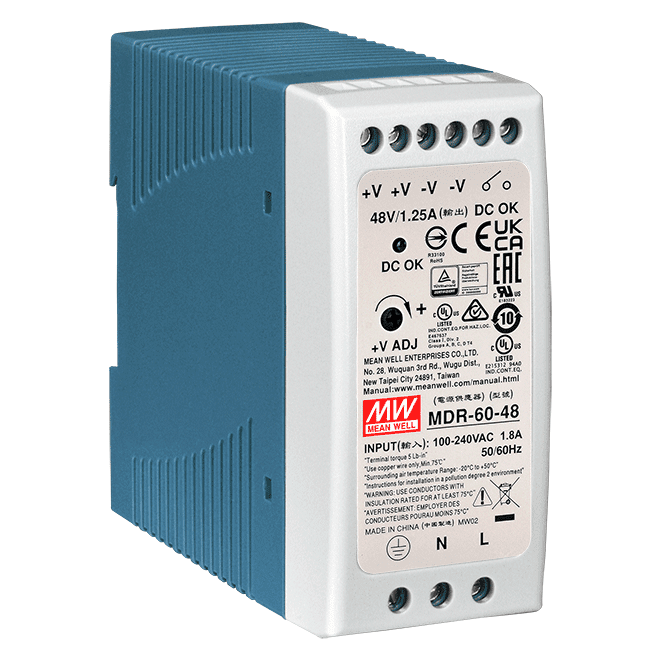

The MDR-60-48 CR converts a universal 85~264 VAC mains input into a regulated 48 VDC output rated at 1.25 A, or 60 W. It suits engineers who need a compact, DIN-rail mounted supply for control cabinet equipment that runs from a 48 V DC bus.The output voltage can be trimmed between 48 and 56 V. Protective functions include shutdown on over-voltage, which recovers after re-powering, and constant current limiting on overload that recovers automatically once the fault is cleared. A DC OK relay contact and a power-on LED aid monitoring and commissioning.Standards cited for this model include UL508, TUV EN60950-1 and NEC class 2/LPS compliance on the 48 V output, plus EMC compliance to EN55011, EN55022 and EN61000-6-2. Operating range is -20 ~ +70 °C, with 20 ~ 90% RH non-condensing humidity.ApplicationsSupplying 48 VDC to DIN-rail mounted equipment in industrial control cabinets

Power Supply, 220 VAC to 24 VDC/0.1 A, 2.4 W, two pins USA plug.

Power Supply, 230 VAC to 24 VDC/0.2 A, 4.8 W, two pins EURO plug.

RPS-100 CR is a 100W redundant power supply module for 24V DC systems. It reports output current, temperature, status and runtime to a communication module, so engineers can judge the health of the power module, log overall power consumption and receive real-time alarms when conditions go abnormal.A runtime log supports maintenance and replacement decisions, and MTBF (Mean Time Between Failure) data helps plan replacement before a module reaches the end of its useful life. Together these functions aim to give early warning of faults in critical installations.Load balancing is built in, so no separate load balancing module is needed. The slot design supports hot-swapping, so a module can be replaced without a power failure and with fewer wiring changes.ApplicationsRedundant power supply for critical industrial systemsIndustrial installations requiring a stable and safe power supply

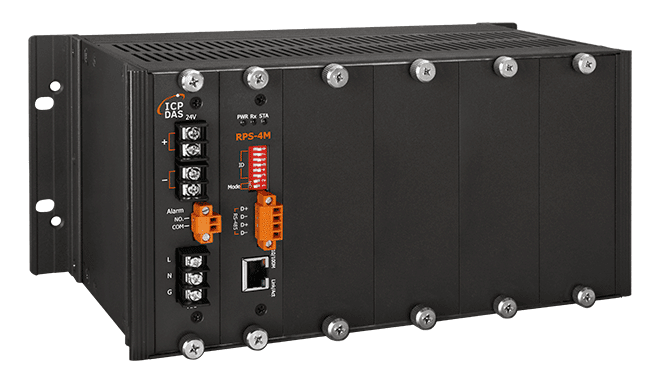

RPS-4M CR is a 4-slot redundant power communication module that combines N+1 power backup with remote monitoring of the power modules it hosts. Each slot takes a 100W power module, and when four modules are fitted the unit can deliver the rated power of three, so the failure of any one module does not interrupt supply. The load current is shared evenly across the modules, which avoids premature wear on a single unit.Power modules can be hot-swapped, so a faulty unit can be replaced without shutting down the system. The built-in diagnostics report the temperature, output current, status and usage time of each module, and a relay alarm output signals a module failure to external equipment. Diagnostic data can be read by a supervisory system over RS-485 or Ethernet.Communication uses Modbus RTU slave on the RS-485 port and Modbus TCP server with a built-in web server on the 10/100Base-TX Ethernet port. Engineers can use the module in ICP DAS redundant architectures covering I/O, controller, Ethernet ring and HMI redundancy.ApplicationsRedundant power supply for I/O data acquisition systemsController redundancy for program controlEthernet ring communication redundancyHMI redundancy for display and information recordingRemote monitoring of power module condition in industrial control cabinets

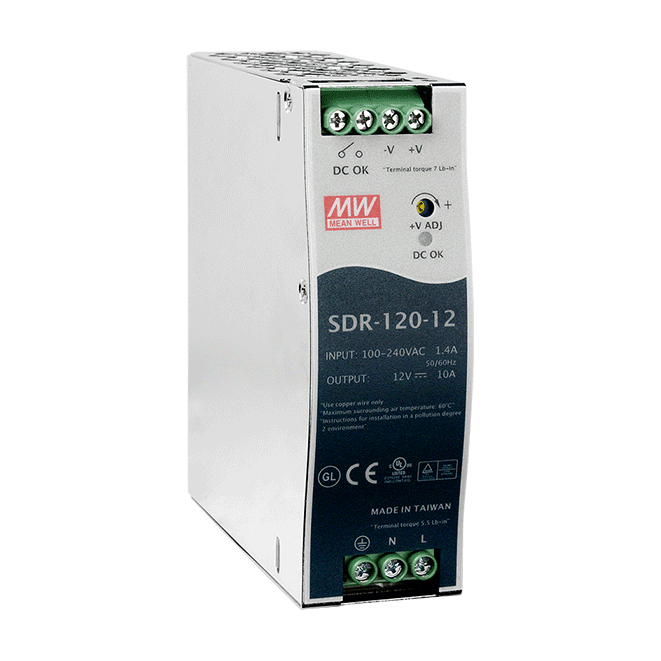

The SDR-120-12 CR is a 120 W DIN-rail power supply that converts a wide 88~264 VAC input into a regulated 12 VDC output rated at 10 A. It suits engineers who need a compact, efficient supply for industrial control panels, with protection against short circuit, overload, over voltage and over temperature.Active power factor correction (PF>0.93) keeps the input current draw clean, and the unit tolerates 150% peak load. The output voltage can be adjusted between 12 and 14 V, and a built-in DC OK relay contact lets the controller monitor supply status.The metal casing is cooled by free air convection and mounts on TS-35/7.5 or TS-35/15 DIN rail. The unit is UL 508 approved for industrial control equipment, meets EN61000-6-2 industrial immunity levels, and carries CE, UKCA, RoHS and WEEE marks. Each unit undergoes a 100% full load burn-in test.ApplicationsIndustrial control equipmentIndustrial control panels and DIN-rail mounted automation systemsHeavy industry environments

SDR-240-24 CR is a 240 W DIN-rail power supply that converts 88~264 VAC input into a regulated 24 VDC output rated at 10 A. It suits engineers who need a compact, metal-cased supply for industrial control panels and want high efficiency with low heat loss.The unit combines 94% efficiency with an active power factor correction stage (PF>0.93) and is cooled by free air convection, so no fan is required. Its output can be adjusted between 24 and 28 V, and it can withstand a 150% peak load. A built-in DC OK relay contact allows the output status to be monitored by the control system.Protection against short circuit, overload, overvoltage and over-temperature is built in, and each unit is given a 100% full load burn-in test. The supply is approved to UL 508 for industrial control equipment and is compliant with the EN 61000-6-2 industrial immunity standard.ApplicationsIndustrial control equipmentHeavy industry environments requiring EN 61000-6-2 immunity

The UP0061D-12PA58G CR is a wall mount AC-DC power supply that converts a wide-range mains input into a 12 VDC, 0.5 A (6 W) output. It suits engineers who need a compact, plug-in 12 VDC source for low-power equipment in a cabinet-free or bench setup.The unit has a 90 degree DC power plug (5.5*2.1*10.5mm) for the output and a two-pin USA plug on the input side. Output ripple and noise are rated at 200 mVp-p max., with a typical hold-up time of 6 ms and a typical efficiency of 78%.Wall mount plastic housing measuring (29 * 46.0 * 74) mmOperating range 0°C ~ +50°C, storage -40 °C ~ +85°CApplicationsSupplying 12 VDC power to low-power equipment rated up to 6 WBench or wall-mounted power for devices with a 5.5*2.1 mm DC input

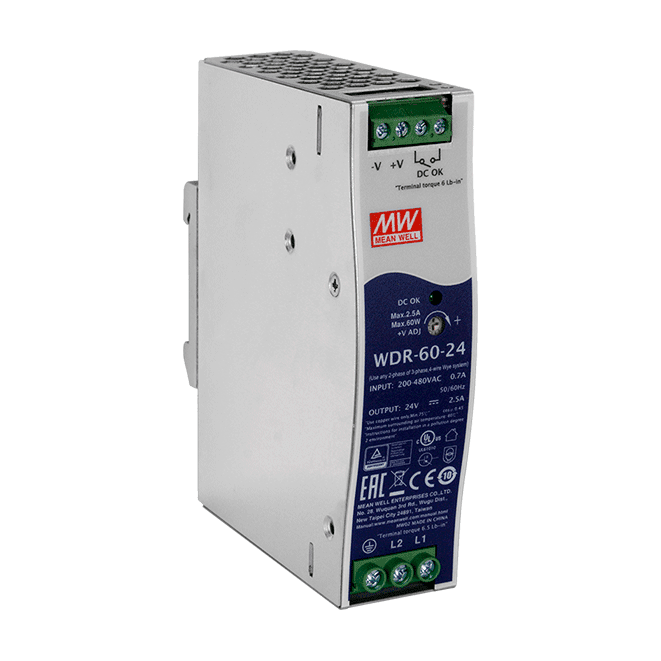

WDR-60-24 CR is a 60 W DIN-rail power supply for industrial panels where the mains supply varies widely. Its 180 ~ 550 VAC input suits single-phase or 2-phase systems, so one unit can cover a broad range of supply conditions without a separate variant for each voltage.The 32 mm slim metal housing mounts on TS-35/7.5 or TS-35/15 rails and is cooled by free air convection. The 24 VDC output is adjustable between 31 ~ 37 V, with a DC OK relay contact for signalling the output status and protection against short circuit, overload, over voltage and over temperature. The unit is rated for Over voltage category III.The 4.7 KVac reinforced I/O isolation and ±1.0% voltage tolerance make it a practical choice for automation, surveillance and telecommunication equipment. Operation is rated up to +85 °C with derating above +60 °C, and it is also rated for operation at 2000 m altitude.ApplicationsIndustrial automationSurveillanceTelecommunication
