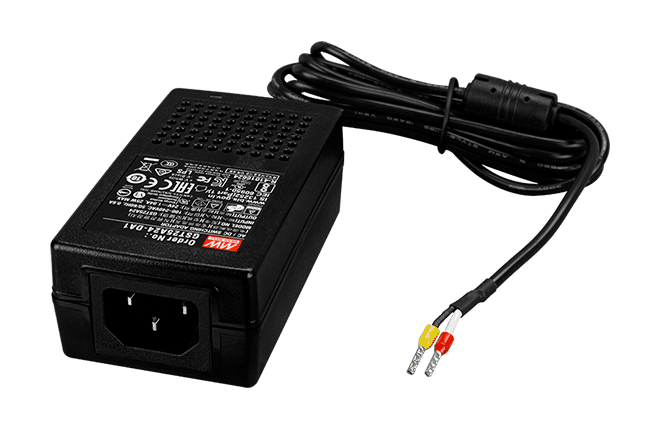

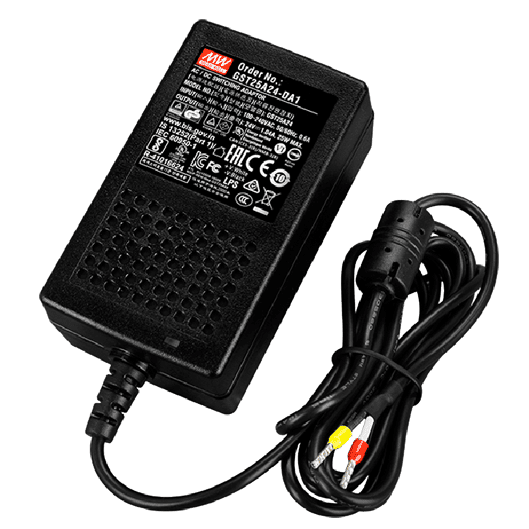

GST25A24-DA1 Desktop Power Supply, 85~264 VAC to 24 VDC/1.04 A, 25 W
25 W desktop-style AC/DC power supply with an 85~264 VAC universal input and 24 VDC/1.04 A output, protected against short circuit, overload and over voltage.
- Universal 85~264 VAC input with 47-63Hz frequency range
- 24 VDC output, 1.04 A rated current, 25 W rated power
- Protection against short circuit, overload and over voltage
- Over voltage protection clamped by a Zener diode
- Fully enclosed plastic case, 54 * 93 * 36 mm
- Desktop-style installation
418,56 kr. pr. stk.
| 1–9 stk. | 418,56 kr. | |
|---|---|---|
| 10–30 stk. | 411,08 kr. | −2 % |
| 31+ stk. | 396,13 kr. | −5 % |
Produktinformation "GST25A24-DA1 Desktop Power Supply, 85~264 VAC to 24 VDC/1.04 A, 25 W"
The GST25A24-DA1 converts a universal 85~264 VAC mains supply into a regulated 24 VDC output rated at 1.04 A, or 25 W. Its wide input range and 47-63Hz frequency range suit installations where the mains voltage and frequency cannot be guaranteed.
Protection covers short circuit, overload and over voltage, with the over voltage path clamped by a Zener diode. The fully enclosed plastic case and desktop-style form factor, measuring 54 * 93 * 36 mm, make it a practical choice for bench, cabinet or equipment-level 24 VDC supply duties.
The unit is listed to CE, UKCA, FCC, RoHS and WEEE, with safety approvals to UL62368-1, TUV EN62368-1 and several other national standards, and is rated for an operating temperature of -30 °C to +70 °C.
| Product type: | Power supply |
|---|---|
| Power input: | 85~264 VAC |
| Operating temperature: | -30 ~ +70 °C |
| Mounting: | Desktop |
| Housing: | Plastic |
Specifikationer
| Safety | |
|---|---|
| Standard | UL62368-1, CSA C22.2 No.62368-1, TUV EN62368-1, BSMI CNS 14336-1 ,CCC GB4943.1, PSEJ62368-1,AS/NZS 60950.1, BIS 1513252, KC K60950·1,EAC TP TC 004 approved |
| EMC | |
| Standard | EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B), CNS13438 |
| Input | |
| Voltage Range | 85-264VAC |
| Frequency Range | 47-63Hz |
| AC Current (Typ.) | 0.6A/115VAC, 0.35A/230VAC |
| Inrush Current (Typ.) | Cold start 35A/115VAC, 65A/230VAC |
| Leakage Current | 0.75 mA/240 VAC |
| Output | |
| Ripple & Noise (Max.) | 150mVp-p |
| Setup, Rise Time | 1000ms, 30ms |
| Hold Up Time (Typ.) | 50ms/230VAC |
| DC Voltage | 24VDC |
| Rated Power | 25W |
| Rated Current | 1.04A |
| Efficiency | 88% typical |
| Protection | |
| Over Voltage | Yes (clamp by Zener diode). |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | (54 * 93 * 36)mm |
| Installation | Desktop Style |
| Environment | |
| Temperature Coefficient | ±0.03%/°C (0~50°C) |
| Operating Temperature | -30 °C~ +70°C |
| Storage Temperature | -40 °C~ +85°C |
| Humidity | 20% ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
