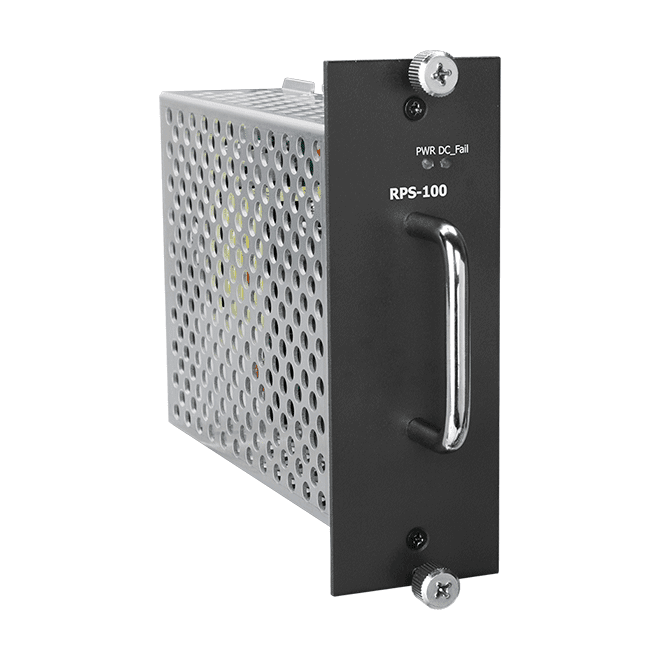

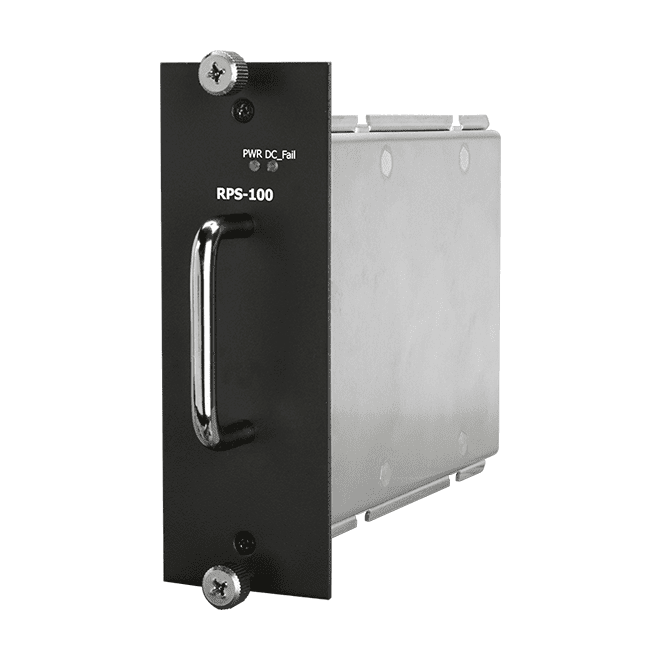

RPS-100 Industrial Redundant Power Supply Module, 100W 24V Hot-Swap
The RPS-100 CR is a 100W redundant 24V DC power supply module with built-in load balancing and hot-swap support, reporting status, temperature and runtime data to a communication module.
- 100W rated output at 24V DC (4.16A rated current)
- Built-in load balancing, no additional module required
- Hot-swappable slot design, replacement without power failure
- Reports current, temperature, status and runtime to a communication module
- Runtime logging and MTBF data to support replacement planning
- Wide AC input of 90 ~ 264 VAC, 47 ~ 63Hz
1.719,07 kr. pr. stk.
| 1–9 stk. | 1.719,07 kr. | |
|---|---|---|
| 10–30 stk. | 1.666,75 kr. | −3 % |
| 31+ stk. | 1.636,85 kr. | −5 % |
Produktinformation "RPS-100 Industrial Redundant Power Supply Module, 100W 24V Hot-Swap"
RPS-100 CR is a 100W redundant power supply module for 24V DC systems. It reports output current, temperature, status and runtime to a communication module, so engineers can judge the health of the power module, log overall power consumption and receive real-time alarms when conditions go abnormal.
A runtime log supports maintenance and replacement decisions, and MTBF (Mean Time Between Failure) data helps plan replacement before a module reaches the end of its useful life. Together these functions aim to give early warning of faults in critical installations.
Load balancing is built in, so no separate load balancing module is needed. The slot design supports hot-swapping, so a module can be replaced without a power failure and with fewer wiring changes.
Applications
- Redundant power supply for critical industrial systems
- Industrial installations requiring a stable and safe power supply
| Product type: | Redundant power supply module |
|---|---|
| Power input: | 90 ~ 264 VAC |
| Operating temperature: | -20 ~ +50 °C |
| Housing: | Metal |
Specifikationer
| Safety | |
|---|---|
| Standard | Design to meet 62368 |
| EMC | |
| Standard | • EN 61000-3-2 • EN 61000-3-3 • EN 61204-3 • IEC 61000-4-2(ESD): ±4 kV for Contact • IEC 61000-4-3 • IEC 61000-4-4(EFT): ±2 kV for power line • IEC 61000-4-5(Surge): ±2 kV for power line • IEC 61000-4-6 • IEC 61000-4-8 • IEC 61000-4-11 |
| LED Indicators | |

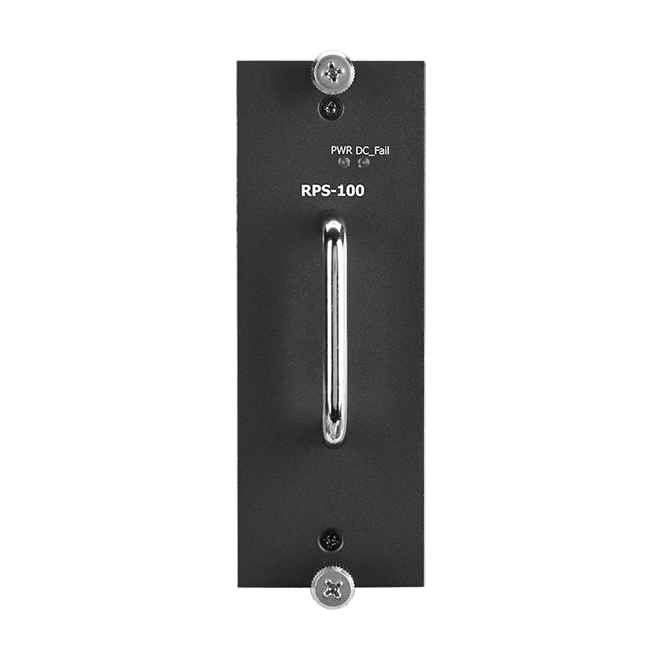

| Status | 2, PWR, DC_Fail |
| General | |
| Hot Swap | Yes, for power modules |
| Load Balance | Yes |
| Input | |
| Voltage Range | 90 ~ 264 VAC |
| Frequency Range | 47 ~ 63Hz |
| AC Current (Typ.) | 1.01A/115VAC, 0.51A/230VAC |
| Inrush Current (Typ.) | COLD START 30A/115VAC 60A/230VAC |
| Leakage Current | Earth<3.5mA , Touch<0.25mA |
| Output | |
| Ripple & Noise (Max.) | 50mVp-p |
| Voltage Tolerance | ±1.0% |
| Linearity | ±1.0% |
| Load Regulation | ±5.0% |
| Setup, Rise Time | 1300ms,120ms at full load |
| Hold Up Time (Typ.) | 30ms at full load |
| DC Voltage | 24V |
| Rated Power | 100W |
| Rated Current | 4.16A |
| Efficiency | 86% typical |
| Protection | |
| Over Voltage | 110%~200% (Automatic recovery) |
| Overload | 26.4~31.2 (Automatic recovery) |
| Mechanical | |
| Casing | metal |
| Dimensions (mm) | 46 x 133 x 148 (W x L x D) |
| Environment | |
| Operating Temperature | -20 ~ +50 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
