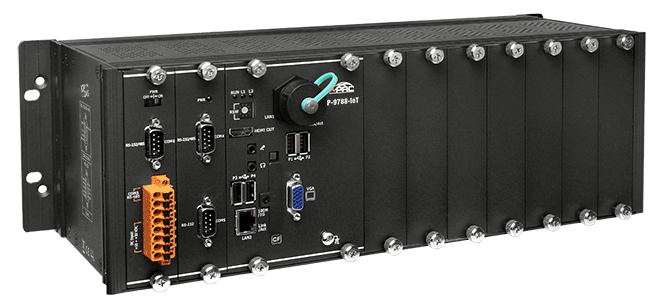

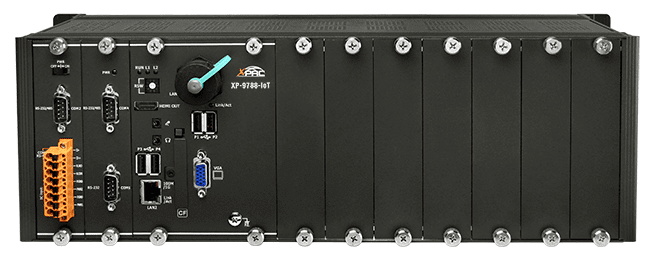

XP-9788-IoT Win-GRAF PAC, 7-Slot Windows 10 IoT Controller with HMI
7-slot Win-GRAF PAC running Windows 10 IoT Enterprise, combining controller, operator interface and up to seven I-9K/I-97K I/O slots in one metal unit.
- Win-GRAF SoftLogic (IEC 61131-3) runtime on Windows 10 IoT Enterprise (64-bit)
- Intel Atom E3845 quad-core CPU at 1.91 GHz with 4 GB DDR3 SDRAM and 64 GB SSD
- Seven expansion slots for I-9K and I-97K series I/O modules
- VGA and HDMI outputs with eLogger HMI support for integrated operator interface
- Two 10/100/1000 Base-TX Ethernet ports, four USB 2.0 ports and four isolated RS-232/RS-485 COM ports
- OPC UA server plus Modbus TCP/IP, Modbus RTU and DCON protocol support
Denne vare prissættes pr. ordre. Send os det ønskede antal, så svarer vi med pris og leveringstid.
Bed om tilbud
Ikke længere tilgængelig
Produktinformation "XP-9788-IoT Win-GRAF PAC, 7-Slot Windows 10 IoT Controller with HMI"
The XP-9788-IoT CR is the 7-slot member of the Win-GRAF XP-9000-IoT series, built around an embedded Win-GRAF SoftLogic runtime that follows IEC 61131-3. Its 64-bit quad-core Intel Atom E3845 processor at 1.91 GHz and Windows 10 IoT Enterprise (64-bit) let one unit handle control logic, HMI and data acquisition together, with local I/O expanded through seven slots.
Operator visualisation is provided directly from the PAC through VGA and HDMI outputs, with eLogger HMI support. Two RJ-45 10/100/1000 Base-TX Ethernet ports, four USB 2.0 ports and four serial COM ports (RS-232 and RS-485, 3000 VDC isolated) cover communication with field devices and higher-level systems.
Choose this model when you need the largest I/O capacity in the series. Compared with the 1-slot and 3-slot variants, it has a wider 422 x 164 x 133 mm (W x L x H) housing and a typical consumption of 20.4 W. It mounts on DIN-rail or wall, and its dual redundant power inputs support a Dual-PAC Redundant System.
Applications
- Combined HMI, data acquisition and control within a single PAC
- Machine control with local I/O expansion using I-9K and I-97K modules
- Systems requiring Windows-based applications alongside Win-GRAF logic
- Redundant PAC architectures using the Dual-PAC Redundant System feature
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, HDMI, RS-232/RS-485, USB 2.0, VGA |
| Protocol: | Modbus TCP, OPC UA |
| Ports: | 2 |
| Isolation: | 3000 VDC (COM ports) |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +60 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifikationer
| Software | |
|---|---|
| OS | Windows 10 IoT Enterprise (64-bit) |
| Protocol | • OPC UA Server • Modbus TCP/IP Master/Slave • Modbus RTU Master/Slave • Modbus ASCII Master • DCON Protocols • User-Defined Communication Protocols |
| Development | Embedded Win-GRAF SoftLogic (IEC 61131-3) |
| Service | IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script) |
| Function | • eLogger HMI • Redundancy Solution • Application Protection • Data Binding • On Line Change • Schedule Control • Retain Variables • File Access and Data Log |
| Framework Support | .Net Framework 3.5 ~ 4.8 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net |
| Main Unit | |
| CPU | E3845, 1.91 GHz, 64-bit quad core |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 4 GB DDR3 SDRAM, 64 GB Flash |
| Storage | 64 GB SSD, 32 GB CF card |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA, HDMI |
| Resolution | VGA 1280 x 1024 ~ 1920 x 1080 (16 : 9), 640 x 480 ~ 1024 x 768 (4 : 3) HDMI 2560 x 1600 @ 24bpp |
| LED Indicators | |
| Status | 1 x System, 2 x Power, 2 x Programmable |
| I/O Expansion | |
| I/O Type | I-9K, I-97K series |
| Slots | XP-9188-IoT: 1 XP-9388-IoT: 3 XP-9788-IoT: 7 |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Audio | |
| Jack | Microphone-in and Earphone-out |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 (3000 VDC Isolated), 1 x RS-485 (3000 VDC Isolated), 2 x RS-232/RS-485 (3000 VDC Isolated) |
| USB | |
| Ports | 4 x USB 2.0 |
| Power | |
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | XP-9188-IoT: 18.5W XP-9388-IoT: 18.7W XP-9788-IoT: 20.4W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | XP-9188-IoT: 239 x 164 x 133 (W x L x H) XP-9388-IoT: 300 x 164 x 133 (W x L x H) XP-9788-IoT: 422 x 164 x 133 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +60 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
