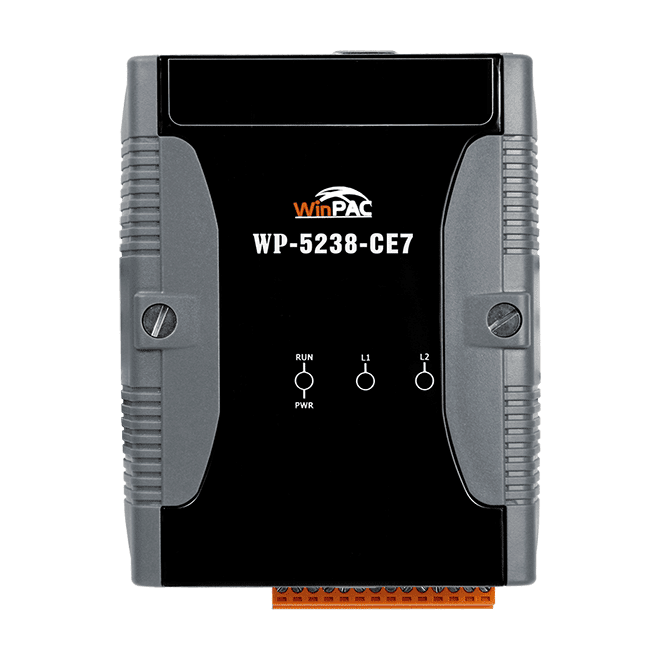

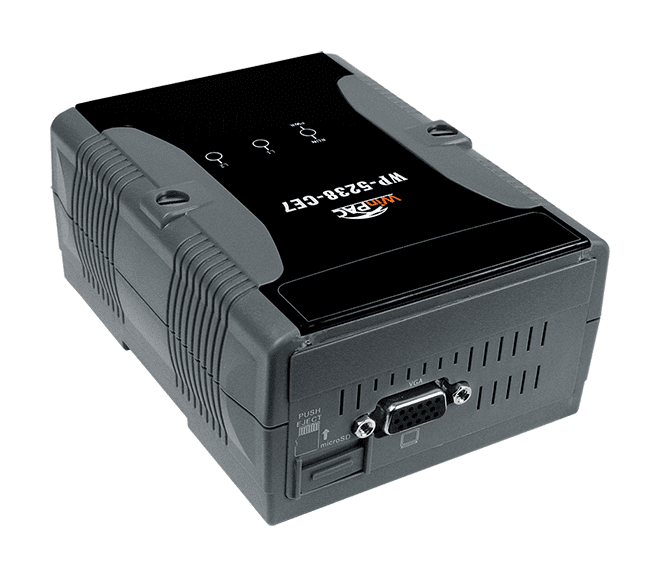

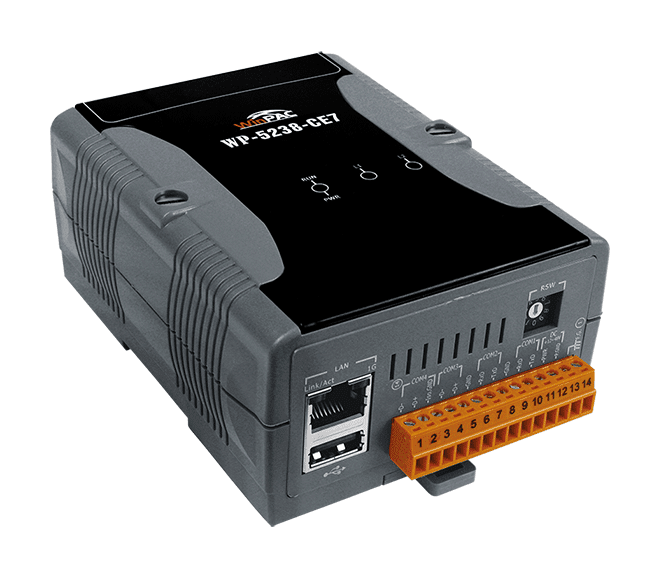

WP-5238-CE7 Win-GRAF PAC, Cortex-A8 1 GHz, WinCE 7.0 with I/O Expansion Bus
Win-GRAF PAC with a 1 GHz Cortex-A8 CPU and Windows CE 7.0 for IEC 61131-3 soft PLC control, HMI and data handling, with an I/O expansion bus.
- Cortex-A8 1.0 GHz CPU with 512 MB DDR3 SDRAM and 256 MB Flash
- Windows CE 7.0 with hard real-time capability for deterministic control
- Embedded Win-GRAF SoftLogic programmable to IEC 61131-3
- OPC UA server and Modbus TCP, Modbus RTU and Modbus ASCII support
- Four serial ports (RS-232/485) and one 10/100/1000M Ethernet port
- I/O expansion bus for XV-board high-protection I/O
Denne vare prissættes pr. ordre. Send os det ønskede antal, så svarer vi med pris og leveringstid.
Bed om tilbud
Ikke længere tilgængelig
Produktinformation "WP-5238-CE7 Win-GRAF PAC, Cortex-A8 1 GHz, WinCE 7.0 with I/O Expansion Bus"
The WP-5238-CE7 CR is a Win-GRAF based programmable automation controller that combines soft PLC logic with a Windows CE 7.0 environment. Its Cortex-A8 processor runs at 1.0 GHz, and the unit is suited to engineers who need IEC 61131-3 control logic alongside PC-style displays and data management on one DIN-rail device.
Running Windows CE provides hard real-time capability for deterministic control. Logic is developed in embedded Win-GRAF SoftLogic, while HMI and data management applications can be written in Visual Studio 2008 using VB .NET or C# and can exchange data with the Win-GRAF logic.
Connectivity includes one 10/100/1000M Ethernet port, four serial ports (two RS-232 and two RS-485, one of the RS-485 ports 2500 VDC isolated), and one USB 2.0 port. An XV-board I/O expansion bus is available for high-protection I/O, and the microSD slot can store application programs, image files and data.
Applications
- Logic control applications developed in Win-GRAF IEC 61131-3 software
- HMI and data management applications developed in Visual Studio 2008
- Systems requiring deterministic control with PC-like window displays
- Data logging and file access on a PAC with microSD storage
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232/485, USB 2.0 |
| Protocol: | Modbus RTU, Modbus TCP, OPC UA |
| Ports: | 4 |
| Isolation: | 2500 VDC (one RS-485 port) |
| Power input: | +12 ~ 48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Protocol | • OPC UA Server • Modbus TCP/IP Master/Slave • Modbus RTU Master/Slave • Modbus ASCII Master • DCON Protocols • User-Defined Communication Protocols |
| Development | Embedded Win-GRAF SoftLogic (IEC 61131-3) |
| Service | FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server |
| Function | • eLogger HMI • Application Protection • Data Binding • On Line Change • Schedule Control • Retain Variables • File Access and Data Log |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | 256 MB Flash, 4 GB microSD card (up to 32 GB) |
| Non-Volatile Memory | 64 KB FRAM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA |
| Resolution | 640 × 480 800 × 480 800 × 600 1024 × 768 |
| LED Indicators | |
| Status | 1 x System/Power, 2 x Programmable |
| I/O Expansion | |
| I/O Type | XV-board |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | Yes, (0 ~ 9) |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
| Ports | 2 x RS-232, 1 x RS-485, 1 x RS-485 (2500 VDC Isolated) |
| USB | |
| Ports | 1 x USB 2.0 |
| Power | |
| Input Range | +12 ~ 48 VDC |
| Consumption | 4.8 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 91 x 132 x 52 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -40 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
