ANT-Base-01 Magnetic Antenna Base with 1.5 m Cable, SMA Male Plug
Magnetic disk antenna base with a 1.5 m cable and SMA male plug connector, designed for 3G/4G antennas. Rated for -30 °C to +80 °C operation.
- Magnetic disk base for mounting 3G/4G antennas on metal surfaces
- 1.5 m cable for flexible antenna placement
- SMA male (plug) connector
- Supports 3G/4G antennas, 3G/4G band
- Operating temperature -30 °C to +80 °C
- Storage temperature -30 °C to +85 °C
112,11 kr. pr. stk.
| 1–9 stk. | 112,11 kr. | |
|---|---|---|
| 10–30 stk. | 112,11 kr. | |
| 31+ stk. | 112,11 kr. |
Produktinformation "ANT-Base-01 Magnetic Antenna Base with 1.5 m Cable, SMA Male Plug"

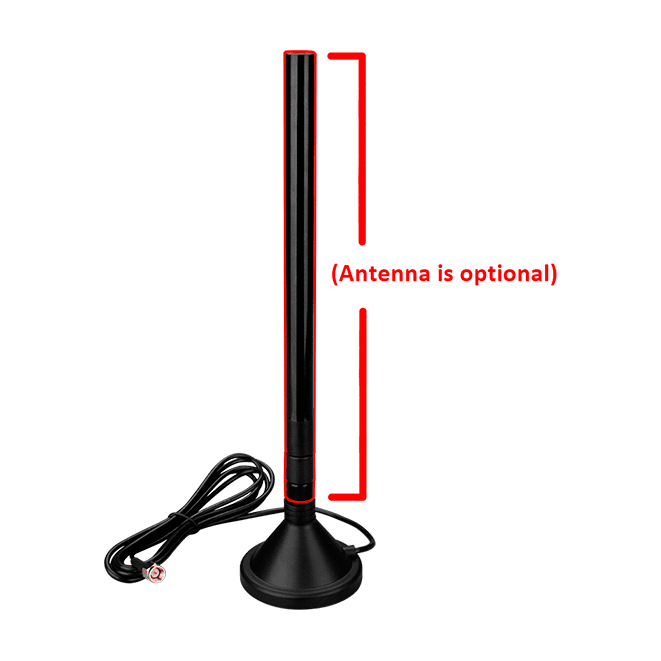

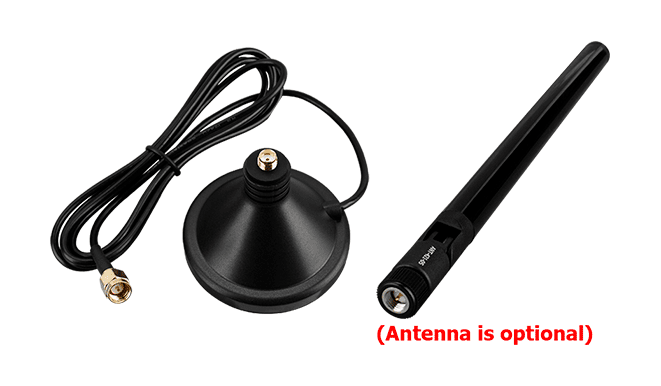

ANT-Base-01 is a magnetic disk base that lets a 3G/4G antenna be mounted on a metal surface and positioned away from the equipment it serves. The 1.5 m cable gives room to route the antenna clear of enclosures and cabinets.
The base is fitted with an SMA male (plug) connector and is rated for an operating temperature of -30 °C to +80 °C, with storage up to +85 °C. At 70 ± 2 g and φ60 x 42 mm including the cable, it is a compact accessory for 3G/4G installations.
The product is RoHS and WEEE certified.
Applications
- Mounting 3G/4G antennas on metal surfaces using the magnetic base
| Product type: | Antenna base |
|---|---|
| Interface: | SMA Male |
| Operating temperature: | -30 ~ +80 °C |
| Mounting: | Magnetic |
Specifikationer
| Mechanical | |
|---|---|
| Dimensions (mm) | φ60 x 42 mm with 1.5 M cable |
| Weight | 70 ± 2 g |
| Environment | |
| Operating Temperature | -30 °C ~ +80 °C |
| Storage Temperature | -30 °C ~ +85 °C |
| Antenna | |
| Type | Magnetic mount base |
| Connector | SMA Male (Plug) |
| Gain (dBi) | - |
| Band | 3G/4G Band |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
