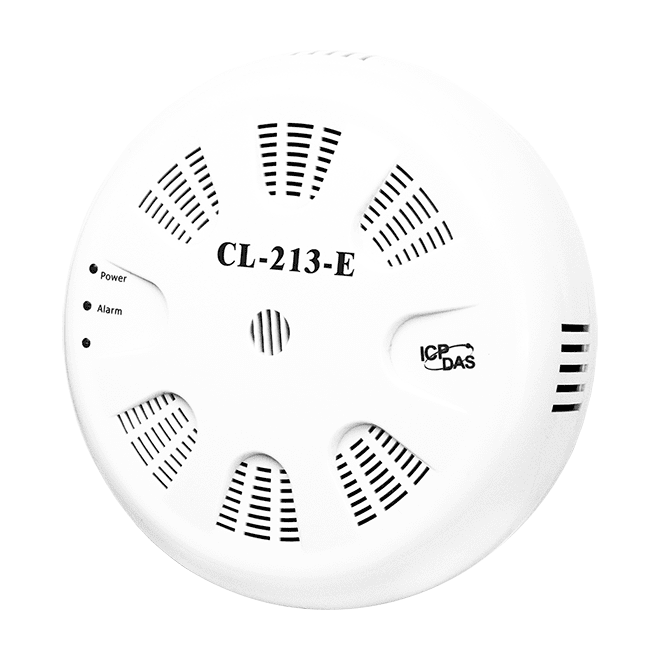

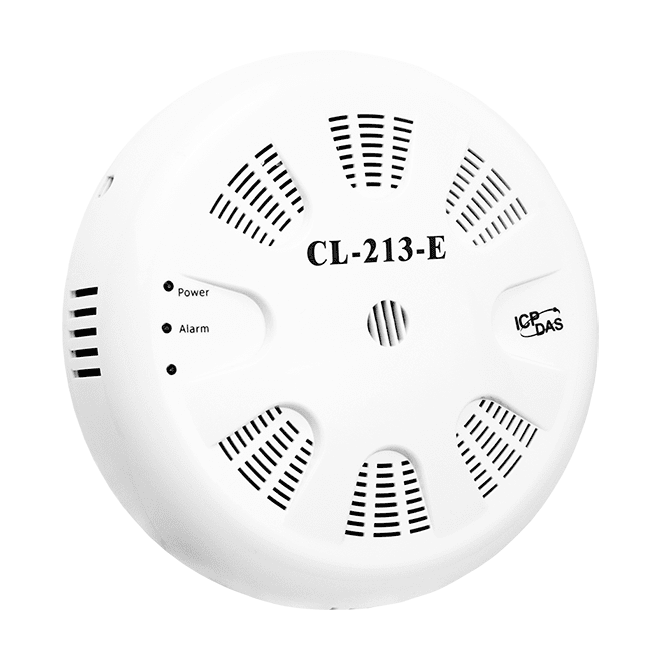

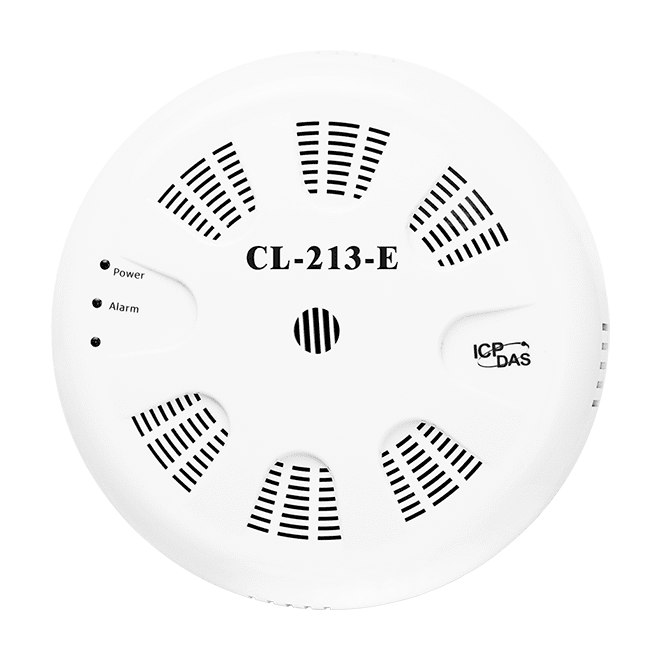

CL-213-E PM2.5/CO/CO2/Humidity Data Logger Module, RS-485 and Ethernet
Air quality data logger module recording PM2.5, CO, CO2, temperature, humidity and dew point, with up to 450,000 time-stamped records and RS-485 and Ethernet PoE connectivity.
- Measures PM2.5, CO, CO2, temperature, humidity and dew point
- NDIR CO2 sensor with a 0 to 9999 ppm range
- Stores up to 450,000 time-stamped records for download
- Supports DCON, Modbus RTU, Modbus TCP and MQTT
- RS-485 and Ethernet interfaces with PoE support
- Form A relay output rated 30 VDC @ 16 A or 250 VAC @ 16 A for alarm or IAQ device control
4.394,83 kr. pr. stk.
| 1–9 stk. | 4.394,83 kr. | |
|---|---|---|
| 10–30 stk. | 4.260,29 kr. | −3 % |
| 31+ stk. | 4.170,60 kr. | −5 % |
Produktinformation "CL-213-E PM2.5/CO/CO2/Humidity Data Logger Module, RS-485 and Ethernet"
The CL-213-E CR is a data logger module that records PM2.5, CO, CO2, temperature, humidity and dew point, with date and time stamps on each record. It stores up to 450,000 records for later download, and its NDIR CO2 sensor makes it suitable for indoor air quality monitoring where both live readings and stored history are needed.
Live data can be read over the local network using the iAir Utility, the iOS or Android app, or a regular web browser. The module supports DCON, Modbus RTU over RS-485, and Modbus TCP and MQTT over Ethernet, so it can be integrated into existing HMI or SCADA systems or IoT platforms. A Form A relay output can drive an alarm or an indoor air quality (IAQ) device.
Power can be supplied from a +12 ~ +48 VDC terminal block or over Ethernet via PoE. The unit has an IP20 rating, mounts on the ceiling or wall, and has an operating temperature range of 0 ~ 50°C, making it suitable for indoor installation.
Applications
- Transportation of food or pharmaceuticals
- Food and beverage industry (HACCP)
- Blood stations and pharmacies
- Building and energy management
- Warehouse management
- Museums, archives and galleries
- Indoor or underground parking lot air quality monitoring
| Product type: | Data logger module |
|---|---|
| Interface: | Ethernet, RS-485 |
| Protocol: | DCON, Modbus RTU, Modbus TCP, MQTT |
| Relay outputs: | 1 |
| Ports: | 2 |
| PoE: | Yes |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | 0 ~ 50 °C |
| Mounting: | Ceiling/Wall |
Specifikationer
| System | |
|---|---|
| Alarm | PM2.5/RH/Temperature |
| Real Time Clock | Yes |
| Data Logger | Yes, up to 450,000 records |
| Temperature Measurement | |
| Range | -10 ~ +50°C |
| Resolution | 0.1°C |
| Accuracy | ±0.6°C |
| Humidity Measurement | |
| Range | 0 ~ 100% RH, Non-condensing |
| Resolution | 0.1% RH, Non-condensing |
| Accuracy | ±5% RH, Non-condensing |
| Dew Point | |
| Range | Calculated using temperature and relative humidity |
| Resolution | 0.1°C |
| CO Measurement | |
| Range | 0 to 1000 ppm (Electrochemical) |
| Resolution | 1 ppm |
| Accuracy | ±5% of measured value |
| Response Time | 30 seconds |
| Warm-up Time | 5 minutes |
| CO2 Measurement | |
| Range | 0 to 9999 ppm (NDIR) |
| Resolution | 1 ppm |
| Accuracy | ±40 ppm ±3% of measured value |
| Response Time | 120 seconds |
| Warm-up Time | 5 minutes |
| PM2.5 Measurement | |
| Range | 0 ~ 400 μg/m3 |
| Resolution | 1μg/m3 |
| Response Time | <= 1 min. |
| Relay Output | |
| Channels | 1 x Form A, SPST 30 VDC @ 16 A or 250 VAC @ 16 A |
| Ethernet | |
| Ports | 10/100 Base-TX, 8-Pin RJ-45 x1 (Auto-negotiating, Auto-MDI/MDIX, LED indicators) |
| COM Ports | |
| Ports | 1 x RS-485 1 x Ethernet |
| Protocol | DCON and Modbus/RTU (RS-485) Modbus TCP and MQTT (Ethernet) |
| Power | |
| Consumption | Non-PoE: 3.24 W (Max.) PoE: 3.41 W (Max.) |
| Powered from Terminal Block | +12 ~ +48 VDC |
| Mechanical | |
| Dimensions (mm) | Ø 150 x 53 (Ø x H) |
| Installation | Ceiling Mounting/Wall Mounting |
| Ingress Protection Rating | IP20 |
| Environment | |
| Operating Temperature | 0 ~ 50°C |
| Storage Temperature | -30 ~ +75°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
