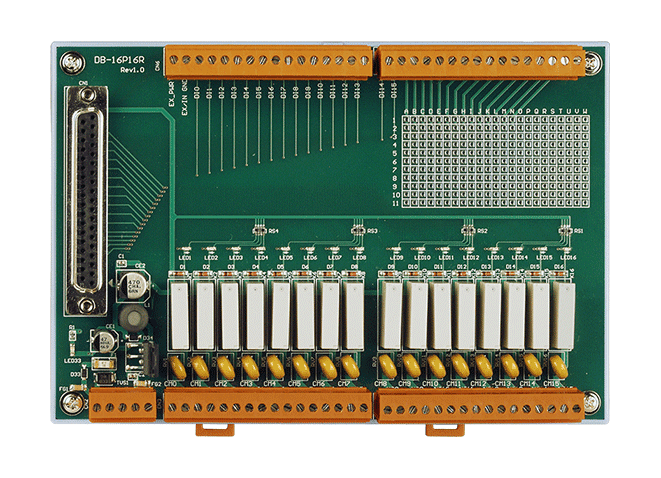

DB-16P16R Daughter Board, 16-ch Isolated Input & 16-ch Relay Output
16-channel isolated digital input and 16 Form A relay output daughter board for OPTO-22 compatible DAQ boards, supplied with a 1 m DB37 cable.
- 16 isolated digital input channels for field signals
- 16 Form A relay outputs for switching loads
- Relay rating 250 VAC/30 VDC, 3 A or 5 A (see endurance ratings)
- 37-pin connector interface for PISO-P32C32 and ISO-P32C32 boards
- LED indication on each activated relay channel
- Screw terminals for field wiring, DIN-rail mounting, 118 mm x 174 mm
1.315,46 kr. pr. stk.
| 1–9 stk. | 1.315,46 kr. | |
|---|---|---|
| 10–30 stk. | 1.270,61 kr. | −3 % |
| 31+ stk. | 1.248,19 kr. | −5 % |
Produktinformation "DB-16P16R Daughter Board, 16-ch Isolated Input & 16-ch Relay Output"
The DB-16P16R CR is a daughter board that adds 16 isolated digital inputs and 16 Form A relay outputs to a compatible 37-pin digital I/O interface. It is designed to work with the PISO-P32C32 and ISO-P32C32 boards and with OPTO-22 compatible digital I/O boards such as DIO24, DIO48, DIO144, PIO-D144U, PIO-D96U and PIO-D48U.
Each relay channel has an LED that lights when the relay is activated, which makes it easy to check switching state during commissioning and fault finding. Field wiring is made through screw terminals, and the board mounts on a DIN rail.
This ordering code includes the CA-3710D cable, a 1 m DB37 male-to-male connector with a 180° configuration, for connecting the board to the host I/O card.
- 16 isolated digital input channels
- 16 Form A relay outputs, rated 250 VAC/30 VDC at 3 A or 5 A
- Accepts 37-pin connector for control of relays and inputs
- LED indication for each activated relay
- Screw terminals for field wiring
- Supply input +12 ~ 30 VDC, 0.20 A @ +24 V max.
- Operating temperature -25 ~ +75 °C
Applications
- Expanding OPTO-22 compatible digital I/O systems with isolated inputs and relay outputs
- Relay switching controlled from PISO-P32C32 or ISO-P32C32 boards
- Panel-mounted digital I/O in industrial control cabinets
| Product type: | Daughter board |
|---|---|
| Interface: | 37-pin (DB37) |
| Digital inputs: | 16 |
| Relay outputs: | 16 |
| Isolation: | Isolated digital inputs |
| Power input: | +12 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Digital Input | |
|---|---|
| Channels | 16 |
| OFF Voltage Level | Pin-to-pin terminals |
| Relay Output | |
| Channels | 16 x FORM A |
| Type | Signal Relay |
| Contact Rating | 250 VAC/30 VDC, 3 A 100,000 ops. Min. (10 ops./minute) 250 VAC/30 VDC, 5 A 6,000 ops. Min. (10 ops./minute) |
| Operate Time | 10 ms (typical) |
| Release Time | 10 ms (typical) |
| Electrical Endurance | 250 VAC/30 VDC, 3 A 100,000 ops. Min. (10 ops./minute), 250 VAC/30 VDC, 5 A 6,000 ops. Min. (10 ops./minute) |
| Mechanical Endurance | 20,000,000 ops. At no load. (300 ops./minute) |
| Power | |
| Input Range | +12 ~ 30 VDC |
| Consumption | 0.20 A @ +24 V Max. |
| Mechanical | |
| Dimensions (mm) | 118 mm x 174 mm |
| Installation | DIN-rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10% ~ 90%, no condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
