DB-24C/D Daughter Board, 24-ch Isolated Open Collector Digital Output
24-channel optically isolated NPN open-collector digital output daughter board with LED status indication, for OPTO-22 compatible boards. Supplied with CA-3710 cable.
- 24 optically isolated NPN open-collector outputs with 3750 Vrms isolation
- 16 channels rated 100 mA and 8 channels rated 600 mA, both at 30 VDC
- Typical response speed of 1 kHz
- Connects directly to OPTO-22 compatible boards
- OPTO-22 compatible, 37-pin D-sub and 20-pin connectors
- LED indication of output status
1.210,82 kr. pr. stk.
| 1–9 stk. | 1.210,82 kr. | |
|---|---|---|
| 10–30 stk. | 1.173,45 kr. | −3 % |
| 31+ stk. | 1.151,03 kr. | −5 % |
Produktinformation "DB-24C/D Daughter Board, 24-ch Isolated Open Collector Digital Output"

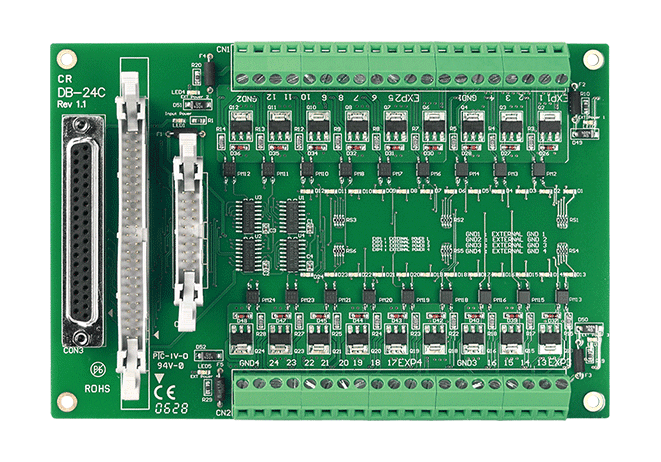

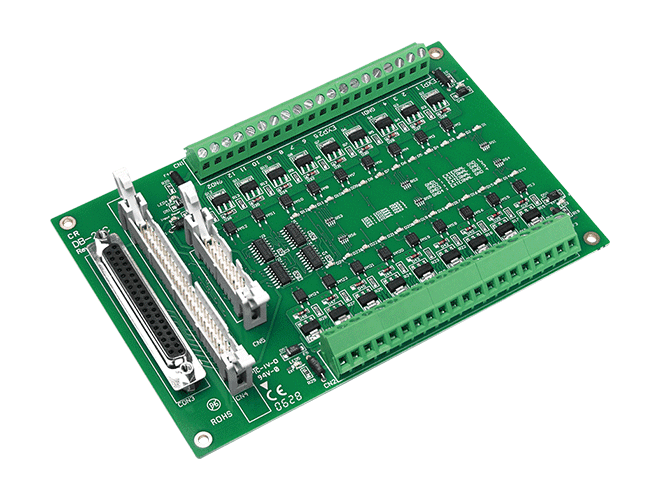

The DB-24C/D CR provides 24 optically isolated digital outputs, arranged in four isolated banks, for switching loads from an OPTO-22 compatible board or other DAQ setup.
Each channel uses an NPN open-collector output. Sixteen channels are rated at 100 mA and eight at 600 mA, both at 30 VDC. Isolation is 3750 Vrms, and typical response speed is 1 kHz. Output status is shown by LEDs, and field wiring is made through screw terminals.
The board connects directly to OPTO-22 compatible boards and has an OPTO-22 compatible connector, a 37-pin D-sub connector and a 20-pin connector. This /D variant ships with the CA-3710 DB37 male-to-male cable (45°, 1 m), whereas the DB-24C CR is supplied with the CA-5015 50-pin flat cable (1.5 m). The board has an operating range of 0 ~ 60 °C.
Applications
- On/off control
- Energy management
- Test automation
- Process control
| Product type: | Daughter board |
|---|---|
| Interface: | 20-pin, DB37, OPTO-22 |
| Digital outputs: | 24 |
| Isolation: | 3750 Vrms |
| Operating temperature: | 0 ~ 60 °C |
Specifikationer
| Digital Output | |
|---|---|
| Channels | 24 |
| Type | Open Collector |
| Load Current | (100mA/30Vdc)x16; (600mA/30Vdc)x8 |
| Response Speed | 1 kHz (Typical) |
| Isolation | 3750 Vrms |
| Power | |
| Consumption | 400 mA @ 5 V |
| Mechanical | |
| Dimensions (mm) | 170 mm x 114 mm |
| Environment | |
| Operating Temperature | 0 ~ 60°C |
| Storage Temperature | -20 ~ 70°C |
| Humidity | 5% to 90 % noncondensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
