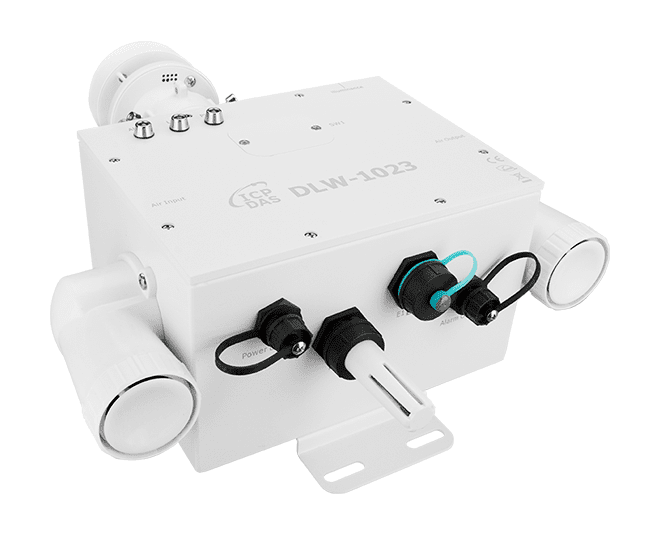

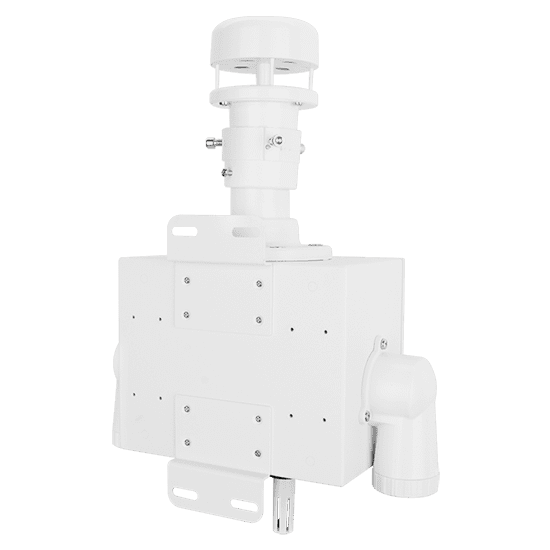

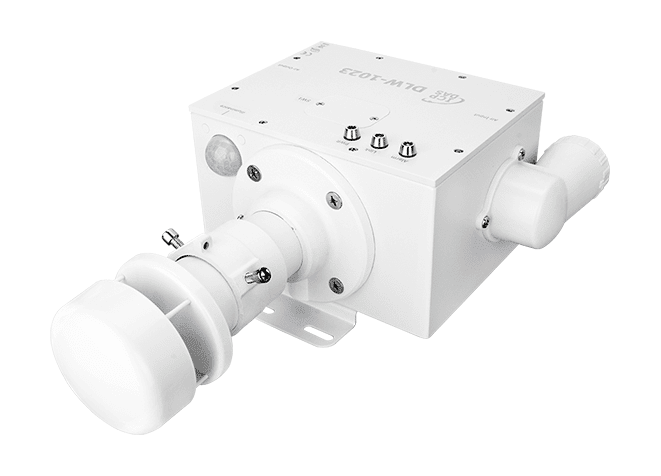

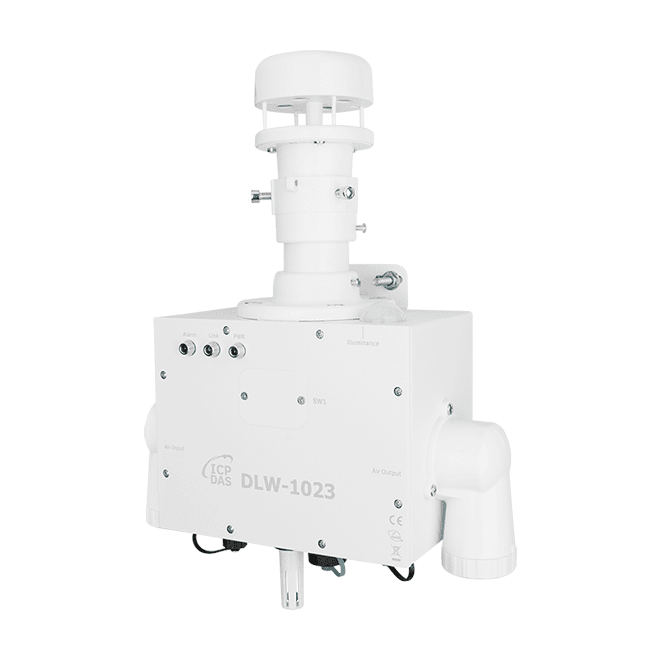

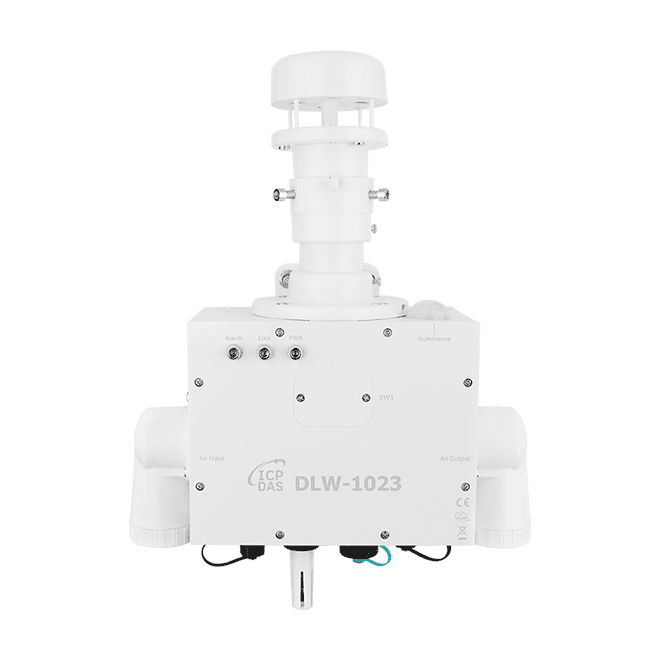

DLW-1023 Mini Weather Station with Gas and Particulate Sensing, PoE
Compact IP54 mini weather station measuring wind, pressure, illuminance, temperature, humidity, PM1/PM2.5/PM10 and CO/CO2, with Modbus RTU, Modbus TCP and MQTT over RS-485 and PoE Ethernet.
- Measures wind speed, wind direction, pressure, illuminance, sea level, temperature and humidity
- Monitors PM1, PM2.5 and PM10 particulates plus CO and CO2 concentrations
- RS-485 port with Modbus RTU and 10/100 Base-TX Ethernet port with Modbus TCP and MQTT
- Powered from +12 to +48 VDC or PoE (IEEE 802.3af, Class 1)
- Form Ax4 PhotoMOS relay output, real-time clock and data logger
- Replaceable intake and output filter patches
17.063,60 kr. pr. stk.
| 1–9 stk. | 17.063,60 kr. | |
|---|---|---|
| 10–30 stk. | 16.555,35 kr. | −3 % |
| 31+ stk. | 16.211,54 kr. | −5 % |
Produktinformation "DLW-1023 Mini Weather Station with Gas and Particulate Sensing, PoE"
DLW-1023 CR is a compact environmental monitoring station that combines weather measurements with particulate and gas sensing in one housing. It reports wind speed and direction, atmospheric pressure, illuminance, sea level, temperature and humidity, alongside PM1, PM2.5 and PM10 particulates and CO and CO2 concentrations. It suits engineers who need outdoor air and weather data without assembling separate sensors.
The station offers an RS-485 port running Modbus RTU and a 10/100 Base-TX Ethernet port that supports Modbus TCP and MQTT. It can be powered from a +12 to +48 VDC terminal block or from PoE (IEEE 802.3af, Class 1). Onboard alarm conditions are indicated by LEDs, and the unit can be integrated with the WISE controller to send alarm notifications.
Mechanically, the unit has an IP54 rating and a one-piece moulded body that can be fitted with a U-bolt or to a wall. The intake and output filter patches are replaceable, which the manufacturer describes as a routine maintenance task. The operating temperature range is -20 to +50°C.
Applications
- Smart greenhouse and agricultural monitoring
- Environmental data collection in remote areas with limited communication
- Air quality and weather monitoring at ports and marine sites
- Industrial exhaust emissions monitoring
- Multi-station water management and pumping station monitoring
| Product type: | Mini weather station |
|---|---|
| Interface: | Ethernet, RS-485 |
| Protocol: | Modbus RTU, Modbus TCP, MQTT |
| Relay outputs: | 4 |
| Ports: | 1 x RS-485, 1 x 10/100 Base-TX |
| PoE: | Yes |
| Power input: | +12 to +48 VDC, PoE (802.3af) |
| Operating temperature: | -20 ~ +50 °C |
| Mounting: | U-bolt, wall |
Specifikationer
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module, Communication (Programmable) |
| LED Indicators | |
| Status | PWR: Green for normal Operation Link: Green for the Ethernet-linked Alarm: Red for an alarm condition |
| System | |
| Alarm | Weather Monitoring (Wind Speed, Wind Direction, Pressure, Illuminance, Sea Level, RH/T), Particulates, Gas Monitoring (PM2.5, CO, CO2) |
| Real Time Clock | Yes |
| Data Logger | Yes |
| Relay Output | PhotoMOS Relay, Form Ax4, SPST 100VDC @ 1A |
| Temperature Measurement | |
| Range | -40 ~ +80℃ |
| Resolution | 0.1℃ |
| Accuracy | ±0.5℃ |
| Humidity Measurement | |
| Range | 0 ~ 100% |
| Resolution | 0.1% |
| Accuracy | ±5% |
| Life Time | 10 years |
| CO Measurement | |
| Range | 0 ~ 1000 ppm (Electrochemical) |
| Resolution | 1 ppm |
| Accuracy | ±5% |
| Response Time | 30 seconds |
| Warm-up Time | 60 seconds |
| Life Time | 5 years |
| CO2 Measurement | |
| Range | 0 ~ 9999 ppm (NDIR) |
| Resolution | 1 ppm |
| Accuracy | ±3% |
| Response Time | 120 seconds |
| Warm-up Time | 300 seconds |
| Life Time | 15 years |
| Illuminance Measurement | |
| Range | 0 ~ 200,000 Lux |
| Resolution | 1 Lux |
| Accuracy | ± 5% |
| PM1/PM2.5/PM10 Measurement | |
| Range | 0 ~ 1000 μg/m3 |
| Resolution | 1 μg/m3 |
| Accuracy | ±10% |
| Response Time | 1 seconds |
| Warm-up Time | 20 seconds |
| Life Time | 5 years |
| Sea Level | |
| Range | -50 ~ 9000 m |
| Resolution | 0.1 m |
| Atmospheric Pressure | |
| Range | 300 ~ 1200 hPa |
| Accuracy | 1 hPa |
| Resolution | 0.1 hPa |
| Wind Speed | |
| Rnge | 0 ~ 40 m/s |
| Accuracy | 5% |
| Resolution | 0.01 m/s |
| Wind Direction | |
| Range | 0 ~ 359° |
| Accuracy | <3° |
| Resolution | 1° |
| Ethernet | |
| Ports | 10/100 Base-TX, 8-Pin RJ-45 x1 |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP and MQTT |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Protocol | Modbus RTU |
| Power | |
| Consumption | PoE: 3.33 W Max Non-PoE: 3.01 W Max |
| Powered from PoE | IEEE 802.3af, Class 1 (48 V) |
| Powered from Terminal Block | +12 to +48 VDC |
| Mechanical | |
| Dimensions (mm) | 288 x 122 x 389 (W x L x H) |
| Installation | U-bolt or Wall Mounting |
| Ingress Protection Rating | IP54 |
| Weight | 2.45 KG |
| Environment | |
| Operating Temperature | -20 to +50°C |
| Storage Temperature | -30 to +75°C |
| Humidity | 10% to 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
