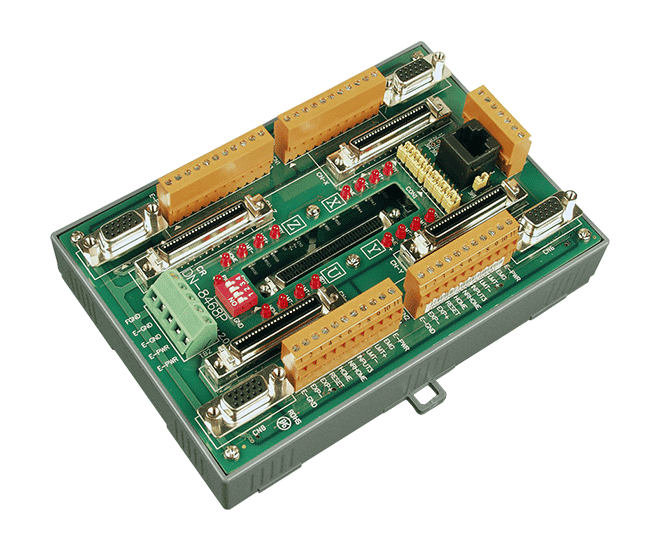

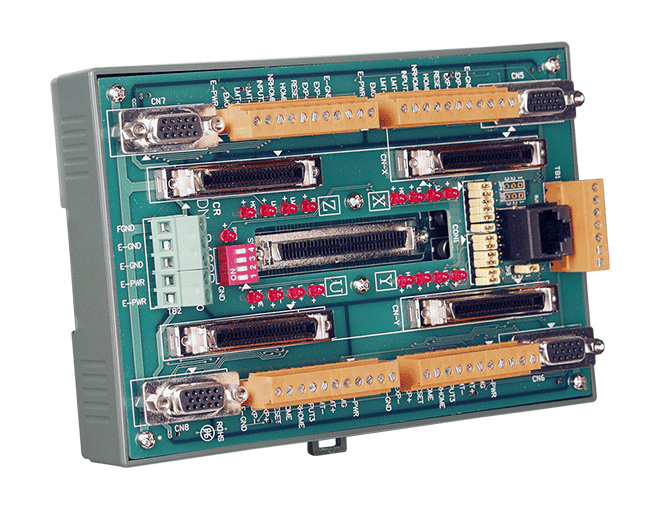

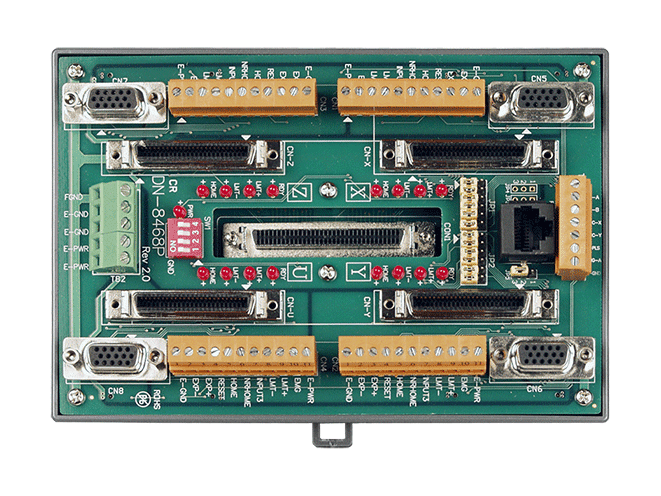

DN-8468PB 4-axis Stepper/Servo Terminal Board for Panasonic MINAS A4/A5
Four-axis screw terminal daughter board for ICP DAS motion controllers, pre-configured for Panasonic MINAS A4/A5 servo amplifiers, with photo-coupling isolation and pulse command outputs.
- Four-axis pulse command outputs for stepper or servo motors, built for Panasonic MINAS A4/A5 amplifiers
- High-speed photo-coupling isolation to protect the motion controller
- Per-axis encoder feedback, home, near-home and limit-switch inputs with a servo-enable output
- Screw terminal connectors that can be interchanged to redefine each axis without rewiring
- Onboard power module accepting 20 ~ 26 VDC wide-range input
- Power LED and status LEDs for home and limit switches
1.831,18 kr. pr. stk.
| 1–9 stk. | 1.831,18 kr. | |
|---|---|---|
| 10–30 stk. | 1.778,86 kr. | −3 % |
| 31+ stk. | 1.741,49 kr. | −5 % |
Produktinformation "DN-8468PB 4-axis Stepper/Servo Terminal Board for Panasonic MINAS A4/A5"
The DN-8468PB is a motion control terminal board for engineers driving Panasonic MINAS A4/A5 servo amplifiers from ICP DAS four-axis motion controllers. It mounts as a daughter board and turns the controller's signals into a screw-terminal wiring point, so axis connections can be made without custom cabling.
Each of the four axes has its own group of pulse command lines, encoder feedback, home, near-home and limit-switch inputs, and a servo-enable output. Onboard high-speed photo-coupling isolation helps protect the controller, and the terminal connectors can be swapped to change an axis assignment without rewiring. An onboard power module accepts 20 ~ 26 VDC and supplies the other circuitry on the board.
The board is listed with CE, UKCA, FCC, RoHS and WEEE certifications. Its operating range is -20 ~ +75 °C, and it measures 162 mm X 107 mm.
Applications
- Motion control of Panasonic MINAS A4/A5 servo amplifiers
- Four-axis stepper or servo positioning systems driven by ICP DAS motion controllers
- Signal breakout and wiring for I-8094, I-8094F, I-8094A, I-8094H and PISO-PS400 controllers
| Product type: | Motion control daughter board |
|---|---|
| Interface: | Screw terminal |
| Isolation: | Photo-coupling |
| Power input: | 20 ~ 26 VDC |
| Operating temperature: | -20 ~ +75 °C |
Specifikationer
| Power | |
|---|---|
| Input Range | 20 ~ 26 VDC, 0.5 A |
| Consumption | 12 W (24 VDC) |
| Mechanical | |
| Dimensions (mm) | 162 mm X 107 mm |
| Environment | |
| Operating Temperature | -20 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
