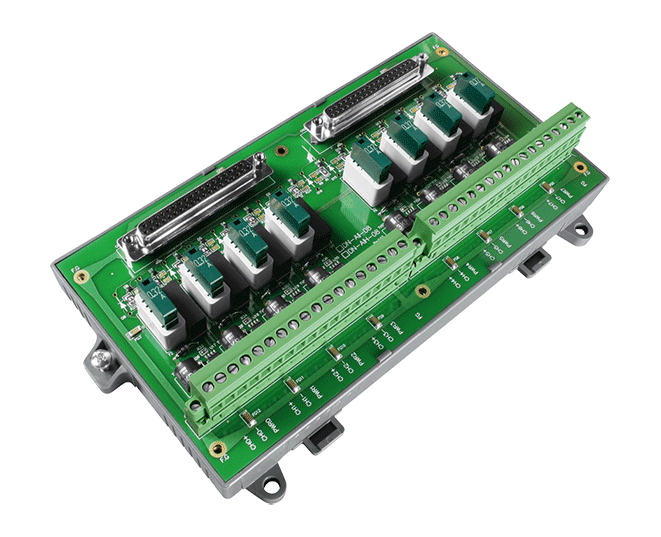

DN-AII-08 Current Input Termination Board, 8-ch Active/Passive Loop
Termination board for 8-channel current analog input, providing isolated, over-current protected loop power for active and passive loop wiring. Suits DIN-rail or wall mounting.
- 8 current input channels supporting active and passive loop wiring
- Isolated loop power source for field devices
- Short-circuit protection with loop current limiting on the isolated supply
- Removable fuses guard loop devices against high inrush current
- Physical indicator shows when a fuse has blown
- DIN-rail or wall mounting, 135 x 214.6 x 25.5 mm
2.459,01 kr. pr. stk.
| 1–9 stk. | 2.459,01 kr. | |
|---|---|---|
| 10–30 stk. | 2.384,27 kr. | −3 % |
| 31+ stk. | 2.331,95 kr. | −5 % |
Produktinformation "DN-AII-08 Current Input Termination Board, 8-ch Active/Passive Loop"
DN-AII-08 CR is a termination board for current analog input modules. It connects field signals to the input channels and also measures the analog current, so it fits systems where the input is a current loop.
The board supplies isolated loop power to field devices and supports both active and passive loop wiring on its 8 channels. The isolated supply is short-circuit protected: the loop current is limited when the circuit is shorted or the current becomes excessive. Removable fuses protect loop devices from high inrush current, and each fuse shows a physical indicator when it has blown.
The board measures 135 x 214.6 x 25.5 mm and mounts on a DIN rail or on a wall. It is rated for an operating temperature of -25 ~ 75 °C and 5 ~ 95% RH, non-condensing.
Applications
- Current-loop field device wiring with active or passive loops
| Product type: | Termination board |
|---|---|
| Analog inputs: | 8 |
| Isolation: | Isolated loop power |
| Operating temperature: | -25 ~ 75 °C |
| Mounting: | DIN-rail & wall |
Specifikationer
| Analog Input | |
|---|---|
| Channels | 8 (Support Active and Passive Loop Wiring Connection) |
| Mechanical | |
| Dimensions (mm) | 135 x 214.6 x 25.5 |
| Installation | DIN-Rail & wall mounting |
| Environment | |
| Operating Temperature | -25 ~ 75 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
