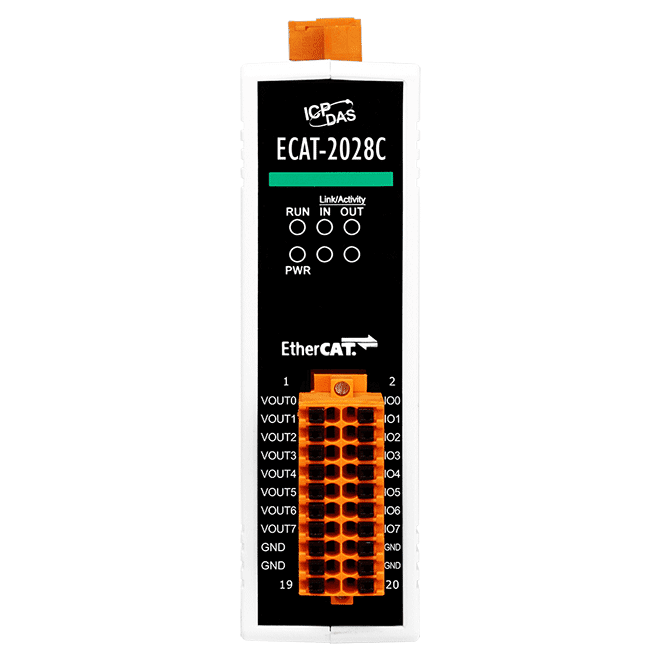

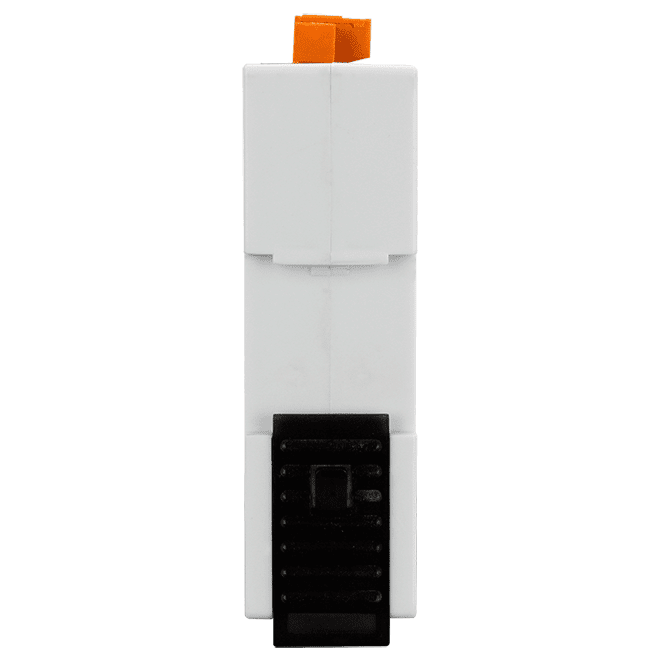

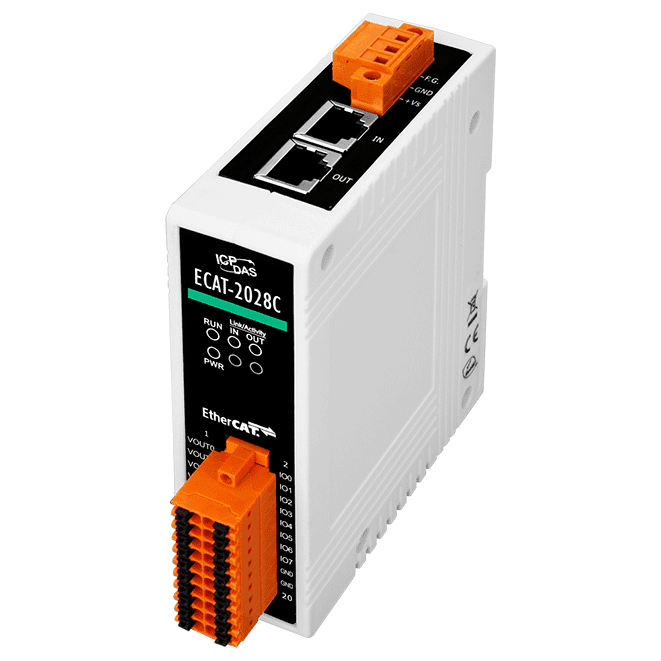

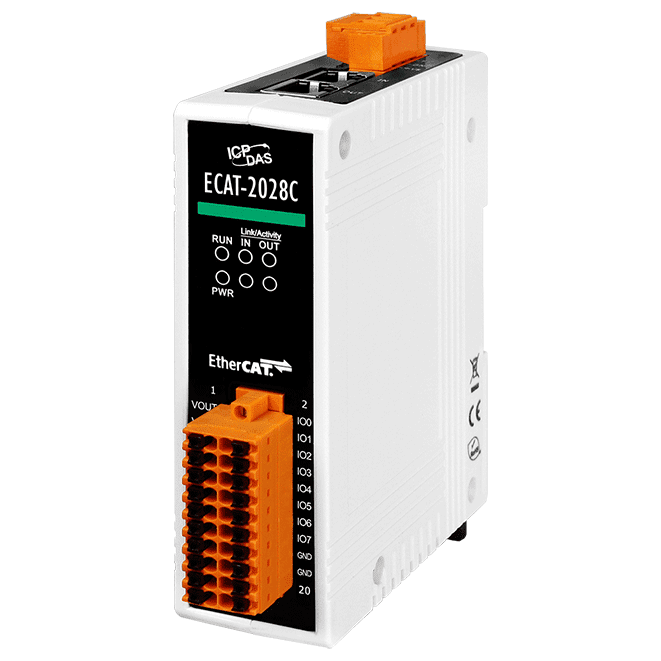

ECAT-2028C EtherCAT SubDevice Analog Output Module, 8-ch 12-bit
EtherCAT SubDevice with eight isolated 12-bit analogue outputs, selectable voltage and current ranges, and daisy-chain bus wiring for scalable distributed I/O.
- Eight isolated 12-bit analogue output channels with ±5 V, ±10 V, 0 ~ 5 V, 0 ~ 10 V, 0 ~ 10 mA and 0 ~ 20 mA ranges
- Accuracy of ±0.1% of FSR and span drift of ±5 ppm/°C
- EtherCAT SubDevice with on-the-fly processing, 1 ms cycle time and distributed clocks
- Two RJ-45 bus ports supporting daisy-chain connection, up to 100 m between stations (100BASE-TX)
- EtherCAT conformance test tool verified
- ESD protection of 4 kV contact per channel, with EFT and surge ratings to IEC 61000-4-4 and IEC 61000-4-5
2.062,88 kr. pr. stk.
| 1–9 stk. | 2.062,88 kr. | |
|---|---|---|
| 10–30 stk. | 2.003,09 kr. | −3 % |
| 31+ stk. | 1.958,24 kr. | −5 % |
Produktinformation "ECAT-2028C EtherCAT SubDevice Analog Output Module, 8-ch 12-bit"
The ECAT-2028C is an EtherCAT SubDevice providing eight isolated 12-bit analogue outputs. Selectable ranges cover ±5 V, ±10 V, 0 ~ 5 V, 0 ~ 10 V, 0 ~ 10 mA and 0 ~ 20 mA, so one module can drive a wide variety of voltage and current actuators.

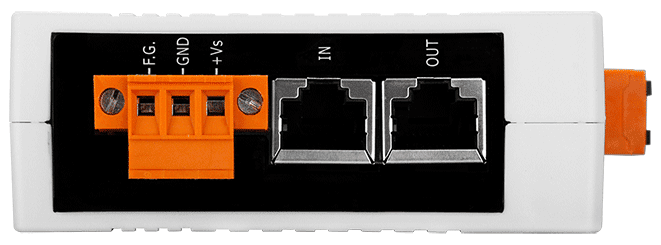

Two RJ-45 bus ports allow daisy-chain wiring with up to 100 m between stations over 100BASE-TX, which reduces cabling in distributed machine layouts. Output status can be read from process data or checked on the LED indicators, and the removable terminal block simplifies installation and servicing.
The module has been verified with the EtherCAT conformance test tool and is intended for use with EtherCAT Main Devices or configurators. With 4 kV contact ESD protection on each channel, a 1 ms cycle time and distributed clocks, it suits the machine automation applications listed below.
Applications
- Semiconductor Tools
- Metal Forming
- Packaging
- Injection Molding
- Assembly Systems
- Printing Machines
- Robotics
| Product type: | Analog output module |
|---|---|
| Interface: | EtherCAT |
| Protocol: | EtherCAT |
| Analog outputs: | 8 |
| Ports: | 2 x RJ-45 |
| Isolation: | Isolated |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Signal: ±1 kV Class A; Power: ±1 kV Class A |
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Channel |
| Surge (IEC 61000-4-5) | ± 1 kV Class A |
| Analog Output | |
| Channels | 8 |
| Range | ±5 V, ±10 V, 0 ~ 5V, 0 ~ 10V, 0 ~ 10 mA, 0 ~ 20 mA |
| Resolution | 12-bit |
| Accuracy | ±0.1% of FSR |
| Span Drift | ±5 ppm/°C |
| EtherCAT | |
| Ports | 2 x RJ-45 |
| Distance Between Stations | 100 m Max. (100Base-TX) |
| Data Transfer Medium | Ethernet/EtherCAT cable (Min. CAT5), shielded |
| Cycle Time | 1 ms |
| Distributed Clocks | Yes |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 4 W Max. |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 33 x 127 x 108 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
