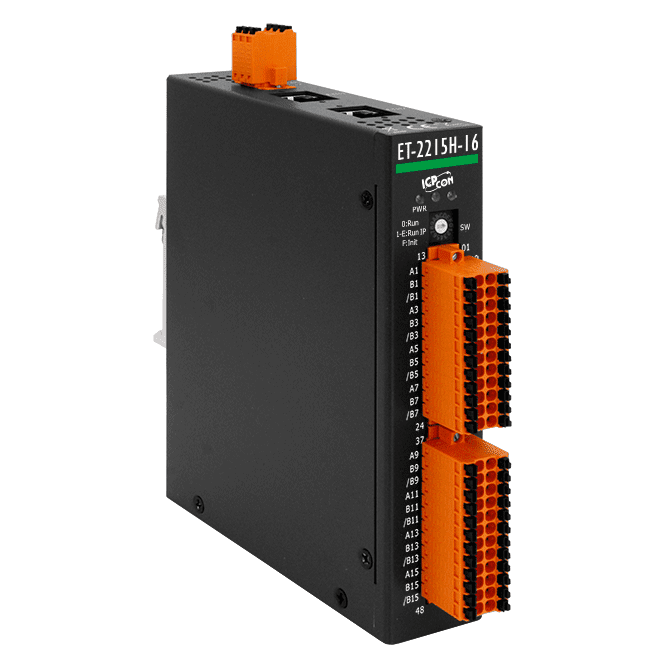

ET-2215H-16 Ethernet I/O Module with 2-port Switch, 16-ch High Speed RTD Input
16-channel RTD input module with 90 Hz fast sampling per channel, open wire detection and a built-in 2-port Ethernet switch for daisy-chain wiring. Supports Modbus TCP and MQTT.

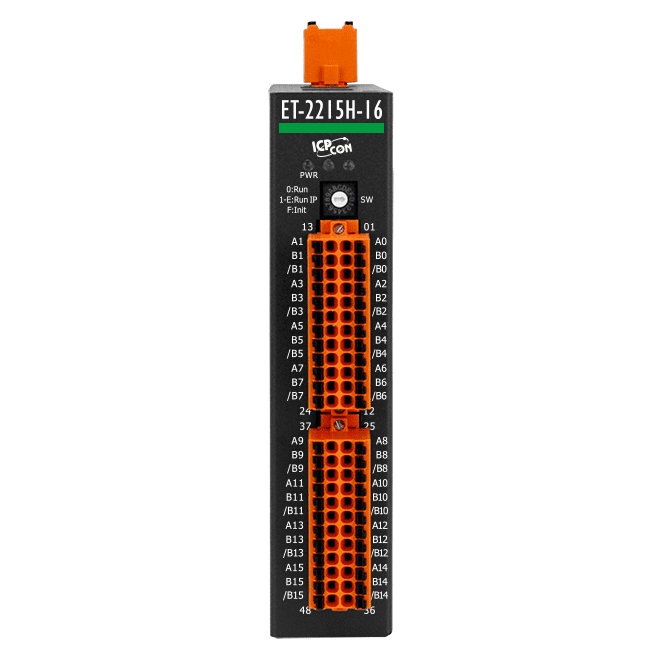

- 16 RTD inputs (Pt100, Ni120, Cu50, Cu100) with individual channel configuration
- Fast Mode sampling at 90 Hz per channel, or Normal Mode at 1.5 Hz per channel
- 3-wire RTD lead resistance elimination and open wire detection

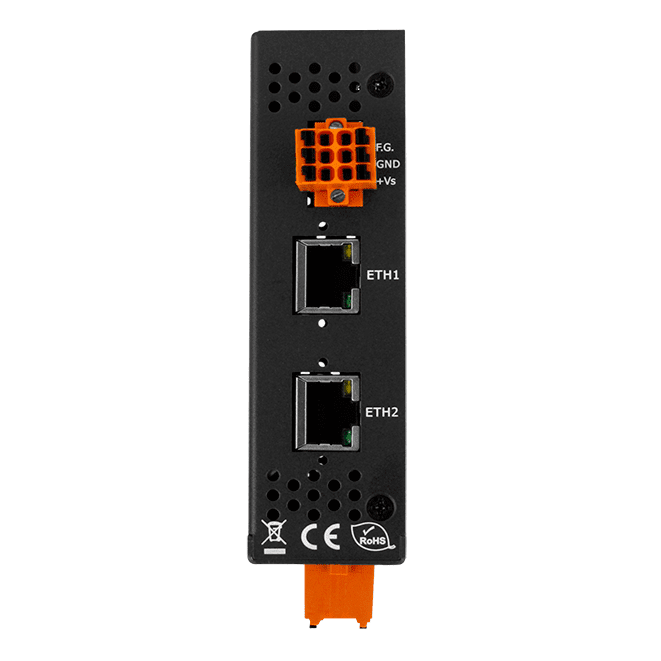

- Built-in 2-port 10/100 Base-Tx Ethernet switch with LAN bypass for daisy-chain wiring
- Modbus TCP/UDP, MQTT and SNMP V2c protocol support
- Web server configuration and firmware update via Ethernet
5.403,85 kr. pr. stk.
| 1–9 stk. | 5.403,85 kr. | |
|---|---|---|
| 10–30 stk. | 5.239,41 kr. | −3 % |
| 31+ stk. | 5.127,30 kr. | −5 % |
Produktinformation "ET-2215H-16 Ethernet I/O Module with 2-port Switch, 16-ch High Speed RTD Input"
The ET-2215H-16 is an Ethernet I/O module for temperature measurement with 16 RTD inputs. Each channel can be configured individually and accepts Pt100, Ni120, Cu50 and Cu100 sensors. Fast Mode gives 90 Hz sampling per channel, while Normal Mode runs at 1.5 Hz per channel, so the module can be matched to the speed the application needs.
Three-wire RTD lead resistance elimination keeps readings accurate across different cable lengths, and open wire detection flags broken sensor connections. The built-in 2-port 10/100 Base-Tx switch with LAN bypass lets engineers chain devices along the network, which reduces cabling and switch hardware. Modbus TCP/UDP, MQTT and SNMP V2c are supported, and the module can be configured through its web server.
For electrically noisy plants, the module provides 3000 VDC I/O isolation and 1500 VDC Ethernet isolation, together with EFT, ESD and surge protection to the levels listed in the specification. It is housed in a metal casing and mounts on DIN-rail or wall.
Applications
- Factory Automation
- Machine Automation
- Building Automation
- Remote Diagnosis & Maintenance
- Testing Equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP/UDP, MQTT, SNMP v2c |
| Analog inputs: | 16 |
| Ports: | 2 |
| Isolation: | I/O 3000 VDC, Ethernet 1500 VDC |
| Power input: | +10 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail / wall |
| Housing: | Metal |
Specifikationer
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| CPU | 32-bit ARM |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | Ethernet: 1500 VDC I/O: 3000 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet |
| Analog Input | |
| Channels | 16 |
| Sensor Type | Pt100, Ni120, Cu50, Cu100 |
| Resolution | 16-bit |
| Accuracy | Normal Mode: ±0.05 % of FSR (25℃) Fast Mode: ±0.1 % of FSR (25℃) |
| Sampling Rate | Normal Mode: 1.5 Hz (per channel) Fast Mode: 90 Hz (per channel) |
| Input Impedance | > 1 MΩ |
| Individual Channel Configuration | Yes |
| Open Wire Detection | Yes |
| 3-wire RTD Lead Resistance Elimination | Yes |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-Tx, Switch Ports |
| LAN bypass | Yes |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP, MQTT, SNMP V2c |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 1.9 W (max.) |
| Powered from Terminal Block | +10 ~ +48 VDC |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 31 x 159 x 137 (W x L x H) |

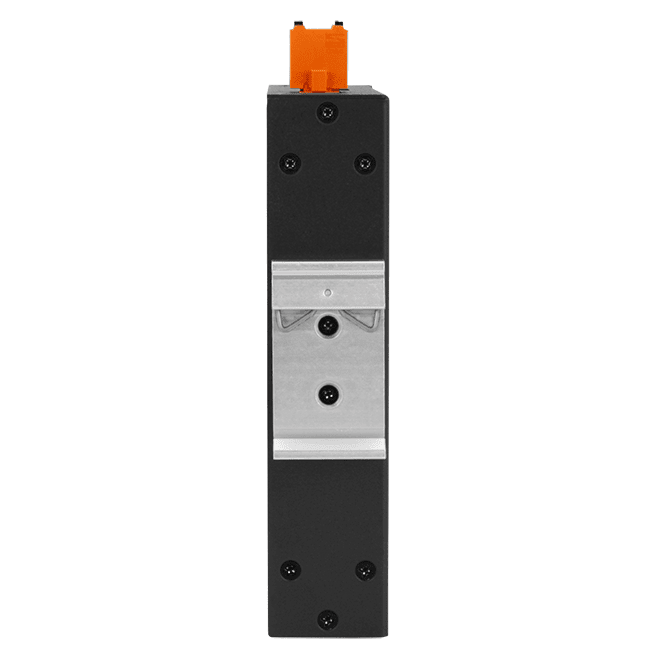

| Installation | DIN-Rail mounting / Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
