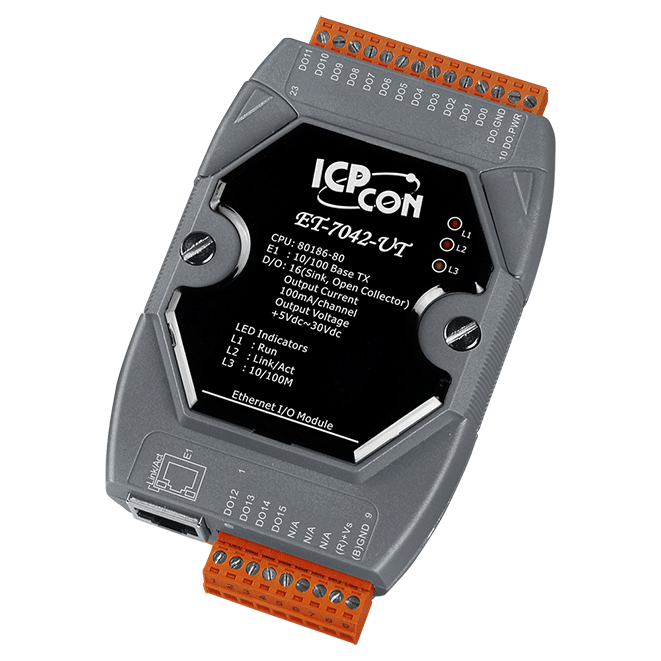

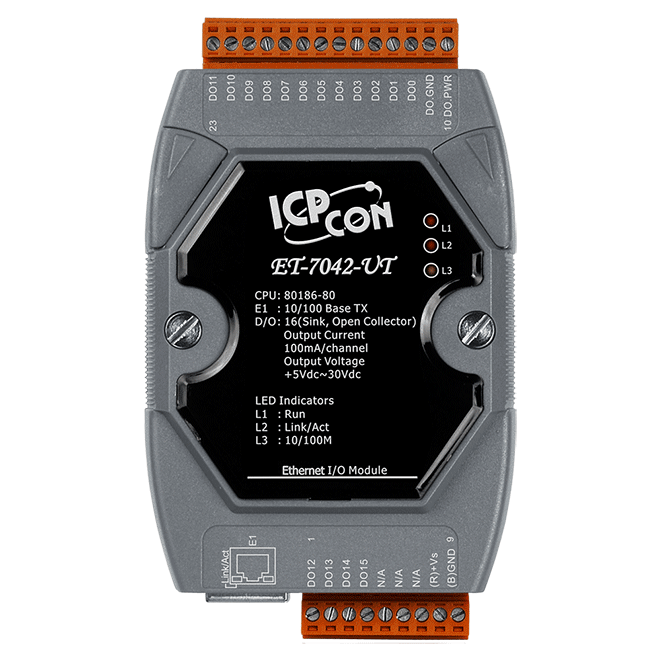

ET-7042-UT Ethernet I/O Module, 16-ch Sink-type Digital Output
16-channel sink-type digital output module with Modbus TCP and Modbus UDP over 10/100 Base-TX Ethernet, rated for -40 to +75 °C operation.
- 16 isolated open-collector digital outputs in sink configuration
- Load voltage +5 ~ +30 VDC, 100 mA per channel at 25°C
- Modbus TCP and Modbus UDP support over a single RJ-45 10/100 Base-TX port
- Built-in web server with web HMI and ID, password and IP filter access control
- Dual watchdog with programmable power-on and safe output values
- I/O pair connection for peer-to-peer style signal linking
1.606,95 kr. pr. stk.
| 1–9 stk. | 1.606,95 kr. | |
|---|---|---|
| 10–30 stk. | 1.554,63 kr. | −3 % |
| 31+ stk. | 1.524,74 kr. | −5 % |
Produktinformation "ET-7042-UT Ethernet I/O Module, 16-ch Sink-type Digital Output"
ET-7042-UT CR is a DIN-rail Ethernet I/O module that switches 16 isolated open-collector digital outputs in sink configuration. Each channel handles a load voltage of +5 ~ +30 VDC and up to 100 mA at 25°C, so it can drive loads directly or feed an RM series relay module when switching inductive loads.
The module is aimed at engineers who need remote, networked output control without a local PLC. It supports Modbus TCP and Modbus UDP, and includes a built-in web server with web HMI for configuration and monitoring. Access is restricted by ID, password and IP filter, and a dual watchdog helps the output stage return to a defined state after faults.
Power-on and safe values for the digital outputs are programmable, which allows each installation to define the state of its outputs at start-up and during communication loss. The listed operating range of -40 ~ +75°C suits cabinets in demanding environments, with 2500 VDC I/O isolation and 1500 VDC Ethernet isolation.
Applications
- Building automation
- Factory automation
- Machine automation
- Remote maintenance
- Remote diagnosis
- Testing equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP, Modbus UDP |
| Digital outputs: | 16 |
| Ports: | 1 |
| Isolation: | 2500 VDC (I/O) |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -40 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | Ethernet: 1500 VDC I/O: 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±0.5 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet |
| Digital Output | |
| Channels | 16 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 ~ +30 VDC |
| Load Current | 100 mA/channel at 25°C Direct Drive Power Relay Module |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100 Base-TX |
| Access Control | ID, Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 2.7 W (max.) |
| Powered from Terminal Block | +10 ~ +30 VDC |
| Mechanical | |
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -40 ~ +75°C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
