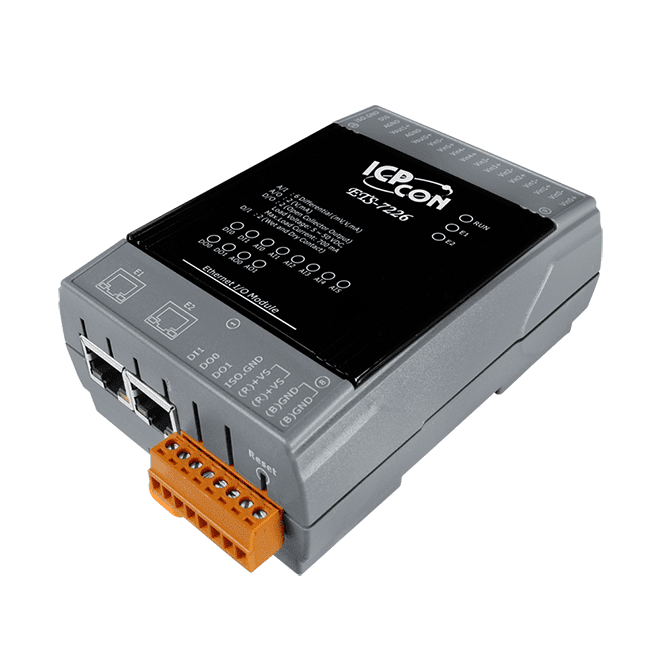

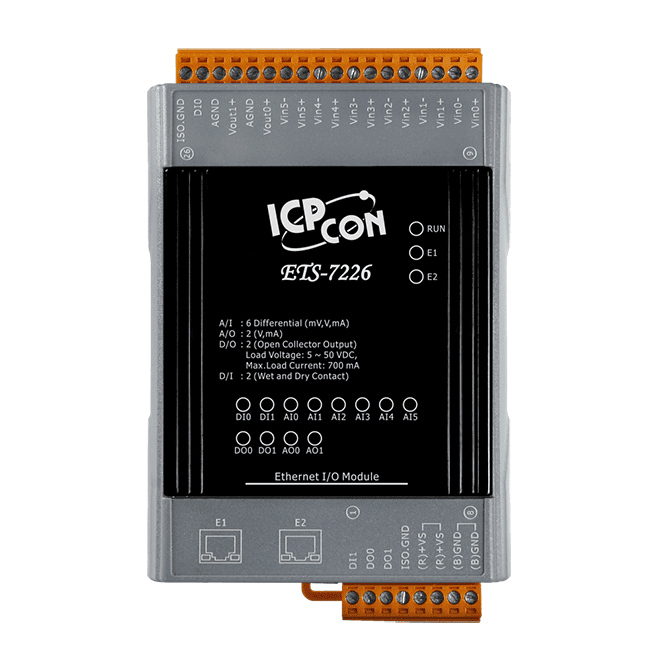

ETS-7226 Ethernet I/O Module, 6-ch AI, 2-ch AO, 2-ch DI/DO with 2-port Switch
Ethernet I/O module with a 2-port switch for daisy-chain wiring, combining 6 analog inputs, 2 analog outputs, 2 digital inputs and 2 digital outputs in one DIN-rail unit.
- 6 differential analog inputs, 16-bit resolution, jumper-selectable voltage or current
- 2 analog outputs, 12-bit resolution, with programmable power-on and safe values
- 2-port 10/100 Base-TX switch with LAN bypass for daisy-chain wiring
- Built-in IF-THEN-ELSE logic configured through the web interface, no programming required
- Modbus TCP/TLS, MQTT (optional TLS), Rest API, CoAP and LwM2M support
- Dual watchdog (module and communication) with power-on and safe values
2.772,93 kr. pr. stk.
| 1–9 stk. | 2.772,93 kr. | |
|---|---|---|
| 10–30 stk. | 2.690,71 kr. | −3 % |
| 31+ stk. | 2.638,39 kr. | −5 % |
Produktinformation "ETS-7226 Ethernet I/O Module, 6-ch AI, 2-ch AO, 2-ch DI/DO with 2-port Switch"
The ETS-7226 brings six analog inputs, two analog outputs, two digital input/counter channels and two digital outputs into one DIN-rail module. It suits distributed monitoring and control jobs where separate I/O hardware would otherwise be needed for each signal type.
Each analog input is jumper-selectable between voltage and current, covering ±500 mV to ±10 V and 0 to 20 mA, ±20 mA and 4 to 20 mA, with 240 Vrms overvoltage protection per channel. Simple control logic can be built in the web interface using IF-THEN-ELSE rules, so no programming is needed.
The built-in two-port 10/100 Base-TX switch supports daisy-chain topologies. Modbus TCP/TLS, MQTT, Rest API, CoAP and LwM2M are supported for connecting digital sensors in IIoT applications, with HTTP/HTTPS web access and security features such as Modbus/TCP security and enhanced DoS protection.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Ethernet I/O Module |
|---|---|
| Interface: | Ethernet |
| Protocol: | Modbus TCP |
| Digital inputs: | 2 |
| Digital outputs: | 2 |
| Analog inputs: | 6 |
| Analog outputs: | 2 |
| Ports: | 2 |
| PoE: | Yes |
| Isolation: | 2500 VDC (I/O) |
| Power input: | +12 to +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| Function | • Web Interface for Configuration • IF-THEN-ELSE Logic operation • I/O channel monitoring and control • Timer operation • Schedule operation • Internal Register operation |
| CPU Module | |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
| 2-way Isolation | Ethernet: 1500 VDC I/O: 2500 VDC |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±2 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
| Status | Run, Ethernet, I/O |
| Analog Input | |
| Channels | 6 (Differential) |
| Type | Voltage Current |
| Range | ±500 mV, ±1 V, ±5 V, ±10 V 0 to 20 mA, ±20 mA, 4 to 20 mA (Jumper Selectable) |
| Resolution | 16-bit |
| Accuracy | Normal Mode: ±0.1% Fast Mode: ±0.5% or better |
| Sampling Rate | Normal Mode: 10 Hz (total channels) Fast Mode: 50 Hz (total channels) |
| Input Impedance | Voltage: 2 MΩ Current: 125 Ω |
| Common Voltage Protection | ±200 VDC |
| Overvoltage Protection | 240 Vrms |
| Overcurrent Protection | 50 mA at 110 VDC (max.) |
| Individual Channel Configuration | Yes |
| Open Wire Detection | For 4 to 20 mA only |
| Isolation | ±400 VDC, Virtual Channel to Channel Isolation |
| Analog Output | |
| Channels | 2 |
| Type | Voltage Current |
| Range | +0 to +5 VDC, ±5 VDC, +0 to +10 VDC, ±10 VDC 0 to 20 mA, 4 to 20 mA (Jumper Selectable) |
| Resolution | 12-bit |
| Accuracy | ±0.1% of FSR |
| Open Wire Detection | For 4 to 20 mA only |
| Voltage Output Capability | 10 V @ 20 mA |
| Current Load Resistance | 500 Ω |
| Individual Channel Configuration | Yes |
| Power-on Value | Programmable |
| Safe Value | Programmable |
| Digital Input/Counter | |
| Channels | 2 |
| Type | Dry Contact Wet Contact |
| ON Voltage Level | Dry: Close to GND Wet: +1 VDC (max.) |
| OFF Voltage Level | Dry: Open Wet: +3.5 to +30 VDC |
| Max. Counts | 4,294,967,295 (32-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Effective Distance | 500m (max.) |
| Overvoltage Protection | +30 VDC |
| Digital Output | |
| Channels | 2 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +5 to +50 VDC |
| Load Current | 700 mA/channel |
| Overvoltage Protection | +60 VDC |
| Overload Protection | 1.4 A |
| Short-circuit Protection | Yes |
| Power on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| LAN bypass | Yes |
| Access Control | ID, Password and IP Filter |
| Protocol | Modbus TCP, Modbus TCP/TLS, Modbus UDP, MQTT, Rest API, CoAP, LwM2M, SNMP, SMTP, SNTP, HTTP/HTTPS |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 4.4 W (max.) |
| Powered from PoE | Yes, IEEE 802.3af, Class 2 |
| Powered from Terminal Block | +12 to +48 VDC |
| Mechanical | |
| Dimensions (mm) | 76 x 120 x 38 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 to +75°C |
| Storage Temperature | -30 to +80°C |
| Humidity | 10 to 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
