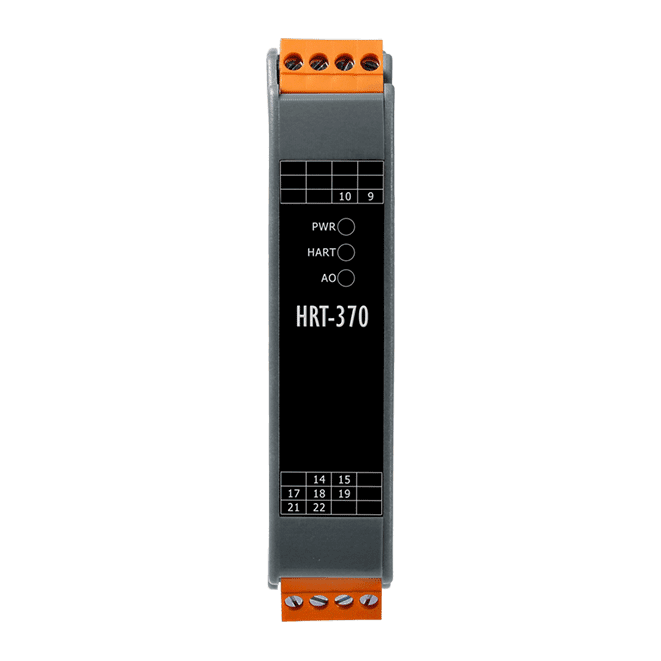

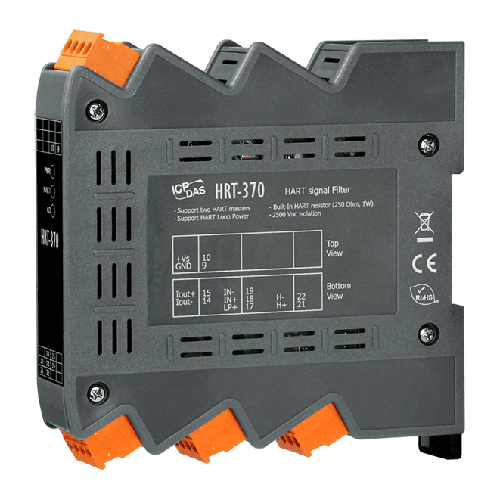

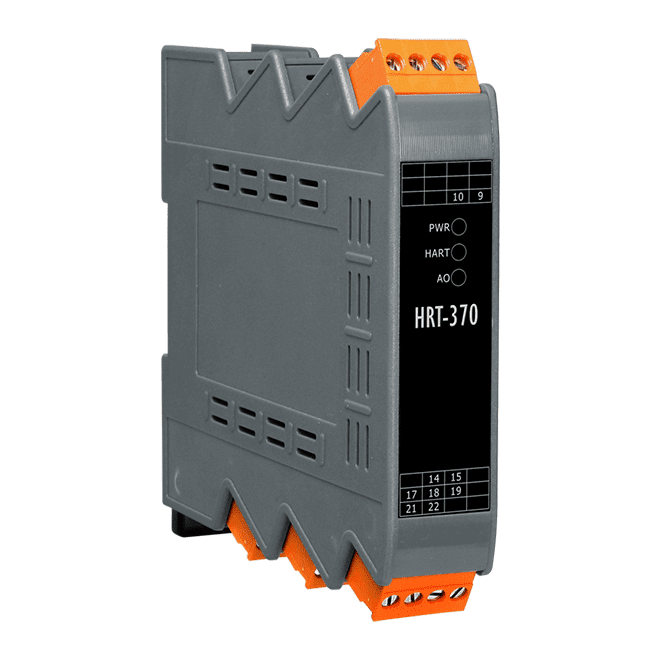

HRT-370 HART Signal Filter, 1-ch Analog Current Output with HART Bypass
DIN-rail HART signal filter that splits a HART loop into a filtered analog current output and a bypass HART channel, keeping analog readings clean when HART traffic is present.
- One analogue current output channel with HART signal filtering, plus one bypass HART signal channel
- Supports HART Burst mode and point-to-point HART mode, with two HART masters allowed
- Loop power function provides +30 V output from the module
- Analogue output zero and span drift of ± 0.1% FSR @25 °C and ± 0.5% FSR @-30/+80 °C
- 2500 VDC isolation on the analogue output and HART side, with 4 KV ESD protection
- Input impedance 250Ω ±5% (2 W) and auxiliary supply 24 V @ 20 mA
1.988,14 kr. pr. stk.
| 1–9 stk. | 1.988,14 kr. | |
|---|---|---|
| 10–30 stk. | 1.928,34 kr. | −3 % |
| 31+ stk. | 1.890,97 kr. | −5 % |
Produktinformation "HRT-370 HART Signal Filter, 1-ch Analog Current Output with HART Bypass"
HRT-370 is a HART signal filter for installations where an analogue current reading and HART communication share the same loop. The HART signal is split into two outputs: one passes the original HART signal through, while the other delivers a filtered, pure analogue current, so both data paths can be processed without interference from the HART carrier.
The module works with 2-wired or 4-wired HART devices in point-to-point connections and supports both HART Burst mode and point-to-point HART mode. It allows two HART masters to be connected, and its loop power function supplies +30 V from the module. The analogue output is isolated to 2500 VDC and specified with a 250Ω load resistor and 40 ms response time at 250 Ω.
- Suits engineers who need both HART data and a stable analogue current from one instrument.
- Mounts on DIN-rail, with an unregulated +10 ~ +30 VDC supply input and reverse polarity protection.
- Rated for operation from -25 ~ +75 °C, with storage from -30 ~ +80 °C.
Applications
- Measuring analogue current from HART transmitters while keeping HART communication active on the same loop
- Point-to-point HART instrument loops where analogue data collection must remain precise
| Product type: | HART signal filter |
|---|---|
| Interface: | HART |
| Protocol: | HART |
| Analog outputs: | 1 |
| Isolation: | 2500 VDC |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| LED Indicators | |
|---|---|
| Status | PWR: Module power status HART: HART connection status AO: AO connection status |
| Analog Output | |
| Zero Drift | ± 0.1% FSR @25 °C ± 0.5% FSR @-30/+80°C |
| Span Drift | ± 0.1% FSR @25 °C ± 0.5% FSR @-30/+80°C |
| Response Time | 40ms @ 250 Ω |
| Voltage Output Capability | External +30V @ 800Ω (Sink) |
| Isolation | 2500VDC |
| HART | |
| Device | 2-wired or 4-wired HART devices (Point to Point) |
| Isolation | 2500 VDC |
| Input Impedance | 250Ω±5% (2W) |
| Loop Power | Yes (module provides +30V output) |
| Auxiliary Supply | 24V @ 20mA |
| Power | |
| Reverse Polarity Protection | Power reverse polarity protection, Over-voltage brown-out protection |
| Input Range | Unregulated +10 ~ +30 VDC |
| Consumption | Maximum: (20mA) => 0.05mA @ 30VDC, 1.5W |
| Mechanical | |
| Dimensions (mm) | 25 x 116 x 120 |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 5% ~ 95% RH, Non-condensing |
