I-7510A Isolated RS-422/RS-485 Repeater/Converter, 2-Way 3 kV Isolation
Single-port isolated RS-422/RS-485 repeater and converter with 2-way 3 kV isolation, automatic RS-485 direction control and transmission speeds up to 115200 bps.
- Automatic RS-485 direction control
- Baud rate from 300 to 115200 bps
- 2-way 3 kV isolation between the RS-422/485 device and the rest of the system
- ESD protection on the RS-485 data line
- Converts four-wire RS-422 to two-wire RS-485 and vice versa
- Repeater function extends networks and expands RS-485 beyond 256 nodes
777,32 kr. pr. stk.
| 1–9 stk. | 777,32 kr. | |
|---|---|---|
| 10–30 stk. | 754,89 kr. | −3 % |
| 31+ stk. | 739,95 kr. | −5 % |
Produktinformation "I-7510A Isolated RS-422/RS-485 Repeater/Converter, 2-Way 3 kV Isolation"

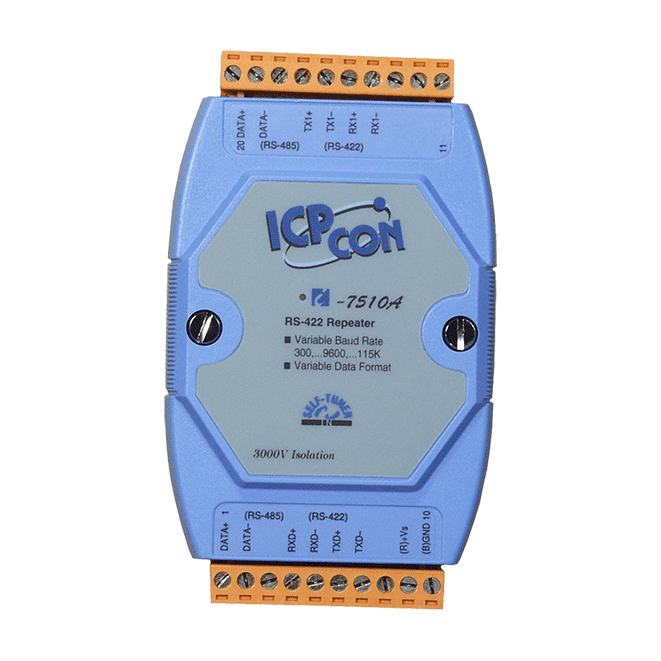

The I-7510A CR is a blue-cover, RoHS-compliant isolated repeater and converter for RS-422 and RS-485 serial networks. It places 2-way 3 kV optical isolation between one RS-422/RS-485 device and the rest of the system, protecting the device from ground loops and disturbances on the wider network.
Beyond isolation, the module can regenerate a serial signal to extend the reach of an existing network. It can also lift an RS-485 segment past the 256-node limit of the standard, and it converts between four-wire RS-422 and two-wire RS-485 signals in either direction. RS-485 direction control is handled automatically, so no separate direction signal is needed.
Choose the I-7510A CR when you need a compact, DIN-rail mounted isolated repeater with a plastic housing and a supply range of +10 VDC to +30 VDC. Serial speeds run from 300 bps to 115200 bps, and the ESD protection on the RS-485 data line helps the module tolerate harsh field wiring.
Applications
- Isolating a single RS-422/RS-485 device from the rest of the serial network
- Extending the transmission distance of an existing RS-485 network
- Expanding an RS-485 system beyond the 256-node limit of the standard
- Converting between four-wire RS-422 and two-wire RS-485 signals
| Product type: | Repeater/Converter |
|---|---|
| Interface: | RS-422/485 |
| Ports: | 1 |
| Isolation: | 2-way 3 kV |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| Isolation | |
|---|---|
| Intra-module Isolation | 2-way 3 kV Isolated |
| EMS Protection | |
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |
| Status | 1 x Power and Communication |
| COM Ports | |
| Ports | 1 x RS-422/485 |
| Baud Rate | 300 ~ 115200 bps |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 2.2 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 x 35 x 122 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
