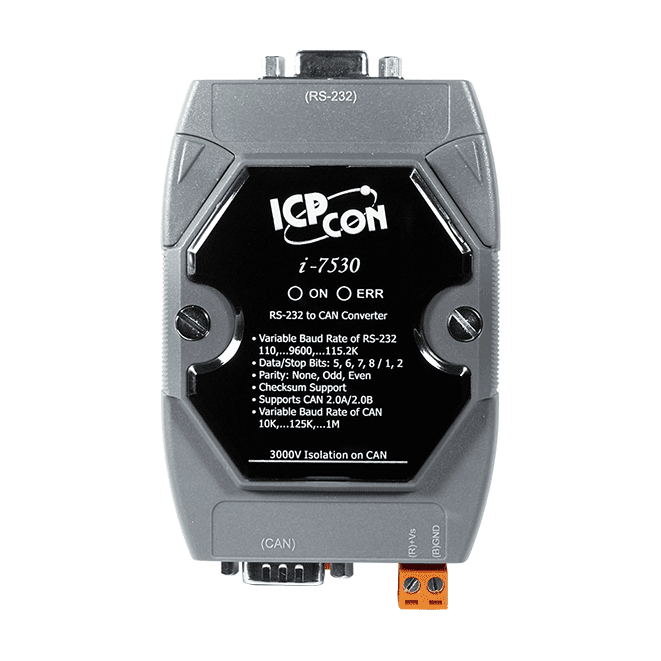

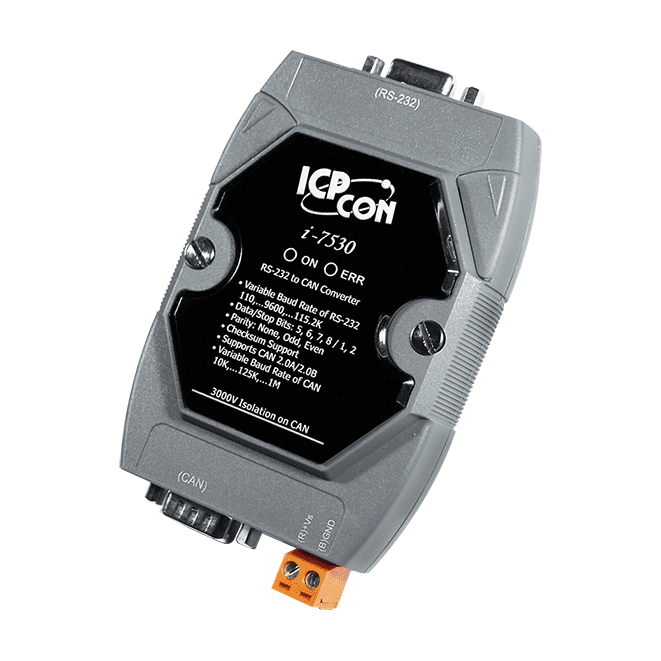

I-7530-G RS-232 to CAN Converter, 3000 VDC Isolated CAN Port
Isolated RS-232 to CAN converter with software-configurable parameters, transparent mode and watchdog, for connecting PCs and serial devices to CAN networks.
- CAN 2.0A and 2.0B compatible, fully conforming to ISO 11898-2
- 3000 VDC isolation on the CAN side protects the RS-232 device
- Software-configurable CAN and RS-232 communication parameters
- Transparent communication mode supported
- 1000-frame CAN receive buffer and 900-frame RS-232 receive buffer
- Built-in watchdog for continuous operation in harsh or noisy environments
1.524,74 kr. pr. stk.
| 1–9 stk. | 1.524,74 kr. | |
|---|---|---|
| 10–30 stk. | 1.479,89 kr. | −3 % |
| 31+ stk. | 1.449,99 kr. | −5 % |
Produktinformation "I-7530-G RS-232 to CAN Converter, 3000 VDC Isolated CAN Port"
I-7530-G is an RS-232 to CAN converter that lets a PC or any device with a serial port exchange messages with CAN devices. It handles conversion between the two networks, so serial hosts can monitor and control CAN nodes without a dedicated CAN interface.
The CAN port is compatible with CAN 2.0A and 2.0B and conforms to ISO 11898-2, with a jumper-selectable 120 Ω terminal resistor. CAN and RS-232 communication parameters are set in software, and transparent communication mode is supported. The CAN side provides 3000 VDC isolation, helping to protect the RS-232 equipment from faults on the CAN network.
A built-in watchdog monitors operation, and power, data flow and error indicators show the status of both interfaces. The module has a 1000-frame receive buffer on the CAN side and a 900-frame buffer on the RS-232 side. Full-duplex operation of RS-232 devices is not supported. Installation is on a DIN-rail in a plastic housing, with an operating range of -25 ~ +75 °C.
Applications
- Connecting PCs or HMI hosts to CAN device networks over RS-232
- Linking RS-232 programmable controllers and embedded controllers to a CAN network
- Monitoring and control of CAN devices in industrial automation systems
| Product type: | Converter |
|---|---|
| Interface: | CAN, RS-232 |
| Protocol: | CAN 2.0A/2.0B |
| Ports: | 1 x RS-232, 1 x CAN |
| Isolation: | 3000 VDC (CAN side) |
| Power input: | +10 VDC ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| LED Indicators | |
|---|---|
| Status | 1 x Power 1 x CAN status |
| COM Ports | |
| Ports | 1 x RS-232 (9-pin female D-Sub (TxD, RxD, GND)) |
| Baud Rate | 110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps |
| Parity | None, Even, Odd |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 2 |
| Receive Buffer | 900 data frames |
| CAN | |
| Ports | 1 |
| Specification | ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Baud Rate | 10 k ~ 1 M bps |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Selectable 120Ω terminal resistor by jumper |
| Filter | Yes |
| Receive Buffer | 1000 data frames |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 1 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 x 118 x 33 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
