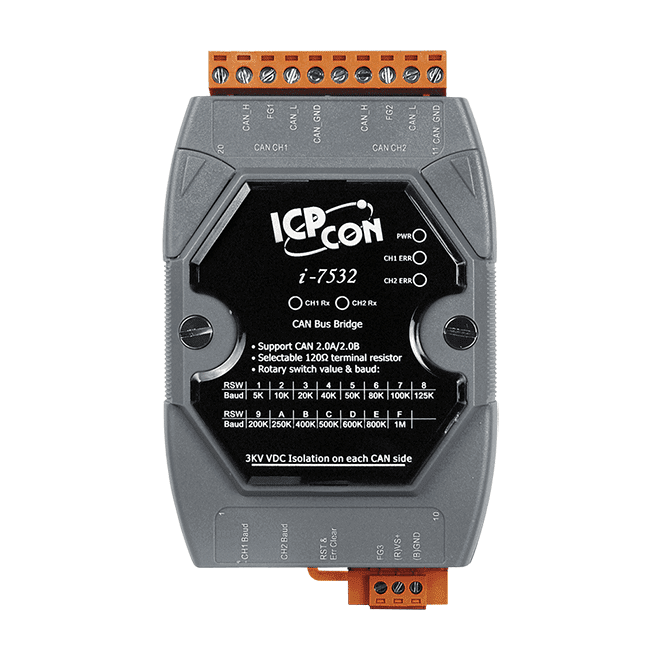

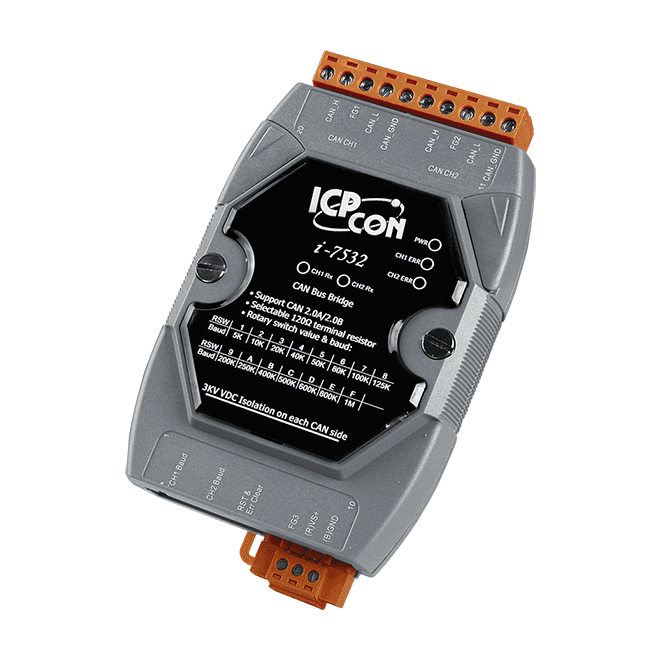

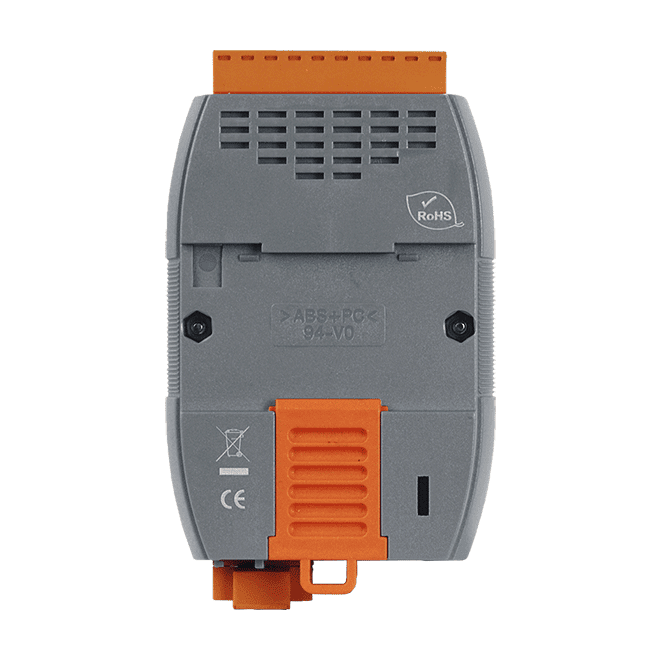

I-7532-G 2-Channel CAN Bus Isolated Bridge, 5 k to 1 M bps
Two-channel isolated CAN bridge for joining CAN networks that run at different baud rates, extending bus distance or adding nodes. DIN-rail mount, +10 to +30 VDC input.
- Fully compatible with ISO 11898-2, supporting CAN 2.0A and CAN 2.0B

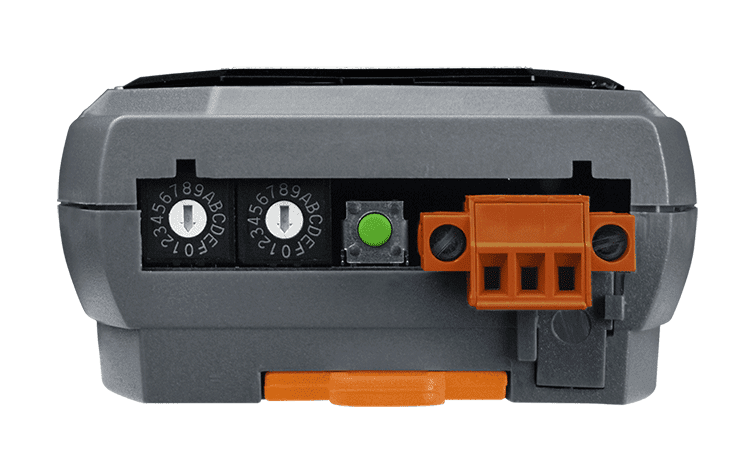

- Two isolated ports with rotary-switch baud rate from 5 kbps to 1 Mbps or a programmable user-defined rate
- Selectable 120 Ω terminator resistor by jumper on each port
- Up to 100 CAN nodes per channel and 768 data frames buffered per channel
- Message acceptance filter configuration and forwarding of messages under another identifier
- CAN Bus-Off Auto-Reset and CAN Listen-Only Mode functions
1.592,00 kr. pr. stk.
| 1–9 stk. | 1.592,00 kr. | |
|---|---|---|
| 10–30 stk. | 1.547,16 kr. | −3 % |
| 31+ stk. | 1.509,79 kr. | −5 % |
Produktinformation "I-7532-G 2-Channel CAN Bus Isolated Bridge, 5 k to 1 M bps"
I-7532-G CR is a two-channel CAN bridge that links two CAN networks, including networks running at different baud rates. Each port is galvanically isolated, so a bit error or other fault on one port does not disturb the other, which helps keep both segments stable.
Both ports are fully compliant with ISO 11898-2 and support CAN 2.0A and CAN 2.0B frames. Baud rate is set by rotary switch between 5 kbps and 1 Mbps, or a user-defined rate can be programmed. Each channel handles up to 100 nodes and buffers 768 data frames, and message acceptance filters can be configured. Messages can also be forwarded under a different identifier.
- Suited to CANopen, DeviceNet, J1939 and other CAN-based protocols
- Firmware update supported via CAN1
Applications
- Extending the distance of a CAN bus network
- Connecting two CAN networks with different baud rates
- Increasing the number of nodes in a CAN bus network
- Integrating multiple identical CAN devices within one CAN network
- Use with CANopen, DeviceNet, J1939 and other CAN protocols
| Product type: | CAN bridge |
|---|---|
| Interface: | CAN |
| Protocol: | CAN 2.0A, CAN 2.0B |
| Ports: | 2 |
| Isolation: | 3000 VDC (DC-to-DC), 2500 Vrms (photo-couple) |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| CAN | |
|---|---|
| Ports | 2 |
| Specification | ISO-11898-2, CAN 2.0A and CAN 2.0B |
| Baud Rate | 5 k ~ 1 M bps |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple |
| Terminal Resistor | Jumper for 120 Ω terminal resistor |
| Filter | Yes |
| Time Delay | [ 1Mbps (8-byte Data) ] ID-29bit => 156 us ; ID-11bit => 134 us [ 5Kbps (8-byte Data) ] ID-29bit => 30 ms ; ID-11bit => 25 ms |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 2 W |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 72 x 122 x 33 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
