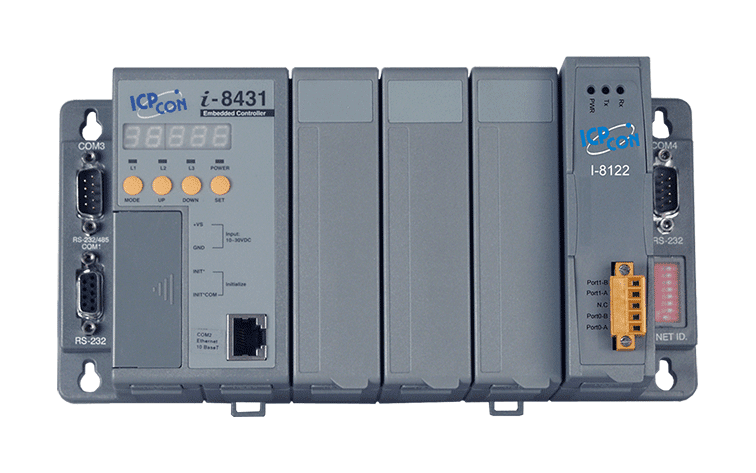

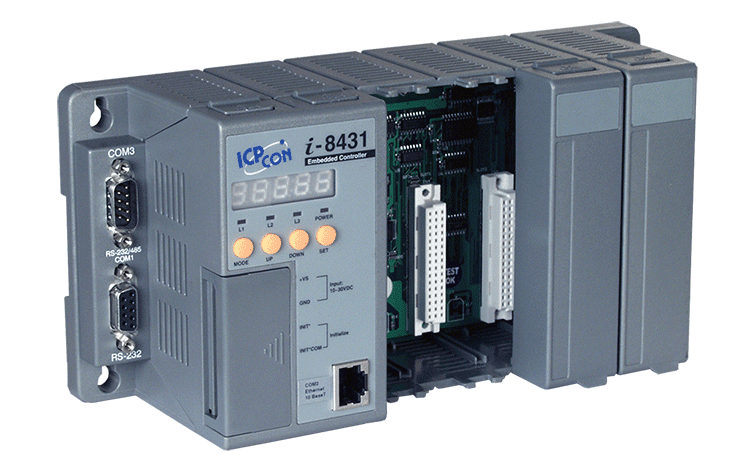

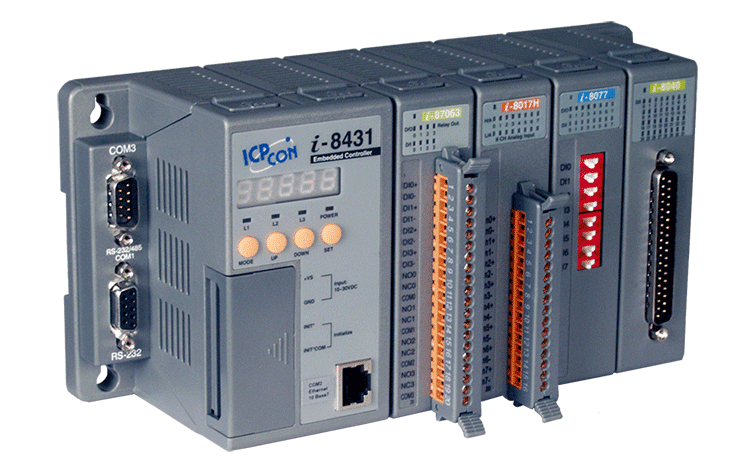

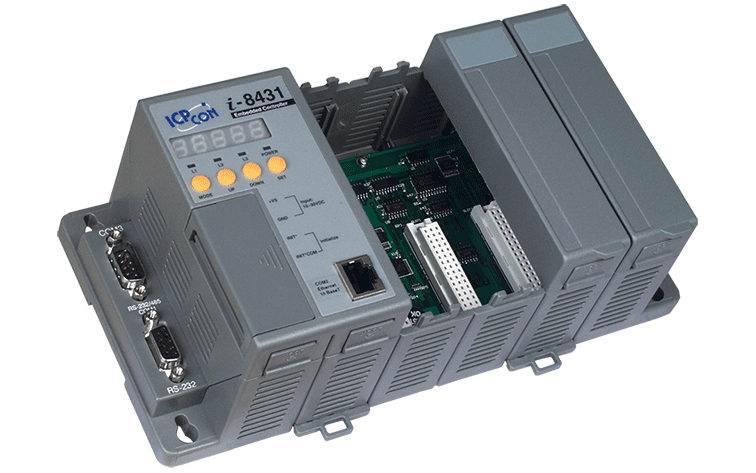

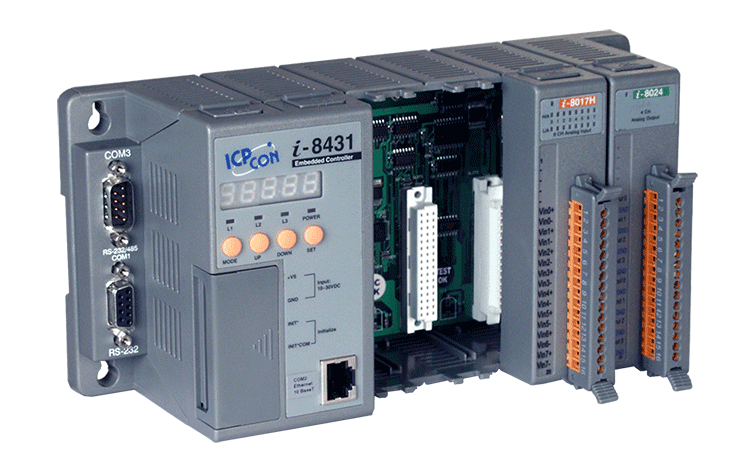

I-8431-G 4-Slot Ethernet Embedded Controller, 80188-40 CPU with MiniOS7
Ethernet embedded controller with four slots for I-8K and I-87K I/O modules, an 80188-40 CPU and the MiniOS7 DOS-like operating system, for remote data acquisition and control.
- 80188-compatible CPU at 40 MHz, 8-bit architecture
- MiniOS7 DOS-like embedded OS with fast boot time of 0.4 to 0.8 seconds
- Four slots for I-8K and I-87K series I/O modules
- 1 x RJ-45 Ethernet port (10Base, NE2000 compatible) and 3 x COM ports (2 x RS-232, 1 x RS-232/RS-485)
- Built-in watchdog timer and 64-bit hardware serial number for software protection
- Input protection circuitry and 7-segment display with four push buttons and 8-bit DIP switch for addressing
3.071,90 kr. pr. stk.
| 1–9 stk. | 3.071,90 kr. | |
|---|---|---|
| 10–30 stk. | 2.974,73 kr. | −3 % |
| 31+ stk. | 2.914,94 kr. | −5 % |
Produktinformation "I-8431-G 4-Slot Ethernet Embedded Controller, 80188-40 CPU with MiniOS7"
The I-8431-G CR is an Ethernet embedded controller that hosts up to four I-8K or I-87K I/O modules in a single unit. Its MiniOS7 operating system gives engineers a familiar DOS-like environment with fast boot times, and the controller supports the full range of 8K and 87K modules, including DI, DO, DIO, AI, AO, counter/frequency and motion modules.
The gray-cover (G) variant is equipped with one RJ-45 Ethernet port and three COM ports, two RS-232 and one RS-232/RS-485, so it can communicate with remote hosts and field devices over both network and serial links. Built-in hardware diagnostics, a watchdog timer and a 64-bit hardware serial number support reliable operation and software protection.
Optional S-256 or S-512 battery-backed SRAM modules add data logger storage. Software is developed in C, and the controller suits remote monitoring and control tasks in environmental monitoring, power management and factory automation.
Applications
- Remote data acquisition and control
- Environmental monitoring
- Power management
- Factory automation
- Data logging with optional battery-backed SRAM
| Product type: | Embedded controller |
|---|---|
| Interface: | Ethernet, RS-232, RS-485 |
| Ports: | 4 (1 Ethernet, 3 serial) |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Specifikationer
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
| CPU | 80188 or compatible, 8-bit and 40 MHz |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 2 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
| Status | 1 x Power, 3 x Programmable |
| I/O Expansion | |
| I/O Type | I-8K, I-87K series |
| Slots | 4 |
| HMI | |
| DIP Switch | 8-bit for address |
| Push Button | 4 |
| Ethernet | |
| Ports | 1 x RJ-45, 10Base NE2000 compatible |
| COM Ports | |
| Ports | 2 x RS-232, 1 x RS-232/RS-485 |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 3.9 W |
| Mechanical | |
| Dimensions (mm) | 231 x 110 x 77 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +85 °C |
| Humidity | 5 ~ 95 % RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
