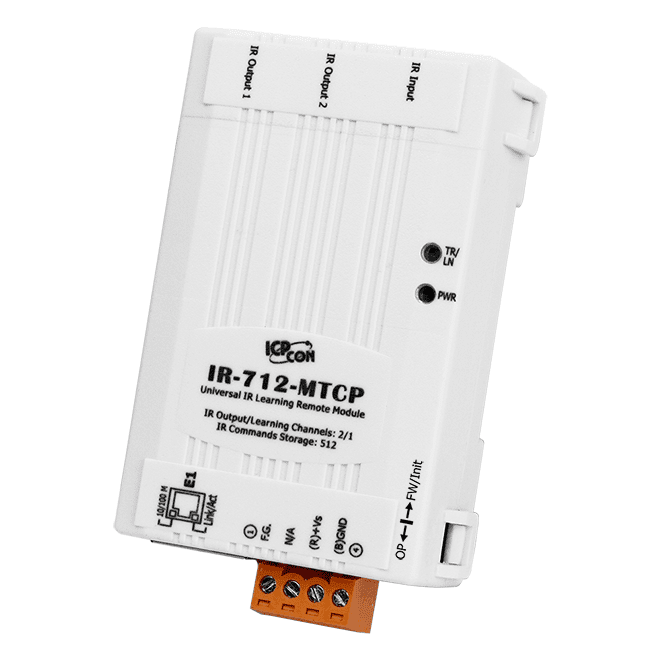

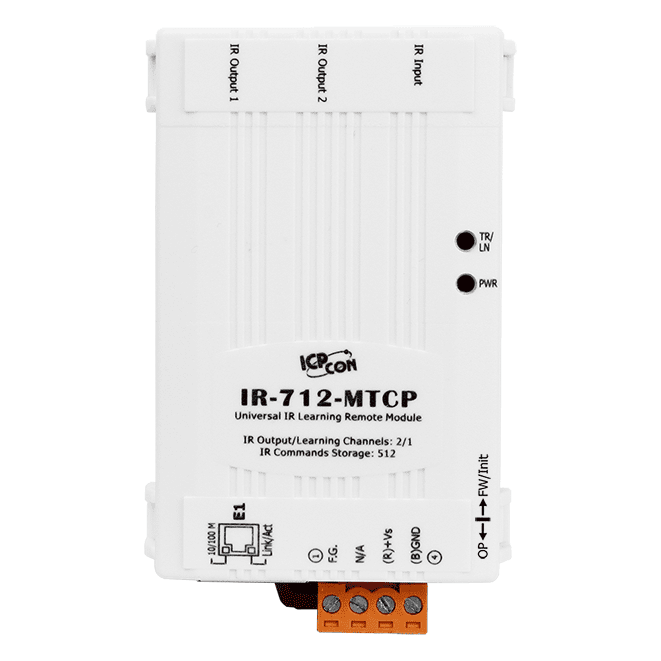

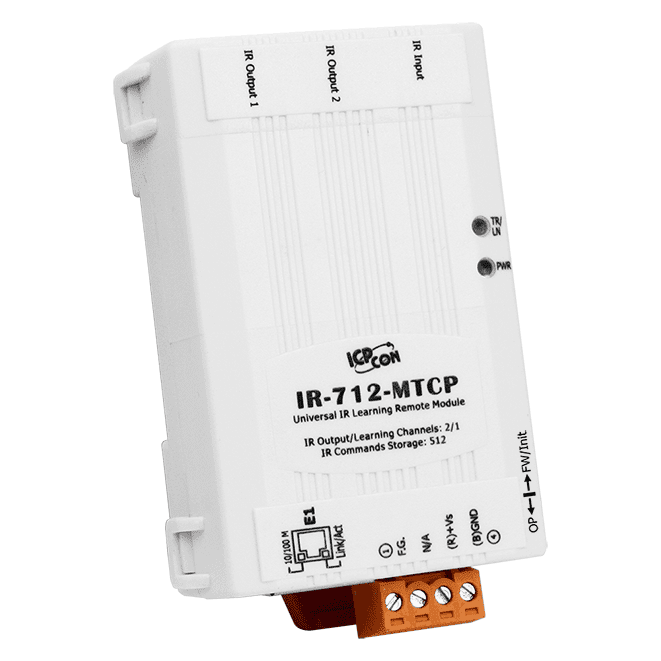

IR-712-MTCP-5 Universal IR Learning Module, Ethernet, 2 IR Outputs
Ethernet IR learning module with 2 IR outputs and a 512-command capacity, controllable via Modbus TCP/UDP or DCON. Supplied with 2x CA-IR-SH2251-5 emitter cables.
- Learns IR remote commands with a capacity of 512 stored commands
- Two IR output channels for individual or simultaneous control of multiple devices
- One IR learning input supporting 33, 36, 37, 38, 40 and 56 kHz carrier frequencies
- Modbus TCP/UDP server and DCON ASCII string commands over TCP/UDP
- Includes 2x CA-IR-SH2251-5 IR emitter cables, remote control range 125% of CA-IR-SH2251
- 10/100 Base-TX RJ-45 Ethernet port with auto-negotiation and auto-MDI/MDIX
971,65 kr. pr. stk.
| 1–9 stk. | 971,65 kr. | |
|---|---|---|
| 10–30 stk. | 941,75 kr. | −3 % |
| 31+ stk. | 919,33 kr. | −5 % |
Produktinformation "IR-712-MTCP-5 Universal IR Learning Module, Ethernet, 2 IR Outputs"
IR-712-MTCP-5 CR learns infrared remote commands from a wide range of electronic devices and stores them in the module or in a file for later reuse. Its two IR output channels can drive devices individually or simultaneously, making it a practical replacement for conventional IR remote controls in multi-device setups.
The Ethernet interface acts as a Modbus TCP/UDP server and also accepts DCON ASCII string commands over TCP/UDP. A Modbus client such as a PAC, PLC or PC can therefore trigger IR commands directly, which simplifies integration into control systems.
The supplied IR utility is used to configure the module, learn commands, test them and manage stored command libraries. This order includes two CA-IR-SH2251-5 emitter cables, whose remote control range is 125% of that of the CA-IR-SH2251 cable.
Applications
- Home entertainment devices
- Video conferencing systems
- Surveillance systems
- e-Classroom services
- Lighting scenario control
- Home and building automation
| Product type: | IR learning module |
|---|---|
| Interface: | Ethernet |
| Protocol: | DCON, Modbus TCP/UDP |
| Ports: | 1 |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| LED Indicators | |
|---|---|
| Status | 1 x TR/LN (IR Transmitting/Learning) 1 x PWR (Power) |
| Infrared | |
| IR Learning Input | 1 channel. Supports 6 IR carrier frequencies: 33, 36, 37, 38, 40, 56 kHz. |

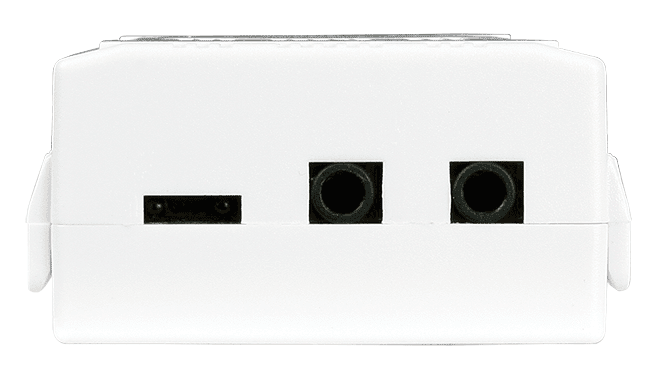

| IR Output Channels | 2 channels with 3.5 mm audio jack |
| IR Remote Commands | Capacity: 512 |
| Ethernet | |

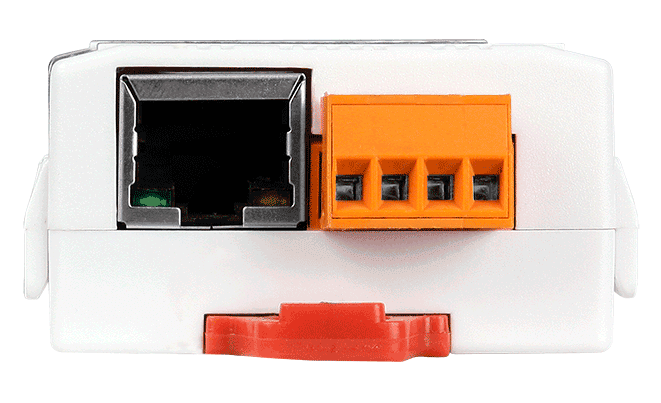

| Ports | 10/100 Base-TX, 8-Pin RJ-45 x1 (Auto-negotiating, Auto-MDI/MDIX, LED indicator) |
| Protocol | Modbus TCP/UDP server |
| Power | |
| Consumption | Stand By: 1.7W Using 1 IR output: 3.4W Using 2 IR Outputs: 5.8W (Max.) |
| Mechanical | |
| Dimensions (mm) | 52 x 27 x 85 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
