ISO-P32S32W ISA Isolated I/O Board, 32-ch DI and 32-ch NPN Open Collector DO
ISA bus board with 32 isolated digital inputs and 32 isolated NPN open-collector outputs, suited to factory automation, product test and laboratory automation.
- 32 isolated digital inputs with photocoupler isolation, 9 to 24 V ON level
- 32 isolated NPN open-collector outputs with current sinking and integral suppression diode
- Output rating of 500 mA on 8 channels and 100 mA on 24 channels
- 3750 Vrms isolation when using external power
- Two interrupt sources, channel 0 and channel 16
- ISA bus, 8-bit data bus, for installation in a PC
1.569,58 kr. pr. stk.
| 1–9 stk. | 1.569,58 kr. | |
|---|---|---|
| 10–30 stk. | 1.517,26 kr. | −3 % |
| 31+ stk. | 1.487,37 kr. | −5 % |
Produktinformation "ISO-P32S32W ISA Isolated I/O Board, 32-ch DI and 32-ch NPN Open Collector DO"

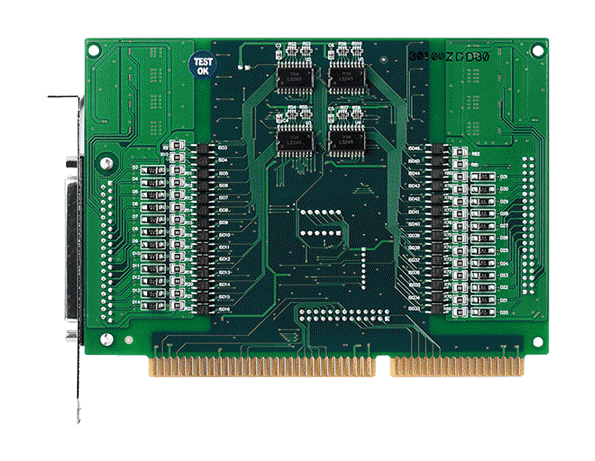

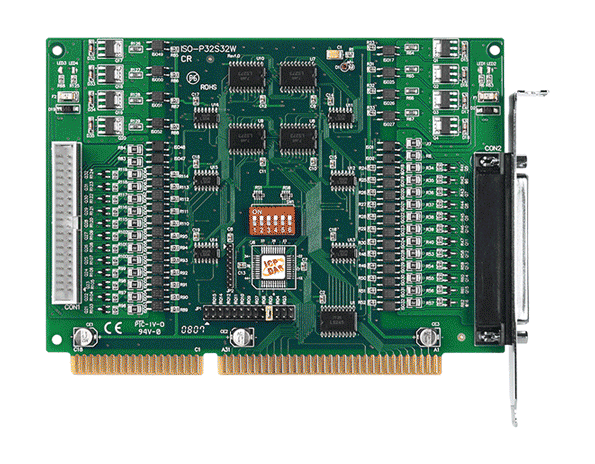

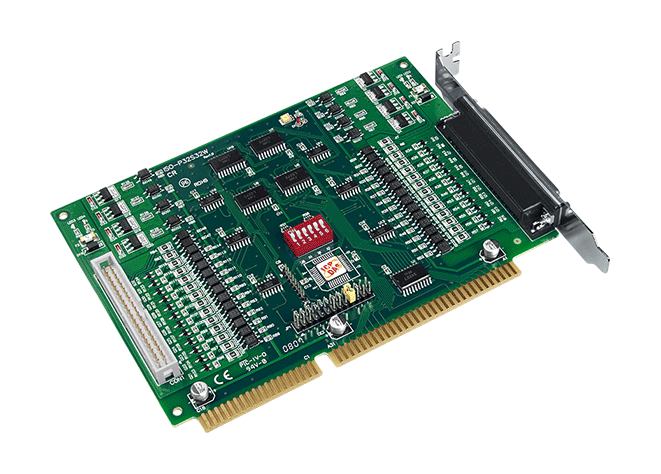

The ISO-P32S32W CR is an ISA bus digital I/O card that gives a PC 32 optically isolated digital inputs and 32 isolated NPN open-collector outputs. Each input is isolated by a photocoupler, which keeps the host computer separated from field signals and protects it from voltages that could damage it.
The outputs are current-sinking NPN transistors with an integral suppression diode for inductive loads. Output capability is split between 8 channels rated at 500 mA and 24 channels rated at 100 mA. External power is needed to drive the digital input and output ports, and the card has an onboard DC/DC converter. Two interrupt sources, channel 0 and channel 16, are available for event-driven handling.
The card is intended for factory automation, product test and laboratory automation, where a PC needs to read switch and sensor states and drive loads through isolated, field-wired connections. The included CA-4037W cable and CA-4002 D-Sub connectors simplify field wiring.
Applications
- Factory Automation
- Product Test
- Laboratory Automation
| Product type: | Digital I/O board |
|---|---|
| Interface: | ISA Bus |
| Digital inputs: | 32 |
| Digital outputs: | 32 |
| Isolation: | 3750 Vrms |
| Operating temperature: | 0 ~ +60 °C |
Specifikationer
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 40-pin box header x 1 |
| Digital Input | |
| Channels | 32 |
| Type | Wet Contact Photocoupler |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | 9 ~ 24 V |
| OFF Voltage Level | 0 ~ 1 V |
| Response Speed | 4 kHz (Typical) |
| Trigger Mode | Static Update |
| Isolation | 3750 Vrms (Using external power) |
| Digital Output | |
| Channels | 32 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink (NPN) |
| Operation Mode | Static Update |
| Load Current | 500 mA for one high driving channel @ 100% duty 500 mA for all high driving channels @ 100% duty (The GND pins all must be connected with GND of External Power) 100 mA for one low driving channel @ 100% duty 100 mA for all low driving channels @ 100% duty (The GND pins all must be connected with GND of External Power) |
| Response Speed | 4 kHz (Typical) |
| Isolation | 3750 Vrms (Using external power) |
| PC Bus | |
| Type | ISA |
| Data Bus | 8-bit |
| Power | |
| Consumption | 600 mA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 115 x 163 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
