IWS-6201-CE7 15-inch InduSoft ViewPAC Touch PAC, WinCE 7.0, 300 Tags
15-inch resistive touch panel PAC running an InduSoft runtime with 300 tags on Windows CE 7.0, with Modbus, OPC and TCP/IP support for panel-mount HMI and control.
- InduSoft runtime with 300-tag licence on Windows CE 7.0, operating system pre-installed in on-board flash
- 15-inch 4:3 TFT LCD, 1024 x 768 resolution, 5-wire resistive touch panel
- Cortex-A8 1 GHz CPU with 512 MB DDR3 SDRAM and 256 MB flash storage
- Modbus, OPC and TCP/IP client/server support, plus DCON driver for ICP DAS I/O modules
- Gigabit Ethernet, 2 x USB and three RS-232/RS-485 ports, all serial ports 2500 VDC isolated
- NEMA 4/IP65 front panel with fanless design and -10 to +60 °C operating range
Denne vare prissættes pr. ordre. Send os det ønskede antal, så svarer vi med pris og leveringstid.
Bed om tilbud
Ikke længere tilgængelig
Produktinformation "IWS-6201-CE7 15-inch InduSoft ViewPAC Touch PAC, WinCE 7.0, 300 Tags"

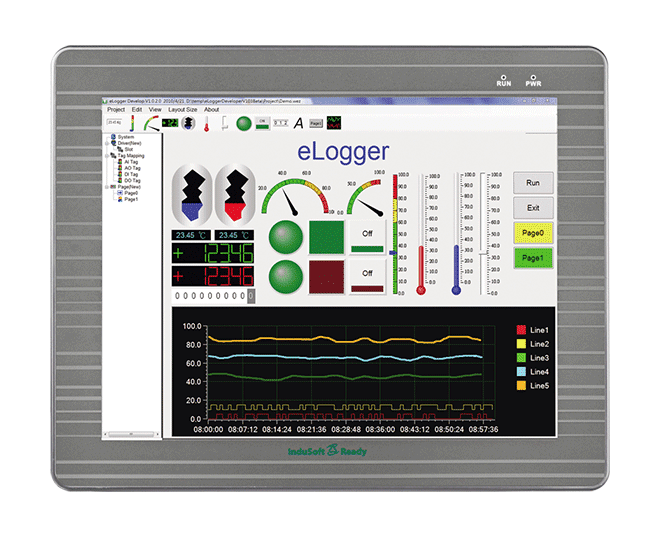

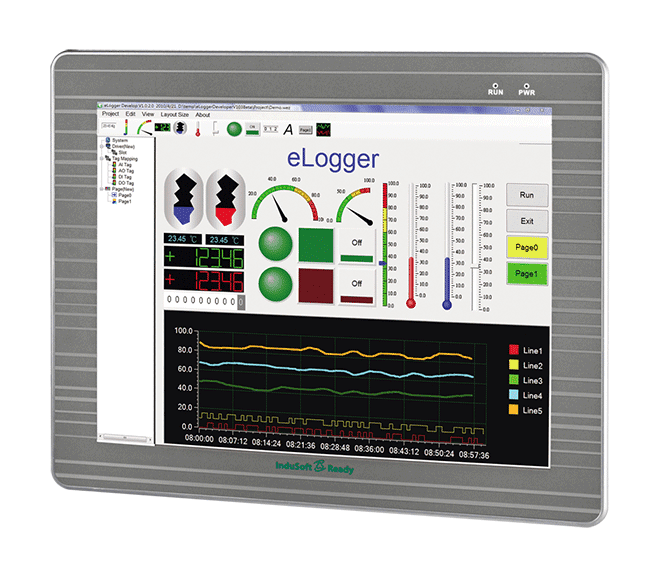

IWS-6201-CE7 CR is a 15-inch flat panel controller that combines a RISC-based CPU board with a TFT touch display, suited to panel-mounted HMI and control work. It runs an InduSoft runtime licensed for 300 tags on Windows Embedded Compact 7, so an engineer can build the operator interface and control logic on one fanless unit without a separate PC.

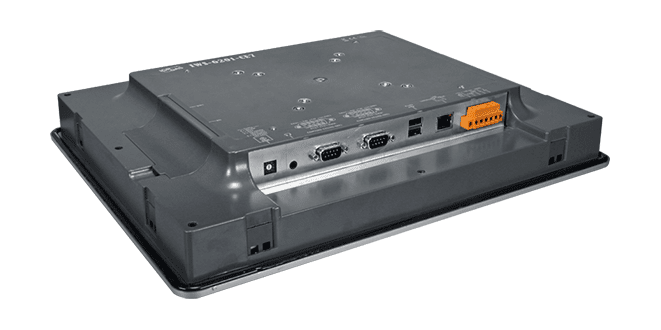

Connectivity covers one Gigabit Ethernet port, two USB ports and three isolated RS-232/RS-485 serial ports. The unit ships without an I/O slot, so remote I/O is added through ICP DAS Ethernet, RS-485, Wi-Fi or ZigBee I/O modules, and a DCON driver is provided for ICP DAS I/O.

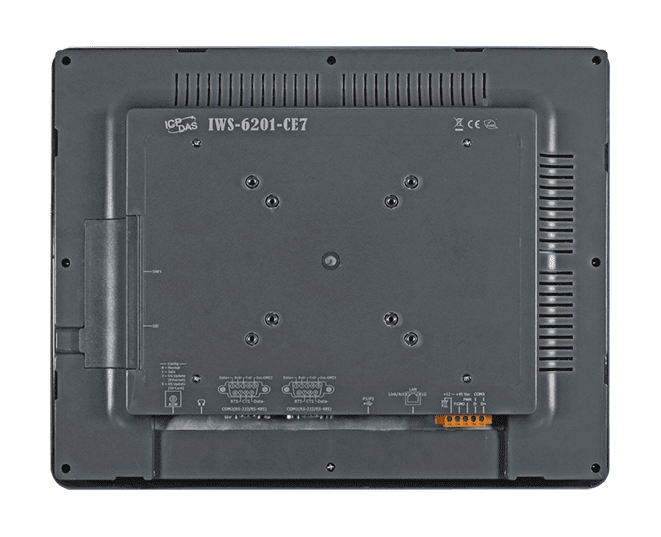

The front panel is rated NEMA 4/IP65 for sprayed water, humidity and dust, and the fanless design is rated for -10 to +60 °C ambient operation. The panel is intended for panel mounting, with VESA (75 x 75) mounting also listed.
Applications
- Panel-mounted HMI and operator interfaces
- Control and monitoring applications with touch-screen operation
- Remote I/O expansion over Ethernet, RS-485, Wi-Fi or ZigBee
| Product type: | ViewPAC |
|---|---|
| Interface: | Ethernet, RS-232, RS-485, USB |
| Protocol: | Modbus, OPC, TCP/IP |
| Ports: | 1 Ethernet, 3 COM, 2 USB |
| PoE: | IEEE 802.3af |
| Isolation: | 2500 VDC |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -10 ~ +60 °C |
| Mounting: | Panel |
| Housing: | NEMA 4/IP65 front panel |
Specifikationer
| Software | |
|---|---|
| OS | Microsoft Windows Embedded Compact 7 |
| Service | FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5 |
| Framework Support | .NET Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for Visual Studio.Net |
| Main Unit | |
| CPU | Cortex-A8, 1 GHz |
| 64-bit Hardware Serial Number | Yes, for software copy protection |
| System Memory | SDRAM 512 MB (DDR3) |
| Storage | Flash (SSD) 256 MB; SD socket with a 4 GB SDHC card(support up to 32 GB) |
| Non-Volatile Memory | MRAM 128 KB; EEPROM 16 KB |
| Real Time Clock | Provide second, minute, hour, date, day of week, month, year |
| Watchdog Timer | 0.8 second |
| Display | |
| Size | 15” (4:3) |
| Backlight Life | 50000 |
| Brightness | 400 cd/m2 |
| Resolution | 1024 x 768 |
| Touch Panel | 5-wire, resistive type; light transmission: 80% |
| Contrast Ratio | 20.834027777778 |
| LED Indicators | |
| Status | 2 x Power and Run |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| Audio | |
| Jack | Earphone-out |
| Ethernet | |
| Ports | 1 x RJ-45 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232/RS-485 DB9 connector (2500VDC Isolated); 1 x RS-232/RS-485 (2500VDC Isolated); 1 x RS-485 (2500VDC Isolated) |
| USB | |
| Connector | 2 x USB |
| Power | |
| Input Range | +12 VDC ~ +48 VDC |
| Consumption | 16 W |
| Powered from PoE | IEEE 802.3af |
| Mechanical | |
| Dimensions (mm) | 381 x 305 x 65 |
| Panel Cut-out (mm) | 362 x 286 ± 1 |
| Installation | Panel Mounting, VESA (75 x 75) Mounting |
| Ingress Protection Rating | Front panel: NEMA 4/IP65 |
| Environment | |
| Operating Temperature | -10 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
