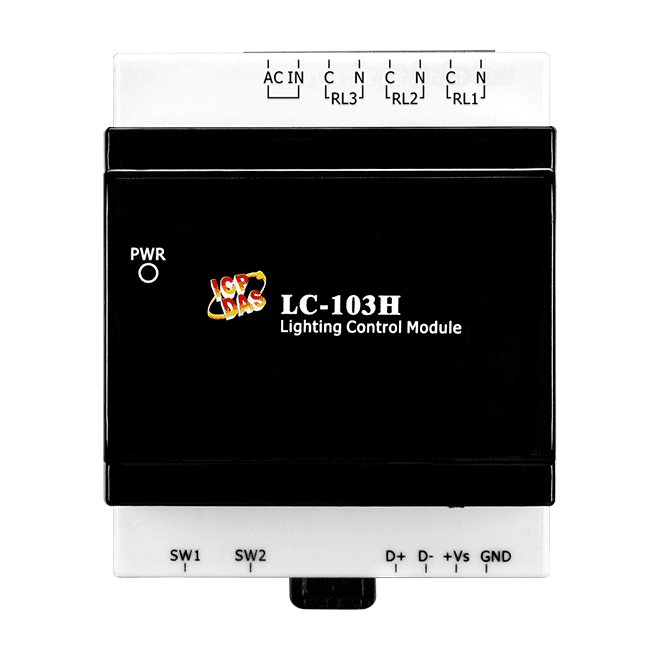

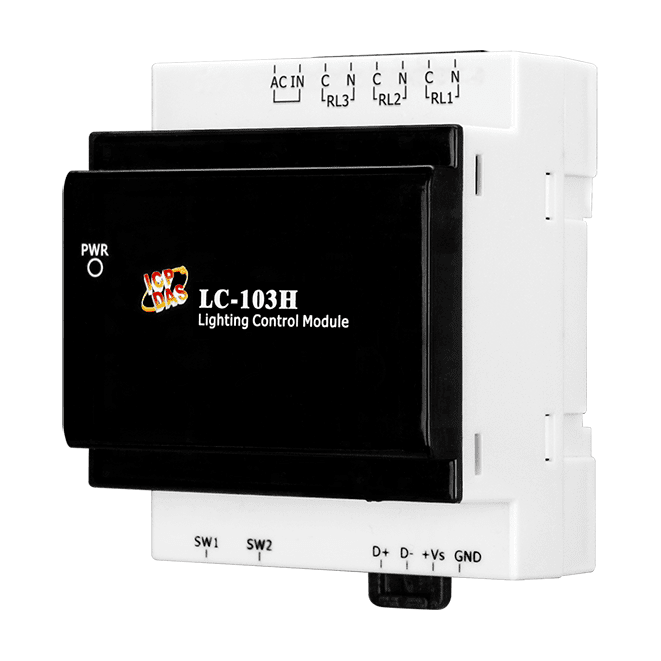

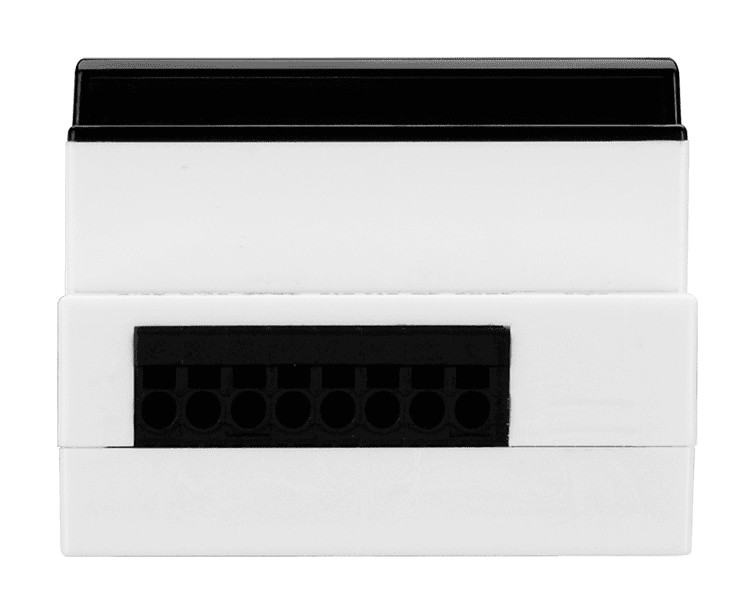

LC-103H Lighting Control Module, 1-ch AC Digital Input and 3-ch Relay Output
DIN-rail lighting control module with one isolated 90 ~ 240 VAC digital input and three 16 A form A relay outputs, with RS-485 support for Modbus RTU and DCON.
- Three form A power relays, 16 A @ 250 VAC or 16 A @ 30 VDC, for switching lighting circuits
- Lighting load support: incandescent lamps 40 W/220 VAC x 8 sets, LED electronic ballasts 40 W/220 VAC x 10 sets
- Isolated wet-contact digital input, 90 ~ 240 VAC, that controls the relay sequence directly
- 5000 Vrms intra-module isolation
- ±2 kV surge, ±4 kV air ESD and ±2 kV EFT protection
- RS-485 port with Modbus RTU and DCON, 9600 bps, separate addresses per protocol set in hardware
560,57 kr. pr. stk.
| 1–9 stk. | 560,57 kr. | |
|---|---|---|
| 10–30 stk. | 545,62 kr. | −3 % |
| 31+ stk. | 530,67 kr. | −5 % |
Produktinformation "LC-103H Lighting Control Module, 1-ch AC Digital Input and 3-ch Relay Output"
The LC-103H CR switches lighting loads directly from a mains-level input, so an engineer can build a basic relay sequence without a remote host controller. Its single isolated AC digital input drives three power relays, each a form A (SPST N.O.) contact rated 16 A at 250 VAC or 30 VDC. Operation is local, and no software is needed to control the relay channels.
The module is suited to lamps and electronic ballast loads, with ratings of 40 W at 220 VAC for up to 8 sets of incandescent lamps or 10 sets of LED electronic ballasts. Protection includes 5000 Vrms intra-module isolation, ±2 kV surge and EFT immunity on power, and ±2 kV contact and ±4 kV air ESD.

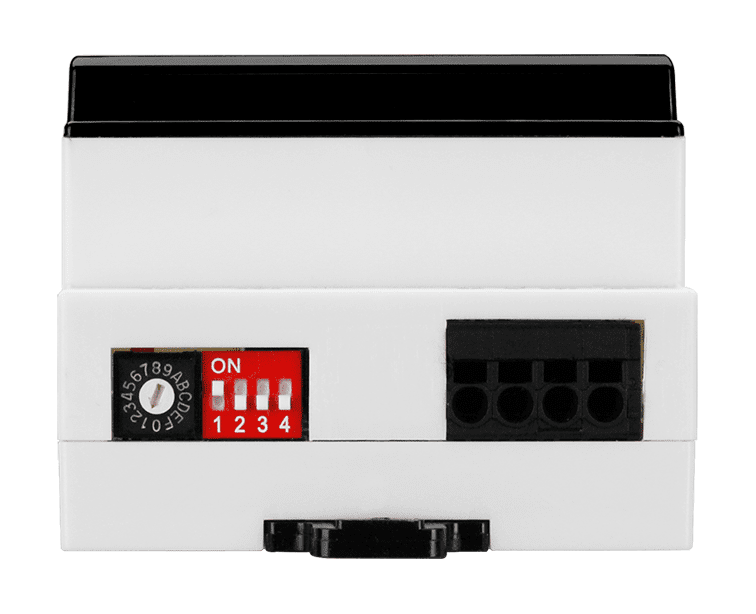

When remote control or status monitoring is needed, the RS-485 port supports Modbus RTU and DCON at 9600 bps, N, 8, 1. Separate addresses can be set for each protocol through hardware configuration. The module is powered from 10 ~ 30 VDC, draws 0.5 W maximum, and mounts on a DIN rail.
Applications
- Lighting control in building automation
- Home automation lighting circuits
- Switching of incandescent lamp and LED electronic ballast loads
| Product type: | Lighting control module |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON, Modbus RTU |
| Digital inputs: | 1 |
| Relay outputs: | 3 |
| Ports: | 1 |
| Isolation: | 5000 Vrms |
| Power input: | 10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| Software | |
|---|---|
| Function | Local and Remote Direct Control Relay ON/OFF and Remote Status Monitoring |
| EMS Protection | |
| EFT (IEC 61000-4-4) | ±2 kV for Power |
| ESD (IEC 61000-4-2) | ±2 kV Contact for Each Terminal ±4 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power |
| LED Indicators | |
| Status | 1 LED as Power Indicator |
| Digital Input | |
| Channels | 1 |
| Type | Wet Contact, 90 ~ 240 VAC |
| ON Voltage Level | 65 VAC |
| OFF Voltage Level | 56 VAC |
| Isolation | 5000 Vrms |
| Input Impedance | 68 KΩ, 1 W |
| Relay Output | |
| Channels | 3 |
| Type | Power Relay, Form A (SPST N.O.) |
| Contact Rating | 16 A @ 250 VAC or 16 A @ 30 VDC |
| Operate Time | 10 ms Max. |
| Release Time | 5 ms Max. |
| Electrical Endurance | 120,000 ops. |
| Mechanical Endurance | 5,000,000 ops. |
| Application Specification | (1).Incandescent Lamp: 40W/ 220VAC * 8 Sets (2).LED(Electronic ballast): 40W/ 220VAC *10 Sets |
| COM Ports | |
| Ports | 1 x RS-485 |
| Baud Rate | 9600 bps |
| Data Format | (N, 8, 1) |
| Protocol | Modbus RTU/DCON |
| Power | |
| Input Range | 10 ~ 30 VDC |
| Consumption | 0.5 W Max. |
| Mechanical | |
| Dimensions (mm) | 72 x 100 x 59 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -30 ~ +75°C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
