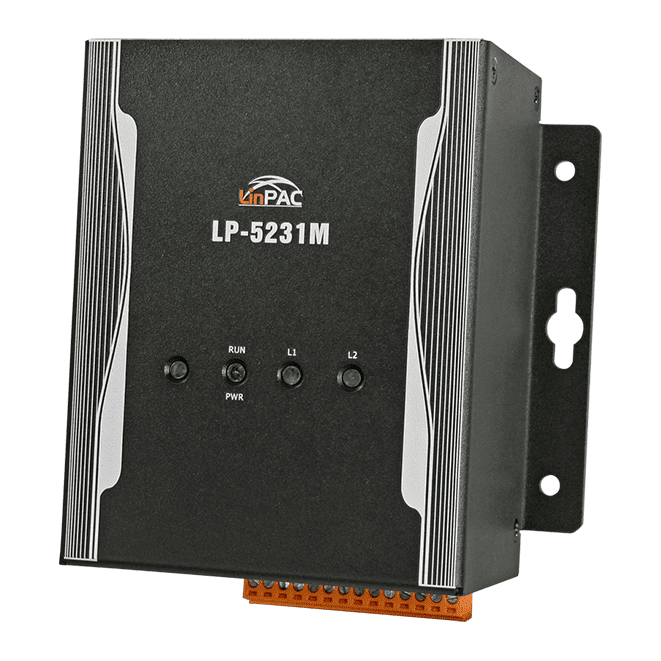

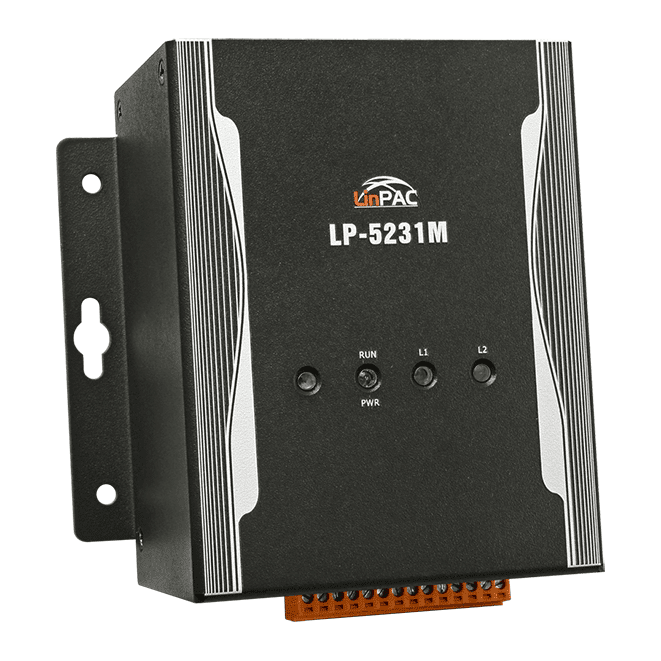

LP-5231M Linux-Based PAC, Cortex-A8 1 GHz, 1 LAN Port, Metal Case
Linux-based PAC with a 1 GHz Cortex-A8 CPU, 512 MB DDR3 memory, XV-Board I/O expansion and four serial ports, in a metal DIN-rail or wall-mount housing.
- 1 GHz Cortex-A8 CPU running Linux kernel 3.2.14, with real-time capability
- 512 MB DDR3 SDRAM, 512 MB flash and microSD storage up to 32 GB
- 10/100/1000 Mbit/s Ethernet port (1 x RJ-45)
- Four serial ports: RS-232 and RS-485, with one RS-485 port isolated at 2500 VDC
- XV-Board I/O expansion bus
- Dual watchdog timer, real-time clock and 64 KB FRAM
Denne vare prissættes pr. ordre. Send os det ønskede antal, så svarer vi med pris og leveringstid.
Bed om tilbud
Ikke længere tilgængelig
Produktinformation "LP-5231M Linux-Based PAC, Cortex-A8 1 GHz, 1 LAN Port, Metal Case"
The LP-5231M CR is a Linux-based programmable automation controller built around a 1 GHz Cortex-A8 processor running Linux kernel 3.2.14. It suits engineers who need an embedded Linux controller with real-time capability, multiple serial interfaces and a gigabit-class Ethernet port in a single compact unit.

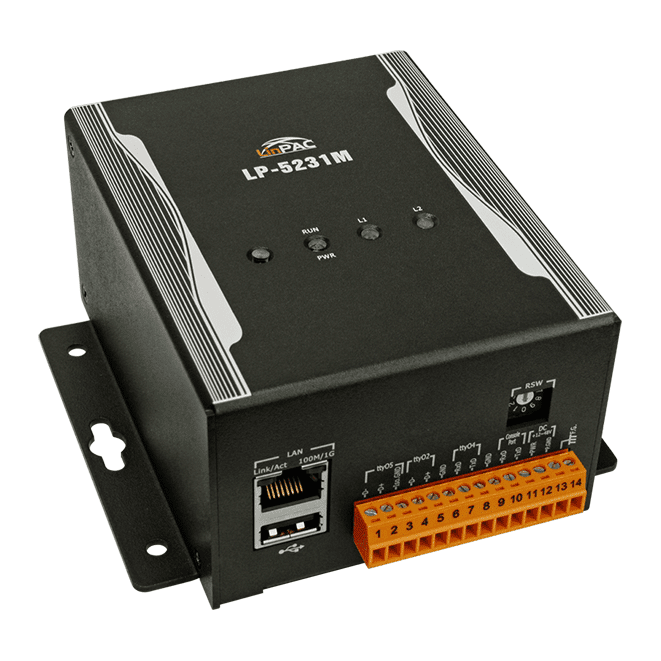

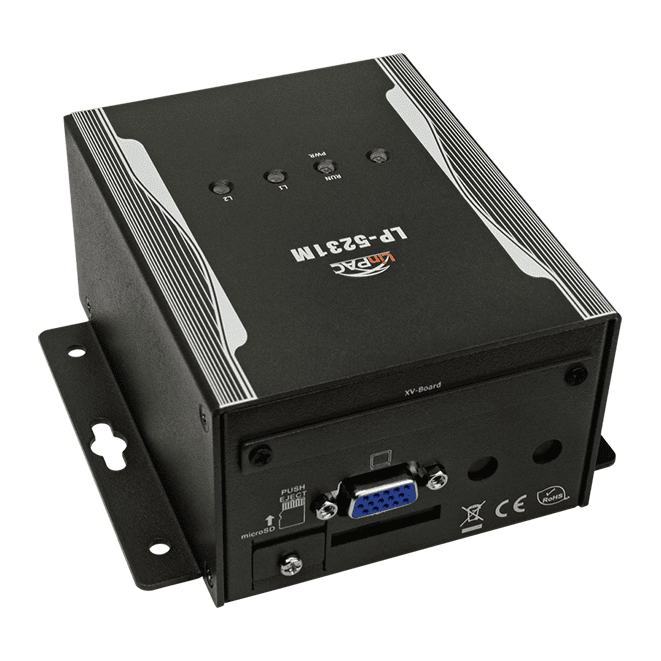

Connectivity centres on a 10/100/1000 Mbit/s RJ-45 Ethernet port, four serial ports (RS-232 and RS-485, one RS-485 port isolated at 2500 VDC), and a USB 2.0 host port. An XV-Board connector allows I/O expansion, and a VGA output supports displays up to 1280 x 1024. Storage comprises 512 MB flash and a microSD socket, which takes a 4 GB card as supplied and supports microSDHC cards up to 32 GB.
The controller includes 512 MB DDR3 SDRAM, 64 KB FRAM non-volatile memory, a real-time clock and a dual watchdog timer. A 64-bit hardware serial number supports software copy protection. Power is supplied at +12 VDC to +48 VDC, and the metal case is rated for operation from -25 to +75 °C. The unit mounts on DIN-rail or wall.
Applications
- Multi-serial field device integration
- Standalone control applications on embedded Linux
- Local application, image and data storage using flash and microSD
| Product type: | PAC |
|---|---|
| Interface: | Ethernet, RS-232/485, USB 2.0 host, VGA |
| Ports: | 1 LAN, 4 serial |
| Isolation: | 2500 VDC (RS-485 port) |
| Power input: | +12 ~ +48 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
| Housing: | Metal |
Specifikationer
| Software | |
|---|---|
| OS | Linux Kernel 3.2.14 |
| Service | SFTP server, Web server, SSH |
| SDK | LinPAC SDK (GCC based toolchain and LinPAC Libraries) |
| Main Unit | |
| CPU | Cortex-A8, 1 GHz |
| 64-bit Hardware Serial Number | Yes, for Software Copy Protection |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | • Flash 512 MB • microSD socket with a 4 GB microSD card (support up to 32 GB microSDHC card) |
| Non-Volatile Memory | FRAM 64 KB |
| Real Time Clock | Yes (Provide seconds, minutes, hours, day of week, month, year) |
| Watchdog Timer | Yes, Dual Watchdog Timer |
| Display | |
| Signal | VGA (Analog RGB) |
| Resolution | Up to 1280 x 1024 |
| LED Indicators | |
| Status | 1 x Power 1 x Run 2 x Programmable |
| I/O Expansion | |
| I/O Type | XV-board |
| HMI | |
| Rotary Switch | Yes (0 ~ 9) |
| Ethernet | |
| Ports | 1 x RJ-45, 10/100/1000 Base-TX |
| COM Ports | |
| Ports | 1 x RS-232 (Console, Non-isolated) 1 x RS-232, Non-isolated 1 x RS-485, Non-isolated 1 x RS-485 (2500 VDC, Isolated) |
| USB | |
| Ports | 1 |
| Specification | USB 2.0 (Host) |
| Power | |
| Input Range | +12 VDC ~ +48 VDC |
| Consumption | 4.8 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 117 x 126 x 58 (W x L x H) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
