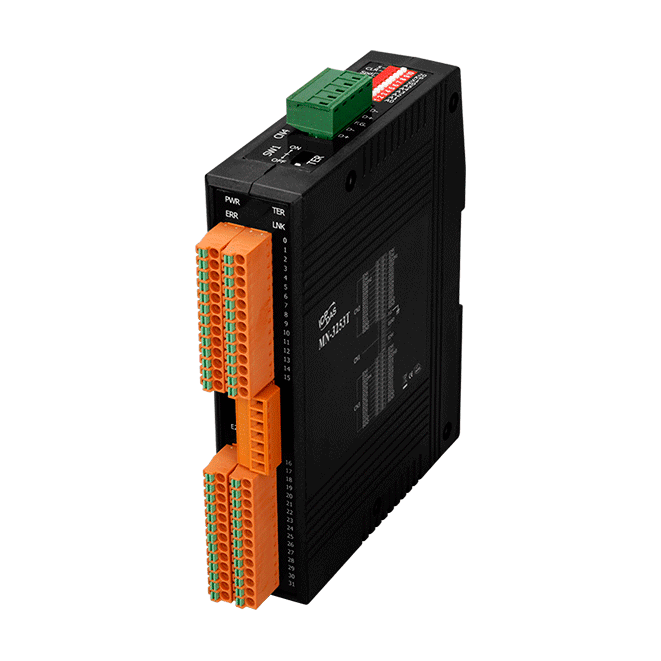

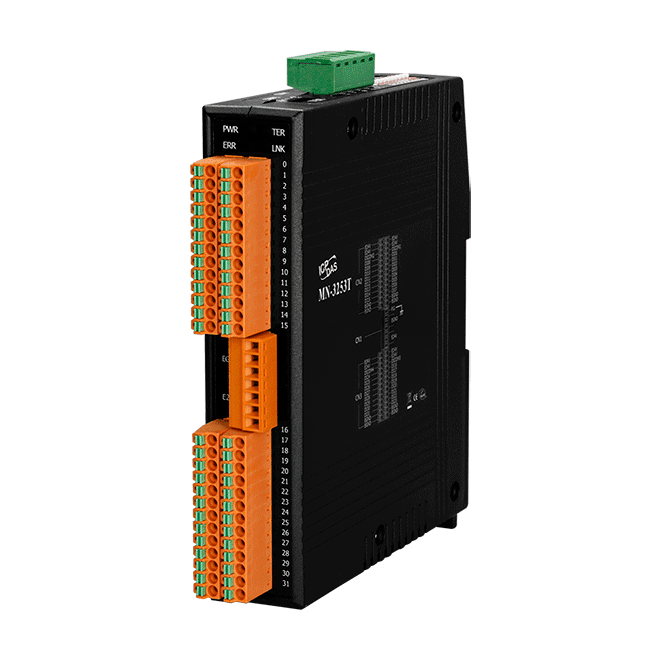

MN-3253T Motionnet 32-ch Isolated DI Module with Terminal Block
Distributed Motionnet digital input module with 32 isolated channels, NPN or PNP selectable per port for 12~24 V sensors, and a 20 Mbps transfer rate on terminal block connections.
- 32 isolated digital input channels with 3000 Vrms isolation
- Each port selectable as NPN or PNP, 12~24 V
- Up to 64 modules per Motionnet transfer line, expandable to 2048 inputs

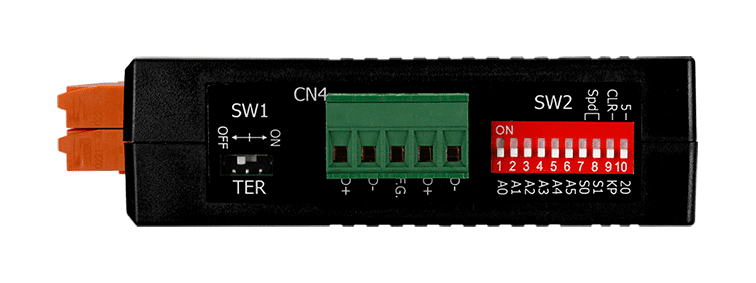

- Transfer speed selectable at 2.5, 5, 10 or 20 Mbps by DIP switch
- Maximum 20 Mbps communication with 15.1 μs cyclic time per device
- Input-change interrupts reduce CPU time spent on polling
1.539,69 kr. pr. stk.
| 1–9 stk. | 1.539,69 kr. | |
|---|---|---|
| 10–30 stk. | 1.494,84 kr. | −3 % |
| 31+ stk. | 1.464,94 kr. | −5 % |
Produktinformation "MN-3253T Motionnet 32-ch Isolated DI Module with Terminal Block"
MN-3253T CR is a Motionnet expansion module that adds 32 isolated digital input channels to a distributed control network. Each Motionnet transfer line can carry up to 64 modules, so a single line can scale to 2048 input channels. With 64 modules connected, signals for all 2048 points can be exchanged within 0.97 ms.
Every input port can be configured as NPN or PNP for 12~24 V signals, which suits mixed sensor types on one module. Isolation is provided between power, communication and I/O, and an input-change interrupt can be set for chosen points so the host does not need to poll them continuously. Status LEDs show communication state and I/O activity to support commissioning and fault finding.

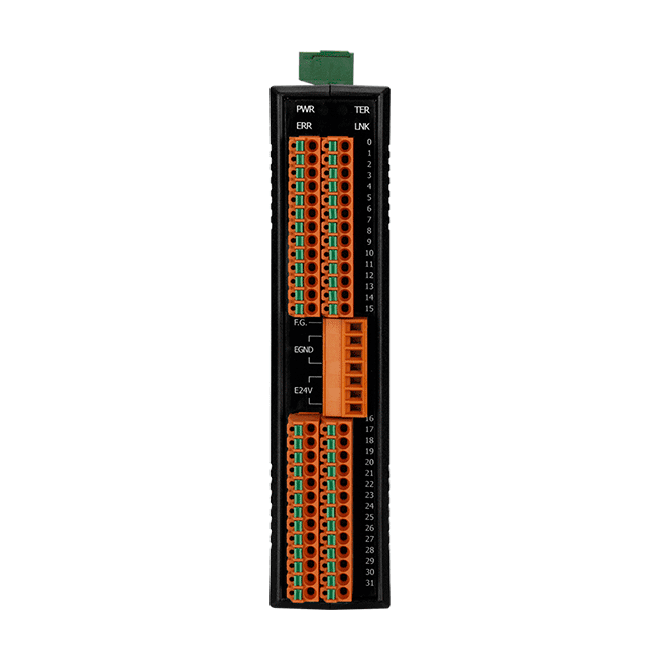

The module uses a plastic housing with pluggable 13-pin terminal blocks and mounts on a DIN rail. It is rated for 0 ~ +60 °C operation and is supplied as the RoHS-compliant terminal block version of the MN-3253 series.
Applications
- Machine automation
- Distributed digital input expansion on Motionnet systems
| Product type: | Digital input module |
|---|---|
| Interface: | Motionnet |
| Protocol: | Motionnet |
| Digital inputs: | 32 |
| Isolation: | 3000 Vrms |
| Power input: | 24 VDC |
| Operating temperature: | 0 ~ +60 °C |
| Mounting: | DIN-rail |
| Housing: | Plastic |
Specifikationer
| Hardware | |
|---|---|
| Connector | 13-pin pluggable terminal block x 4 |
| LED Indicators | |
| Status | Communication state (Link, Error) Internal 3.3 V Power Termination Resistor Switch Input/Output state |
| Digital Input | |
| Channels | 32 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source (NPN/PNP) |
| ON Voltage Level | +10 ~ 30 VDC |
| OFF Voltage Level | +3 VDC max. |
| Isolation | 3000 Vrms |
| Input Impedance | 4.7 KΩ |
| Motionnet | |
| Communication Connectors | 5-pin terminal block |
| Transfer Speed | Selectable 2.5, 5, 10 or 20 Mbps by DIP Switch. |
| Cyclic Time | 15.1 μs per device (20 Mbps) |
| Power | |
| Input Range | 24 VDC (1000 V isolated) |
| Consumption | 2 W Max. |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 31 mm x 140 mm x 126.6 mm |
| Installation | DIN-Rail mounting |
| Environment | |
| Operating Temperature | 0 ~ +60 °C |
| Storage Temperature | -20 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
