NS-205-IP67 Industrial 5-Port Unmanaged IP67 Ethernet Switch
Unmanaged 5-port 10/100Base-TX industrial Ethernet switch with an IP67-rated housing and rugged RJ-45 ports for harsh environments. Wall-mounted, 10 to 30 VDC input.
- Five 10/100Base-TX RJ-45 ports with automatic MDI/MDI-X crossover
- Store-and-forward switching at wire speed with a 1024-entry MAC table
- Full-duplex IEEE 802.3x and half-duplex backpressure flow control

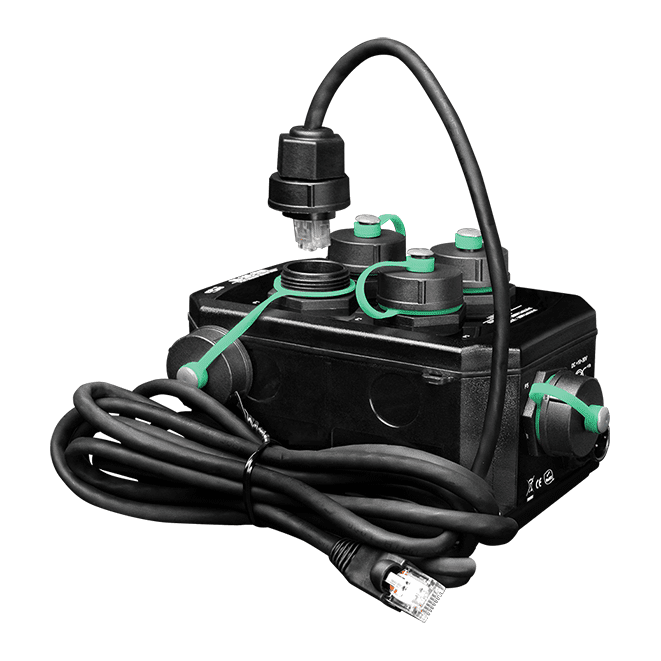

- Rugged RJ-45 connectors designed to resist vibration and shock
- IP67 protection for -10 °C to +60 °C; IP66 rating for -40 °C to +75 °C
- 1500 Vrms isolation between ports for 1 minute, plus 1 kV isolated power input
1.868,55 kr. pr. stk.
| 1–9 stk. | 1.868,55 kr. | |
|---|---|---|
| 10–30 stk. | 1.816,23 kr. | −3 % |
| 31+ stk. | 1.778,86 kr. | −5 % |
Produktinformation "NS-205-IP67 Industrial 5-Port Unmanaged IP67 Ethernet Switch"

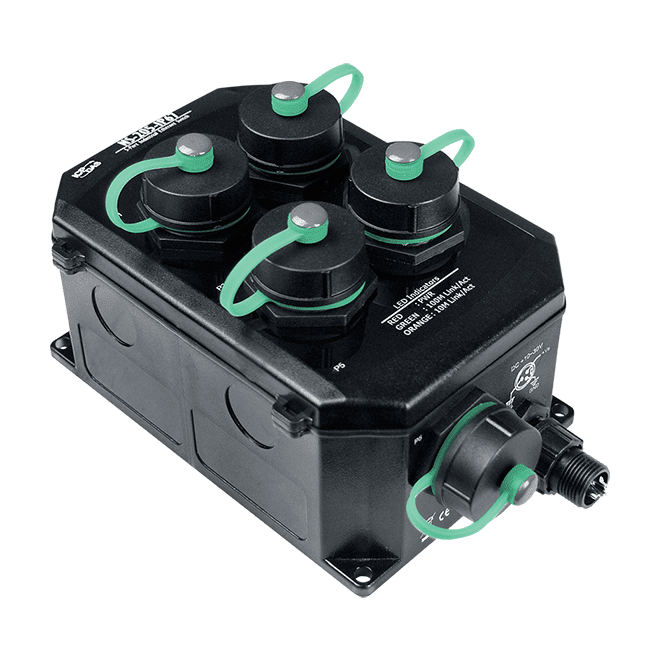

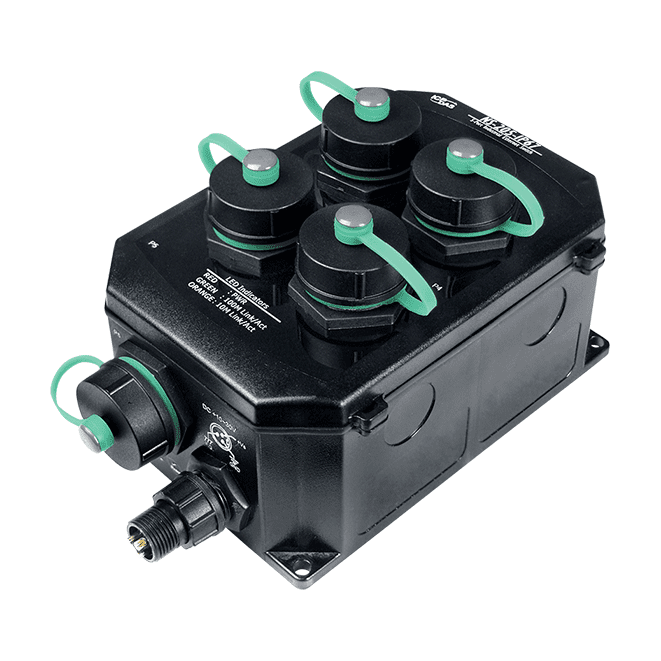

The NS-205-IP67 is an unmanaged five-port Ethernet switch for industrial networks installed in harsh environments. Its housing carries an IP67 protection rating, and the RJ-45 connectors are built to hold reliable connections where vibration and shock are present.
Each port auto-negotiates 10 or 100 Mbps and runs in full- or half-duplex mode, with automatic MDI/MDI-X crossover for plug-and-play installation. Traffic is switched store-and-forward at wire speed, supported by a 1024-entry MAC table and 256 Kbit of frame buffer memory. IEEE 802.3x full-duplex flow control and half-duplex backpressure are both available.
The protection grade determines the operating envelope. IP67 applies from -10 °C to +60 °C at up to 100% RH, while IP66 applies from -40 °C to +75 °C at 10% to 90% RH, non-condensing. Power comes from a +10 to +30 VDC input with reverse polarity protection and 1 kV isolation, drawing 0.12 A at 24 VDC.
Applications
- Industrial Ethernet networks in harsh environments
- Installations subject to high vibration and shock
| Product type: | Ethernet switch |
|---|---|
| Interface: | RJ-45 |
| Ports: | 5 |
| Isolation: | 1500 Vrms |
| Power input: | +10 ~ +30 VDC |
| Operating temperature: | -10 ~ +60 °C (IP67), -40 ~ +75 °C (IP66) |

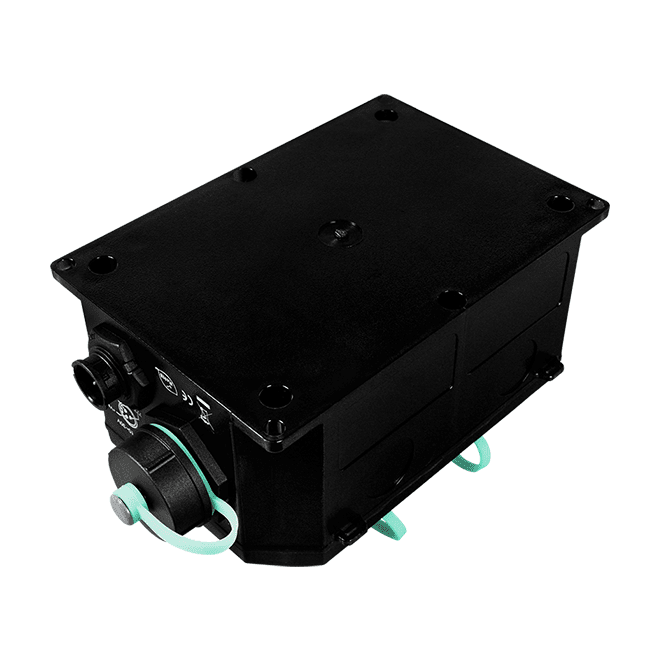

| Mounting: | Wall |
| Housing: | Plastic |
Specifikationer
| LED Indicators | |
|---|---|
| Status | PWR, 10/100M, Link/Act |
| Ethernet | |
| Ports | 5 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, 802.3u, 802.3x, 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection |
| Processing Type | Store & forward; wire speed switching |
| MAC Table | 1024 |
| Memory Bandwidth | 1.4 Gbps |
| Frame Buffer Memory | 256 Kbit |
| Flow Control | IEEE 802.3x fl ow control, back pressure flow control |
| Isolation | 1500 Vrms 1 minute |
| Power | |
| Reverse Polarity Protection | Yes |

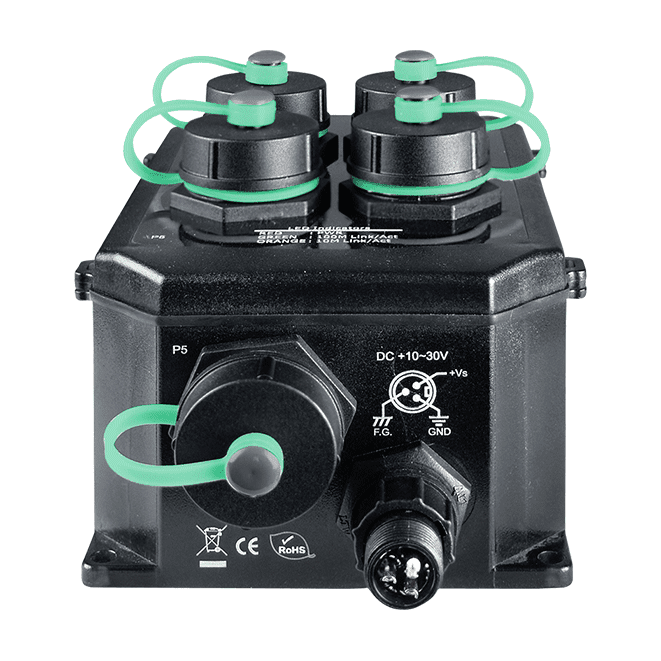

| Input Range | +10 ~ +30 VDC (1 kV Isolated) |
| Consumption | 0.12 A @ 24 VDC |
| Mechanical | |
| Casing | Plastic |
| Dimensions (mm) | 85 x 137 x 76 (W x L x H) |
| Installation | Wall mounting |
| Ingress Protection Rating | IP67 for Operating Temperature -10 °C ~ +60 °C IP66 for Operating Temperature -40 °C ~ +75 °C |
| Environment | |
| Operating Temperature | -10 °C ~ +60 °C (Protection rating IP67) -40 °C ~ +75 °C (Protection rating IP66) |
| Storage Temperature | -10 °C ~ +60 °C (Protection rating IP67) -40 °C ~ +75 °C (Protection rating IP66) |
| Humidity | 100% RH for Operating Temperature -10 °C ~ +60 °C 10% ~ 90% RH, non-condensing for Operating Temperature -40 °C ~ +75 °C |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
