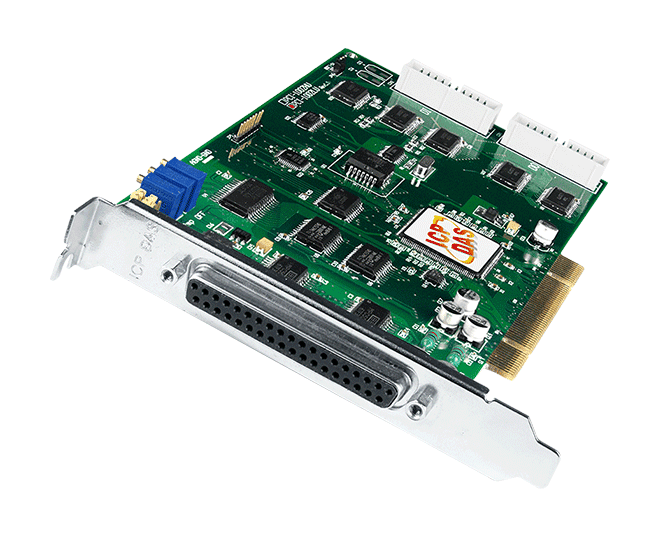

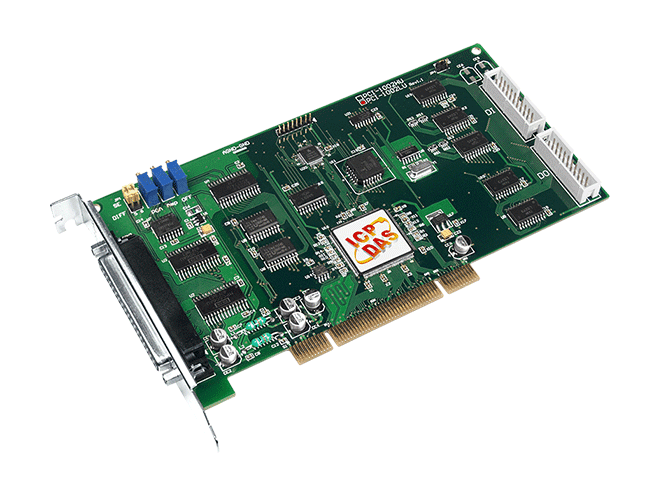

PCI-1002LU/S Universal PCI Multifunction DAQ Board, 110 kS/s 32-ch AI
Universal PCI DAQ board with 32 single-ended or 16 differential 12-bit analog inputs at up to 110 kS/s, plus 16 DI and 16 DO 5 V/TTL channels. Ships with CA-3710 D-Sub cable.
- Universal PCI interface supporting 3.3 V and 5 V bus, 32-bit, 33 MHz
- 32 single-ended or 16 differential 12-bit analog inputs at up to 110 kS/s
- Gain of 1, 2, 4 or 8 with bipolar ranges from ±10 V down to ±1.25 V
- 16 digital inputs and 16 digital outputs, 5 V/TTL
- Pull-high and pull-low resistors on DI channels for defined states when disconnected
- Internal programmable pacer and external 5 V/TTL trigger modes
2.750,51 kr. pr. stk.
| 1–9 stk. | 2.750,51 kr. | |
|---|---|---|
| 10–30 stk. | 2.668,29 kr. | −3 % |
| 31+ stk. | 2.615,97 kr. | −5 % |
Produktinformation "PCI-1002LU/S Universal PCI Multifunction DAQ Board, 110 kS/s 32-ch AI"
PCI-1002LU/S CR is a 3.3 V/5 V universal PCI multifunction data acquisition board for engineers who need fast analog input alongside digital I/O in a PC. The LU variant uses low-gain analog input at up to 110 kS/s, and the board is positioned as a direct replacement for the PCI-1002L/H, with no software or driver changes required.
The board provides 32 single-ended or 16 differential 12-bit analog input channels, 16 digital inputs and 16 digital outputs, all at 5 V/TTL levels. Pull-high and pull-low resistors on the DI channels let the input state be defined when a channel is disconnected or interrupted, rather than floating.
This order code includes a CA-3710 D-Sub cable. Drivers and a DLL with ActiveX control are provided for Linux, DOS and Windows, with sample programs for several C/C++, Delphi, Visual Basic, C# and LabVIEW environments.
Applications
- Laboratory automation
- Production test
- Sensor interface
| Product type: | DAQ board |
|---|---|
| Interface: | Universal PCI |
| Digital inputs: | 16 |
| Digital outputs: | 16 |
| Analog inputs: | 32 |
| Operating temperature: | 0 ~ +60 °C |
Specifikationer
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 20-pin box header x 2 |
| Analog Input | |
| Channels | 32 single-ended/16 differential |
| Range | PCI-1002LU： Gain: 1, 2, 4, 8 Bipolar Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V PCI-1002HU： Gain: 1, 10, 100, 1000 Bipolar Range: ±10 V, ±1 V, ±0.1 V, ±0.01 V |
| Resolution | 12-bit |
| Accuracy | 0.01% of FSR ±1 LSB @ 25 °C, ±10 V |
| Sampling Rate | PCI-1002LU：110 kS/s. Max. PCI-1002HU：44 kS/s. Max. |
| Input Impedance | 10 MΩ/6 Pf |
| Overvoltage Protection | Continuous ±35 Vp-p |
| Zero Drift | ±4 ppm/°C of FSR |
| Trigger Mode | Software, Internal programmable pacer, External (5 V/TTL) |
| Data Transfer | Polling, Interrupt |
| Digital Input | |
| Channels | 16 |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 1.0 MHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
| Channels | 16 |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Load Current | Sink: 2.4 mA Source: 0.8 mA |
| Response Speed | 1.0 MHz (Typical) |
| Timer/Counter/Frequency | |
| Channels | 3 (Independent x 1/Internal pacer x 1/External pacer x 1) |
| Type | 5 V/TTL |
| Resolution | 16-bit |
| Input Frequency | 10 MHz Max. |
| Reference Clock | Internal: 4 MHz |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 16-bit |
| Power | |
| Consumption | 960 mA @ +5 V |
| Mechanical | |
| Dimensions (mm) | 105 x 188 x 22 (W x L x D) |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
