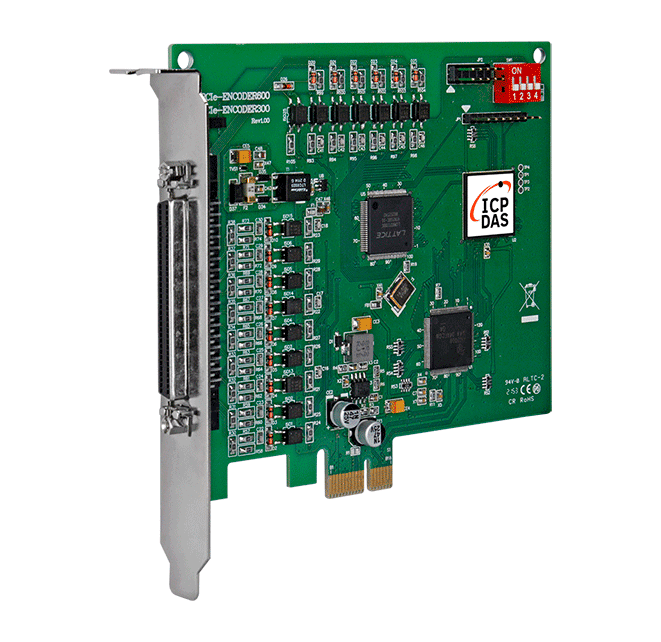

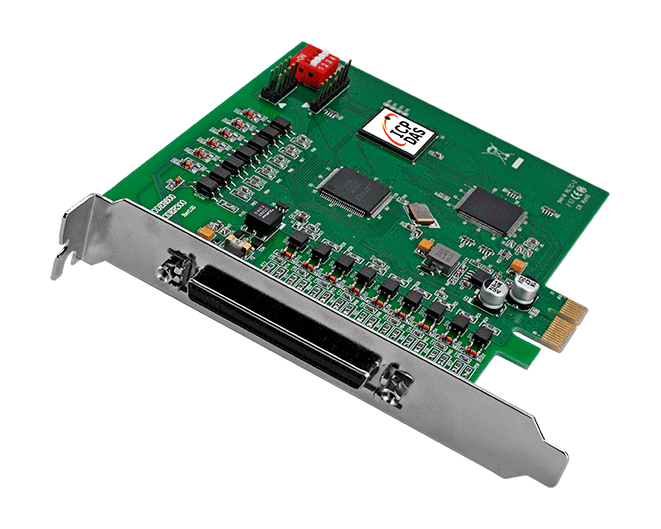

PCIe-ENCODER600 PCI Express 6-axis Encoder Input Card, 4 MHz
PCI Express x1 card with six 32-bit encoder counters, a 4 MHz maximum counting rate, 8 optically isolated digital outputs and a 68-pin SCSI-II connector.
- Six axes, each with a true 32-bit counter
- Encoder counting rate up to 4 MHz (maximum)
- Selectable Quadrant, CW/CCW and PULSE/DIR counting modes
- Third-order internal digital filter on encoder inputs
- Three counter reset methods: register, index (C channel) and hardware (HR1 to HR6)
- HR1 to HR6 pins can also serve as digital inputs
3.056,95 kr. pr. stk.
| 1–9 stk. | 3.056,95 kr. | |
|---|---|---|
| 10–30 stk. | 2.967,26 kr. | −3 % |
| 31+ stk. | 2.907,46 kr. | −5 % |
Produktinformation "PCIe-ENCODER600 PCI Express 6-axis Encoder Input Card, 4 MHz"
The PCIe-ENCODER600 CR is a PCI Express x1 motion input card for PC-based systems that need to read six encoder axes at once. Each axis has its own true 32-bit counter, with a maximum encoder counting rate of 4 MHz.
Counting can be set to Quadrant, CW/CCW or PULSE/DIR mode, so the card suits a range of encoder signal formats. The counters can be cleared by software register command, by the C channel index pulse once per revolution, or by external hardware reset inputs HR1 to HR6. The HR pins can also be used as digital inputs when reset is not required.
Eight digital outputs are provided, and the digital I/O is isolated with 2500 Vrms photo-couplers to keep high voltages away from the host system. Device drivers and function libraries are supplied for DOS, Windows and Linux, with LabVIEW support.
Applications
- Semiconductor manufacturing
- Component inspection
- Manufacturing quality control
- Food and beverage inspection
- Microscopy and medical imaging
- Biometrics applications
- X-Y-Z tables
- Fix-pitch stamping machinery
- Transfer machinery
- Spinners
- Load/unload systems
| Product type: | Encoder input card |
|---|---|
| Interface: | PCI Express x1 |
| Digital inputs: | 6 |
| Digital outputs: | 8 |
| Isolation: | 2500 Vrms |
| Operating temperature: | 0 ~ +60°C |
Specifikationer
| Software | |
|---|---|
| OS Support | Windows 11 64-bit Windows 7/10 32/64-bit Windows XP/2000 32-bit |
| SDK | DOS 6.2 , Linux 2.6 Labview 8.5 and above |
| Hardware | |
| Connector | 68-pin SCSI-II Female |
| General | |
| No. of Axes | 6 |
| Encoder Input | |
| Mode | Quadrant, CW/CCW, PULSE/DIR |
| Counting Rate | 4 MHz (Max.) |
| Pulse Output | |
| Counter Width | 32-bit |
| Digital Input | |
| Channels | 6 |
| Isolation | 2500 Vrms optical isolation |
| Digital Output | |
| Channels | 8 |
| Isolation | 2500 Vrms optical isolation |
| PC Bus | |
| Type | PCI Express x 1 |
| Power | |
| Consumption | +12 V @ 200 mA +3.3 V @ 500 mA |
| Mechanical | |
| Dimensions (mm) | 120.4 mm x 90.8 mm |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +80°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
