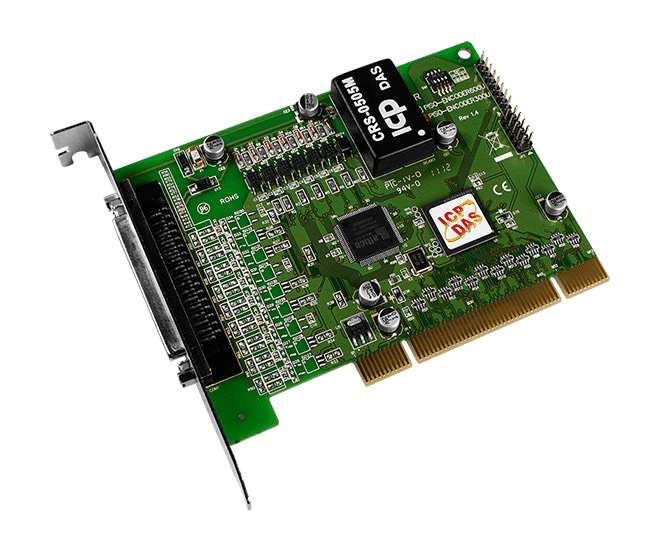

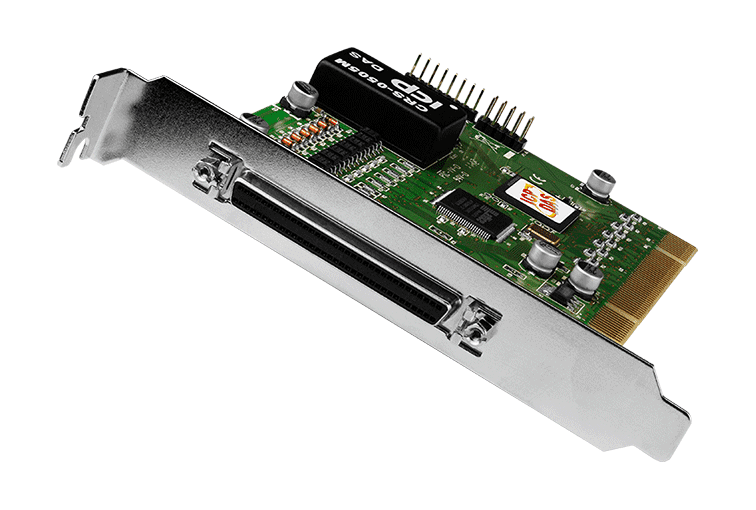

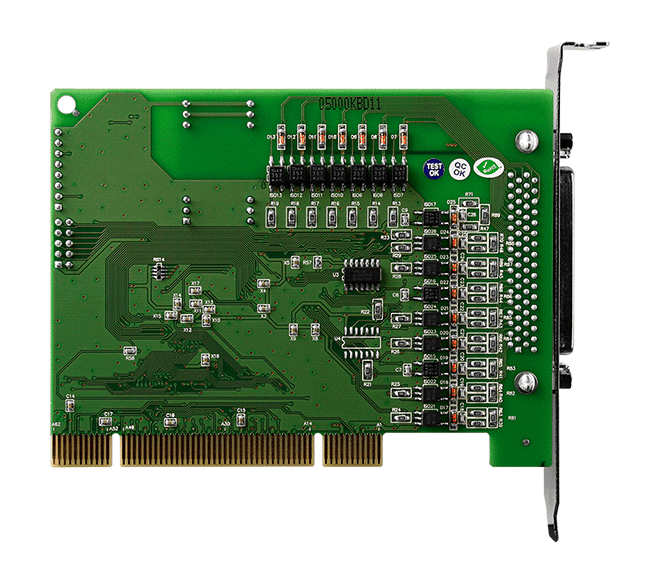

PISO-ENCODER300U 3-axis Encoder Input Card, Universal PCI, 4 MHz
Universal PCI card with three 32-bit encoder counters at up to 4 MHz, six hardware reset or digital input pins and eight optically isolated digital outputs.
- Three-axis encoder counter with a true 32-bit counter per axis
- Encoder counting rate of 4 MHz (max.)
- Selectable Quadrant, CW/CCW and PULSE/DIR counting modes
- Register, index (C channel) and hardware (HR1 to HR6) counter reset
- HR1 to HR6 pins also usable as digital inputs
- Eight digital outputs with 2500 Vrms optical isolation
2.638,39 kr. pr. stk.
| 1–9 stk. | 2.638,39 kr. | |
|---|---|---|
| 10–30 stk. | 2.556,18 kr. | −3 % |
| 31+ stk. | 2.503,86 kr. | −5 % |
Produktinformation "PISO-ENCODER300U 3-axis Encoder Input Card, Universal PCI, 4 MHz"
The PISO-ENCODER300U is a Universal PCI card for motion and position feedback in PC-based automation. It provides three independent encoder axes, each with a true 32-bit counter that accepts encoder rates of up to 4 MHz. A third-order internal digital filter helps keep counts reliable on noisy signal lines.
Each axis can be set to Quadrant, CW/CCW or PULSE/DIR counting mode. Counters can be reset through a programmable register command, by the index pulse on the C channel at each revolution, or through the external hardware reset pins HR1 to HR6, which can also serve as digital inputs. The card adds eight digital outputs, isolated by 2500 Vrms photo-couplers to protect the host system from high voltages.
The CR ordering code includes the CA-SC68 SCSI-II 68-pin male connector with solder-type terminals and cover. Device drivers and function libraries are provided for DOS, Windows 7 and Windows XP/2000.
Applications
- Semiconductor manufacturing
- Component inspection
- Manufacturing quality control
- Food and beverage inspection
- Microscopy and medical imaging
- Biometrics applications
- X-Y-Z tables
- Fix-pitch stamping machinery
- Transfer machinery
- Spinners
- Load/unload systems
| Product type: | Encoder input card |
|---|---|
| Interface: | Universal PCI |
| Digital inputs: | 6 |
| Digital outputs: | 8 |
| Ports: | 68-pin SCSI-II |
| Isolation: | 2500 Vrms |
| Power input: | +5 V @ 500 mA |
| Operating temperature: | 0 ~ +60°C |
Specifikationer
| Software | |
|---|---|
| OS Support | Windows 11 64-bit Windows 7/10 32/64-bit Windows XP/2000 32-bit |
| SDK | DOS 6.2 , Linux 2.6 Labview 8.5 and above |
| Hardware | |
| Connector | 68-pin SCSI-II Female |
| General | |
| No. of Axes | 3 |
| Encoder Input | |
| Mode | Quadrant, CW/CCW, PULSE/DIR |
| Counting Rate | 4 MHz (Max.) |
| Pulse Output | |
| Counter Width | 32-bit |
| Digital Input | |
| Channels | 6 |
| Isolation | 2500 Vrms optical isolation |
| Digital Output | |
| Channels | 8 |
| Isolation | 2500 Vrms optical isolation |
| PC Bus | |
| Type | Universal PCI bus |
| Power | |
| Consumption | +5 V @ 500 mA |
| Mechanical | |
| Dimensions (mm) | 120.4 mm x 90.8 mm |
| Environment | |
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +80°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
