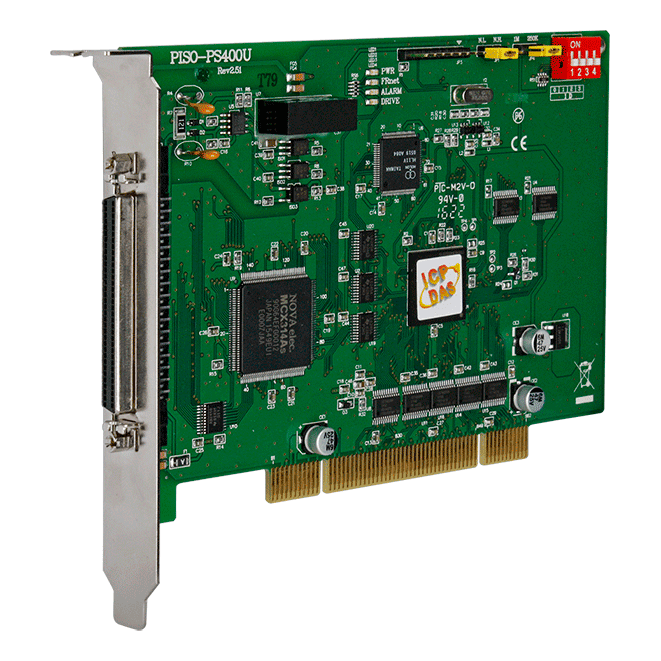

PISO-PS400U Universal PCI 4-axis Motion Control Card with FRnet Master
A universal PCI 4-axis pulse-type motion control card with a built-in FRnet master for expanding remote I/O to 128 DI and 128 DO over a two-wire interface.
- Independent control of 4 axes with a pulse output rate of up to 4 MHz per axis
- Universal PCI bus, compatible with 3.3 V and 5 V PCI slots
- Linear interpolation on any 2 to 3 axes and circular interpolation on any 2 axes
- Programmable T/S-curve acceleration and deceleration, plus automatic homing and software limits per axis
- 32-bit encoder counter per axis with A/B phase or Up/Down inputs
- FRnet master providing up to 128 DI and 128 DO over a two-wire interface
5.792,51 kr. pr. stk.
| 1–9 stk. | 5.792,51 kr. | |
|---|---|---|
| 10–30 stk. | 5.620,60 kr. | −3 % |
| 31+ stk. | 5.508,49 kr. | −5 % |
Produktinformation "PISO-PS400U Universal PCI 4-axis Motion Control Card with FRnet Master"
The PISO-PS400U is a 4-axis pulse-type motion control card for industrial PCs with a universal PCI bus, suited to general-purpose motion control. Each axis outputs pulses at up to 4 MHz and reads a 32-bit encoder counter, so it can drive stepping or servo drives from a single card.
Most motion functions, including interpolation, T/S-curve acceleration and deceleration, automatic homing and synchronous actions, run in the motion ASIC rather than the host processor. Motion status, FRnet I/O and other I/O cards in the same PC can still be monitored while motors are driven, and several cards can share one PC because of the low CPU loading.
The U variant is the universal PCI version, supporting 3.3 V and 5 V PCI slots. The FRnet master expands the system with up to 128 digital inputs and 128 digital outputs, scanned automatically within 2.88 ms, and ICP DAS supplies functions and examples that reduce the programming effort required.
Applications
- Semiconductor manufacturing
- Component inspection
- Manufacturing quality control
- Food and beverage inspection
- Microscopy and medical imaging
- Biometrics applications
- X-Y-Z tables
- Fix-pitch stamping machinery
- Transfer machinery
- Spinners
- Load/unload systems
| Product type: | Motion control card |
|---|---|
| Interface: | Universal PCI |
| Protocol: | FRnet |
| Digital inputs: | 4 local, up to 128 expandable |
| Digital outputs: | Up to 128 expandable |
| Isolation: | 2500 Vrms (with DN-8468) |
| Power input: | +5 V @ 500 mA |
| Operating temperature: | -20 ~ +75 °C |
Specifikationer
| Software | |
|---|---|
| OS Support | Windows 7/10 32/64-bit Windows XP/2000 32-bit |
| Utility | EzGo Utility |
| SDK | Labview 5.0 ~ Labview 8.x |
| Hardware | |
| Connector | 68-pin SCSI-II |
| General | |
| No. of Axes | 4 |
| Operation Mode | Semi-closed Loop |
| Synchronous Action | 10 activation factors and 14 actions |
| Speed Profile | T/S-curve |
| Position Control Mode | Incremental mode and Absolute mode |
| Command Type | Pulse Command |
| Isolation | 2500 Vrms optical isolation (with DN-8468) |
| Axis I/O | |
| Servo Interface Output | SVON |
| Mechanical Switch Input | Home, LMT+/-, NHOME, EMG |
| Position Compare Output | 10 KHz (X and Y only) |
| Servo Interface Input | INP, ALM |
| Encoder Input | |
| Mode | A/B Phase, Up/Down |
| Ring Counter Mode | 32-bit |
| Counting Rate | 4 MHz (Max.) |
| Counter Width | 32-bit |
| Pulse Output | |
| Mode | CW/CCW, PULSE/DIR |
| Counter Width | 32-bit |
| Rate | 4 MHz (Max.) |
| Interpolation | |
| Circular | Any 2 axes |
| Linear | Any 2 to 3 of 4 axes |
| Digital Input | |
| Channels | Local: 4 DI Expandable: 128 DI |
| Digital Output | |
| Channels | Expandable: 128 DO |
| PC Bus | |
| Type | 3.3 V/5 V Universal PCI |
| Power | |
| Consumption | +5 V @ 500 mA |
| Environment | |
| Operating Temperature | -20 ~ +75°C |
| Storage Temperature | -30 ~ +85°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
