PMD-2201-SC Power Meter Concentrator, 7" Touch Panel, Modbus TCP/RTU, PoE
Web-based IIoT power meter concentrator with a 7" touch panel for collecting power data from Modbus meters and I/O modules, with logic, logging and alarms. Simplified Chinese version.
- Browser-based configuration and web pages for control logic editing, with no extra software tool or programming required

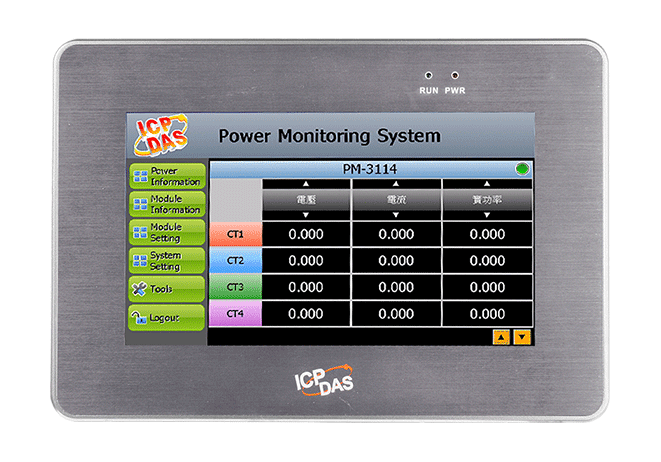

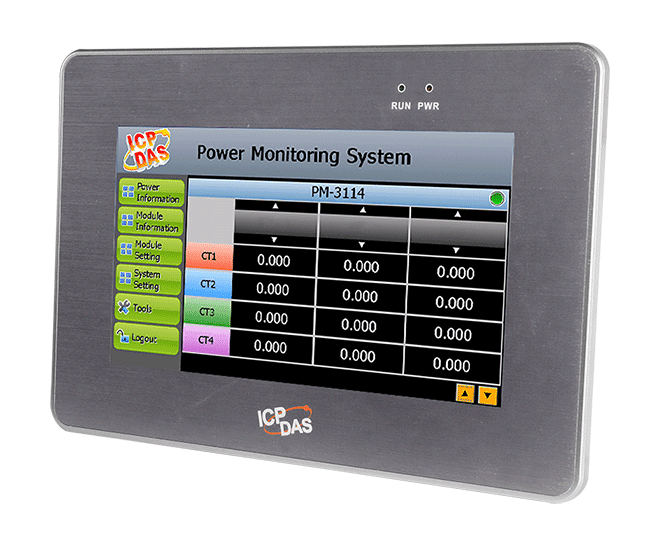

- 7" 800 x 480 TFT touch panel for local display of power data and system settings, panel or VESA mounted
- Supports up to 24 ICP DAS Modbus power meter modules and 8 Modbus I/O modules, with at most 16 Modbus TCP-type modules in total
- COM1 and COM2 each connect up to 16 Modbus RTU modules, with 2500 VDC isolation; LAN connects up to 16 Modbus TCP modules
- Built-in IF-THEN-ELSE logic engine, timers, schedules and power demand management
- microSD data logging with 32 GB card included, automatic send-back and recovery after network resumes
Denne vare prissættes pr. ordre. Send os det ønskede antal, så svarer vi med pris og leveringstid.
Bed om tilbud
Ikke længere tilgængelig
Produktinformation "PMD-2201-SC Power Meter Concentrator, 7" Touch Panel, Modbus TCP/RTU, PoE"
PMD-2201-SC is a browser-configured power meter concentrator for engineers building energy monitoring and management systems. It polls ICP DAS Modbus power meters over RS-485 or Ethernet, records the readings and makes them available locally on its 7" touch panel and remotely through its built-in web server, so most setup can be done without writing code.
Control logic is handled on the device itself. A built-in IF-THEN-ELSE engine, timers and schedules can switch Modbus I/O modules according to power status, supporting power demand management and load shedding where required. Alarms can be sent via LINE, Telegram or Email, and power data can be logged to a microSD card and sent back automatically once a disconnected network is restored.
For integration, the unit supports Modbus TCP/RTU, SNMP, FTP and MQTT, and can connect to Microsoft Azure and IBM Bluemix IoT platforms as well as the ICP DAS IoTstar cloud software. This Simplified Chinese version is designed for panel mounting and is powered from 12 ~ 48 VDC or PoE (IEEE 802.3af).
Applications
- Energy measurement, monitoring and management
- Power demand management and load shedding
- Power data logging and historical power reporting
- Remote alarm notification for power systems

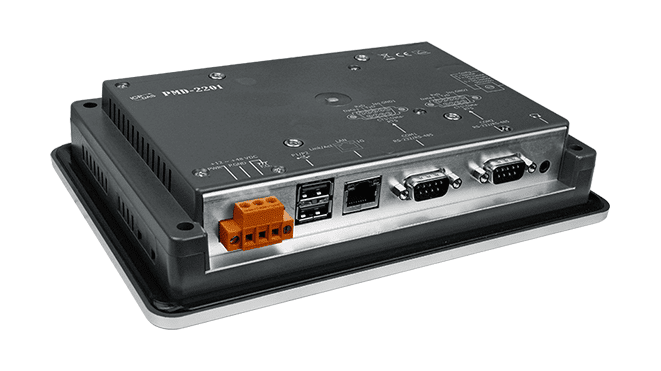

| Product type: | Power Meter Concentrator |
|---|---|
| Interface: | Ethernet, RS-485 |
| Protocol: | FTP, Modbus TCP/RTU, MQTT, SNMP |
| Ports: | RJ-45 x 1, RS-485 x 2 |
| PoE: | IEEE 802.3af |
| Isolation: | 2500 VDC (COM1, COM2) |
| Power input: | 12 ~ 48 VDC |
| Operating temperature: | -10 ~ +60 °C |
| Mounting: | Panel, VESA 75 x 75 |
| Housing: | NEMA 4/IP65 front panel |
Specifikationer

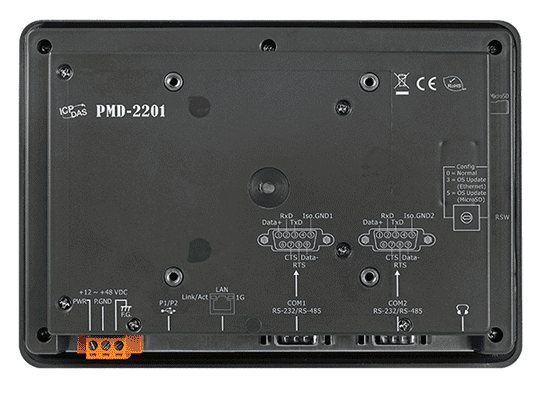

| Software | |
|---|---|
| Protocol | • Modbus TCP/RTU for SCADA software • FTP Client & Server • SNMP & SNMP Trap • MQTT Client (Message Publish & Subscribe; non-SSL & SSL) • DDNS |
| Function | • Web Interface & Local Display for Configuration • IF-THEN-ELSE Logic operation (Unlimited rule supported) • Power meters & I/O modules monitoring and control • Data Logger operation • Timer operation (Unlimited set supported) • Schedule operation (More Powerful; Unlimited set supported) • Internal Register operation (70 set supported) • Instant message sending function (LINE, Telegram) • non-SSL & SSL Email sending function • SNTP Time Synchronization |
| Power Management | • Power Data Display • Historical Power Data Report • Power Demand Management • PUE Setting and Display |
| IoT Service Integration | • ICP DAS IoTstar IoT Cloud Management Software • Microsoft Azure IoT Cloud platform • IBM Bluemix IoT Cloud platform |
| CPU Module | |
| CPU | 32-bit ARM CPU(1GHz) |
| Storage Expansion | microSD socket with 32 GB microSD card (support up to 32 GB microSDHC card) |
| Display | |
| Size | 7" (16:9) |
| Backlight Life | 20,000 hrs |
| Brightness | 400 cd/m2 |
| Resolution | 800 x 480 |
| Touch Panel | 4-wire, resistive type; light transmission: 80 % |
| Contrast Ratio | 20.834027777778 |
| LED Indicators | |
| Status | 1 x Power 1 x Running |
| I/O Expansion | |
| Remote Module Support | M-7000/DL/IR Series Module Modbus RTU Slave Module Modbus TCP Slave Module |
| Power Meter | PM Series Modbus meter |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100/1000 Base-TX (LED indicators) (Auto-negotiating, Auto MDI/MDI-X) |
| COM Ports | |
| Ports | COM 1: RS-485 (Data+, Data-); 2500 VDC isolated COM 2: RS-485 (Data+, Data-); 2500 VDC isolated |
| Power | |
| Input Range | 12 ~ 48 VDC |
| Consumption | 6 W |
| Powered from PoE | Yes, IEEE 802.3af |
| Mechanical | |
| Dimensions (mm) | 213 x 148 x 44 (W x H x D) |
| Panel Cut-out (mm) | 197 x 133, ±1 (W x H) |
| Installation | Panel Mounting, VESA (75 x 75) Mounting |
| Ingress Protection Rating | Front panel: NEMA 4/IP65 |
| Environment | |
| Operating Temperature | -10 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
