PMD-4201-SC PoE Power Meter Concentrator with 10.4" Touch Panel
Browser-configured IIoT power meter concentrator with 10.4" touch panel and PoE. Collects data from ICP DAS Modbus power meters; supports Modbus TCP/RTU, SNMP, FTP, MQTT.
- Browser-based configuration with no extra software tool or programming required

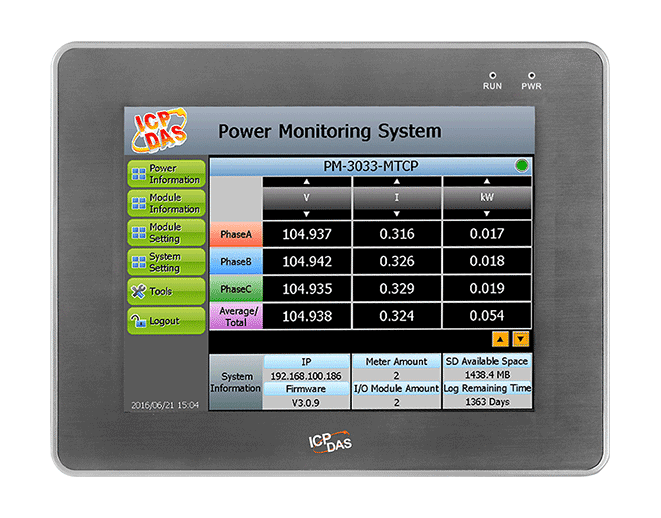

- 10.4" TFT touch panel, 800 x 600 resolution, 400 cd/m2 brightness, for local power data viewing and setup
- Powered from PoE (IEEE 802.3af) or 12 ~ 48 VDC input
- Supports at most 24 ICP DAS Modbus power meter modules plus 8 Modbus I/O modules, including up to 4 PM-4324 series power meters
- Built-in IF-THEN-ELSE logic engine for power demand management and load shedding via Modbus I/O modules
- microSD data logging with auto send-back and recovery after network resumes; alarm notifications via LINE, Telegram or Email
Denne vare prissættes pr. ordre. Send os det ønskede antal, så svarer vi med pris og leveringstid.
Bed om tilbud
Ikke længere tilgængelig
Produktinformation "PMD-4201-SC PoE Power Meter Concentrator with 10.4" Touch Panel"

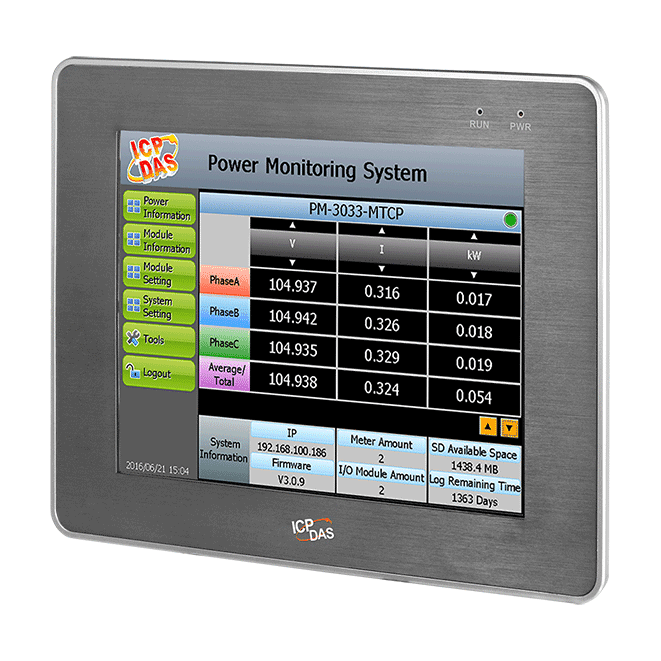

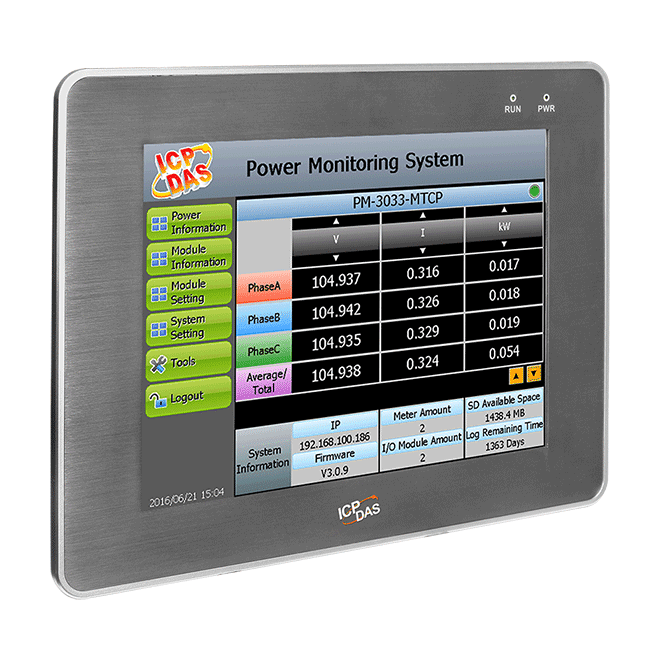

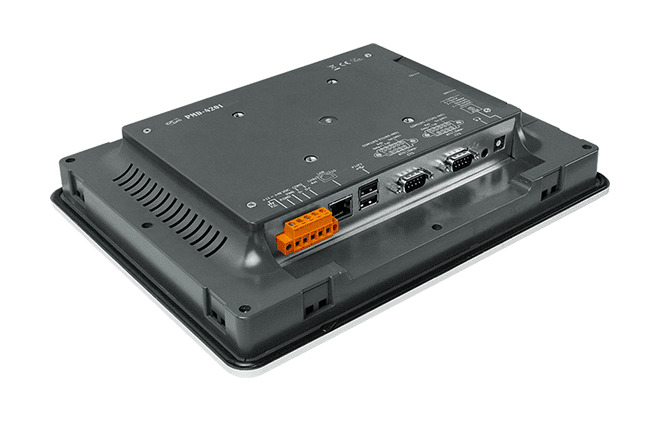

PMD-4201-SC is a Simplified Chinese edition of ICP DAS's power meter concentrator, built for panel mounting. It reads power data from ICP DAS Modbus power meters over RS-485 or Ethernet, logs the readings and makes them available locally on its 10.4" touch panel or remotely through a built-in web server. Configuration is done in a browser, so no separate software tool or programming is needed.
Beyond monitoring, the unit runs an IF-THEN-ELSE logic engine that can act on power status by switching Modbus I/O modules. This supports power demand management and load shedding, with schedules and timers for equipment control. Alarm messages can be sent via LINE, Telegram or Email, and the -SC suffix identifies the Simplified Chinese language version, distinct from the -EN and -TC editions.
Data can be stored on a microSD card and is sent back automatically when a dropped network connection is restored. Integration with SCADA, MES, IT and IoT back-end systems is handled through Modbus TCP/RTU, SNMP, FTP and MQTT, with connection options for Microsoft Azure, IBM Bluemix and ICP DAS IoTstar Cloud.
Applications
- Energy measurement, monitoring and management
- Power demand management and load shedding
- Power data logging and reporting for SCADA, MES and IoT systems

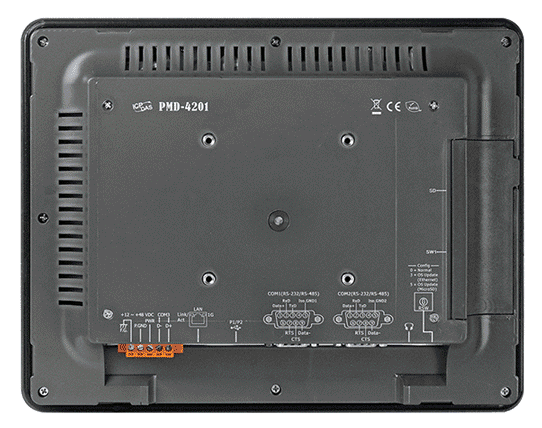

| Product type: | Power Meter Concentrator |
|---|---|
| Interface: | Ethernet, RS-485 |
| Protocol: | FTP, Modbus TCP/RTU, MQTT, SNMP |
| Ports: | 1 x RJ-45, 3 x RS-485 |
| PoE: | Yes, IEEE 802.3af |
| Isolation: | 2500 VDC (COM1, COM2, COM3) |
| Power input: | 12 ~ 48 VDC |
| Operating temperature: | -10 ~ +60 °C |
| Mounting: | Panel mount, VESA (75 x 75) |
| Housing: | Front panel NEMA 4/IP65 |
Specifikationer
| Software | |
|---|---|
| Protocol | • Modbus TCP/RTU for SCADA software • FTP Client & Server • SNMP & SNMP Trap • MQTT Client (Message Publish & Subscribe; non-SSL & SSL) • DDNS |
| Function | • Web Interface & Local Display for Configuration • IF-THEN-ELSE Logic operation (Unlimited rule supported) • Power meters & I/O modules monitoring and control • Data Logger operation • Timer operation (Unlimited set supported) • Schedule operation (More Powerful; Unlimited set supported) • Internal Register operation (70 set supported) • Instant message sending function (LINE, Telegram) • non-SSL & SSL Email sending function • SNTP Time Synchronization |
| Power Management | • Power Data Display • Historical Power Data Report • Power Demand Management • PUE Setting and Display |
| IoT Service Integration | • ICP DAS IoTstar IoT Cloud Management Software • Microsoft Azure IoT Cloud platform • IBM Bluemix IoT Cloud platform |
| CPU Module | |
| CPU | 32-bit ARM CPU (1GHz) |
| Storage Expansion | SD socket with 32 GB SD card (support up to 32 GB SD card) |
| Display | |
| Size | 10.4" (4:3) |
| Backlight Life | 50,000 hrs |
| Brightness | 400 cd/m2 |
| Resolution | 800 x 600 |
| Touch Panel | 5-wire, resistive type; light transmission: 80 % |
| Contrast Ratio | 20.834027777778 |
| LED Indicators | |
| Status | 1 x Power 1 x Running |
| I/O Expansion | |
| Remote Module Support | M-7000/DL/IR Series Module Modbus RTU Slave Module Modbus TCP Slave Module |
| Power Meter | PM Series Modbus meter |
| Ethernet | |
| Ports | RJ-45 x 1, 10/100/1000 Base-TX (LED indicators) (Auto-negotiating, Auto MDI/MDI-X) |
| COM Ports | |
| Ports | COM 1: RS-485 (Data+, Data-); 2500 VDC isolated COM 2: RS-485 (Data+, Data-); 2500 VDC isolated COM 3: RS-485 (Data+, Data-, GND); 2500 VDC isolated |
| Power | |
| Input Range | 12 ~ 48 VDC |
| Consumption | 13 W |
| Powered from PoE | Yes, IEEE 802.3af |
| Mechanical | |
| Dimensions (mm) | 291 x 229 x 54 (W x H x D) |
| Panel Cut-out (mm) | 277 x 215, ±1 (W x H) |
| Installation | Panel Mounting, VESA (75 x 75) Mounting |
| Ingress Protection Rating | Front panel: NEMA 4/IP65 |
| Environment | |
| Operating Temperature | -10 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
