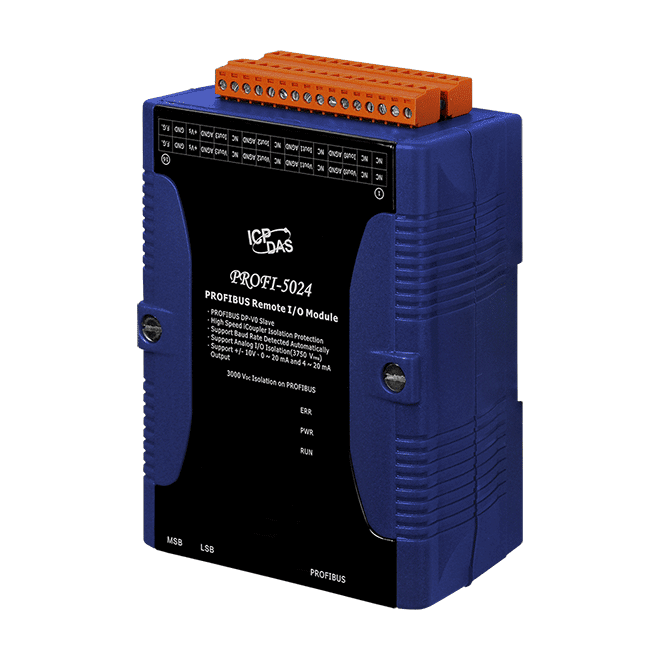

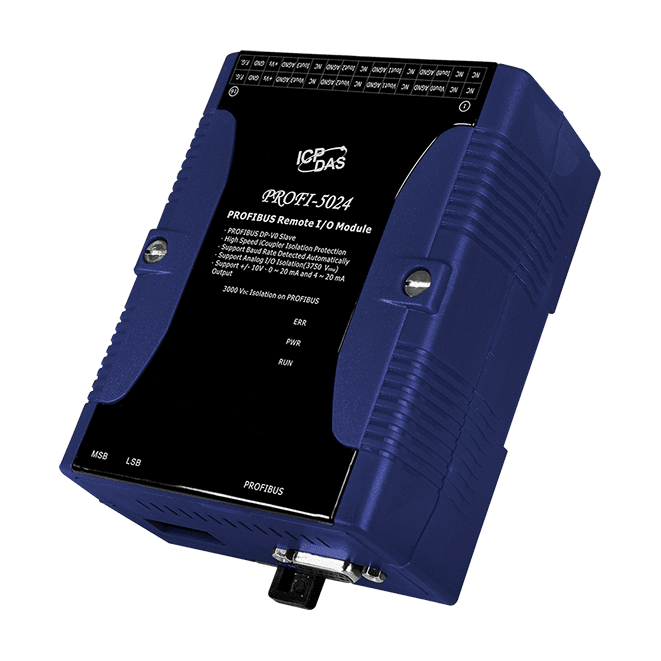

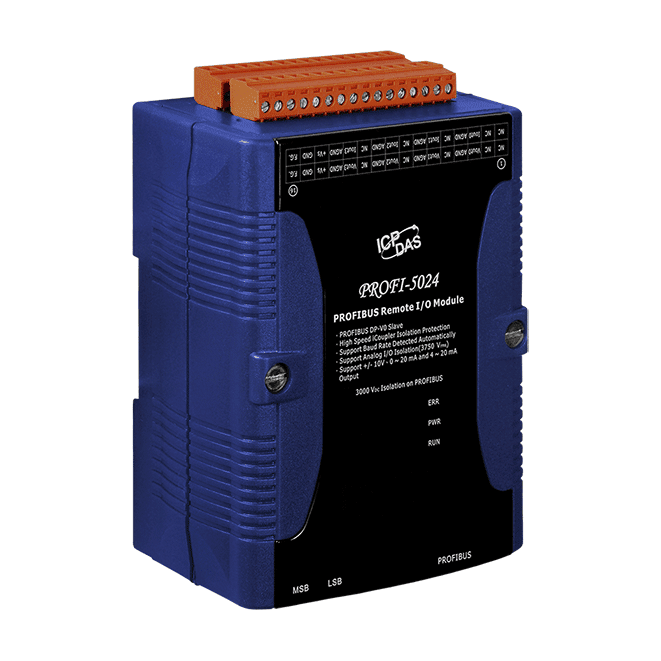

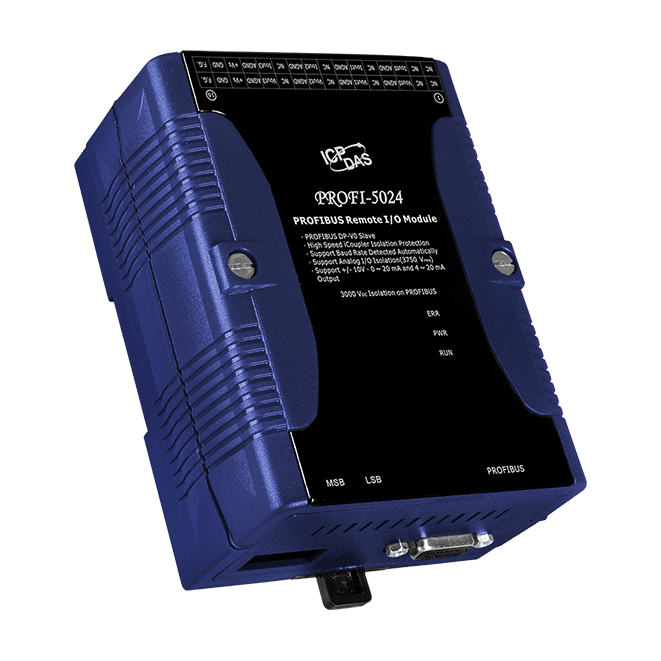

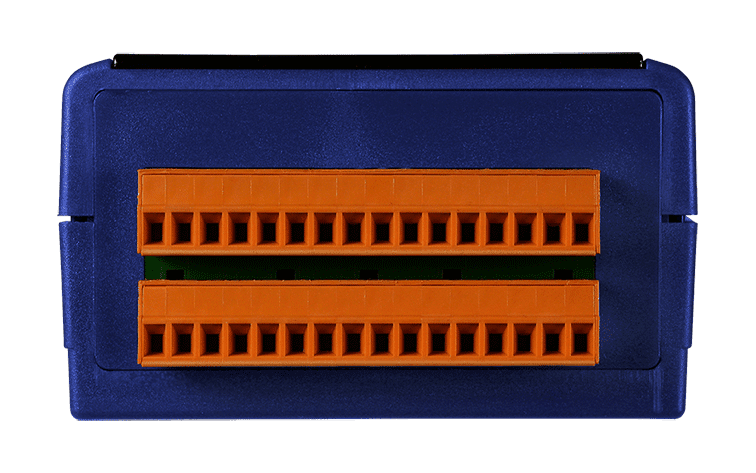

PROFI-5024 PROFIBUS DP Remote I/O Module, 4-ch Isolated Analog Output
PROFIBUS DP-V0 slave module with four isolated voltage and current analogue outputs (±10 V, 0~20 mA, 4~20 mA), configured through its GSD file.
- PROFIBUS DP-V0 slave with address range 0~126 set by rotary switches or SSA telegram
- Four isolated voltage and current analogue outputs: ±10 V, 0~20 mA and 4~20 mA
- Accuracy of ±0.1% of FSR for voltage output and ±0.2% of FSR for current output
- 3000 VDC DC-to-DC isolation and 3750 Vrms bus-to-logic isolation
- Automatic transmission rate detection from 9.6 k to 12 M baud
- Configured by GSD file in any PROFIBUS configurator
3.273,70 kr. pr. stk.
| 1–9 stk. | 3.273,70 kr. | |
|---|---|---|
| 10–30 stk. | 3.176,54 kr. | −3 % |
| 31+ stk. | 3.109,27 kr. | −5 % |
Produktinformation "PROFI-5024 PROFIBUS DP Remote I/O Module, 4-ch Isolated Analog Output"
PROFI-5024 CR is a PROFIBUS DP-V0 slave that adds four isolated analogue outputs to a PROFIBUS network. Each channel supports ±10 V, 0~20 mA or 4~20 mA ranges, so it can drive valves, drives and other analogue actuators from a single fieldbus node.
The module is isolated for robust installation. It provides 3000 VDC DC-to-DC isolation and 3750 Vrms bus-to-logic isolation, along with high-speed iCoupler network isolation and 4 kV ESD protection on each terminal. Stated accuracy is ±0.1% of FSR for voltage output and ±0.2% of FSR for current output.
- Address range 0~126, set by rotary switches or SSA telegram
- Transmission rate detected automatically across 9.6 k to 12 M baud
- I/O configuration performed with the GSD file in any PROFIBUS configurator
The unit is designed for DIN-rail mounting and runs from a 4 W consumption figure, with an operating range of -25 ~ +75℃ and storage from -30 ~ +80 ℃.
Applications
- Industrial automation
- Factory automation
- Process automation
| Product type: | Remote I/O module |
|---|---|
| Interface: | PROFIBUS |
| Protocol: | DP-V0 |
| Analog outputs: | 4 |
| Isolation: | 3000 VDC / 3750 Vrms |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 2 KB |
| Flash | 512 KB |
| SRAM | 512 KB |
| Watchdog Timer | Watchdog IC CPU built-in |
| LED Indicators | |
| Status | PWR LED, RUN LED, ERR LED |
| Analog Output | |
| Channels | 4 Channel Voltage & Current Output, Isolation Voltage:3750Vrms |
| Range | +/- 10V, 0 ~ 20mA, 4 ~ 20mA |
| Accuracy | +/- 0.1% of FSR for Voltage Output ; +/- 0.2% of FSR for Current Output |
| PROFIBUS | |
| Controller | Siemens SPC3 |
| Transceiver | ADI ADM2486 |
| Baud Rate | 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
| Isolation | 3000 VDC for DC-to-DC, 3750 Vrms for bus-to-logic |
| Protocol | DP-V0 |
| Power | |
| Consumption | 4 W |
| Mechanical | |
| Dimensions (mm) | 91 x 128 x 52 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
| Operating Temperature | -25 ~ +75℃ |
| Storage Temperature | -30 ~ +80 ℃ |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
