PROFI-8855-G PROFIBUS DP Remote I/O Unit, 8 I/O Slots
PROFIBUS DP-V0 slave remote I/O unit with 8 slots for I-8k and I-87K High Profile modules, with hot-swap support for I-87K modules.
- PROFIBUS DP-V0 slave with automatic transmission rate detection across 9.6 k to 12 M baud
- Eight slots for I-8k High Profile and I-87K High Profile I/O modules
- Hot-swap support for I-87K High Profile I/O modules
- I/O modules configured through the GSD file, with no additional setting tools required
- Station address set by rotary switches, range 0 to 126
- 3000 VDC DC isolation on the PROFIBUS side and High Speed iCoupler network isolation
4.110,81 kr. pr. stk.
| 1–9 stk. | 4.110,81 kr. | |
|---|---|---|
| 10–30 stk. | 3.991,22 kr. | −3 % |
| 31+ stk. | 3.909,01 kr. | −5 % |
Produktinformation "PROFI-8855-G PROFIBUS DP Remote I/O Unit, 8 I/O Slots"

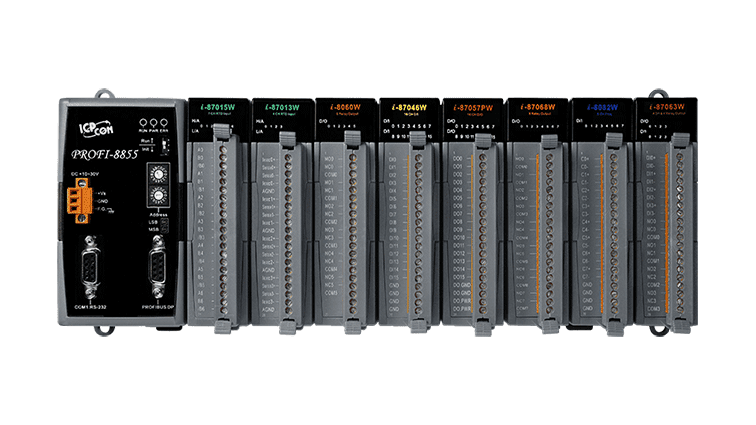

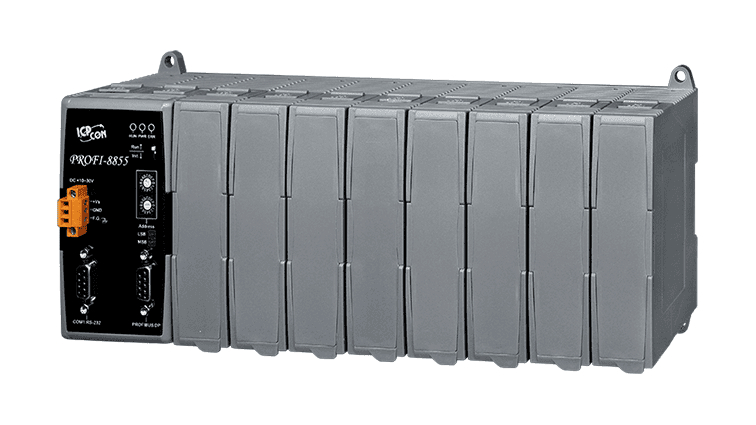

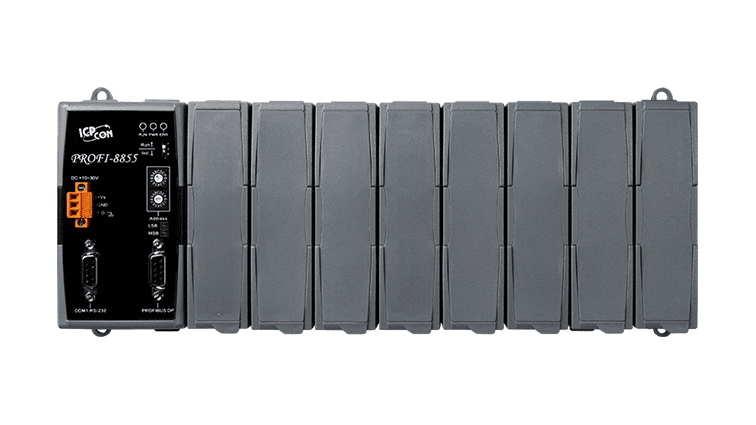

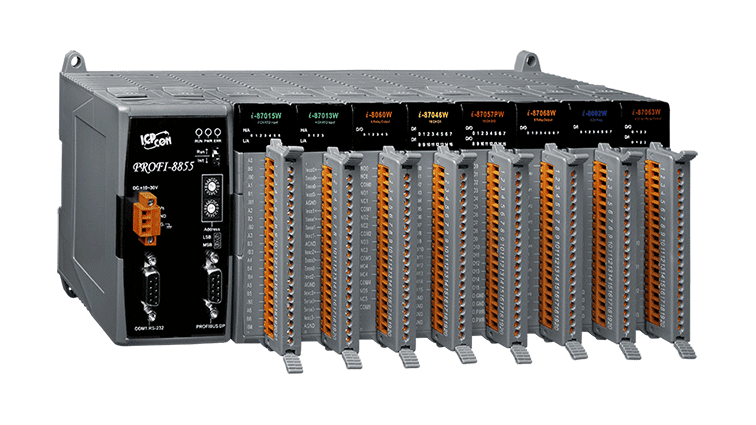

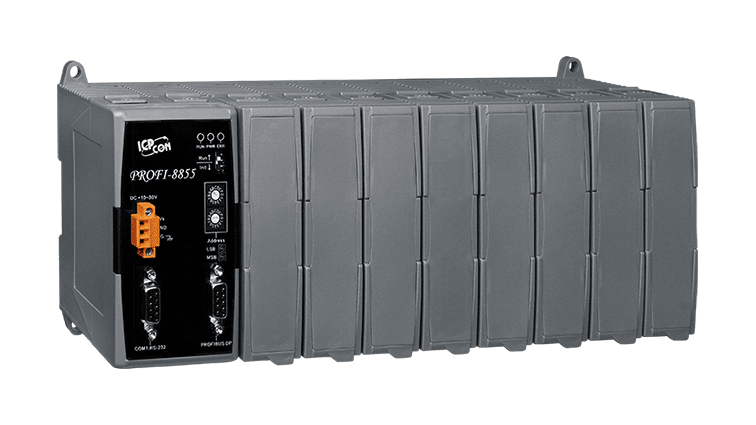

PROFI-8855-G CR is a PROFIBUS DP-V0 slave that turns a rack of eight I/O slots into a remote I/O station. It accepts I-8k High Profile and I-87K High Profile modules, so one unit can cover a mix of digital, analogue and other signal types on a single PROFIBUS segment.
Engineers will value the configuration workflow. I/O modules are set up through the GSD file, so the station can be defined without a separate vendor setting tool. The transmission rate is detected automatically, and the station address is chosen with rotary switches anywhere from 0 to 126.
For installations that need electrical robustness, the unit provides 3000 VDC isolation on the PROFIBUS side and High Speed iCoupler network isolation. Hot-swap is available for I-87K High Profile modules, and each terminal has 4KV ESD protection. The unit mounts on a DIN rail or on a wall.
Applications
- Industrial automation
- Factory automation
- Process automation
| Product type: | Remote I/O unit |
|---|---|
| Interface: | PROFIBUS |
| Protocol: | PROFIBUS DP-V0 |
| Ports: | RS-232 |
| Isolation: | 3000 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Specifikationer
| CPU Module | |
|---|---|
| CPU | 80186, 80 MHz or compatible |
| EEPROM | 2 KB |
| Flash | 512 KB |
| SRAM | 512 KB |
| LED Indicators | |
| Status | PWR LED, RUN LED, ERR LED |
| I/O Expansion | |
| Slots | 8 |
| COM Ports | |
| Ports | RS-232 (For updating firmware) |
| PROFIBUS | |
| Controller | Profichip VPC3+C |
| Transceiver | ADI ADM2486 |
| Baud Rate | 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| Protocol | DP-V0 |
| Power | |
| Consumption | 5.5 W |
| Mechanical | |
| Dimensions (mm) | 312 x 91 x 132 (W x L x H) |
| Installation | DIN-Rail or Wall Mounting |
| Environment | |
| Operating Temperature | -25 ~ +75℃ |
| Storage Temperature | -40 ~ +80 ℃ |
| Humidity | 5 ~ 95% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
