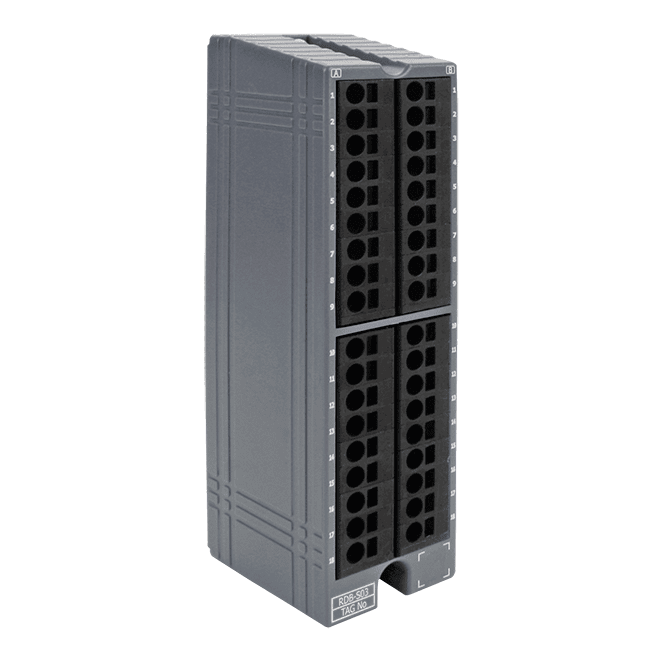

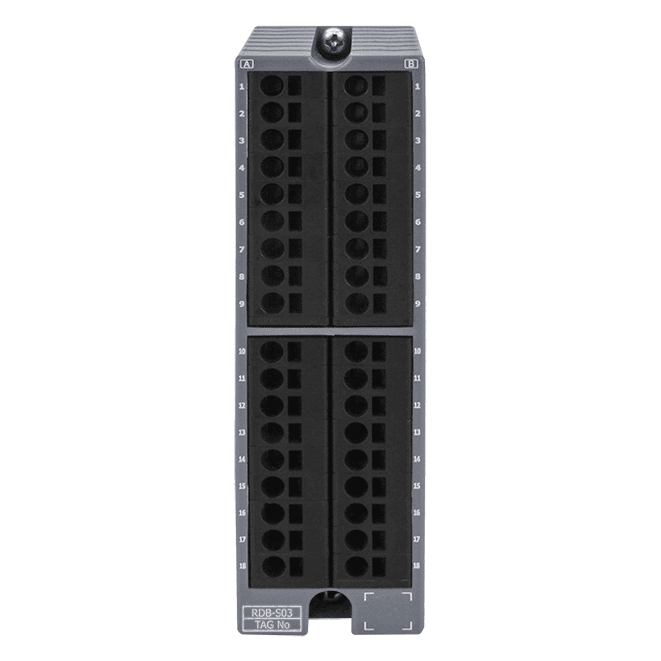

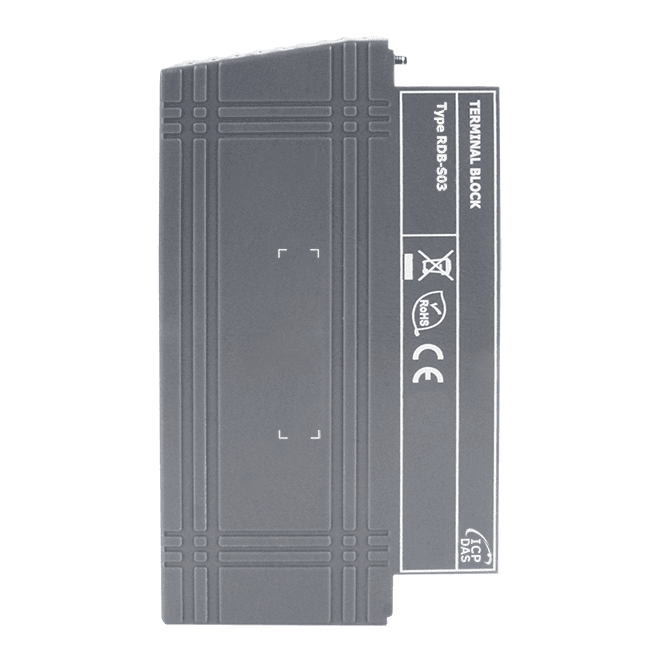

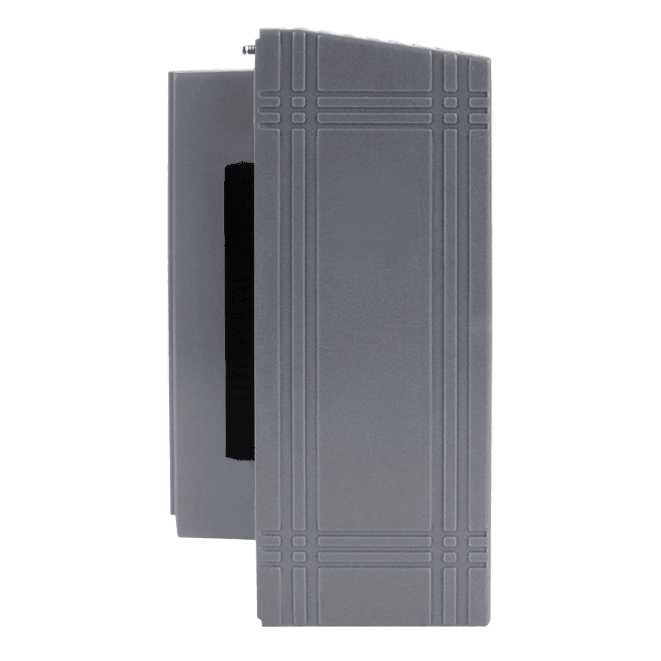

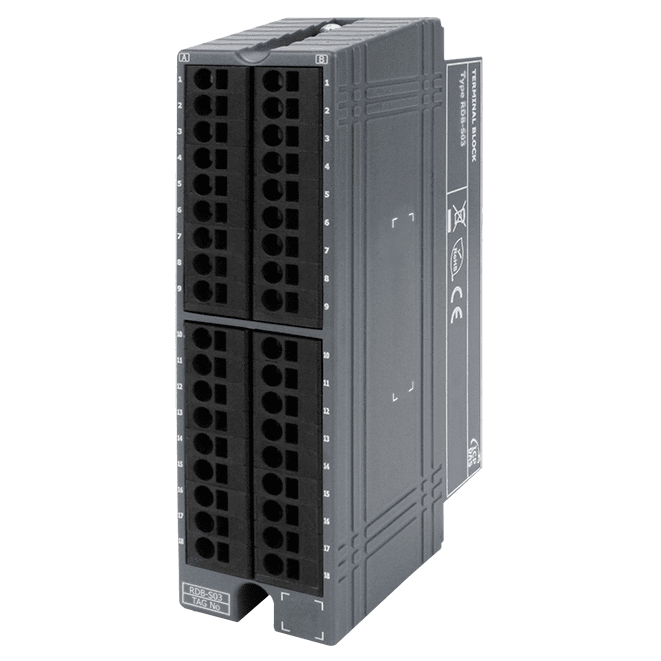

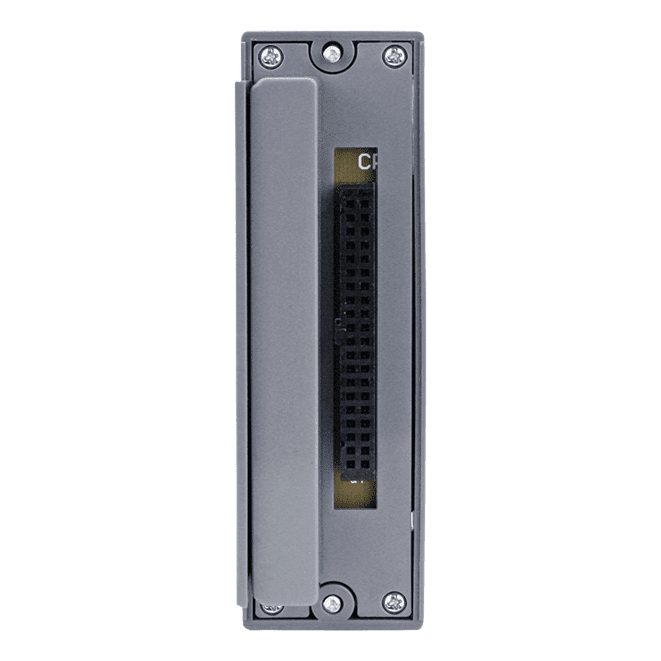

RDB-S03 Single I/O Termination Board, Spring Clamp, for R-9015
Single I/O termination board for R-9015 systems with spring clamp terminals and disconnection detection, so wiring faults and breaks raise an alarm promptly.
- Spring clamp terminals for faster, simpler field wiring
- Termination board disconnection detection with alarm on separation from the I/O module
- Supports the R-9015
- 12 analogue input channels
- Operating temperature -25 °C to 75 °C
- Humidity 5 to 95% RH, non-condensing
1.143,55 kr. pr. stk.
| 1–9 stk. | 1.143,55 kr. | |
|---|---|---|
| 10–30 stk. | 1.113,66 kr. | −3 % |
| 31+ stk. | 1.091,23 kr. | −5 % |
Produktinformation "RDB-S03 Single I/O Termination Board, Spring Clamp, for R-9015"
RDB-S03 CR is a single I/O termination board for the R-9015, providing spring clamp wiring for 12 analogue input channels. Spring clamp terminals help engineers wire signals faster and shorten system installation time.
The board includes termination board disconnection detection. If it becomes disconnected from the I/O module, an alarm is triggered without delay, which helps reduce the risk of undetected faults in the signal path. This suits installations where reliable, stable wiring is a priority.
The board mounts on DIN-rail or wall and is rated for an operating temperature of -25 °C to 75 °C with 5 to 95% RH non-condensing humidity. The CR ordering code denotes the RoHS-compliant version.
Applications
- Wiring termination for RTD signals in R-9015 based I/O systems
- Industrial environments requiring high wiring reliability and stability
| Product type: | Termination board |
|---|---|
| Interface: | Spring clamp terminal |
| Analog inputs: | 12 |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Specifikationer
| Analog Input | |
|---|---|
| Channels | 12 |
| Mechanical | |
| Dimensions (mm) | 32 x 115 x 60 |
| Installation | DIN-Rail & wall mounting |
| Environment | |
| Operating Temperature | -25 °C ~ 75 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
