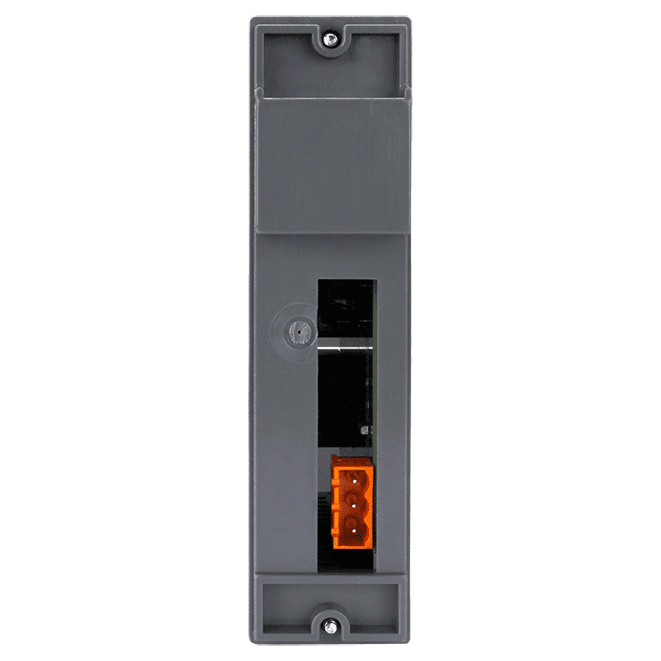

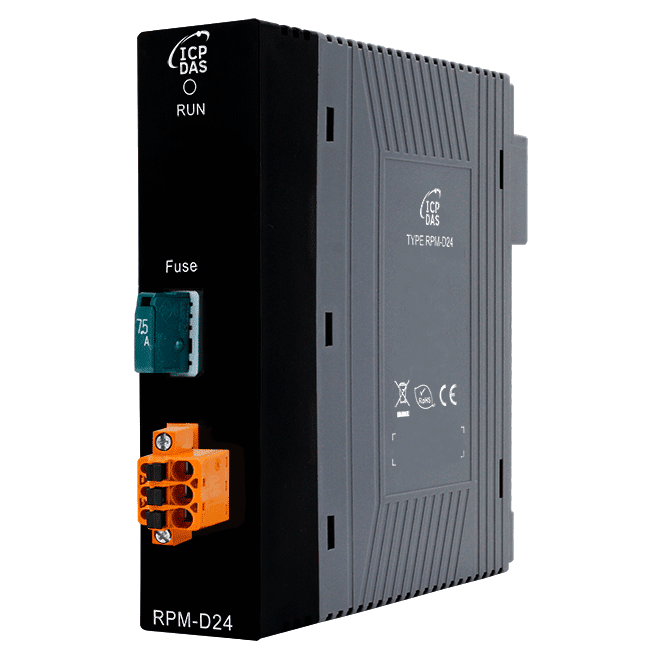

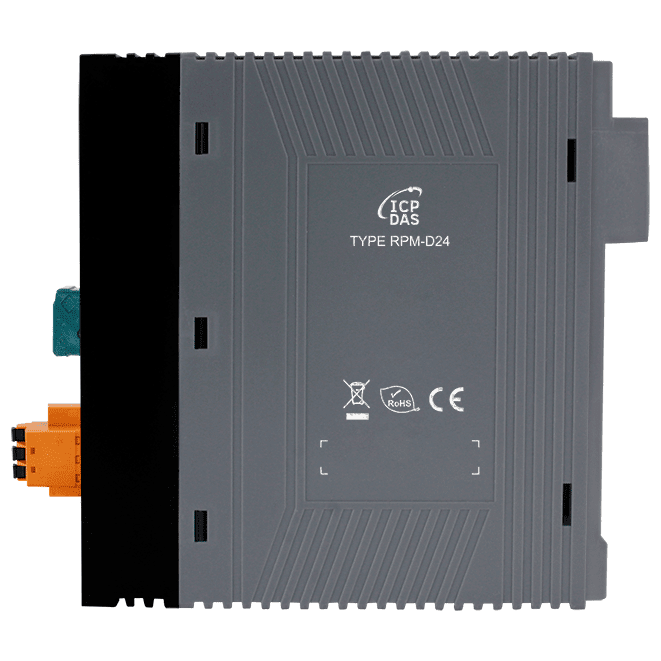

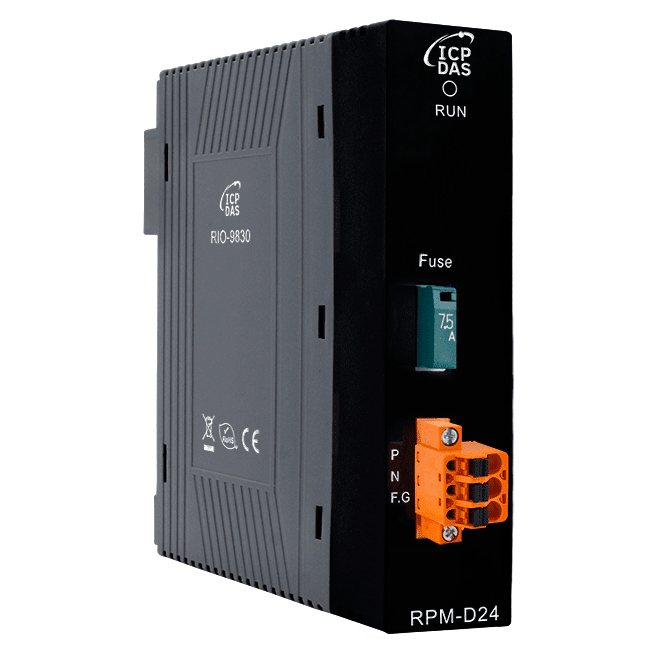

RPM-D24 Redundant Power Module, 24 VDC Input for RIO-98x0
Redundant 24 VDC power supply module for the RIO-98x0 I/O system, with 5A over-voltage fuse protection and an LED power status indicator.
- Dual-module design: the RIO-98x0 keeps running if one power module fails
- 24 VDC input supplying the communication and I/O modules of the RIO-98x0 system
- Built-in 5A fuse for over-voltage protection

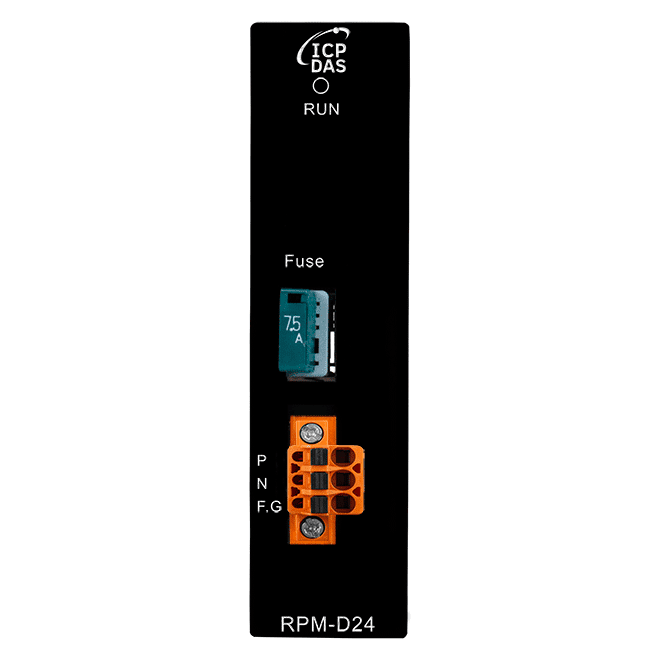

- LED indicator for the status of the external 24 VDC supply
- Reverse polarity protection
- EFT (IEC 61000-4-4) and ESD (IEC 61000-4-2) immunity
1.158,50 kr. pr. stk.
| 1–9 stk. | 1.158,50 kr. | |
|---|---|---|
| 10–30 stk. | 1.121,13 kr. | −3 % |
| 31+ stk. | 1.098,71 kr. | −5 % |
Produktinformation "RPM-D24 Redundant Power Module, 24 VDC Input for RIO-98x0"
RPM-D24 is a 24 VDC power module for the RIO-98x0 redundant I/O system. It feeds the communication and I/O modules of the system and is designed to be fitted in pairs, so the RIO-98x0 can keep running if one power module fails.
A built-in 5A fuse guards the system against over-voltage damage, and reverse polarity protection is included. An LED shows whether the external 24 VDC supply is present and healthy, making it straightforward to confirm power status during commissioning or routine checks.
Suited to engineers specifying a power-redundant RIO-98x0 backbone for building, factory or machine automation, the module also offers EFT and ESD immunity to IEC 61000-4-4 and IEC 61000-4-2.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
| Product type: | Power Module |
|---|---|
| Power input: | 24 VDC |
| Operating temperature: | -25 ~ +70 °C |
Specifikationer
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | Yes |
| ESD (IEC 61000-4-2) | Yes |
| LED Indicators | |
| Status | 1 x Power |
| Power | |
| Reverse Polarity Protection | Yes |
| Consumption | 0.24W (0.01A@24VDC) |
| Mechanical | |
| Dimensions (mm) | 33 x 129 x 130 |
| Environment | |
| Operating Temperature | -25 °C ~ +70 °C |
| Humidity | 5 ~ 95% RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
