RU-87P8-G 8-Slot RS-485 I/O Expansion Unit with Intelligent CPU Module
8-slot RS-485 remote expansion unit for I-87K series I/O modules, communicating over DCON (ASCII) on a multi-drop bus. Rated for -25 ~ +75 °C operation.
- Eight slots for I-87K series I/O modules, with support for more than 50 module types
- One RS-485 port for multi-drop topology, with 3000 VDC isolation and up to 115200 bps
- DCON protocol (ASCII format) for simple serial integration
- Hot-swap capable with automatic module configuration
- Dual watchdog, programmable power-on and Safe Values
- LED indicators for fault detection, plus rotary and DIP switches for addressing and communication settings
1.973,19 kr. pr. stk.
| 1–9 stk. | 1.973,19 kr. | |
|---|---|---|
| 10–30 stk. | 1.913,40 kr. | −3 % |
| 31+ stk. | 1.876,02 kr. | −5 % |
Produktinformation "RU-87P8-G 8-Slot RS-485 I/O Expansion Unit with Intelligent CPU Module"

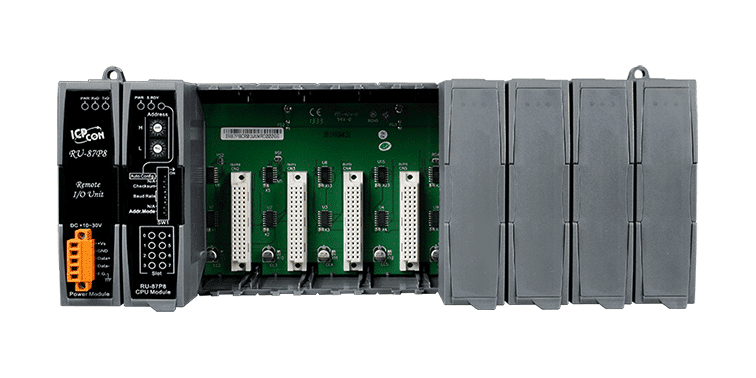

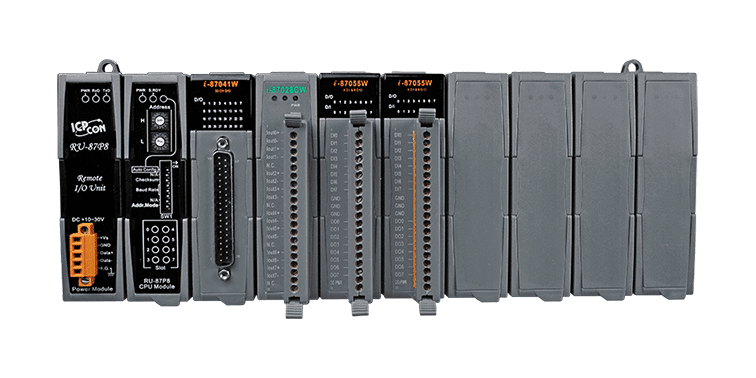

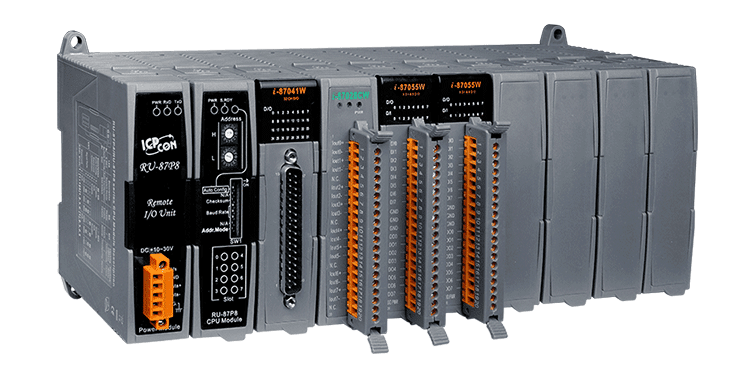

RU-87P8-G extends a remote RS-485 network with eight slots for I-87K series I/O modules. Its intelligent CPU module handles the modules locally and reports to the host over a single RS-485 port that supports a multi-drop topology, so one serial line can serve a distributed set of I/O points. The unit supports more than 50 I-87K modules, covering analogue and digital inputs and outputs as well as counter and frequency types.
The unit is built for harsh, electrically noisy sites. It accepts a wide +10 ~ 30 VDC supply and operates between -25 and +75 °C. Modules can be hot-swapped and are configured automatically, which keeps maintenance quick. Fault and error detection, a dual watchdog, programmable power-on behaviour and Safe Values help the system recover predictably after a fault.
Software support includes PACSDK, a LabVIEW driver, an InduSoft driver, a Linux driver and an OPC Server. Modules fitted to the RU-87P8-G can be integrated into a range of software environments. This gray-cover ordering variant mounts on DIN-rail or on a wall.
Applications
- Industrial monitoring and control
- Distributed I/O on RS-485 networks in harsh or electrically noisy environments
| Product type: | I/O Expansion Unit |
|---|---|
| Interface: | RS-485 |
| Protocol: | DCON |
| Ports: | 1 |
| Isolation: | 3000 VDC |
| Power input: | +10 ~ 30 VDC |
| Operating temperature: | -25 ~ +75 °C |
| Mounting: | DIN-rail, Wall |
Specifikationer
| Main Unit | |
|---|---|
| 64-bit Hardware Serial Number | Yes |
| LED Indicators | |
| Status | 1 x Power, 1 x System, 1 x Auto Configuration, 1 x Slot |
| I/O Expansion | |
| I/O Type | I-87K series |
| Slots | 8 |
| HMI | |
| Rotary Switch | 2 x 16 Position (0 ~ F) |
| DIP Switch | 8-bit for auto configuration, check sum and baud rate |
| COM Ports | |
| Ports | 1 x RS-485 (3000 VDC) |
| Baud Rate | 115200 bps Max. |
| Protocol | DCON (ASCII Format) |
| Power | |
| Input Range | +10 ~ 30 VDC |
| Consumption | 2.0 W |
| Mechanical | |
| Dimensions (mm) | 312 x 132 x 111 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Specifikationer som oplyst af producenten. Ret til ændringer forbeholdes.
